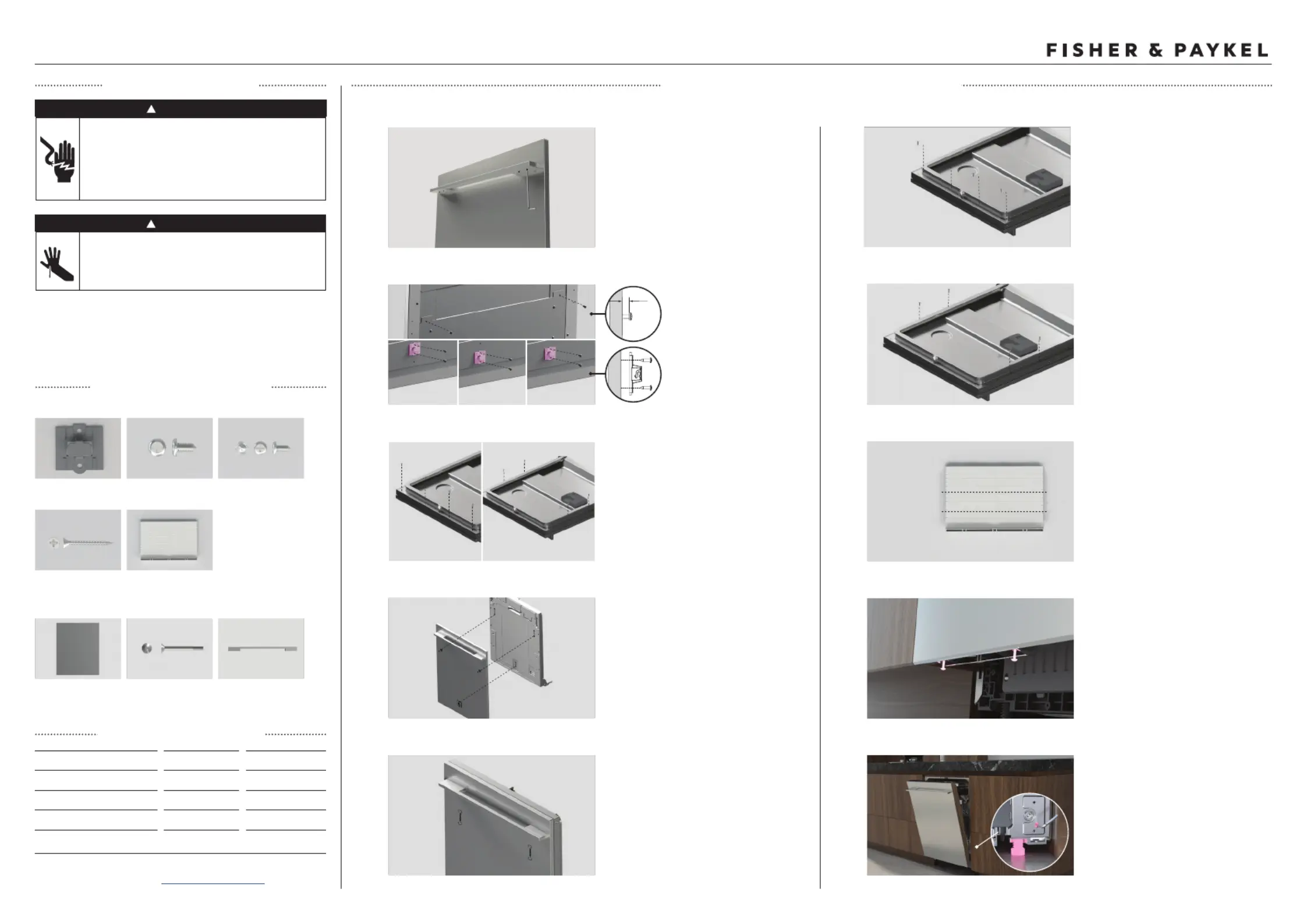

INSTALLATION GUIDE | Accessory door panels

DISHWASHER DOOR PANEL INSTALLATION

433206A 08.25 US CA

SAFETY & WARNINGS

For more information, visit www.fisherpaykel.com

WARNING!

Electric Shock Hazard

Failure to follow this advice may result in

electrical shock or death.

•

Read and follow the safety and warnings before

operating this appliance.

COMPONENTS REQUIRED

Slider (1) 4 x 13mm screws

(4)

WARNING!

Cut Hazard

Failure to use caution could result in injury.

• Take care: some edges may be sharp.

1. Install handle as per handle

installation guidance.

Supplied with appliance

3.9 x 38mm

screws (4)

3.5 x 11mm screws

(2)

Exit vent (1)

Supplied with door kit

Accessory panel

(1)

M3 x 31mm

screws (4)

Not supplied

9. Slot the exit vent into the

product and secure using two 3.5

x 11mm screws.

Handle (1)

4. Hang door panel.

6. Secure door panel by replacing

4 screws along the top edge of

inner door with M3 x 31mm screws.

7. Secure door panel by replacing

4 screws along the sides with 3.9 x

38mm screws.

10. Check door balance. Refer to

installation guide for details.

8. Cut the exit vent as shown.

A tall product with a standard size

door panel should be cut at line .

All other configurations can be cut

at line 7.

TALL DISHWASHER / STANDARD DOOR

STANDARD DISHWASHER /

STANDARD DOOR

TALL DISHWASHER / TALL DOOR

5. Align door panel by sliding the

accessory door until the top of the

door panel sits above the top of the

control panel.

3. Remove the four screws along the

top of the inner door.

Remove the four screws on the sides

of the inner door.

2. Secure the sliding bracket

and top as shown with 4 x

13mm screws.

Ensure ratchet is correctly

oriented, allowing the door

to be adjusted freely.

STANDARD DOOR

STANDARD DISHWASHER

STANDARD DOOR

TALL DISHWASHER

TALL DOOR

PRODUCT DIMENSIONS

Height (inch) Height (mm)

Standard door panel 28 1/4 717

Standard dishwasher 32 1/4 820

Tall door panel 29 7/8 759

Tall dishwasher 33 3/4 857

• Ensure a 1/16 (2mm) minimum ventilation

gap below the door is maintained.

• Ensure all packaging is removed and dis-

posed of responsibly.
