INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

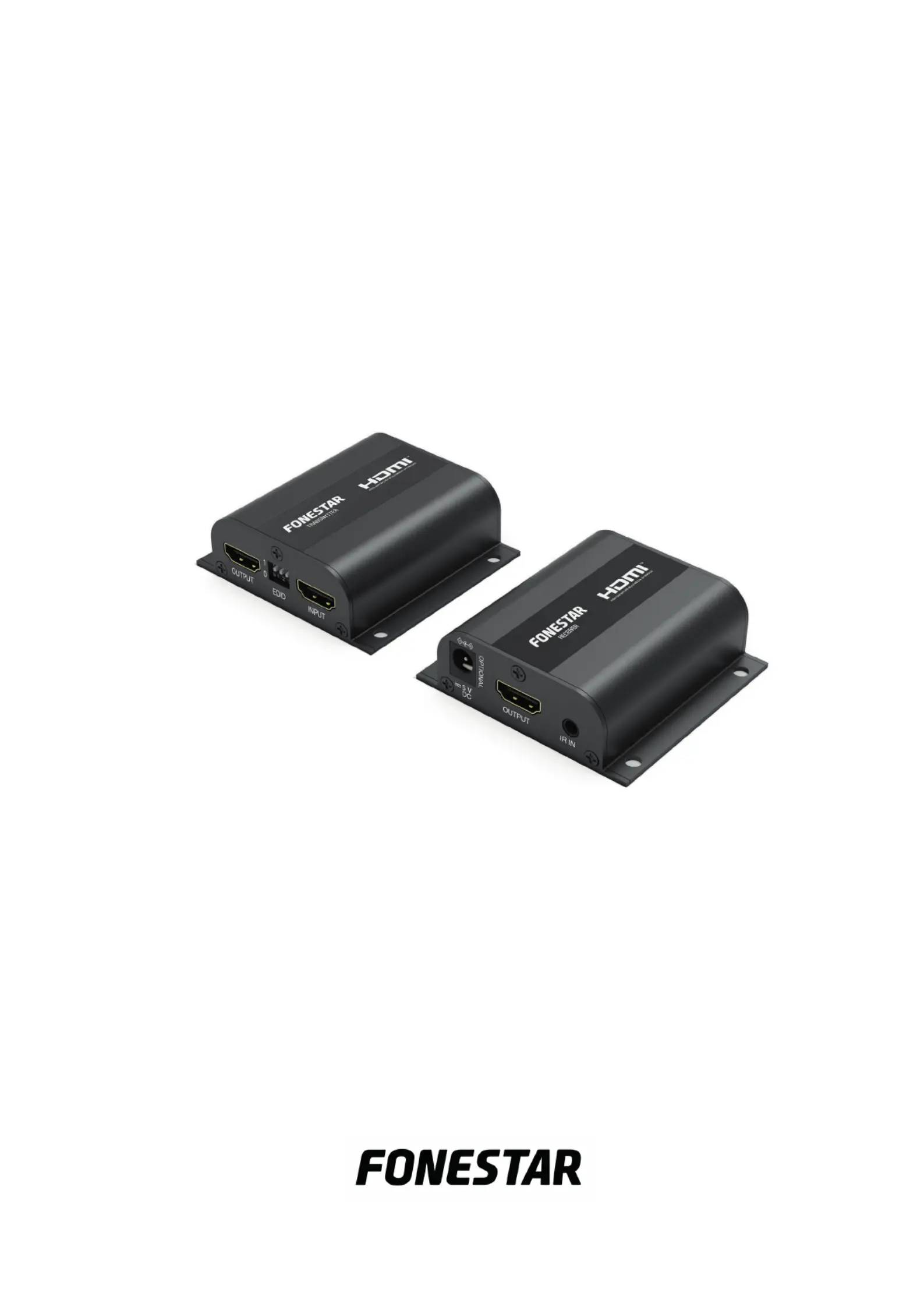

7937MXT
HDMI EXTENSION OVER CAT 6 CABLE
EXTENSIÓN HDMI POR CABLE CAT 6
PROLONGATION HDMI PAR CÂBLE CAT 6
EXTENSOR HDMI POR CABO CAT 6
EN
DESCRIPTION
- Cat 6 Cable HDMI Extension, which increases the transmission distance of HDMI 1080p@60Hz signals
up to 50 m via Cat 6 cable.
- The use of Cat 6 cables makes it easier to run the cable through pipes and walls, reducing the difficulty
and time required for installation.
- HDMI loop output in transmitter for local TV. In addition, its remote control extender allows remote control
of the video source from the TV position.
- Features DOWN-SCALING which function allows you to transform resolutions from 4K to Full HD 1080p.
CONTROLS AND FUNCTIONS

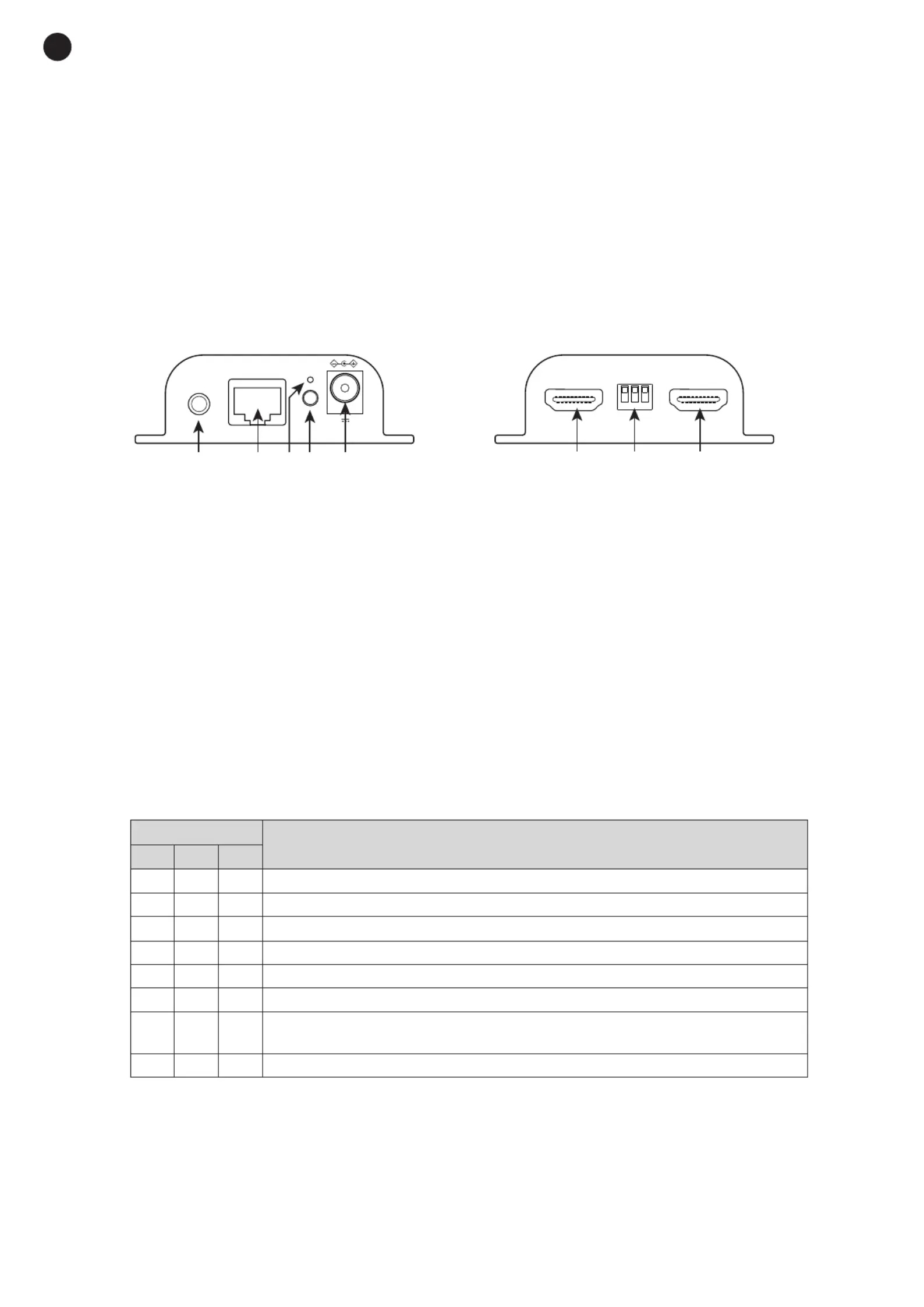

TRANSMITTER
RESET
OUTPUT EDID
1
0
CAT 6
SIGN.
IR OUT
INPUT
1 2 3 4 5 6 7 8
5 V DC
1.- : connection port for remote control extension transmitter (TX), 3.5 mm jack connector.IR OUT
2.- CAT 6: data cable connection port for signal transmission between transmitter and receiver, RJ45
connector. Supports PoC (Power over cable) to power the receiver through the same cable. The orange
LED lights up when there is a valid HDMI signal input. The green LED lights up when there is a power
supply.
3.- SIGNAL: output signal status LED indicator. The LED will remain fixed when a signal is detected at the
HDMI INPUT, otherwise this LED will flash.
4.- : transmitter device reset button.RESET
5.- : power connection for the supplied 5 V DC, 2 A power adapter5 V DC
6.- : AV signal output for connection of devices such as TV, projectors, etc. HDMI connector.OUTPUT
7.- EDID: EDID mode selection in the extender. Consult the following table to select the appropriate mode
to ensure the best visualisation in all the screens.
Place the DIP microswitches in the required position to select one of the following options:
EDID
Description
123
0 0 0 720p 60 Hz 2.1 CH
1 0 0 720p 60 Hz 7.1 CH
0 1 0 1080i 60 Hz 2.1 CH
1 1 0 1080i 60 Hz 7.1 CH
0 0 1 1080p 60 Hz 2.1 CH
1 0 1 1080p 60 Hz 7.1 CH
011
Copies to all outputs the EDID of the monitor connected to the HDMI output
of the transmitter (loop output).
1 1 1 1080p 3D 2.1 CH
8.- : AV signal input for connection of devices such as DVD, PC, etc. HDMI connector.INPUT
