Side 1/16

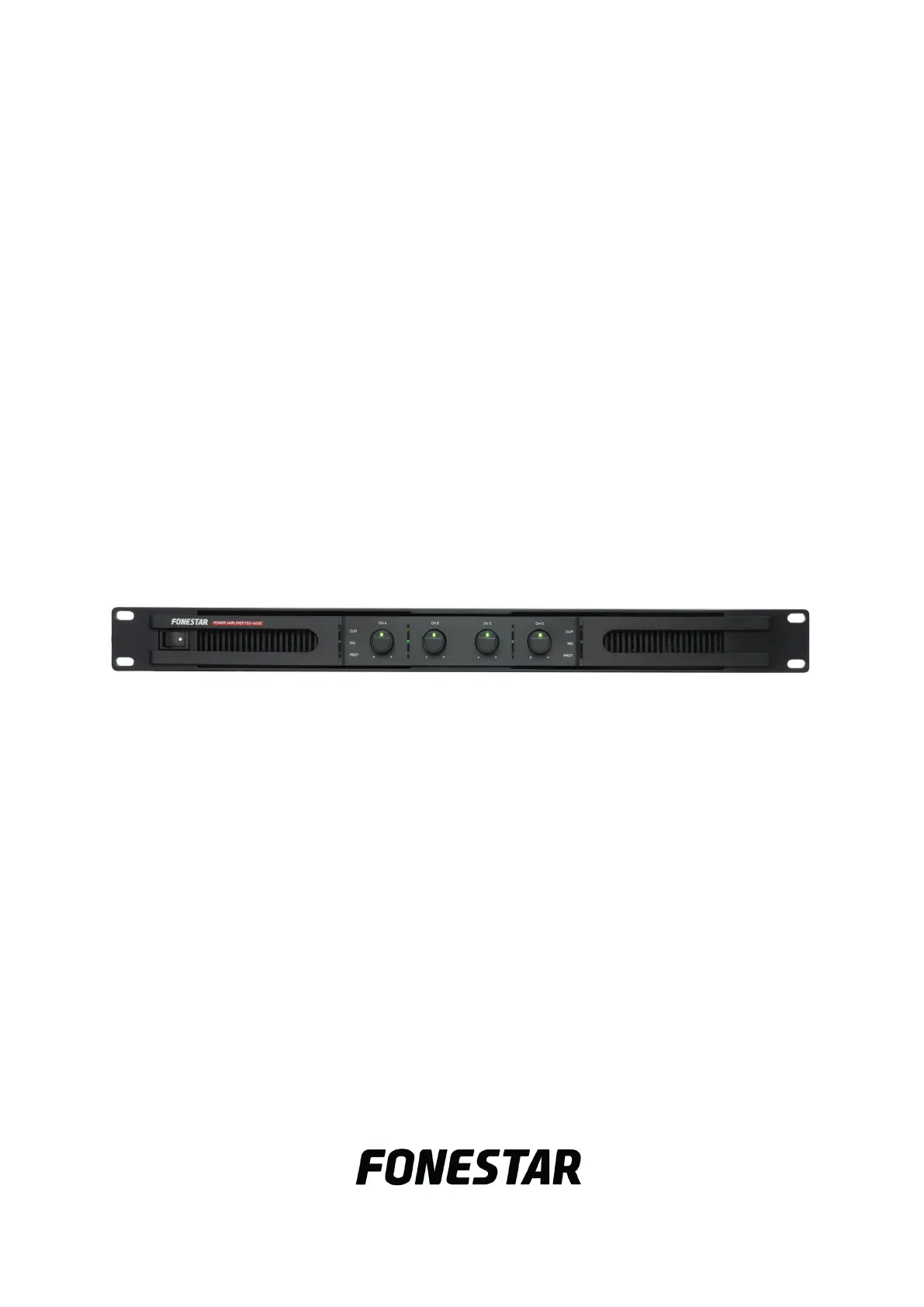

FSD-4500E

PA POWER AMPLIFIER

ETAPA DE POTENCIA DE MEGAFONÍA

AMPLIFICATEUR DE PUISSANCE DE SONORISATION

ETAPA DE POTÊNCIA DE MEGAFONIA

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

- 2 -

DESCRIPTION

- 4-channel PA power ampliﬁer.

- 100 V or 70 V output for PA installations.

- Highly efﬁcient and reliable class D ampliﬁer thanks to low-maintenance protection circuits

- Safe and easily connectable euroblock connectors.

- Excellent sound quality and little noise.

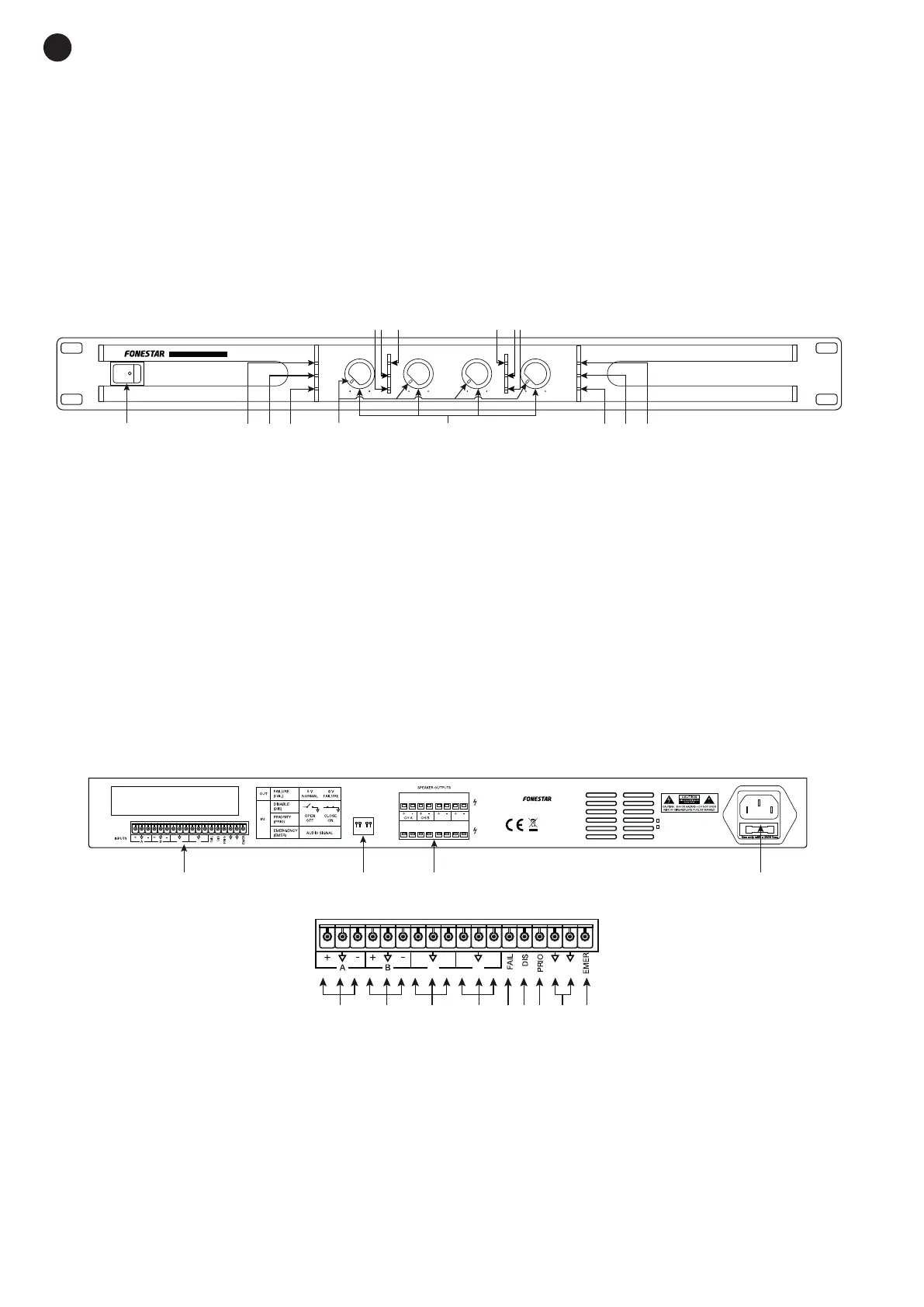

CONTROLS AND FUNCTIONS

FRONT PANEL

CH B CH C CH D

CLIP

SIG

PROT

CLIP

SIG

PROT

CH A

POWER AMPLIFIER FSD-4500E

2 3 4

234

1 2 3 4

+ - + -

C D

CLASS-D POWER AMPLIFIER

4 x 400 W RMS

FSD-4500E

~115 V AC. 50/60 Hz FUSE: T15AL 250 V

~230

V AC. 50/60 Hz FUSE: T10AL 250 V

POWER CONSUMPTION: 1,500 W

CH C CH D

OUTPUT SET

ACH

100 V

70 V

+ - + -

C D

a a b c d e fa a

2 3

1.- On/Off switch of the stage.

2.- CLIP: signal peak indicator light for each input. If the indicator light comes on, it is because the input

signal is too high. To solve this problem, reduce the volume of the input signal.

3.- SIG: signal status indicator light. It lights up when a signal is detected at the outputs.

4.- PROT: protection indicator light. It lights up when the temperature protection of the channel is activated.

When the protection is activated, the audio output of that channel is cut off. If this happens, turn off the

equipment, make sure that the air intake and exhaust slots are free of obstacles and lower the volume

of the input signals. Wait a few minutes for the unit to stabilise before switching it on again.

5.- Status indicator light.

- Green: the stage is on.

- Red: priority input active.

6.- CH A/CH B/CH C/CH D: volume controls for output channels CH A, CH B, CH C and CH D respectively.

REAR PANEL

CH B CH C CH D

CLIP

SIG

PROT

CLIP

SIG

PROT

CH A

POWER AMPLIFIER FSD-4500E

2 3 4

234

651

1 2 3 4

+ - + -

C D

CLASS-D POWER AMPLIFIER

4 x 400 W RMS

FSD-4500E

~115 V AC. 50/60 Hz FUSE: T15AL 250 V

~230

V AC. 50/60 Hz FUSE: T10AL 250 V

POWER CONSUMPTION: 1,500 W

CH C CH D

OUTPUT SET

ACH

100 V

70 V

+ - + -

C D

a a b c d e fa a

2 3

1.- Euroblock connector.

CH B CH C CH D

CLIP

SIG

PROT

CLIP

SIG

PROT

CH A

POWER AMPLIFIER FSD-4500E

2 3 4

234

651

1 2 3 4

+ - + -

C D

CLASS-D POWER AMPLIFIER

4 x 400 W RMS

FSD-4500E

~115 V AC. 50/60 Hz FUSE: T15AL 250 V

~230

V AC. 50/60 Hz FUSE: T10AL 250 V

POWER CONSUMPTION: 1,500 W

CH C CH D

OUTPUT SET

ACH

100 V

70 V

+ - + -

C D

a b c d e fa a

2 3

a.- A/D: balanced audio inputs, each input will be played on the output channel named with the same

letter (input A on channel CH A and input B on channel B, etc). If the input signal is unbalanced,

the negative pole (-) will be free.

b.- FAIL: system failure indicator signal to monitor the equipment remotely. This output will remain at

5 V if the operation is normal and 0 V when a fault is detected (disabled/protection/inactive).

c.- DIS: input to enable/disable the stage remotely to make modiﬁcations to the wiring without having

to switch off the equipment from the front button. This input is in open circuit (stage enabled), the

circuit must be closed to disable the stage. When the stage is disabled, it is switched off, the LEDs

remain lit and the FAIL signal will go from 5 V to 0 V indicating a system fault.
