Side 1/28

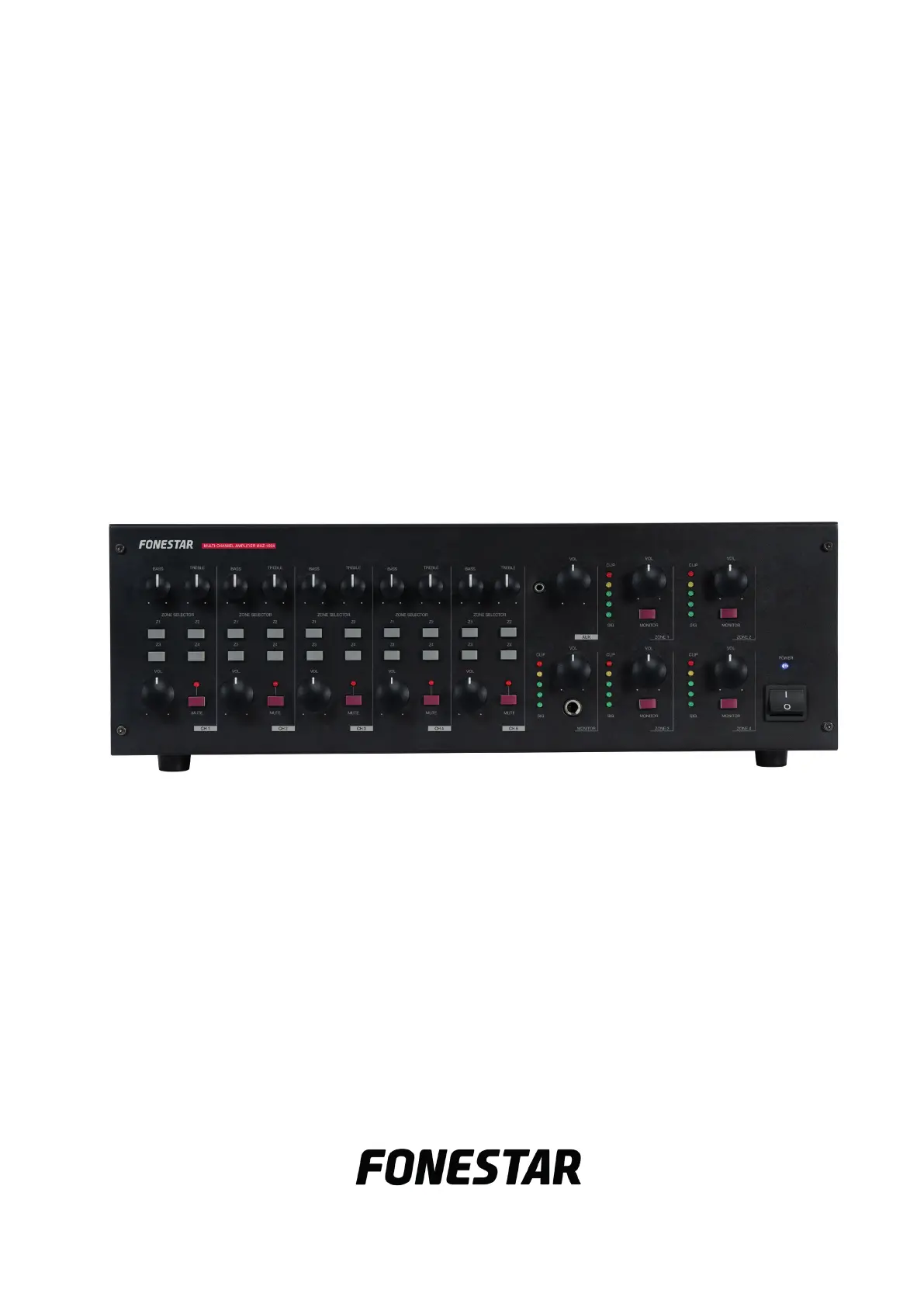

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

MAZ-1504

MATRIX AND MULTI-CHANNEL AMPLIFIER

AMPLIFICADOR MATRICIAL Y MULTICANAL

AMPLIFICATEUR MATRICIEL ET MULTI CANAUX

AMPLIFICADOR DE MATRIZ E MULTICANAL

- 2 -

DESCRIPTION

- The MAZ-1504 is a multi-channel ampliﬁer with a 5-channel input matrix and 4 output zones with

independent volume control. Output power 4 x 150 W RMS, speaker output 4-8 Ω and high impedance

lines 100, 75 and 25 V and line level. Designed for use in public address installations with 100 V line

loudspeakers or mono installations with low impedance loudspeakers, requiring different audio for each

of the output zones.

- The power preampliﬁer and assignment matrix has 3 selectable balanced mic or line inputs, 2 auxiliary

line inputs and 1 tel. paging switchboard input assignable to each output zone. It features phantom

power in the CH 1 to CH 3 inputs and priority by signal level and by contact closure.

- Each zone has indicator LEDs to display the signal level.

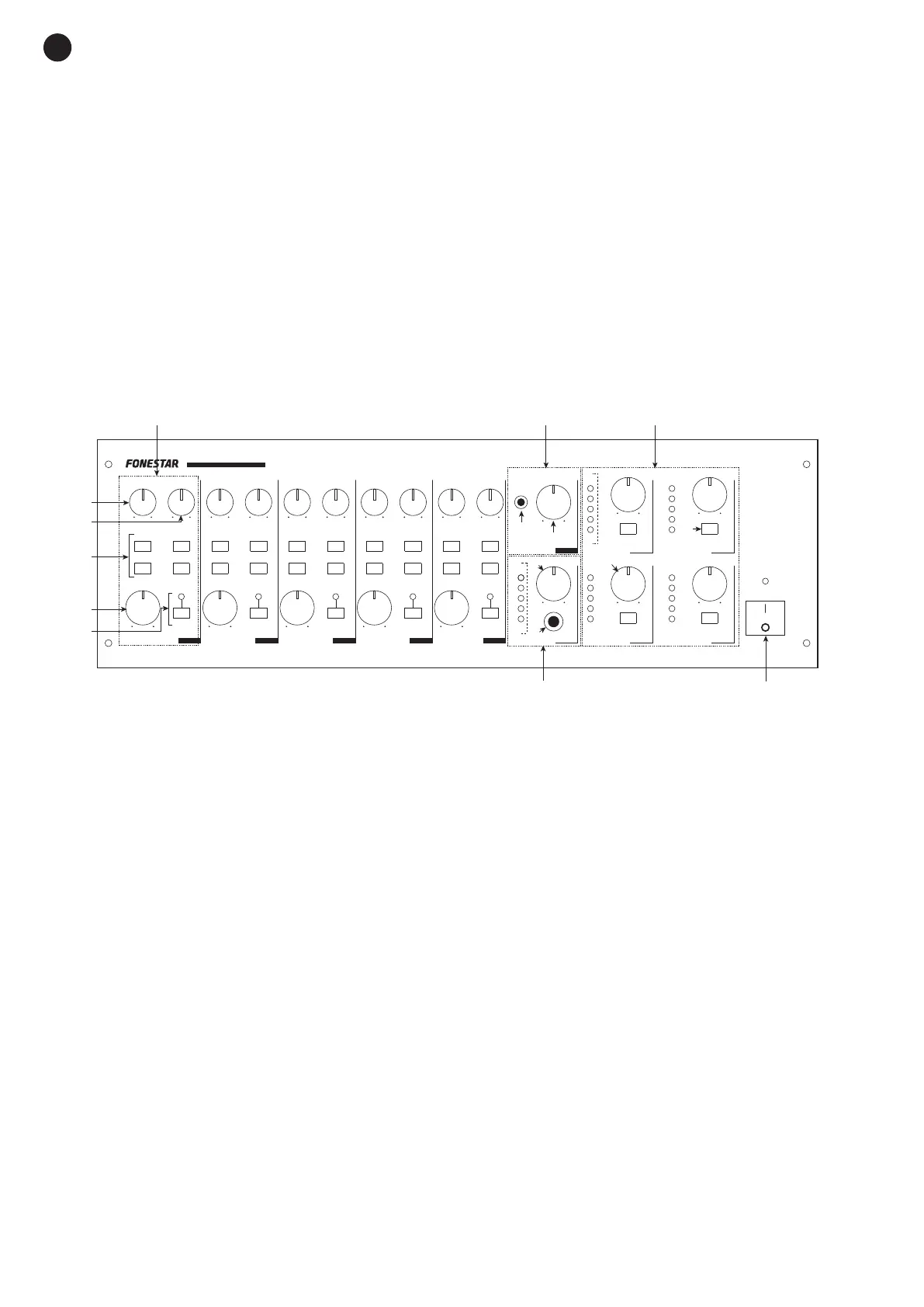

CONTROLS AND FUNCTIONS

REAR PANEL

VOL

MONITOR

CLIP

SIG

VOL

MONITOR

CLIP

SIG

VOL

MONITOR

CLIP

SIG

CLIP

SIG

VOL

CH 1

CH 2 CH 3 CH 4 CH 5 MONITOR ZONE 3 ZONE 4

AUX ZONE 1 ZONE 2

BASS

ZONE SELECTOR

MUTE

TREBLE

VOL

MONITOR

POWER

CLIP

SIG

BASS

ZONE SELECTOR

MUTE

TREBLE

BASS

ZONE SELECTOR

MUTE

TREBLE

BASS

ZONE SELECTOR

MUTE

TREBLE

BASS

ZONE SELECTOR

MUTE

TREBLE

VOL

VOLVOLVOLVOLVOL

MULTI-CHANNEL AMPLIFIER MAZ-1504

CH 1

CH 2CH 3CH 4CH 5

TEL. PAGING

230 V 115 V

CAUTION : SHOCK HAZARD - DO NOT OPEN

RISK OF FIRE-REPLACE FUSE AS MARKED

CA UT IO N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

POWER CONSUMPTION: 380 W

~110-120 V AC, 50/60 Hz, FUSE: 6.3 A 250 V

~220-240 V AC. 50/60 Hz, FUSE: 3.15 A 250 V

MAZ-1504

MULTI-CHANNEL AMPLIFIER

4 x 165 W MAX., 4 x 150 W RMS

MONITOR

LINE OUT

MONITOR

1 W 8 Ω

PRIORITY TEL PAGING

T R G

1 2 3 4

VOL

OFF

GAIN

ZONE

SELECTOR

PHANTOM +15 V

LINE MIC

PHANTOM +15 V

LINE MIC

PHANTOM +15 V

LINE MIC

GAINGAINGAINGAIN

INPUTS

- +

ZONE 1

COM

POWER AMP. OUTPUT

LINE OUT BAL. UNBAL.

4 Ω 25 V 70 V 100 V8 Ω

- +

ZONE 2

COM

POWER AMP. OUTPUT

LINE OUT BAL. UNBAL.

4 Ω 25 V 70 V 100 V8 Ω

- +

ZONE 3

COM

POWER AMP. OUTPUT

LINE OUT BAL. UNBAL.

4 Ω 25 V 70 V 100 V8 Ω

- +

ZONE 4

COM

POWER AMP. OUTPUT

LINE OUT BAL. UNBAL.

4 Ω 25 V 70 V 100 V8 Ω

1 2 3

1 2

101112

3 4 5 7 86 9

1.- CH 1-5: input controls:

a.- BASS: boosts/attenuates low frequencies.

b.- TREBLE:boosts/attenuates high frequencies.

c.- ZONE SELECTOR (Z1-Z4): selection buttons that allow you to assign the input signal to one or

more output zones. To do this, press the buttons of the output zones (Z1, Z2, Z3 and/or Z4) on

which you want the input channel to be heard.

d.- VOL: the output volume control of the input that is sent to the allocation matrix.

e.- MUTE: indicator LED and control to turn on/off the audio output of the input.

2.- AUX: auxiliary input to be sent to all output zones.

a.- Auxiliary audio input connector, 3.5 mm stereo jack.

b.- VOL: the output volume control of the input that is sent to the allocation matrix.

3.- ZONE 1-4: output zones controls:

a.- SIG, CLIP: LED output signal level indicators. The signal should be kept in the green zone and the

yellow LED may light up occasionally. If the red CLIP LED lights up, this indicates that the signal is

saturating so that signal distortion may occur and the ampliﬁer components are being overdriven.

To avoid damage to the equipment and to prevent the protection systems from being activated and

to ensure that the signal is reproduced correctly, check the output volume of the inputs assigned

to this output zone and the input gain of these inputs until the signal remains in the green zone.

b.- MONITOR: selection button to monitor the output zone signal using the MONITOR output.

c.- VOL: adjust the output level of the zone.

4.- POWER: LED indicator and on/off switch of the ampliﬁer.
