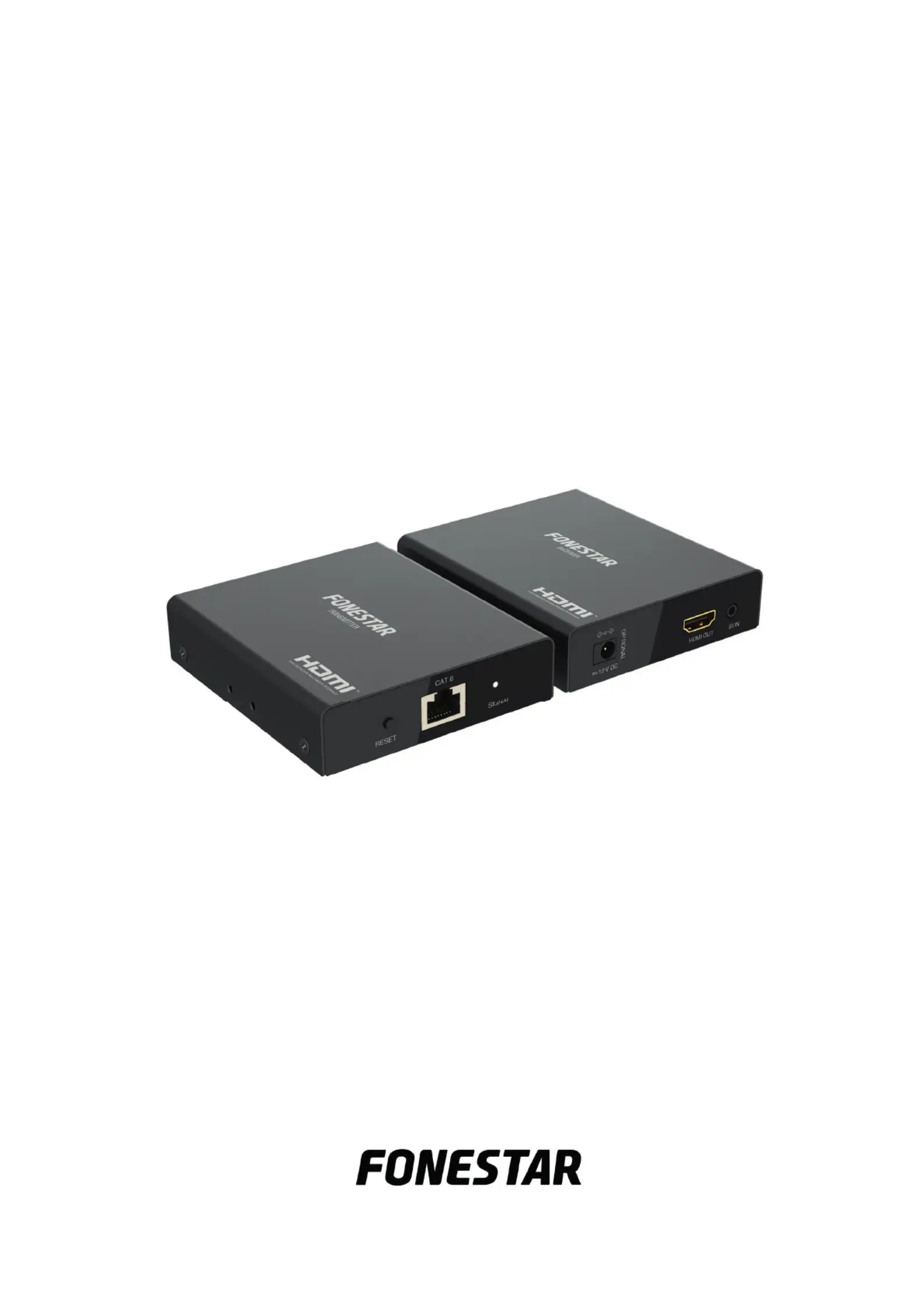

- Cat 6 Cable HDMI Extension which increases the transmission distance of HDMI UHD 4K@60Hz and
FULL HD 1080 signals up to 70 m via Cat 6 cable.
- The use of Cat 6 cables makes it easier to run the cable through pipes and walls, reducing the difficulty
and time required for installation.
- HDMI loop output in transmitter for local TV. In addition, its remote control extender allows remote control
of the video source from the TV position.
- Features DOWN-SCALING which function allows you to transform resolutions from 4K to Full HD 1080p.
1.- : transmitter device reset button.RESET
2.- CAT.6: data cable connection port for signal transmission between transmitter and receiver, RJ45
connector. Supports PoC (Power over cable) to power the receiver through the same cable. The orange
LED lights up when there is a valid HDMI signal input. The green LED lights up when there is a power
3.- SIGNAL: output signal status LED indicator. The LED will remain fixed when a signal is detected at the
HDMI INPUT, otherwise this LED will flash.
4.- : power connection for the supplied 12 V DC, 1 A power adapter. 12 V DC
5.- : AV signal output for connection of devices such as TV, projectors, etc. HDMI connector.OUTPUT
6.- : AV signal input for connection of devices such as DVD, PC, etc. HDMI connector.INPUT
7.- : connection port for remote control extension transmitter (TX), 3.5 mm jack connector.IR OUT
1.- 12 V DC (optional): power connection for the supplied 12 V DC, 1 A power adapter. The receiving
device can be powered through the data cable via PoC, use a power adapter if the signal is not stable
due to the length of the data cable.
2.- : AV signal output for connection of devices such as TV, projectors, etc. HDMI connector.OUTPUT
3.- : connection port for remote control extension receiver (RX), 3.5 mm jack connector. IR IN
4.- : receiver device reset button.RESET
5.- CAT.6: data cable connection port for signal transmission between transmitter and receiver, RJ45
connector. Supports PoC (Power over cable) to power the receiver through the same cable. The orange
LED lights up when there is a valid HDMI signal input. The green LED lights up when there is a power
6.- LINK: connection status indicator light between transmitter and receiver The led will flash when it
detects poor connection, otherwise it will remain fixed.
