- The induction loop amplification system easily provides hearing aids to places such as a customer
service desk, an office, a locker, etc. The loop amplifier provides a clear signal and without background
noise that is received by the user through their hearing aids with the tele-coil (T-coil) function.
- Improves communication by clearly transmitting the message and, in turn, reducing the effort to
- Ideal for noisy places where audio amplification of hearing aids does not provide good results.
- Easy installation and low maintenance.
- The amplifier can cover a larger area by adapting the loop dimensions, up to approximately 20 m² .
- Auxiliary help for users with hearing aids or implants that facilitates auditory accessibility in the
environment, both for orientation and mobility in space, and for the perception of sound information of
- The installation must comply with the requirements of EN IEC 60118-4:2015-A1:2018 (Electroacoustics
- Hearing aids - Part 4 Induction-loop systems for hearing aid purposes - System performance
requirements), to ensure perceived signal quality by maximizing the intelligibility of oral communication
with users of hearing aids or cochlear implants, a large and growing group.
- The Tele-Coil function of the hearing aids allows to activate a coil that receives the magnetic field created
by the induction loop and converts it into an alternating voltage which is then converted into an audio

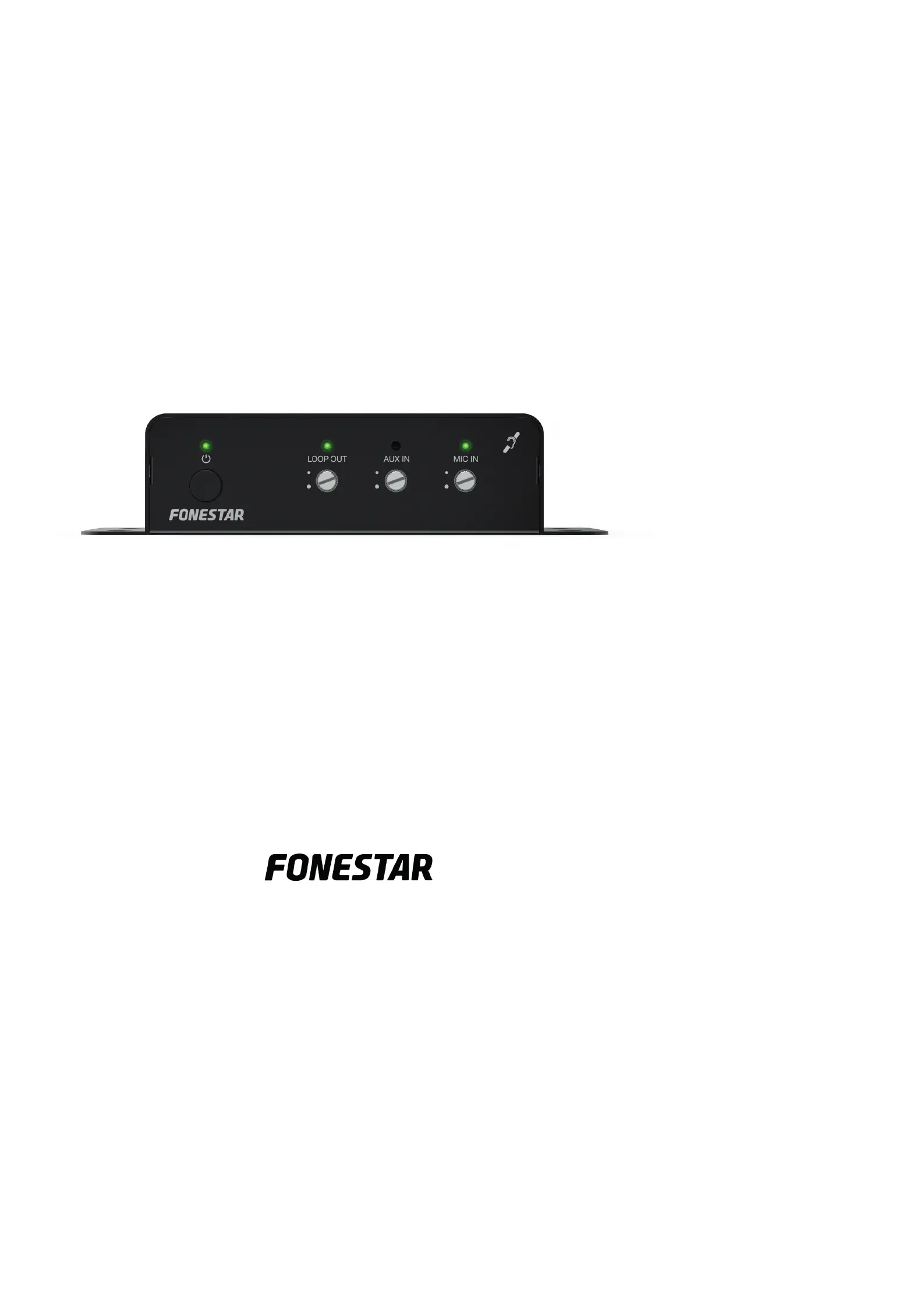

1.- : amplifier on/off switch and indicator light.
2.- LOOP OUT: volume control of the rear panel LOOP OUT induction loop output and indicator light
indicating signal presence at the LOOP OUT output.
3.- AUX IN: volume control for the AUX IN input and indicator light indicating signal presence at the AUX
4.- MIC IN: volume control on the rear panel MIC IN input and indicator light indicating signal presence at
5.- : condenser clip-on microphone input with phantom power 5 V, 3.5 mm TS jack. MIC IN
6.- : auxiliary input, 3.5 mm TRS jack connector.AUX IN
7.- : amplifier output for induction loop connection. LOOP OUT
8.- AC power input. Use the supplied power adapter.
