Side 1/44

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

DMX-83

192-CHANNEL DMX 512 CONTROLLER

CONTROLADORA DMX 512 DE 192 CANALES

TABLE DMX 512 DE 192 CANAUX

CONTROLADORA DMX 512 DE 192 CANAIS

- 2 -

DESCRIPTION

- DMX controller 512 of 192 channels Allows you to control lighting units connected on the same line,

with 12 accesses of up to 16 channels. It has 6 chase memories with 240 programmable scenes each,

distributed among 30 memory banks of 8 scenes each.

- Manual, automatic or sound activated control by means of the built-in microphone.

- Allows you to control and program spectacular light shows with speed and efﬁciency in party rooms,

pubs, discotheques and on stages.

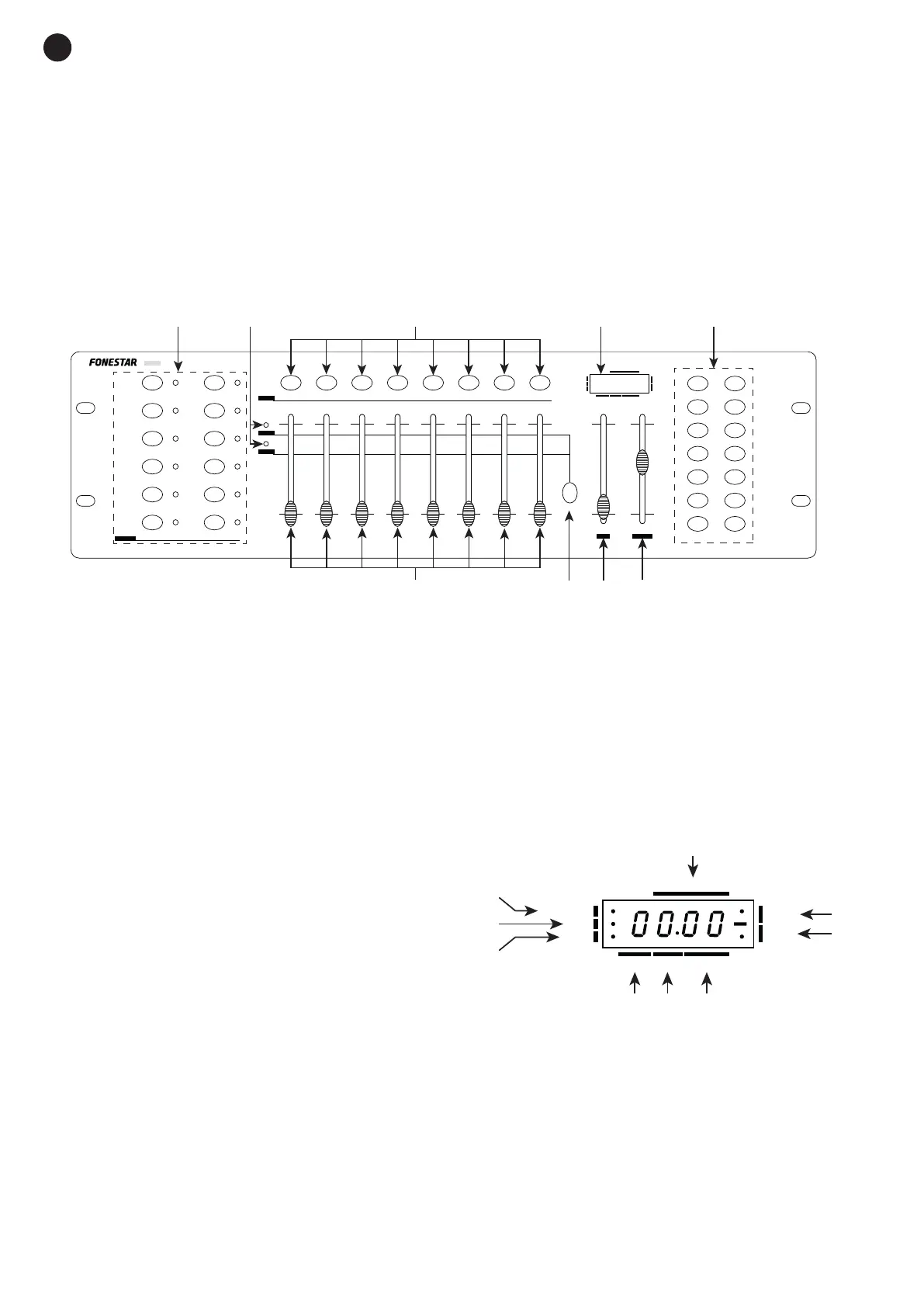

CONTROLS AND FUNCTIONS

FRONT PANEL

PAGE A / B

1 2 3 4 5 6 7 8

BANK UP

CHASE 1

BANK DOWN

CHASE 2

PROGRAM

CHASE 3

ADD

CHASE 4

AUTO / DEL

CHASE 5

MUSIC / BANK COPY

CHASE 6

DISPLAY / TAPSYNC

BLACKOUT

CHASE SCENE BANK

STEP / TIME

MUSIC

AUTO

BLACKOUT

STEP

PROG

9’59”

0.1”

0”

30”

SCANNERS

PAGE B

PAGE A

SCENES

SPEED FADE TIME

DMX POLARITY

DMX OUT

DMX-83

DMX CONTROLLER

DMX-83

, 3

9 V DC,1A

CHASE SCENE BANK

STEP / TIME

MUSIC

AUTO

BLACKOUT

STEP

PROG

BANK UP

CHASE 1

BANK DOWN

CHASE 2

PROGRAM

CHASE 3

ADD

CHASE 4

AUTO / DEL

CHASE 5

MUSIC / BANK COPY

CHASE 6

DISPLAY / TAPSYNC

BLACKOUT

1 2

3 5

6 7

8 9

d e f

1 2 3 4

1.- SCANNERS 1-12: buttons that allow you to activate or deactivate each scanner. You can activate as

many scanners as you want at the same time to control different groups of lighting ﬁxtures. The LED

indicator on each scanner will appear green when it is active. For more information see the DEFINITION

section.

2.- PAGE A, PAGE B: LED indicators for the PAGE A/B button selection.

3.- SCENES: buttons that allow you to activate or record different scenes. For more information see the

DEFINITION section.

4.- A display which shows all the information concerning the instantaneous value of the selected channel

and the programming that has been executed:

PAGE A / B

1 2 3 4 5 6 7 8

BANK UP

CHASE 1

BANK DOWN

CHASE 2

PROGRAM

CHASE 3

ADD

CHASE 4

AUTO / DEL

CHASE 5

MUSIC / BANK COPY

CHASE 6

DISPLAY / TAPSYNC

BLACKOUT

CHASE SCENE BANK

STEP / TIME

MUSIC

AUTO

BLACKOUT

STEP

PROG

9’59”

0.1”

0”

30”

SCANNERS

PAGE B

PAGE A

SCENES

SPEED FADE TIME

DMX POLARITY

DMX OUT

DMX-83

DMX CONTROLLER

DMX-83

, 3

9 V DC,1A

CHASE SCENE BANK

STEP / TIME

MUSIC

AUTO

BLACKOUT

STEP

PROG

BANK UP

CHASE 1

BANK DOWN

CHASE 2

PROGRAM

CHASE 3

ADD

CHASE 4

AUTO / DEL

CHASE 5

MUSIC / BANK COPY

CHASE 6

DISPLAY / TAPSYNC

BLACKOUT

1 2

3 5

6 7 8 9

d e f

1 2 3 4

a.- Active blackout function indicator.

b.- Step indicator.

c.- Programming mode activation indicator.

d.- Indicates the digits of the active chase

number.

e.- Indicates the digit of the active scene number.

f.- Indicates the digit of the bank number in

which the scenes are stored.

g.- Indicates the digits of the time assigned with FADE TIME and SPEED controls.

h.- Sound activation mode indicator.

i.- Automatic mode indicator.
