INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES/

MODE D’EMPLOI/MANUAL DE INSTRUÇOES

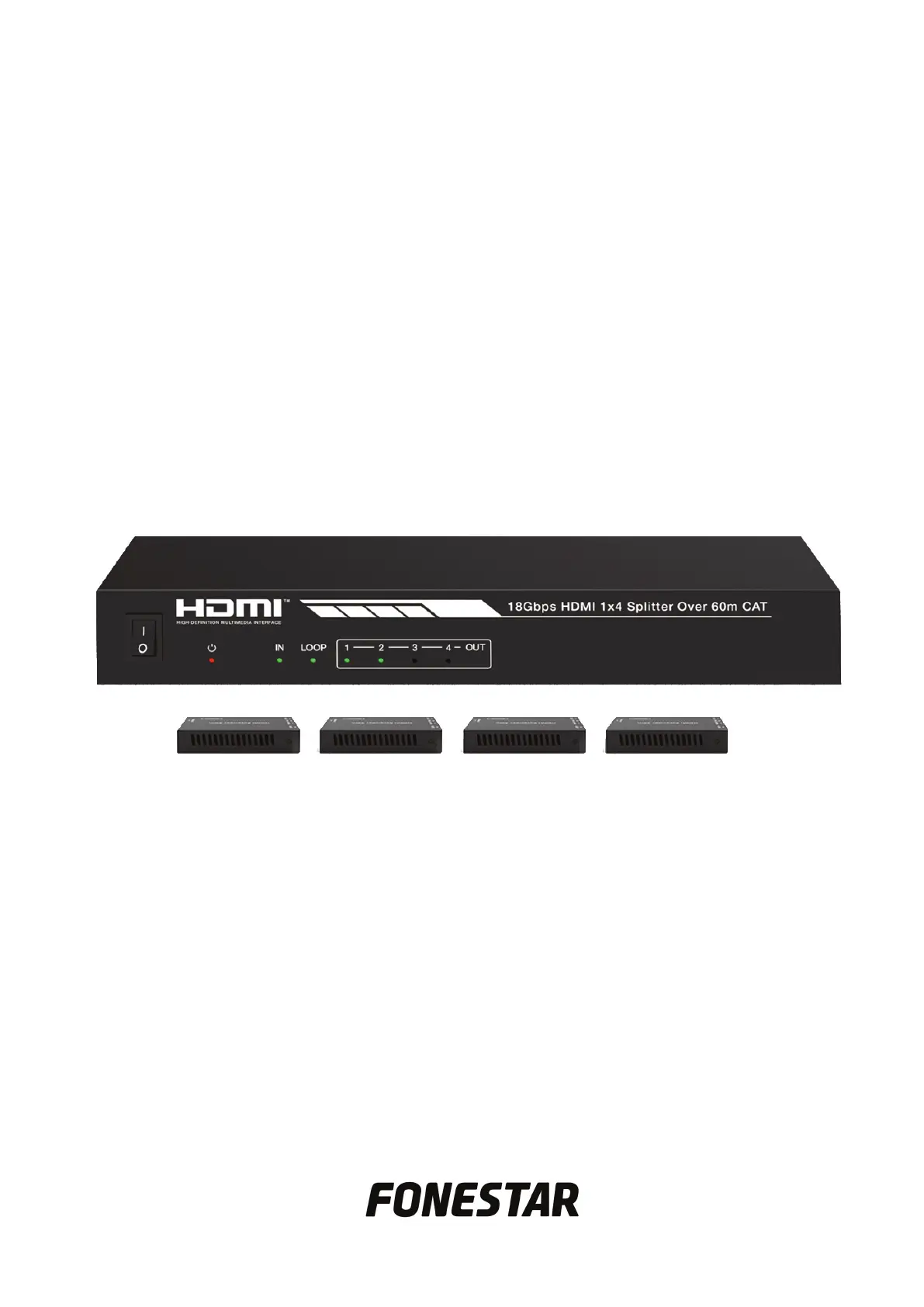

FO-22CAT4

1 x 4 HDMI DISTRIBUTOR EXTENSION

DISTRIBUIDOR EXTENSIÓN HDMI 1 x 4

DISTRIBUTEUR PROLONGATION HDMI 1 x 4

DISTRIBUIDOR EXTENSOR HDMI 1 x 4

FO-22CAT4_MANUAL_(EN_ES_FR_PT)_A5c_20210219-2021.qxp_Maquetación 1 19/2/21 9:13 Página 1

DESCRIPTION

- 1 x 4 HDMI extension distributor for Cat 6 / 6a / 7 cable.

- UHD resolution 4k @ 60Hz and lower.

- Bandwidth 18 Gbps.

- Transmission distance up to 60 m.

- HDMI loop output on local TV transmitter.

- Analog and digital audio extractor.

- EDID function, manually select the optimal resolution of all TVs.

- Micro USB port for serial port update and control.

- PoC power of the receivers.

- According to IEEE-568B standard.

- Remote control extenders.

CONTROLS AND FUNCTIONS

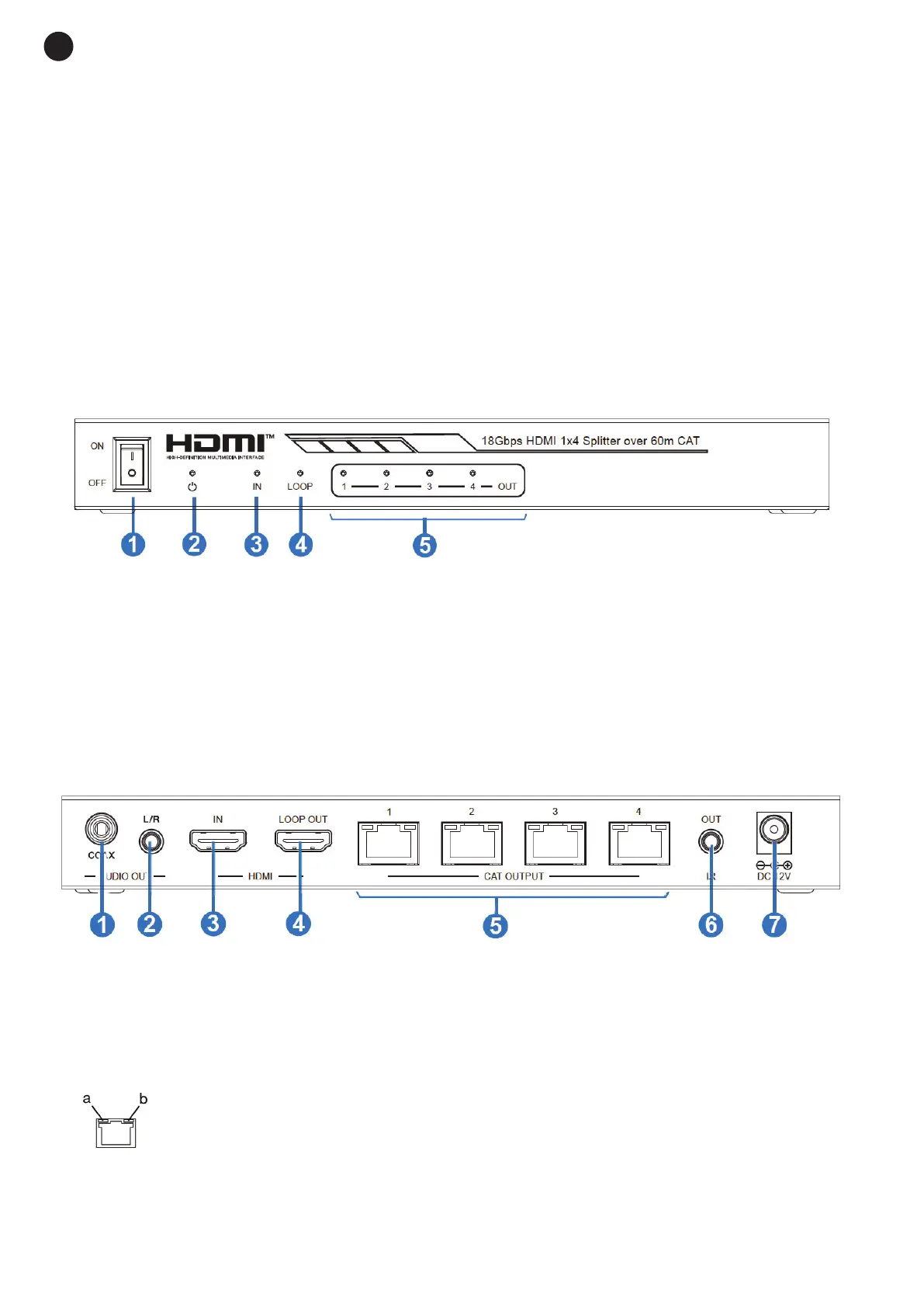

TRANSMITTER

1.- Transmitter on/off button.

2.- q: transmitter LED power indicator.

3.- IN: input source LED. This indicator will light up when it detects that there is a powered device connected

to the IN port on the rear panel.

4.- LOOP: LOOP OUT output LED. This indicator will light up when it detects that there is a powered device

connected to the LOOP OUT port on the rear panel.

5.- OUT 1~4: LEDs for the CAT OUTPUT outputs. This indicator will light up when it detects that there is a

powered device connected to the corresponding CAT OUTPUT port on the rear panel.

REAR

1.- COAX: digital audio output to connect an amplifier. RCA connector.

2.- L/R: analogue audio output to connect an amplifier. 3'5 mm stereo jack connector

3.- HDMI IN: signal inputs for connection of a DVD, PC, etc. HDMI connector.

4.- LOOP OUT: AV signal output for connecting TV, projectors, etc. HDMI connector.

5.- CAT OUTPUT: output connectors for the 4 supplied extenders/receivers. Use Cat 6/6a/7 cable for

connection.

- a: connection indicator between transmitter and receiver. Lights up when connected.

- b: signal indicator between transmitter and receiver. Lights up when signal transmission is

detected between them.

6.- IR OUT: outputs for connection of the IR emitter of the remote control.

7.- DC 12V: power supply connection for the supplied power adapter.

- 2 -

FO-22CAT4_MANUAL_(EN_ES_FR_PT)_A5c_20210219-2021.qxp_Maquetación 1 19/2/21 9:13 Página 2
