Side 1/36

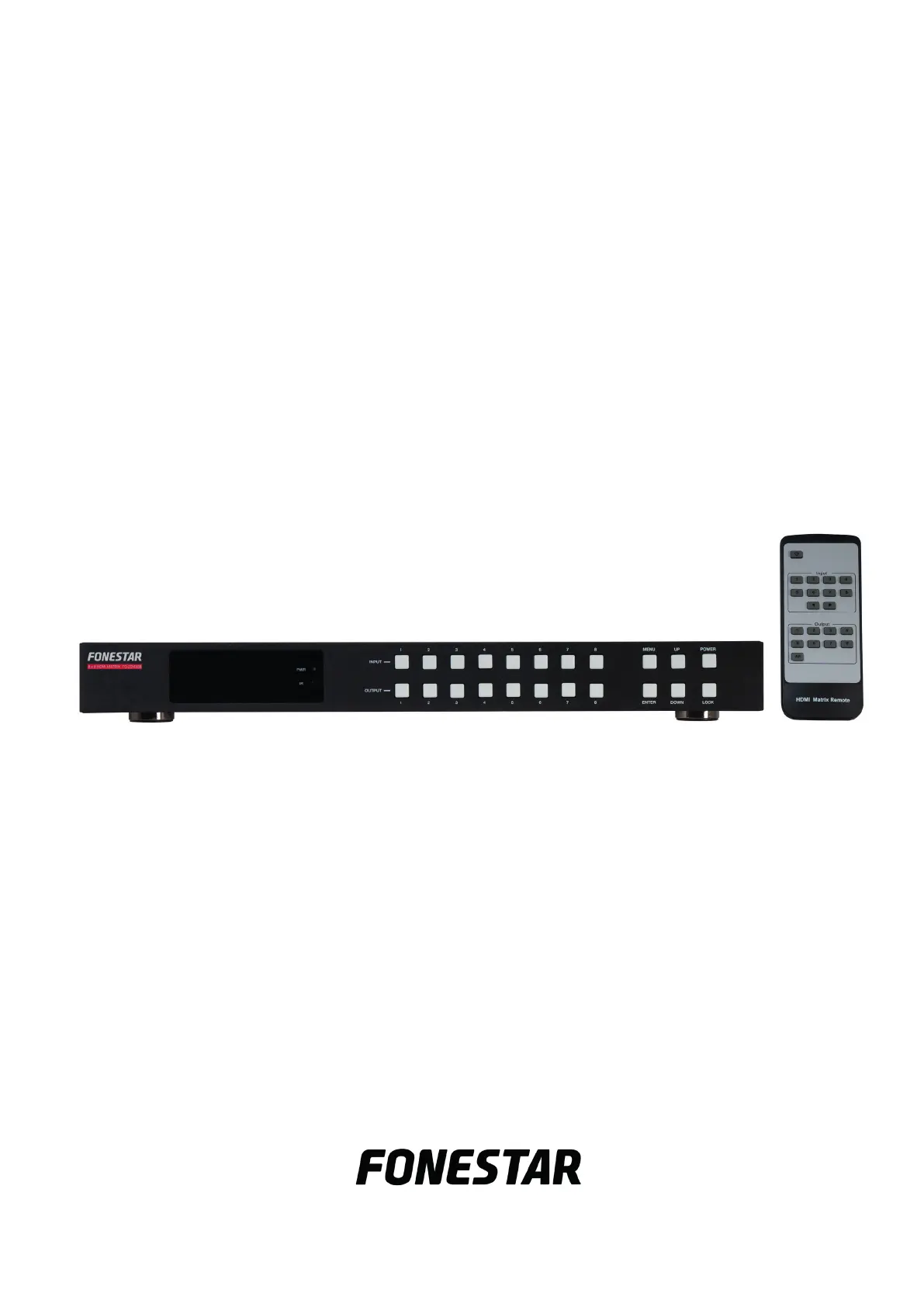

INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES
FO-22MX88
8 x 8 HDMI MATRIX
MATRIZ HDMI 8 X 8
MATRICE HDMI 8 x 8
MATRIZ HDMI 8 x 8
EN
- 2 -
DESCRIPTION
- It allows you to connect 8 HDMI sources UHD 4K@60Hz, YUV 4:4:4, to output them independently or
simultaneously to 8 HDMI outputs. All HDMI inputs can be freely mapped to any HDMI output.
- It has coaxial digital audio extractor and stereo analogue 3.5 mm , in each of the outputs.
- Supports HDR10, HDR10+, Dolby Vision, HLG, ARC, CEC and EDID smart management.
- Its DOWN-SCALING function allows you to transform resolutions from 4K to Full HD 1080p.
- Remote control extender.
- Allows control via front panel buttons and remotely via IR remote control. RS-232 communication
protocol or web interface.

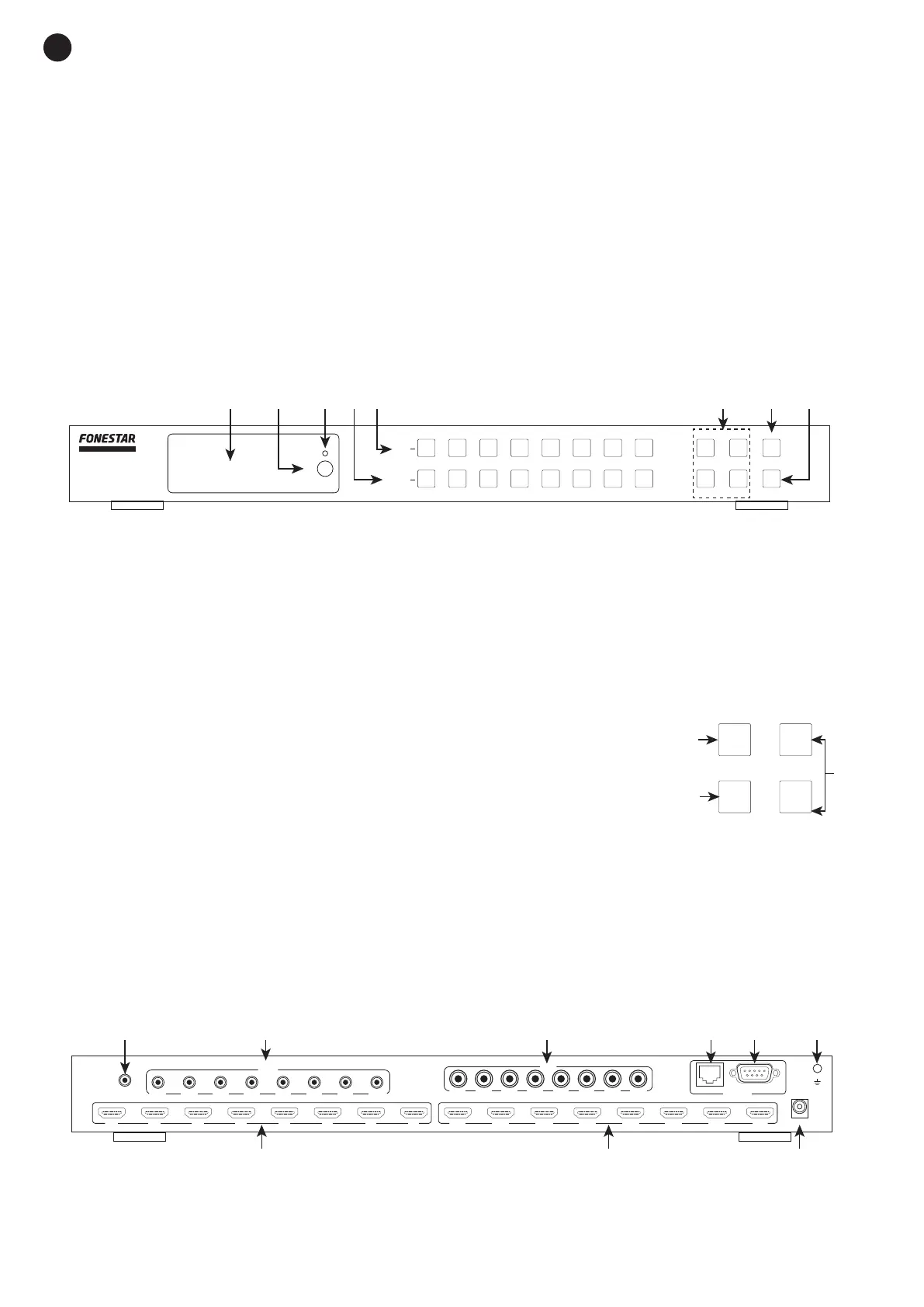

CONTROLS AND FUNCTIONS
FRONT PANEL
IR EXT
DC 12V
TCP/IP
RS-232
CONTROL
OUT 1 OUT 2 OUT 3 OUT 4
L / R
OUT 5 OUT 6 OUT 7 OUT 8
COAX
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
12345678
12345678
INPUT
OUTPUT
PWR
IR
MENU
UP
POWER
ENTER
DOWN
LOCK
MENU
UP
ENTER
DOWN
Input
Output
1 2 3 4
5 6 7 8
ALL
1 2 3 4
5 6 7 8
1 2 3 4
5 6 7 8
ALL
1 2 3 4
5 6 7 8
8 x 8 HDMI MATRIX FO-22MX88
1 2 3 4 5 6 7 8
a
b
c
1 2 3 54 6
87 9
1
2
3
a
b
a
b
HDMI Matrix Remote
1.- Information display.
2.- IR: infrared receiver for the remote control.
3.- PWR: matrix power indicator light. When green, it indicates that the matrix is turned on; red, it indicates
that it is in StandBy mode.
4.- OUTPUT 1-8: output selection buttons OUTPUT 1-8.
5.- INPUT 1-8: input source selection buttons INPUT 1-8.
6.- Menu navigation buttons:
a.- MENU: button to display the menu on the screen. This menu allows
you to configure EDID in the inputs, modify the Baud rate for RS-232
communications, check the IP address of the matrix and enable/disable
the DHCP function.
b.- ENTER: button to validate the selected option on the screen.
c.- UP/DOWN: buttons for navigating menu options and modifying the settings to be configured.
7.- POWER: button to power on/StandyBy the matrix. Press this button for 3 seconds to start StandBy
mode. Short press to power the matrix on.
8.- LOCK: button to lock/unlock the front panel of the matrix. For more information see the OPERATION
section.
REAR PANEL
IR EXT
DC 12V
TCP/IP
RS-232
CONTROL
OUT 1 OUT 2 OUT 3 OUT 4
L / R
OUT 5 OUT 6 OUT 7 OUT 8
COAX
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
12345678
12345678
INPUT
OUTPUT
PWR
IR
MENU
UP
POWER
ENTER
DOWN
LOCK
MENU
UP
ENTER
DOWN
Input
Output
1 2 3 4
5 6 7 8
ALL
1 2 3 4
5 6 7 8
1 2 3 4
5 6 7 8
ALL
1 2 3 4
5 6 7 8
8 x 8 HDMI MATRIX FO-22MX88
1 2 3 4 5 6 7 8
a
b
c
1 2 3 54 6
87 9
1
2
3
a
b
a
b
HDMI Matrix Remote
1.- IR EXT: connection port for remote control extension, 3’5 mm jack connector.
2.- L/R - OUT 1-8: analogue audio outputs from each of the HDMI OUT outputs 1-8, respectively, for
connection to an external sound system such as an amplifier. 3,5 mm stereo jack connector.
IR EXT
DC 12V
TCP/IP
RS-232
CONTROL
OUT 1 OUT 2 OUT 3 OUT 4
L / R
OUT 5 OUT 6 OUT 7 OUT 8
COAX
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8
12345678
12345678
INPUT
OUTPUT
PWR
IR
MENU
UP
POWER
ENTER
DOWN
LOCK
MENU
UP
ENTER
DOWN
Input
Output
1 2 3 4
5 6 7 8
ALL
1 2 3 4
5 6 7 8
1 2 3 4
5 6 7 8
ALL
1 2 3 4
5 6 7 8
8 x 8 HDMI MATRIX FO-22MX88
1 2 3 4 5 6 7 8
a
b
c
1 2 3 54 6
87 9
1
2
3
a
b
a
b
HDMI Matrix Remote
