INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

FS-11000E

PA POWER AMPLIFIER

ETAPA DE POTENCIA DE MEGAFONÍA

AMPLIFICATEUR DE PUISSANCE POUR SONORISATION

ETAPA DE POTÊNCIA DE MEGAFONIA

- 2 -

DESCRIPTION

- Mono power stage 1,250 W maximum, 1,000 W RMS with low impedance loudspeaker output 4 Ω and

100 and 70 V lines. Specially suitable for PA and audio system applications.

- Two protection circuits: for temperature and short circuit in the output, activated when an anomaly is

detected in the operation, cutting off audio output to avoid damage.

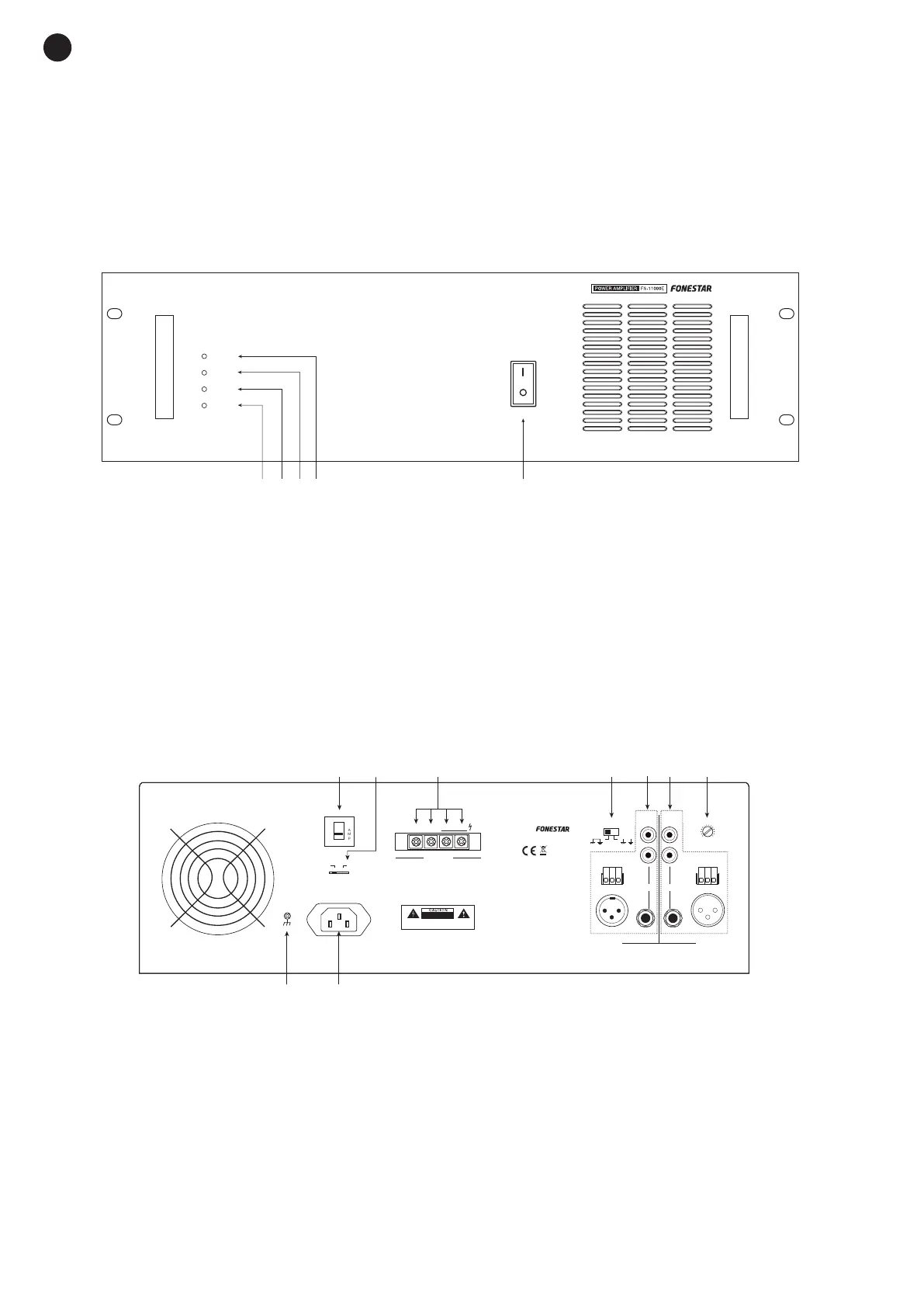

CONTROLS AND FUNCTIONS

FRONT PANE

OFF

POWER

CLIP

POWER

PROT

SIGNAL

BREAKER

AMP

1,250 W MAX., 1,000 W RMS

FS-11000E

CAUTION: SHOCK HAZARD - DO NOT OPEN

RISK OF FIRE-REPLACE FUSE AS MARKED

RISK OF ELECTRIC SHOCK

DO NOT OPEN

LINK INPUT

INPUT GAIN

MIN MAX

GND LIFT

BALANCEDBALANCED

UNBAL UNBAL

- +

G - +

OUTPUTS

230/115 V AC, 50/60 Hz. 1,400 W

230 V 115 V

COM 4 Ω 70 V 100 V

1 2 3 4 5

8 9

6 7

1 2 3 4 5

1.- SIGNAL: output signal LED indicator.

2.- CLIP: signal peak LED indicator. They light up when an input signal is detected with a level that is too

high or when there is an excessive output level that could cause damage.

3.- PROT: protection LED indicator. It lights up when the protection is activated in the ampliﬁer because of

temperature or short circuit. With protection enabled, the audio output of that channel is cut off. In this

case, switch off the power stage, correct the causes of the fault and let the device set itself for a few

minutes before switching it on again.

4.- POWER: power stage LED power on indicator.

5.- Power stage on/off switch.

REAR PANEL

OFF

POWER

CLIP

POWER

PROT

SIGNAL

BREAKER

AMP

1,250 W MAX., 1,000 W RMS

FS-11000E

CAUTION: SHOCK HAZARD - DO NOT OPEN

RISK OF FIRE-REPLACE FUSE AS MARKED

RISK OF ELECTRIC SHOCK

DO NOT OPEN

LINK INPUT

INPUT GAIN

MIN MAX

GND LIFT

BALANCEDBALANCED

UNBAL UNBAL

- +

G - +

OUTPUTS

230/115 V AC, 50/60 Hz. 1,400 W

230 V 115 V

COM 4 Ω 70 V 100 V

1 2 3 4 5

8 9

6 7

1 2 3 4 5

1.- BREAKER: 10 A resettable fuse. When the power ampliﬁer is overloaded or there is a surge, the fuse

will cut out to avoid damage. It is reset by pressing it.

2.- Power supply voltage selector.

3.- OUTPUTS: loudspeaker output terminals. To connect the loudspeakers in low impedance 4 Ω or in

high impedance lines of 100 or 70 V. Connect the loudspeaker line between the COM terminal and the

required impedance or line. Only use one loudspeaker output.

4.- GND LIFT: this selector is normally in the GND position (left). If the installation has ground noises, place

the selector in the LIFT position (right) to disconnect the ground and the device’s ground.

5.- LINK: aux line signal level output, 2 x unbalanced RCA connectors, euroblock, XLR and unbalanced

6.3 mm jack. Use only one output connector. Allows connection to another power stage in cascade.
