INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

FS-2601E

PA POWER AMPLIFIER

ETAPA DE POTENCIA DE MEGAFONÍA

AMPLIFICATEUR DE PUISSANCE POUR LA SONORISATION

ETAPA DE POTÊNCIA DE MEGAFONIA

DESCRIPTION

- Monaural power ampliﬁer, 700 W maximum, 600 W RMS with low impedance 4-8 Ω loudspeaker outputs

and high impedance 100 and 70 V lines. Suitable for PA and sound system applications.

- Balanced auxiliary line level signal input and bridge output, both with XLR and 6.3 mm stereo jack

connectors.

- Automatic compression function for the input signal, avoiding distortion in the output when the input

signal has high levels and automatically decreases the output signal if the temperature in the amp exceeds

certain limits.

- It also has LED indicators to see how the amp is operating and its status: LED power, temperature,

protection, signal peak and output signal indicators.

- Three temperature, output short circuit and overload protection circuits, are activated when an anomaly

is detected in its operation, cutting off the output to avoid damaging it.

- To equalize the output, the amp has a 3-band tone control.

CONTROLS AND FUNCTIONS

FRONT PANEL

PUSH PUSH

POWER CONSUMPTION: 1,000 W

BREAKER

COM 4 Ω 8 Ω 70 V

FS-2601

POWER AMPLIFIER

4 x 90 W RMS

CAUTION: SHOCK HAZARD - DO NOT OPEN

RISK OF FIRE-REPLACE FUSE AS MARKED

CAUT ION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

100 V

OUTPUT

INPUT LINK

~ 230 V AC. 60 Hz FUSE: 6 A

PUSH PUSH

POWER CONSUMPTION: 1,000 W

BREAKER

COM 4 Ω 8 Ω 70 V

FS-2601

POWER AMPLIFIER

4 x 90 W RMS

CAUTION: SHOCK HAZARD - DO NOT OPEN

RISK OF FIRE-REPLACE FUSE AS MARKED

CAUT ION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

100 V

OUTPUT

INPUT LINK

~ 230 V AC. 60 Hz FUSE: 6 A

1 42

5 6 7

2 3

5 63 7 8 9 10 11 12

PUSH PUSH

FS-2601E

100 V 100 V 100 V

FS-2601E

PROT

TEMP

PROT

TREBLE

MASTER

MID

BASS

TEMP

CLIP

SIGNAL

POWER AMPLIFIER FS-2601E

POWER CONSUMPTION: 1,000 W

BREAKER

COM 4 Ω 8 Ω 70 V

FS-2601

POWER AMPLIFIER

4 x 90 W RMS

CAUTION: SHOCK HAZARD - DO NOT OPEN

RISK OF FIRE-REPLACE FUSE AS MARKED

CAUTIO N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

100 V

OUTPUT

INPUT LINK

~ 230 V AC. 60 Hz FUSE: 6 A

PREAMPLIFICADORPREAMPLIFIERPRÉAMPLIFICATEURPREAMPLIFICADOR

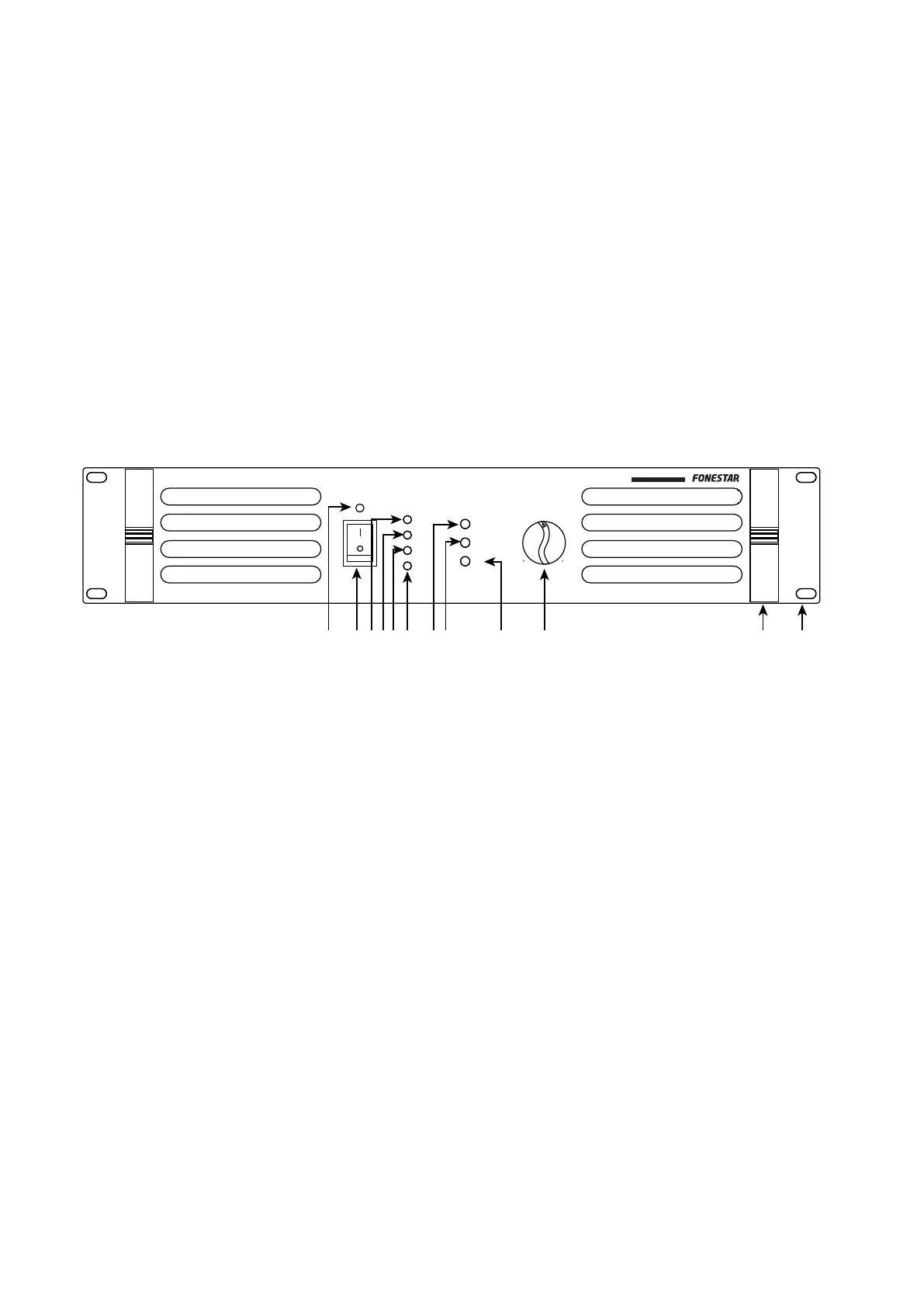

1.- POWER: LED power indicator.

2.- Power switch: switches the power amp on and off.

3.- PROT: LED protection indicator. It lights up when amp protection is activated due to overload or

short-circuit. With protection activated the audio output is cut off.

4.- TEMP: LED temperature protection indicator. It lights up when protection due to excess temperature

inside the amp is activated. The audio output is cut off when the protection is activated.

5.- CLIP: LED signal peak indicator. It lights up when the distortion exceeds 0.5 % due to the output signal

being very high. If it only lights up a little or occasionally, the output volume must be reduced, in this

case the compression function is working. If the LED indicator stays alight continuously, it is due to the

input signal being very high and exceeding the compression function range; the input signal volume

must be reduced.

6.- SIGNAL: LED output signal indicator. It lights up when the output is over 200 mV.

7.- TREBLE: treble tone control ±12 dB.

8.- MID: mid tone control ±12 dB.

9.- BASS: bass tone control ±12 dB.

10.- MASTER: output volume control.

11.- Carrying handle.

12.- Holes for installation in a 2 U 19” rack.
