INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES
MAZ-6600RU

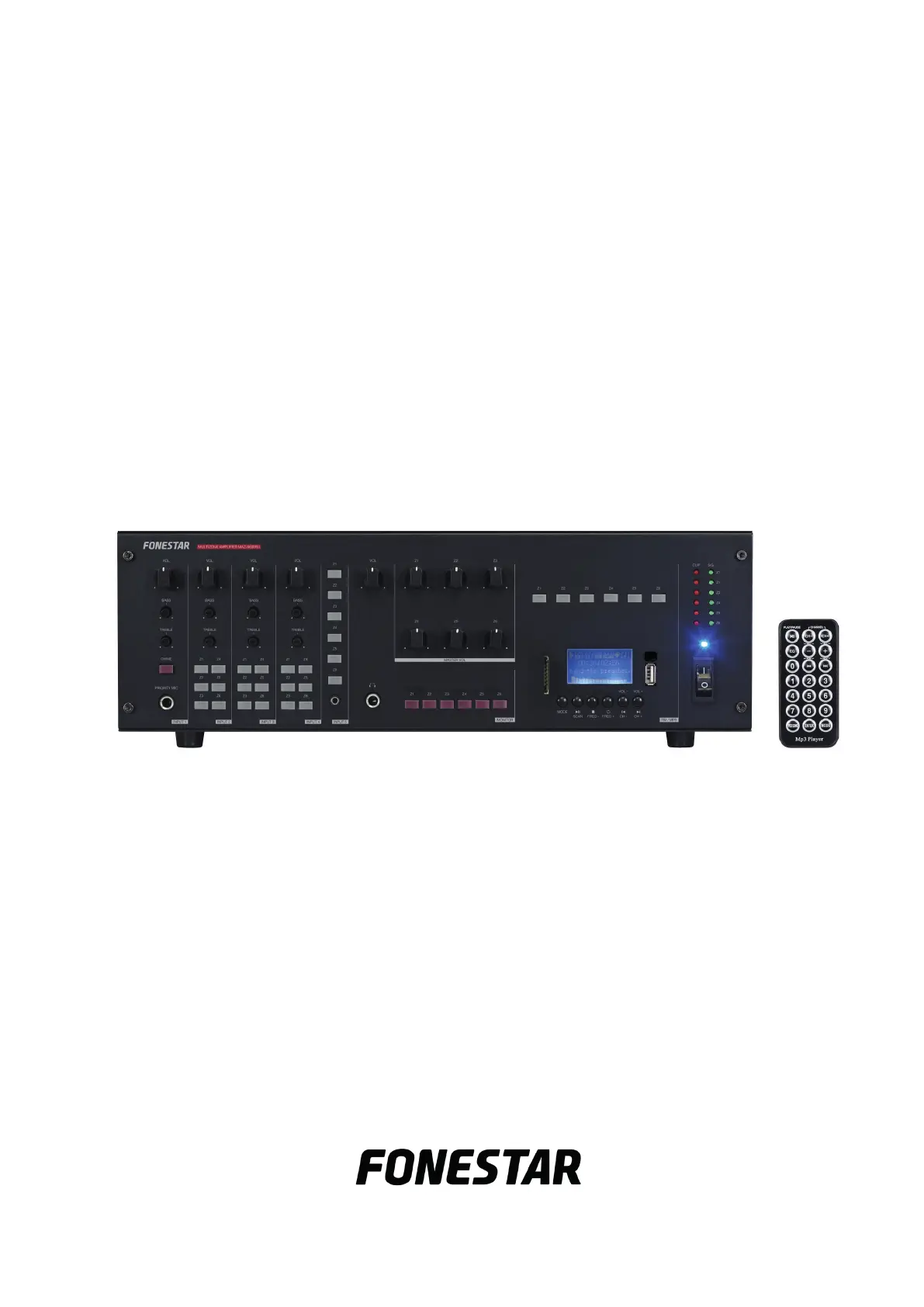

MULTI-CHANNEL AND MATRIX PA AMPLIFIER
AMPLIFICADOR DE MEGAFONÍA MATRICIAL Y MULTICANAL
AMPLIFICATEUR DE PUBLIC ADDRESS MATRICIEL ET MULTICANAL
AMPLIFICADOR DE MEGAFONIA COM MATRIZ E MULTICANAL
EN
- 2 -
DESCRIPTION
- Multizone amplifier with matrix with 5 input channels to 6 output zones with independent volume control.
- USB/SD player with digital FM radio tuner.
- Suitable for commercial installations with several zones and different musical programs.
CONTROLS AND FUNCTIONS
FRONT PANEL
1
5
2
18
19
5
1
2
3
4
6 7 8 9
3
4
1 2 3 4 5 6
7 8 9 10 11 12
6 8 10 11 12 13
14
15 16 17
VOL VOL VOL VOL
Z1
Z2
Z3
Z4
Z5
Z6
Z1
CHIME
PRIORITY MIC
Z2
Z3
Z4
Z5
Z6
Z1
Z2
Z3
Z4
Z5
Z6
Z1
Z2
Z3
Z4
Z5
Z6
BASS BASS BASS BASS
TREBLE TREBLE TREBLE
TREBLE
VOL Z1 Z2 Z3
Z4
Z1 Z2 Z3 Z4 Z5 Z6
CLIP
Z1 Z2 Z3 Z4 Z5 Z6
Z1
SIG
MODE
SCAN
Z5 Z6
MODE
SCAN
Z2
Z3
Z4
Z5
Z6
MULTIZONE AMPLIFIER MAZ-6600RU
INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5
MASTER VOL
MONITOR FM / MP3
ZONE 1
COM 8 Ω 70 V 100 V
FM ANTENNA
ZONE 2
ZONE 3
ZONE 4 PRIORITY
INPUT 4 INPUT 3 INPUT 2 INPUT 1
MUTE SENS
MIC PRIORITY
ZONE 5
ZONE 6
230 V 115 V
DVD
DVD CD AUX
AUX
CD
CAUTION : SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED
CA UT IO N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
COM
+
P8 Ω 70 V 100 V
COM 8 Ω 70 V 100 V COM 8 Ω 70 V 100 V
COM 8 Ω 70 V 100 V COM 8 Ω 70 V 100 V
MULTIZONE AMPLIFIER
MAZ-6600RU
LINE MIC
PHANTOM
48 V
LINE MIC
PHANTOM
48 V
ON OFF
~110-120 V AC. 50/60 Hz, FUSE: T 12.5 A 250 V
~220-240 V AC. 50/60 Hz, FUSE: T 6.3 A 250 V
POWER CONSUMPTION: 1000 W
- 30 dB 0 dB

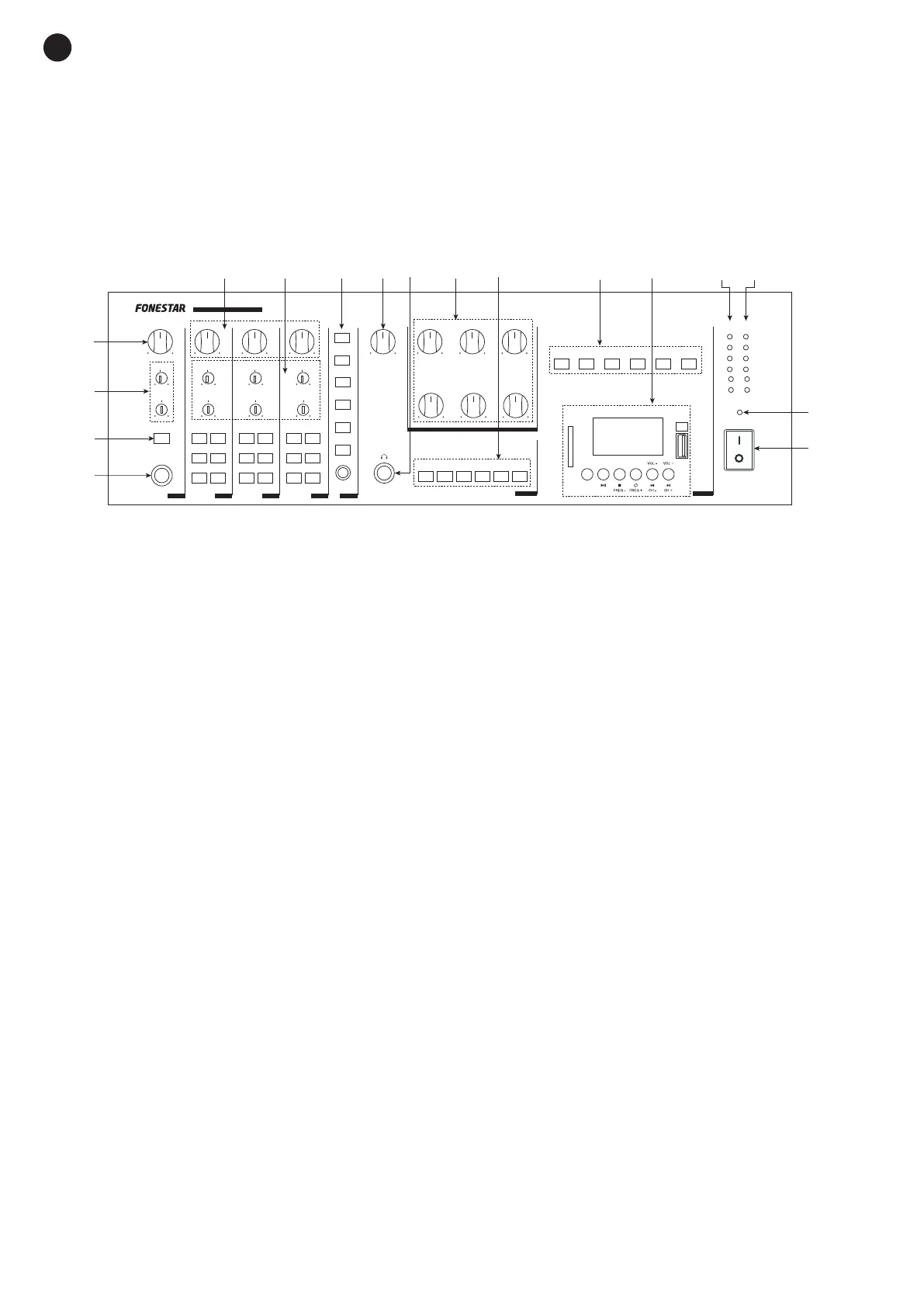

1.- INPUT 1: input 1 volume control.
2.- BASS/TREBLE (INPUT 1): strengthens or weakens the bass and treble frequencies from channel 1,
±10 dB.
3.- CHIME: button that activates the musical chimes. The audio in the rest of the inputs is automatically cut
off and only the mic input INPUT 1 can be heard.
4.- PRIORITY MIC: priority mic. level input, 6.3 mm jack connector.
5.- INPUT 2-4: volume controls for inputs 2-4.
6.- BASS/TREBLE (INPUT 2-4): strengthens or weakens the bass/treble frequencies in channels 2-4, ±10 dB.
7.- ZONE 1-6 (INPUT 2-4): controls for allocating the corresponding input signal to one or several output
zones. To allocate one input channel to one or several output zones, press the output zone buttons
(ZONE 1 to 6) in the corresponding input channel, depending on the which one you want the selected
input channel to be heard through.
8.- ZONE 1-6 (INPUT 5): controls for allocating the input 5 signal to one or several output zones. To
allocate input channel 5 to one or several output zones, press the output zone buttons (ZONE 1 to 6),
depending on which one you want it to be heard through.
9.- INPUT 5: line level aux input, 3.5 mm jack connector.
10.- HEADPHONES: headphone output volume control.
11.- Headphone output, 6.3 mm jack connector.
12.- ZONE 1-6: output zone volume controls.
13.- MON 1-6: controls for allocating the required output zone signal to the monitor output (headphones). To
allocate the required output zone to the headphone output, press the corresponding MON 1-6 button.
14.- ZONE 1-6 (FM/MP3): controls for allocating the USB/SD player module and radio tuner signal to one
or several output zones. To allocate this channel, press the output zone buttons (ZONE 1 to 6) you want
to hear it through.
15.- USB/SD player module with digital FM tuner.
16.- CLIP Z1-Z6: LED clip indicators for output zones 1 to 6. They light up red when the level in the
corresponding output zone is very high. Lower the volume using the corresponding controls until the
LED indicator does not light up or it does so occasionally.
17.- SIGNAL Z1-Z6: LED indicators for output zone 1 to 6 signals. They light up green when a signal is
detected in the corresponding output zones.
18.- LED power indictor for the device (blue).
19.- POWER: amplifier on/off switch.
