INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

MX-867RU

MATRIX MIXER

MEZCLADOR MATRICIAL

TABLE MIXAGE MATRICIELLE

MISTURADOR DE MATRIZ

- 2 -

DESCRIPTION

- The model MX-867RU is a professional mixer/preampliﬁer with 5 input channels to 4 output zones with

independent volume control. It includes a USB/SD/MP3 player module with digital FM tuner. Specially

designed for PA applications with different loudspeaker zones which require independent volume control.

- It includes 2 balanced micro inputs/selectable lines and 2 auxiliary inputs, assignable to each output

channel. Phantom power supply in inputs 2 and 3, and priority for signal level in input 1.

CONTROLS AND FUNCTIONS

FRONT PANEL

FUSE

ZONE 4

REMOTE

VOL

REMOTE

VOL

BAL. OUTPUT BAL. OUTPUT

REMOTE

VOL

BAL. OUTPUT

REMOTE

VOL

BAL. OUTPUT

ZONE 3 ZONE 2 ZONE 1 FM ANT INPUT 4 INPUT 3 INPUT 2

GAIN

INPUT 1

PHANTOM

+48 V

GAIN

PHANTOM

+48 V

~115 V AC, 50/60 Hz FUSE: T1.6 A 250 V

~230 V AC, 50/60 Hz FUSE: T0.8 A 250 V

MULTIZONE MIXER / PREAMPLIFIER

MX-867RU

MIC

PRIORITY

ON / OFF

Z Z

INPUTS

ZONES

1 2 3 4 Z1

SIG SIG SIG SIG

FM RADIO & MP3 PLAYER

Z2 Z3 Z4

INPUTS MONITOR

VOL

MODE

FM / MP3

SCAN

VOL

INPUT 5

AUX

Z2 Z3 Z4

MULTIZONE MIXER / PREAMPLIFIER MX-867RU

FM RADIO & MP3 PLAYER

VOL

MODE

SCAN

VOL

a d e

2 3

c f g h i

10 11 13 14

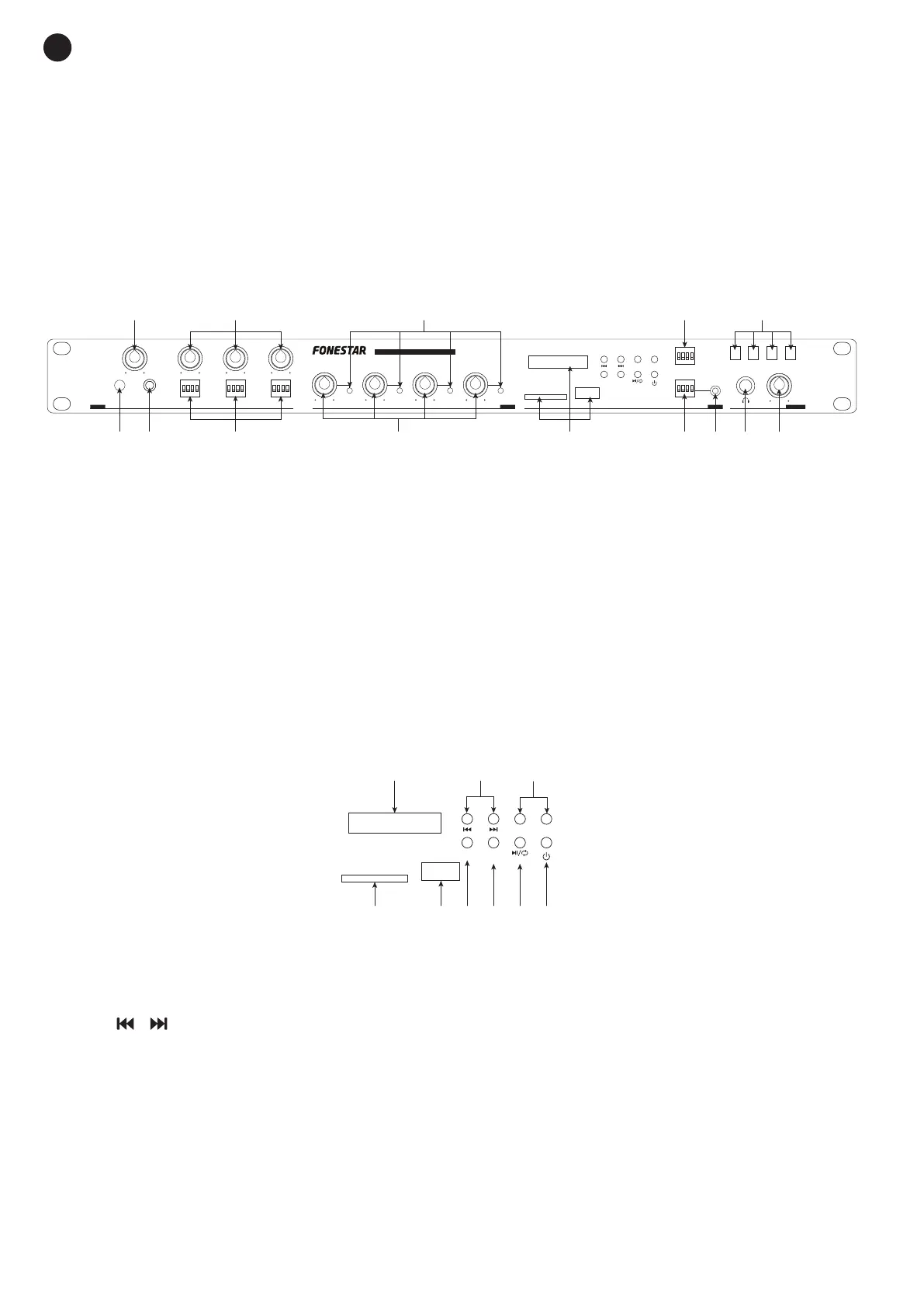

1.- Input 1 volume control.

2.- Priority ON/OFF: input 1 priority selector. Activates/deactivates the priority by level for the microphone

connected to this input.

3.- INPUT 1: dynamic microphone balanced input for channel 1, 6.3 mm jack connector.

4.- Inputs 2, 3 and 4 volume control.

5.- INPUT 2-3-4: these microswitches allow the corresponding input signal to be allocated to one or several

output zones. To allocate a zone, place the corresponding microswitch (1 to 4) in the ON position and

in that or those selected output zones the selected input will be heard.

6.- Z1, Z2, Z3, Z4: Zones 1 to 4 output level volume control.

7.- SIG: LED indicators which light up in green when a signal is detected in the corresponding output

zone.

8.- USB/SD/MP3 player module with digital FM tuner.

FUSE

ZONE 4

REMOTE

VOL

REMOTE

VOL

BAL. OUTPUT BAL. OUTPUT

REMOTE

VOL

BAL. OUTPUT

REMOTE

VOL

BAL. OUTPUT

ZONE 3 ZONE 2 ZONE 1 FM ANT INPUT 4 INPUT 3 INPUT 2

GAIN

INPUT 1

PHANTOM

+48 V

GAIN

PHANTOM

+48 V

~115 V AC, 50/60 Hz FUSE: T1.6 A 250 V

~230 V AC, 50/60 Hz FUSE: T0.8 A 250 V

MULTIZONE MIXER / PREAMPLIFIER

MX-867RU

MIC

PRIORITY

ON / OFF

Z Z

INPUTS

ZONES

1 2 3 4 Z1

SIG SIG SIG SIG

FM RADIO & MP3 PLAYER

Z2 Z3 Z4

INPUTS MONITOR

VOL

MODE

FM / MP3

SCAN

VOL

INPUT 5

AUX

Z2 Z3 Z4

MULTIZONE MIXER / PREAMPLIFIER MX-867RU

FM RADIO & MP3 PLAYER

VOL

MODE

SCAN

VOL

a d e

2 3

c f g h i

10 11 13 14

a.- USB/SD/MP3 player with digital FM radio tuner display.

b.- SD card memory slot.

c.- USB storage device slot.

d.-

/ : in PLAY mode, a short press of these buttons allows passing to the previous/next track.

A long press of these buttons allows fast forwarding/rewinding. In radio mode, it allows moving to

the previous/next frequency point with 0.1 MHz.

e.- VOL-/VOL+: USB/SD/MP3 player with digital FM radio tuner volume controls.

f.- MODE: allows selection of audio source among a USB storage device, an SD memory card or the

digital FM radio tuner.

g.- EQ-SCAN: in playback mode, it allows selection among the different equalizations available. In

radio mode, it allows automatic tuning of the FM radio stations. The tuning begins at the lowest

frequency and the stations are automatically stored in consecutive memory positions.
