DESCRIPTION
4-input, 8-output speaker processor designed to process and adapt the audio signal to the characteristics
of the sound system loudspeakers. It processes the input signal and provides an independent signal at each
output.
It features equalization, frequency divider, gain control, limiter, delay and mute functions.
CONTROLS AND FUNCTIONS

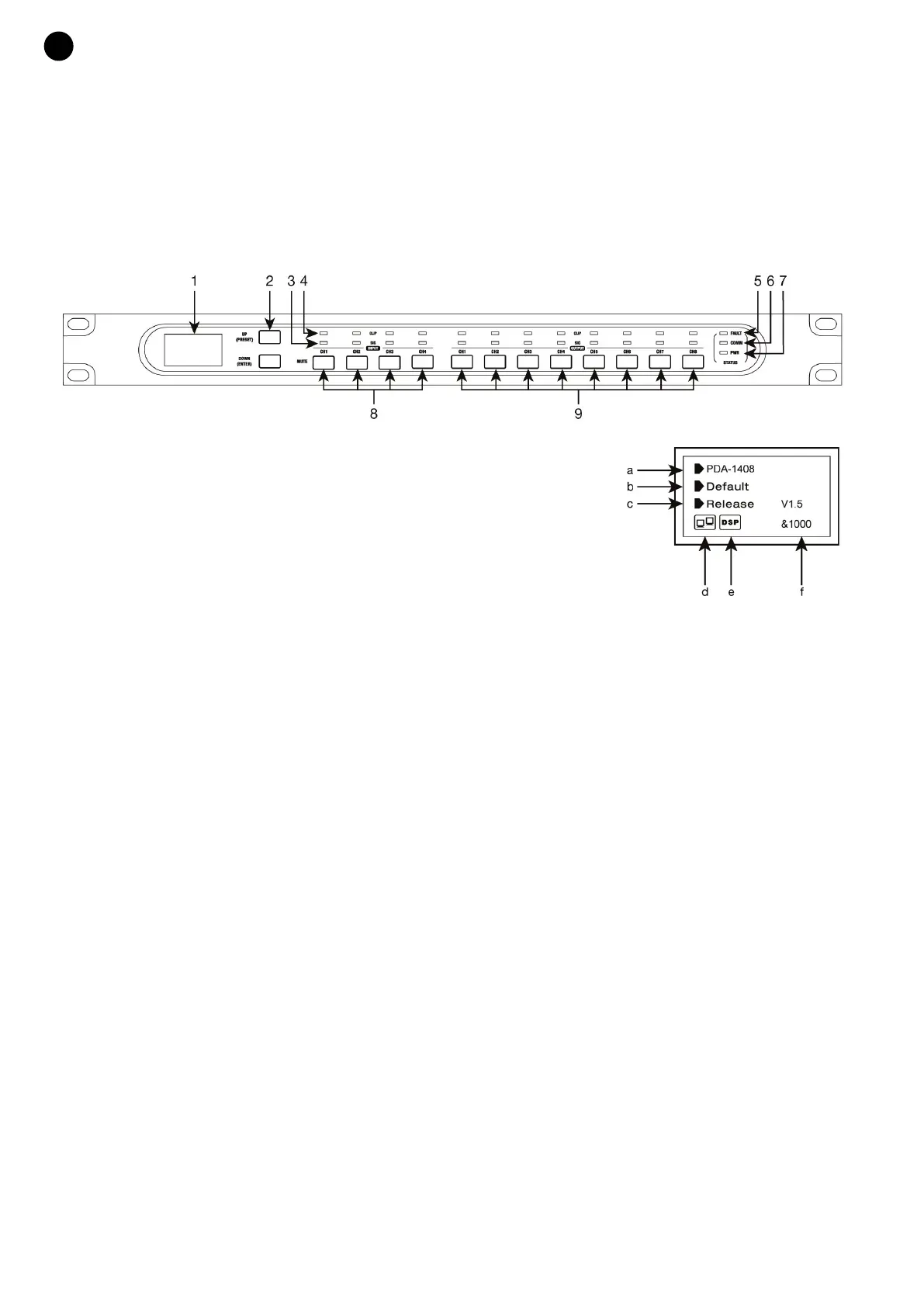

FRONT PANEL
1.- Screen showing device information:
a.- Name of the device.
b.- Preset selected.
c.- Software version.
d.- Status of connection between the PC and the device. If the
connection is correct, both icons blink alternately.
e.- DSP indicator. In the event of a problem it will read "DSP!
f.- Device ID number. Obtained automatically.
2.- Navigation buttons.
- UP (PRESET): long press shows the list of presets. Use the UP and DOWN buttons to scroll through
the list and select a preset by pressing and holding the ENTER button to load it. To exit the list,
press and hold UP.
- DOWN (ENTER): pressing and holding the ENTER button displays system information (system and
firmware versions).
To restore the factory settings and clear all saved presets press and hold both UP and DOWN buttons
simultaneously for 8 seconds.
3.- SIGNAL: Indicator light which indicates the presence of a signal on the corresponding input or output
channel.
4.- CLIP: indicator light that indicates signal saturation in the corresponding input or output channel. If it
lights up softly or intermittently, the output volume should be reduced. If the indicator light remains on
continuously, it means that the input signal is extremely high. In this case, reduce the volume of the
input signal.
5.- FAULT: Indicator light indicating a malfunction of the DSP.
6.- COMM: indicator light that provides information on the communication between the PC and the device.
It flashes when data is being transmitted between them. In the case of communication problems it will
remain off.
7.- POWER: Speaker processor power indicator light.
8.- MUTE INPUT: buttons that mute inputs 1-4.
9.- MUTE OUTPUT: buttons that mute outputs 1-8.
