Side 1/28

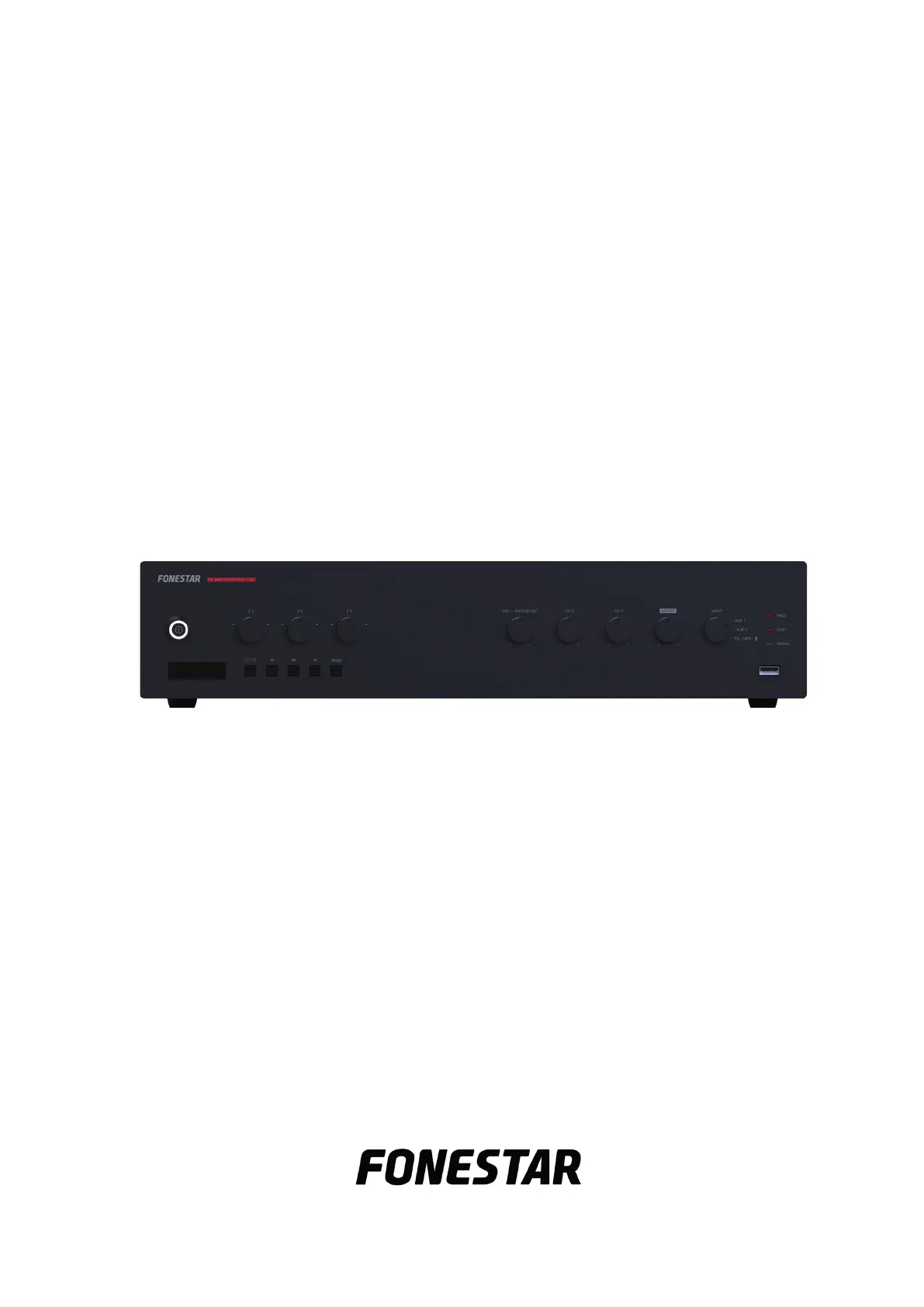

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

PROX-120Z

BLUETOOTH

/USB/FM PA AND ZONE PA AMPLIFIER

AMPLIFICADOR DE MEGAFONÍA BLUETOOTH

/USB/FM Y ZONAS

AMPLIFICATEUR PUBLIC ADDRESS BLUETOOTH

/USB/FM ET ZONES

AMPLIFICADOR DE MEGAFONIA BLUETOOTH

/USB/FM E ZONAS

- 2 -

DESCRIPTION

- Distributed audio for PA installations with 100 speakers, also with low impedance output.

- Versatile player for background music.

- It has 2 zone outputs with volume control for different music levels per zone.

- User-friendly operation and a modern, discreet design.

CONTROLS AND FUNCTIONS

FRONT PANEL

1 2 3 4 85

6 7 11109 14 15

12 13 1415

10 11

3 4 5 6 7 8

1.- : indicator light and on/off switch of the ampliﬁer.

2.- Information display.

3.-

| : in USB mode, enable/disable random play.

- RPT ONE: repeats 1 song.

- RPT ALL: repeats all.

- RANDOM: plays all songs in random order.

4.- {: a long press decreases the volume of the player. A short press, in Bluetooth

or USB mode jumps to

the previous audio track; in FM mode it jumps to the previous stored frequency.

5.- 12: in Bluetooth or USB mode it plays/pause audio playback; in FM mode, it auto-stores of all detected

frequencies with sufﬁcient signal quality.

6.- }: a long press increases player volume. A short press, in Bluetooth or USB skips to the next audio

track, in FM mode skips to the next stored frequency.

7.- MODE: short presses of this button allow you to change the mode on the player to choose the desired

audio source.

8.- Z1/Z2/Z3: volume controls for output zones Z1, Z2 and Z3 on the rear panel.

9.- CH 1 - PAGING MIC/CH2/CH3: volume controls for the CH 1, CH 2 and CH 3 inputs on the rear panel.

10.- MASTER: volume control of the input selected by the INPUT selector switch.

11.- INPUT: input source selector: AUX 1, AUX 2 or the built-in player (FM radio, MP3 or Bluetooth).

12.- USB port for audio ﬁle playback.

13.- SIGNAL: output signal status LED indicator. Lights up when signal is detected at the outputs.

14.- CLIP: output signal peak LED indicator. If it is turned on, you must reduce the volume of the input that

produces it and/or the output. Do not allow this indicator light to remain on continuously.

15.- PROT: protection LED indicator. Lights up when the ampliﬁer protection is activated to prevent

component damage. With protection enabled, the audio output of that channel is cut off. If this happens,

turn off the device, make sure that the air intake and exhaust slots are clear of obstructions, turn

down the volume of the input signal and check that the speakers connected to the output are working

properly and are suitable for this output (power and impedance). Wait a few minutes for the appliance

to stabilize before you switch it on again.
