DESCRIPTION

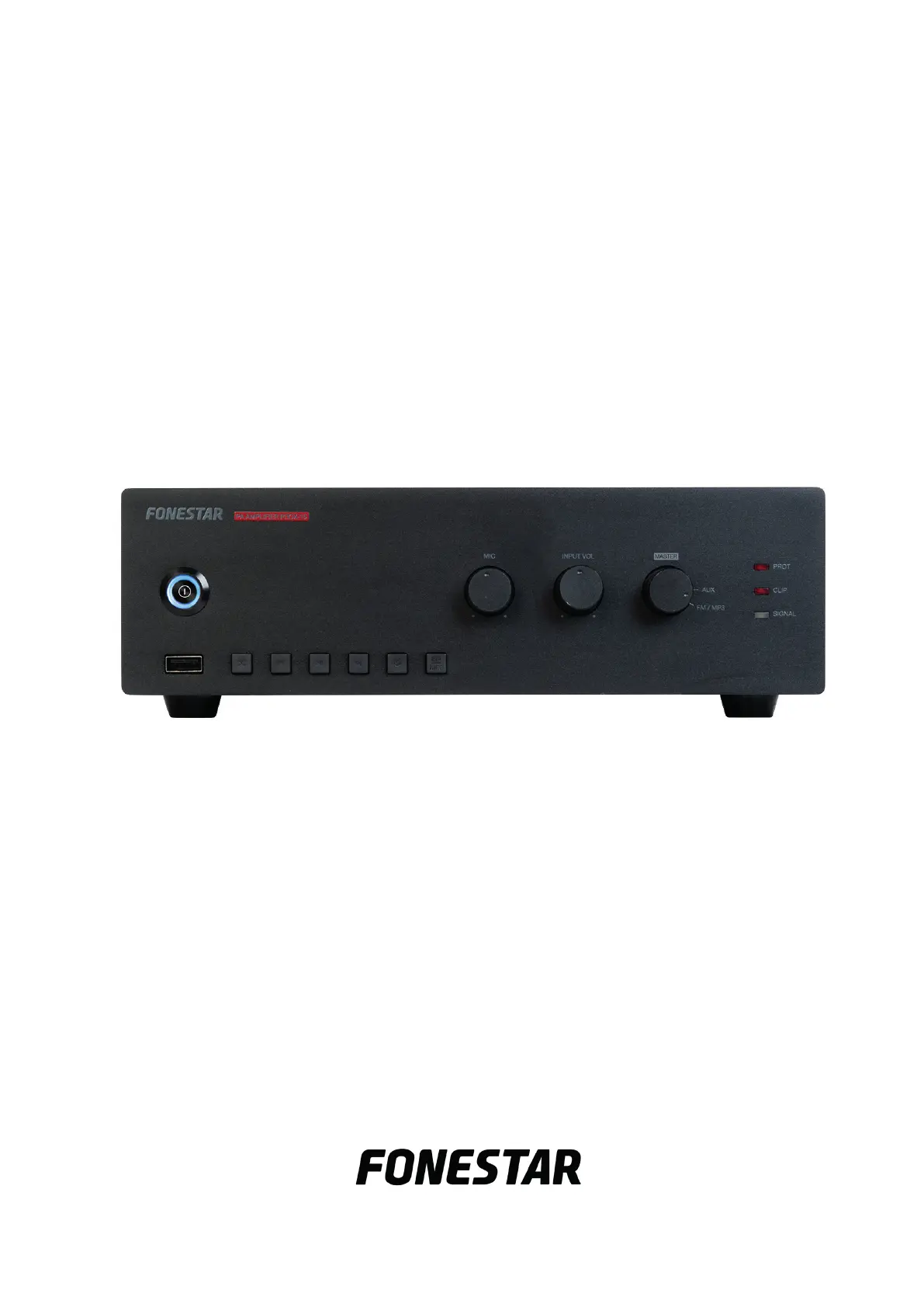

- A perfect solution that integrates amplifier, mixer, player, microphone and auxiliary inputs in a single unit,
for PA installations with 100 V or low impedance affordable loudspeakers that require intuitive operation.
- Euroblock connectors, safe and easy to connect.
- High sound quality.
- Trendy and discreet design.
- Compact size, for desktop use or surface mounting.
CONTROLS AND FUNCTIONS
FRONT PANEL

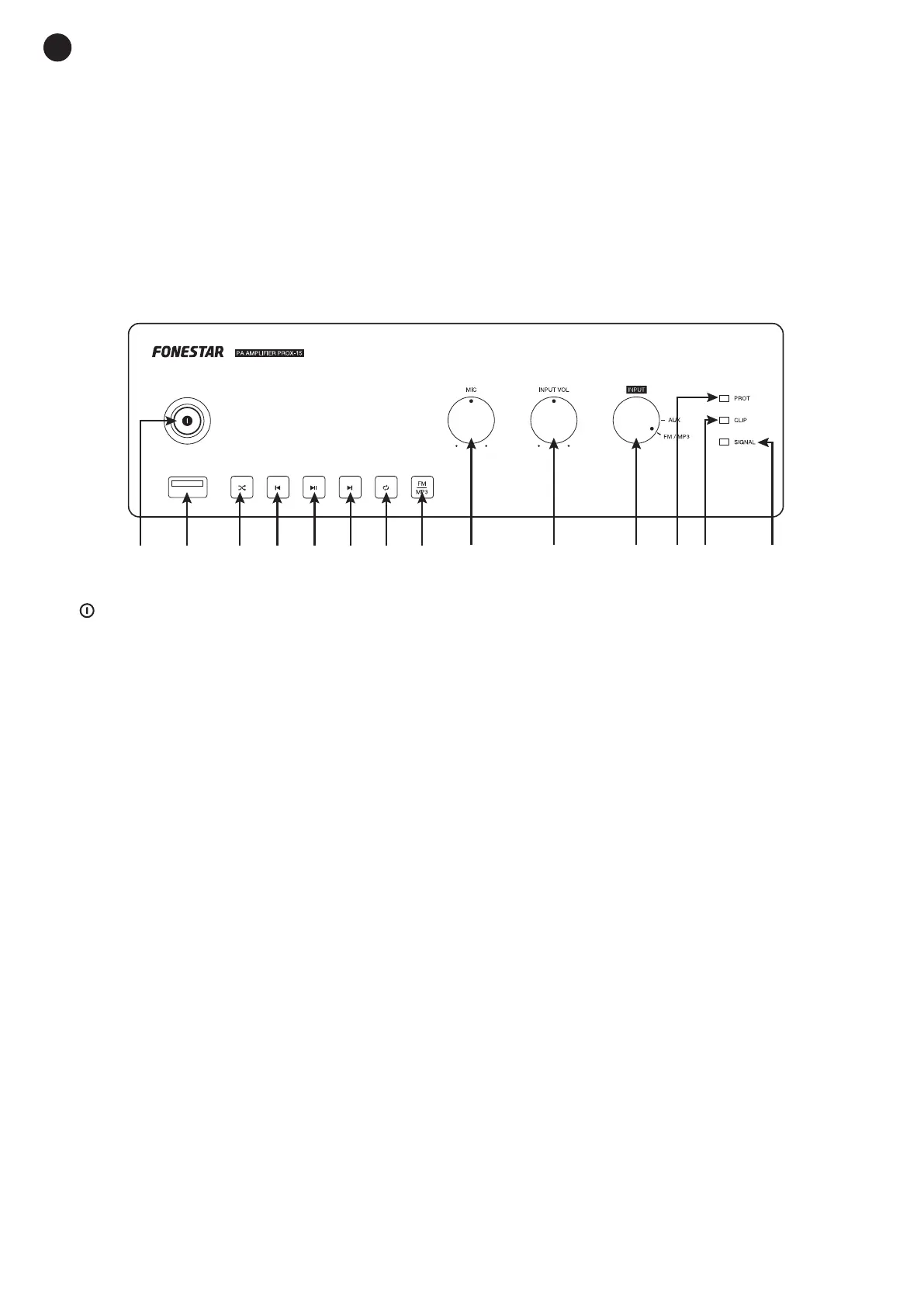

1 2 3 4 5 6
7 8 9 10 11 12 13
1 2
3 4 5 6 7 8 9 10 11 12 13 14
1.- : amplifier on/off switch.
2.- USB port for audio file playback.
3.- (only in USB mode) activates/deactivates the shuffle playback.
- On: 2 tones.
- Off: 1 tone.
4.- {: long press decreases player volume. A short press, in USB mode, goes to the previous audio track;
in FM mode, goes to the previous memorised frequency.
5.- 12: in USB mode, it plays/stops audio playback; in FM mode, it automatically memorises all the
frequencies that are detected with sufficient signal quality.
6.- }: long press increases player volume. A short press, in USB mode, goes to the next audio track; in FM
mode, goes to the next memorised frequency.
7.- (only in USB mode) changes the repeat mode of the tracks:
- Repeat all: 3 tones.
- Repeat folder: 2 tones.
- Repeat 1 track: 1 tone.
8.- FM: short presses of this button enable you to change the mode on the player to choose the desired
audio source.
9.- MIC: volume control of the MIC input on the rear panel.
10.- INPUT VOL: volume control of the input selected by the INPUT selector.
11.-
INPUT: input source selector: rear panel auxiliary input or player and radio.
12.- PROT: protection indicator light. It lights up when the temperature protection of the channel is activated.
When the protection is activated, the audio output of that channel is cut off. If this happens, turn off the
equipment, make sure that the air intake and exhaust slots are free of obstacles and lower the volume
of the input signal. Wait a few minutes for the unit to stabilise before switching it on again.
13.-
CLIP: signal peak indicator light for each input. If it lights up slightly or occasionally, you should reduce
the output volume. If the indicator light remains on continuously, it is because the input signal has a very
high level. In this case, reduce the volume of the input signal.
14.- SIGNAL: signal status indicator light. It lights up when a signal is detected at the inputs.
