DESCRIPTION
- The SA series power amplifiers offer great power and sound quality with high performance and stability.
- High reliability with: soft start, forced ventilation with variable speed and protection circuits (temperature,
short circuit, overload, DC and AC).
- Audio inputs with market standard connections: XLR and 6.3 mm jack and volume control for each
channel.
- Speaker outputs with screw terminals and banana plugs or speaker connector.

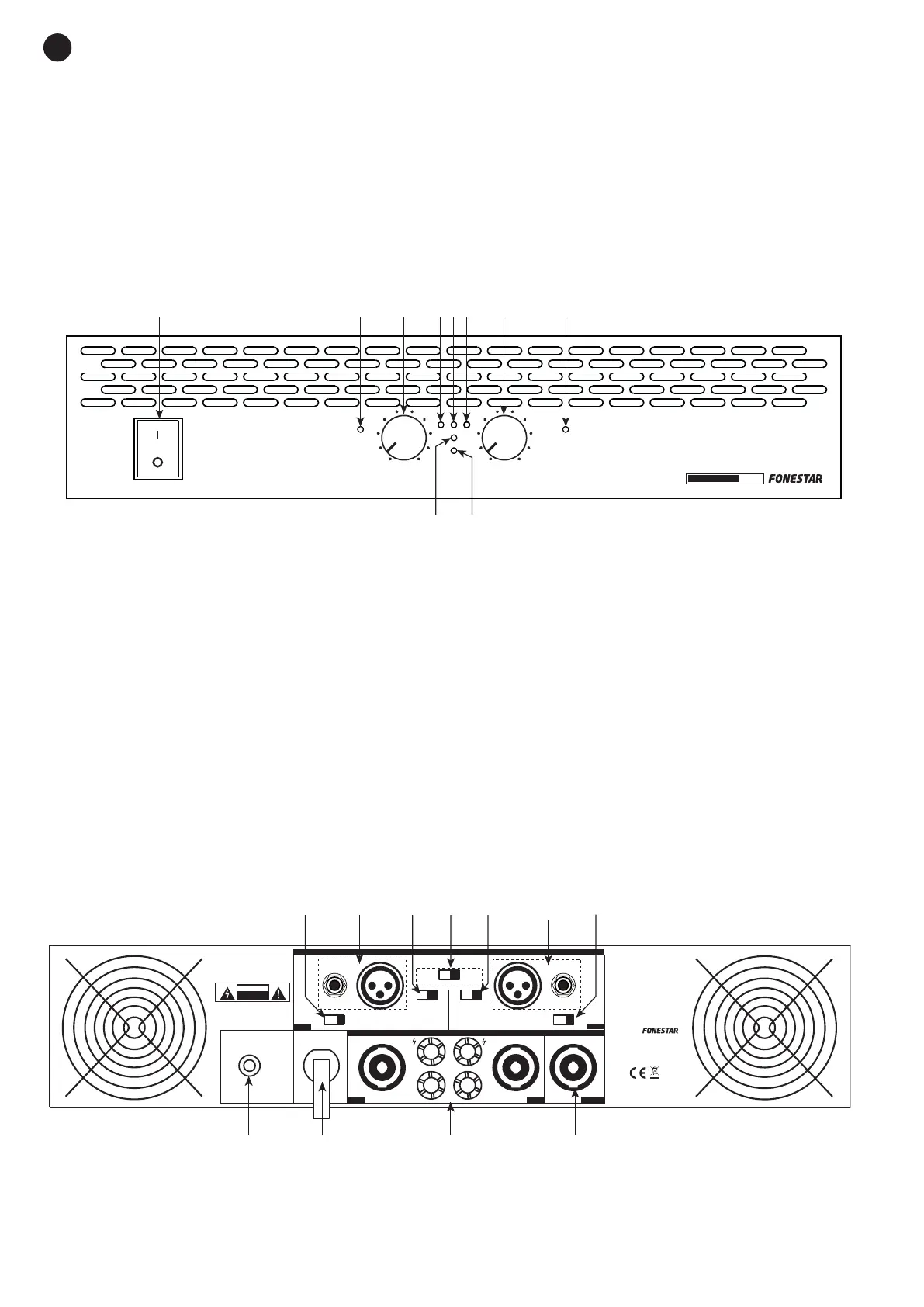

CONTROLS AND FUNCTIONS
FRONT PANEL
POWER
CLIP
CH A
MIN MAX
CH B
MIN MAX
CLIP
PROTECT
BRISTR PAR
FUSE: 25 A
230 V AC, 50 Hz
3,000 W
≃
CH B CH A
(1+, 1-) (1+, 1-)
OUTPUTS
POWER AMPLIFIER
900 + 900 W RMS, 4 Ω
600 + 600 W RMS, 8 Ω
1,600 W, BRIDGE 8 Ω
SA-1208
HIGH LOW
BYPASS
ON OFF
LIMITER
LIFT GND
INPUT
CH B CH A
BRIDGE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HIGH LOW
BYPASS
BRIDGE
PARALLEL
STEREO
+ +
_ _
1 2 3 4 5 6 3 2
7 8
POWER
POWER AMPLIFIER SA-1208
1.- Device on/off switch.
2.- CLIP: LED signal peak indicators for each channel. If they light up slightly or occasionally the output
volume must be reduced. If the LED indicator remains permanently lit, this is due to the input signal
being at a very high level. In this case, reduce the input signal volume.
3.- Volume controls for each channel.
4.- STR: LED STEREO mode indicator.
5.- BRI: LED BRIDGE mode indicator.
6.- PAR: LED PARALLEL mode indicator.
7.- PROTECT: LED protection indicator. It lights up when the temperature, surge or short circuit amplifier
protection is activated. With the protection activated the audio output is cut off. In this case, switch off
the amplifier, correct the problems which have caused the fault and let the device reset itself for a few
minutes before switching it back on.
8.- POWER: LED power indicator.
REAR PANEL
POWER
CLIP
CH A
MIN MAX
CH B
MIN MAX
CLIP
PROTECT
BRISTR PAR
FUSE: 25 A
230 V AC, 50 Hz
3,000 W
≃
CH B CH A
(1+, 1-) (1+, 1-)
OUTPUTS
POWER AMPLIFIER
900 + 900 W RMS, 4 Ω
600 + 600 W RMS, 8 Ω
1,600 W, BRIDGE 8 Ω
SA-1208
HIGH LOW
BYPASS
ON OFF
LIMITER
LIFT GND
INPUT
CH B CH A
BRIDGE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HIGH LOW
BYPASS
BRIDGE
PARALLEL
STEREO
+ +
_ _
1 2 3 4 5 2 1
6
7 8 9
POWER
POWER AMPLIFIER SA-1208
1.- HIGH/BYPASS/LOW: high pass, bypass and low pass filter selector for each input channel.
2.- INPUTS: channels A and B aux line level signal balanced inputs, XLR connectors and 6.3 mm jack.
3.- LIMITER: input signal limiter.
