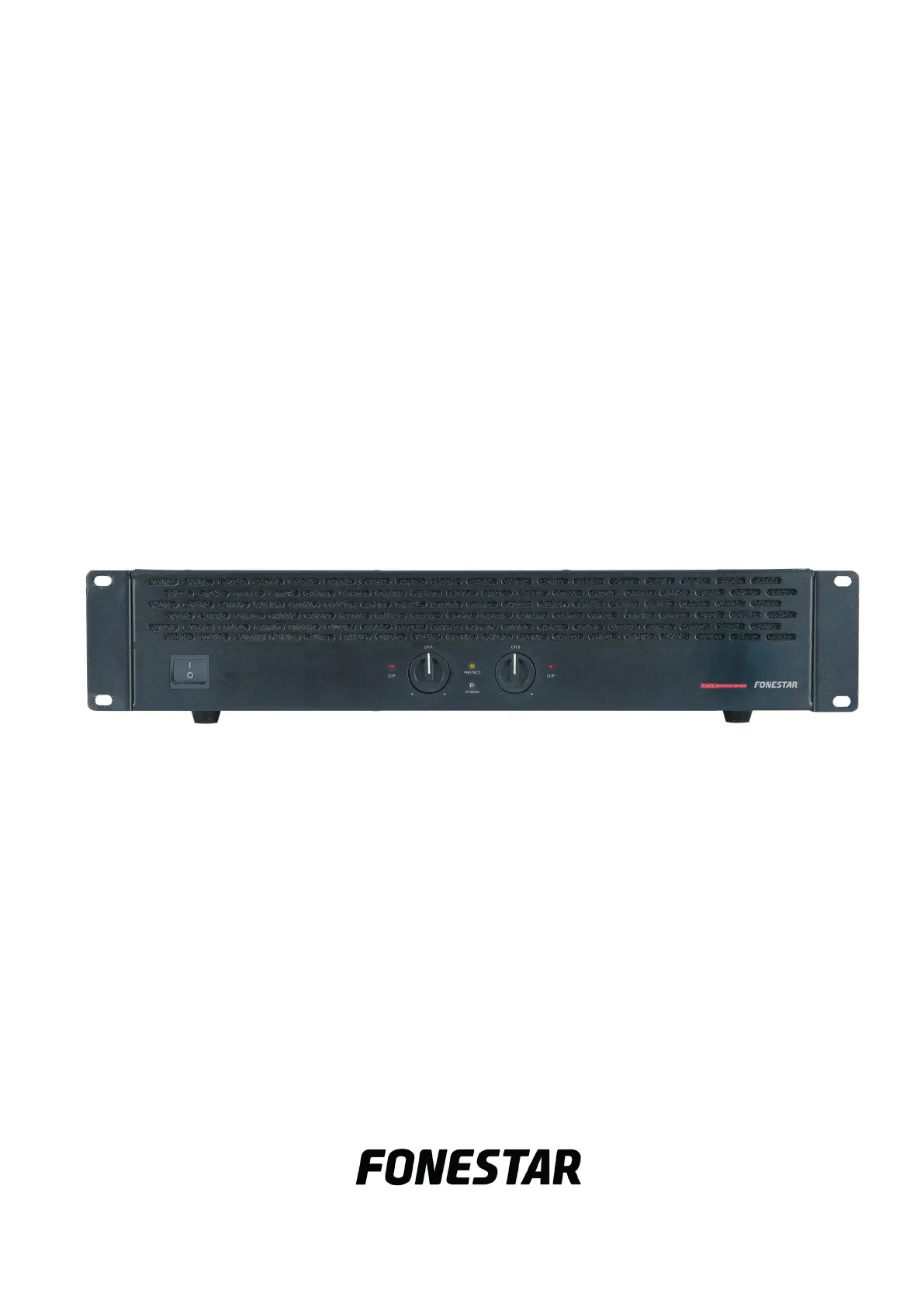

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

SA-204

PROFESSIONAL STEREO POWER AMPLIFIER

ETAPA DE POTENCIA PROFESIONAL ESTÉREO

AMPLIFICATEUR DE PUISSANCE STÉRÉO PROFESSIONNEL

ETAPA DE POTÊNCIA PROFISSIONAL ESTÉREO

- 2 -

DESCRIPTION

- Professional stereo power ampliﬁer.

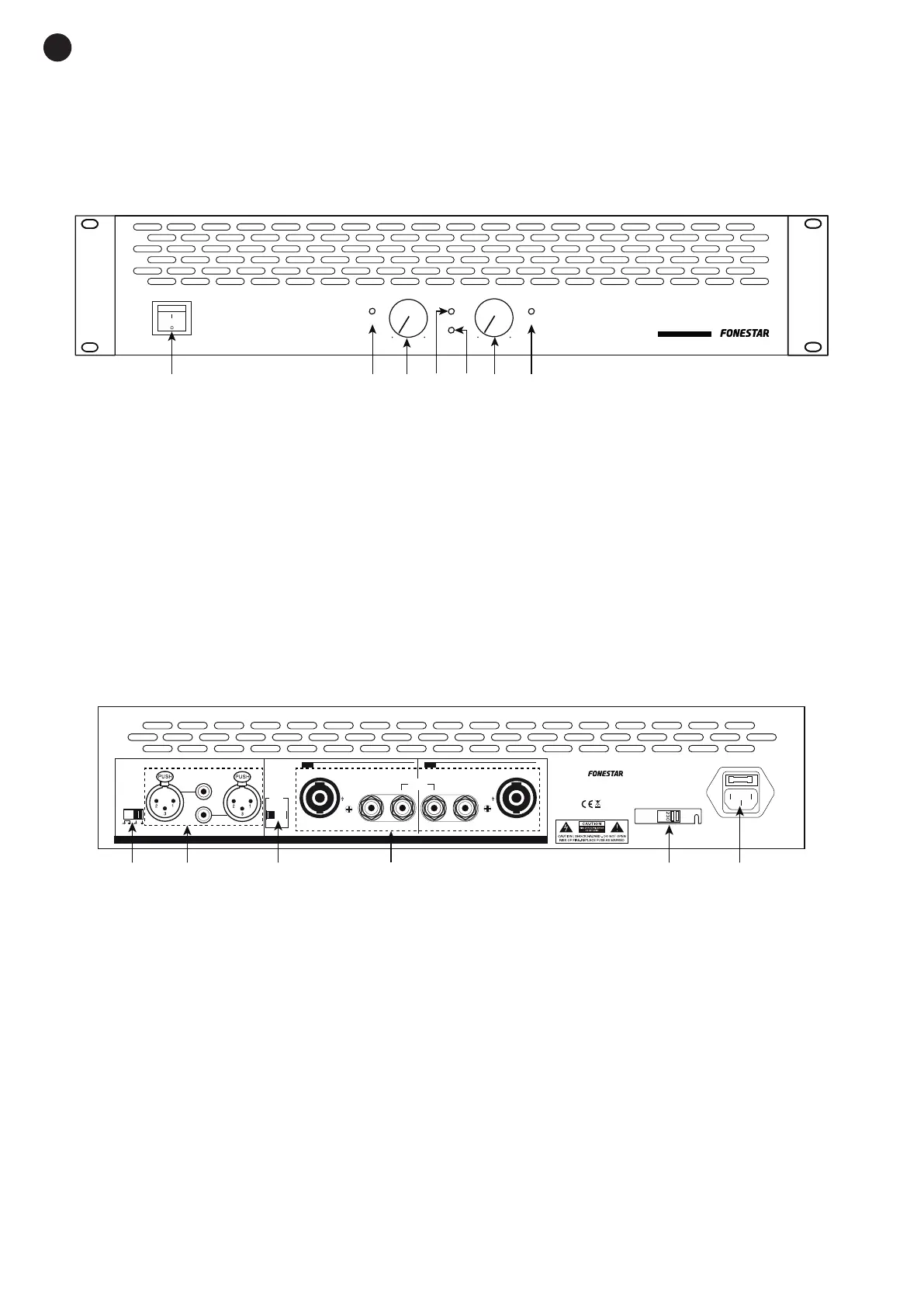

CONTROLS AND FUNCTIONS

FRONT PANEL

PROTECT

POWER

GND LIFT

POWER CONSUMPTION: 700 W

AC SELECT

CH A

CLIP

CH B

CLIP

POWER AMPLIFIER SA-204

CH A

CH B

STE

PAR

MODE

BRIDGE

8 Ω ONLY

(1+, 1-)

STEREO/

PARALLEL

(1+, 2-)

BRIDGE - 8 Ω ONLY

BRI

- ++ -

STEREO POWER AMPLIFIER

150 + 150 W RMS, 4 Ω

100 + 100 W RMS, 8 Ω

200 W RMS BRIDGE 8 Ω

SA-204

INPUTS

OUTPUTS

~115 V AC, 50/60 Hz FUSE: 6.3 A

~230 V AC. 50/60 Hz FUSE: 3.15 A

CH B CH A

1 3 34 52 2

3 64 521

1.- On/off switch.

2.- CLIP: LED signal peak indicators for each channel. If they light up slightly or occasionally the output

volume must be reduced. If the LED indicator remains permanently lit, this is due to the input signal

being at a very high level. In this case, reduce the input signal volume.

3.- CH A/CH B: volume controls for each channel.

4.- PROTECT: LED protection indicator. It lights up when the temperature, surge or short circuit ampliﬁer

protection is activated. With the protection activated the audio output is cut off. In this case, switch off

the ampliﬁer, correct the problems which have caused the fault and let the device reset itself for a few

minutes before switching it back on.

5.- POWER: LED power indicator.

REAR PANEL

PROTECT

POWER

GND LIFT

POWER CONSUMPTION: 700 W

AC SELECT

CH A

CLIP

CH B

CLIP

POWER AMPLIFIER SA-204

CH A

CH B

STE

PAR

MODE

BRIDGE

8 Ω ONLY

(1+, 1-)

STEREO/

PARALLEL

(1+, 2-)

BRIDGE - 8 Ω ONLY

BRI

- ++ -

STEREO POWER AMPLIFIER

150 + 150 W RMS, 4 Ω

100 + 100 W RMS, 8 Ω

200 W RMS BRIDGE 8 Ω

SA-204

INPUTS

OUTPUTS

~115 V AC, 50/60 Hz FUSE: 6.3 A

~230 V AC. 50/60 Hz FUSE: 3.15 A

CH B CH A

1 3 34 52 2

3 64 521

1.- LIFT/GND: this selector is normally located in the GND position. If the installation has ground noises,

put the selector in the LIFT position to disconnect the mass and the device’s earth.

2.- INPUTS: aux line level signal input of channels A and B, balanced XLR and unbalanced RCA connectors.

3.- MODE (STE/PAR/BRI): operating mode selector.

4.- OUTPUTS: channels A and B loudspeaker output terminals. For the connection of low impedance

loudspeakers 4-8 Ω. Screw terminals and banana plugs or loudspeaker connector. Consult the

Connection section for more information.

5.- AC SELECT: power supply voltage selector.

6.- Input to connect AC power supply cable.

Produkt Specifikationer

Mærke:	FoneStar
Kategori:	Højttaler
Model:	SA-204
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	115-230 V
Bredde:	483 mm
Dybde:	350 mm
Højde:	89 mm
Vægt:	8200 g
Produktfarve:	Sort
Strømforbrug (typisk):	700 W
Volumenkontrol:	Dreje
Frekvensområde:	10 - 50000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
LED-indikatorer:	Ja
Formål:	Optræden/scene
klirfaktor (THD):	0.05 %
Signal/støjforhold:	85 dB
Spidseffekt pr. kanal:	150 W
Højttalere tilslutningstype:	6.3 mm / RCA
RMS udgangseffekt pr. kanal (4 Ohm):	150 W
Kølingstype:	Aktiv
RMS udgangseffekt pr. kanal (8 ohm):	100 W
Rackkapacitet:	2U
Bridge-mode effekt pr. kanal (8 ohm):	280 W
