INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

SA2-1750, SA2-3400

STEREO POWER AMPLIFIER

ETAPA DE POTENCIA ESTÉREO

AMPLIFICATEUR DE PUISSANCE STÉRÉO

ETAPA DE POTÊNCIA ESTÉREO

- 2 -

DESCRIPTION

Professional stereo power ampliﬁer.

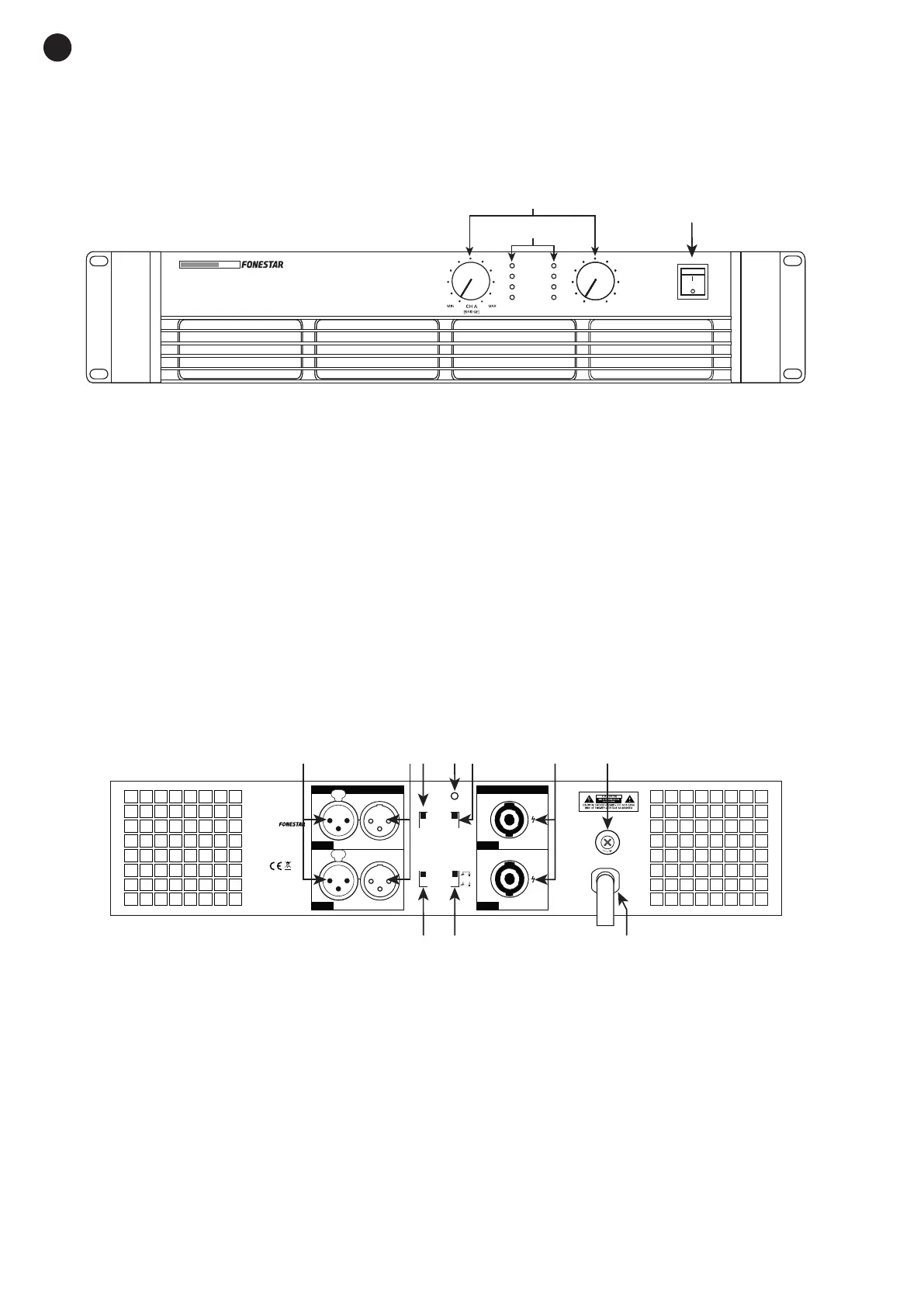

CONTROLS AND FUNCTIONS

FRONT PANEL

CH A

INPUT

OUTPUT

LINK

SENSITIVITY MODE

(1+, 1-) STEREO

(1+, 2+) BRIDGE

(1+,1-)

CH B

CH A

CH B

LINK

30 HZ HI-PASS

OFF

GND

LIFT

BRIDGE

STEREO

PARALLEL

0.775 V

1.4 V

1.0 V

~230 V AC. 50/60 Hz FUSE: 12 A

PUSH

POWER AMPLIFIER

450 + 450 W RMS, 8 Ω

675 + 675 W RMS, 4 Ω

880 + 880 W RMS, 2 Ω

1,350 W RMS, BRIDGE 8 Ω

1,750 W RMS, BRIDGE 4 Ω

SA2-1750

POWER CONSUMPTION: 990 W

MIN MAX

CH B

POWER

CLIP

SIGNAL

PROTECTION

POWER

POWER AMPLIFIER SA2-1750

1 2

4 5 6 7

8 9 10

1.- CH A and CH B output volume controls.

2.- LED indicator

CLIP: LED signal peak indicator of each channel. If they light up slightly or occasionally, the output

volume must be reduced. If the LED indicator is permanently lit, it is due to the input signal having a

very high level. In this case, reduce the input signal volume.

SIGNAL: LED input signal indicator in the ampliﬁer. It lights up when there is a signal present in the

ampliﬁer input.

PROTECTION: LED protection indicator. It lights up when the ampliﬁer’s protection is activated due to

temperature, overload, short -circuit, ultrasound or RF. With the protection activated the audio output

is cut off. In this case, switch off the ampliﬁer, correct the causes of the fault and let the device reset

itself for a few minutes before switching it back on.

POWER: ampliﬁer LED power indicator.

3.- On/off switch.

REAR PANEL

CH A

INPUT

OUTPUT

LINK

SENSITIVITY MODE

(1+, 1-) STEREO

(1+, 2+) BRIDGE

(1+,1-)

CH B

CH A

CH B

LINK

30 HZ HI-PASS

OFF

GND

LIFT

BRIDGE

STEREO

PARALLEL

0.775 V

1.4 V

1.0 V

~230 V AC. 50/60 Hz FUSE: 12 A

PUSH

POWER AMPLIFIER

450 + 450 W RMS, 8 Ω

675 + 675 W RMS, 4 Ω

880 + 880 W RMS, 2 Ω

1,350 W RMS, BRIDGE 8 Ω

1,750 W RMS, BRIDGE 4 Ω

SA2-1750

POWER CONSUMPTION: 990 W

MIN MAX

CH B

POWER

CLIP

SIGNAL

PROTECTION

POWER

POWER AMPLIFIER SA2-1750

1 2

4 5 6 7

8 9 10

1.- INPUT CH A/CH B: channels A and B line level signal balanced inputs, XLR connectors.

2.- LINK CH A/CH B: channels A and B line level signal balanced outputs, XLR connectors.

3.- SENSITIVITY: input sensitivity selector.

4.- LED: operating mode indicator light, will light up whenever BRIDGE mode is selected.

5.- MODE: operating mode selector. For more information, go to the CONNECTION section of this manual.

6.- OUTPUT CH A/CH B: channels A and B loudspeaker output terminals to connect loudspeakers.

7.- FUSE: AC power supply circuit protective fuse.

8.- 30 Hz HI-PASS: high pass ﬁlter selecto.

9.- GND/LIFT: this selector is normally in the GND position. If the installation has ground noises, place the

selector in the LIFT position in order to disconnect the ground from the device’s earth.

10.- AC power supply cable.
