DESCRIPTION
- 12 inputs, 8 channels (3 microphones and 5 lines) professional DJ mixer with USB/SD player, assignable
to 2 master outputs with independent volume control.
- Talk over function and prelistening via headphones.
CONTROLS AND FUNCTIONS

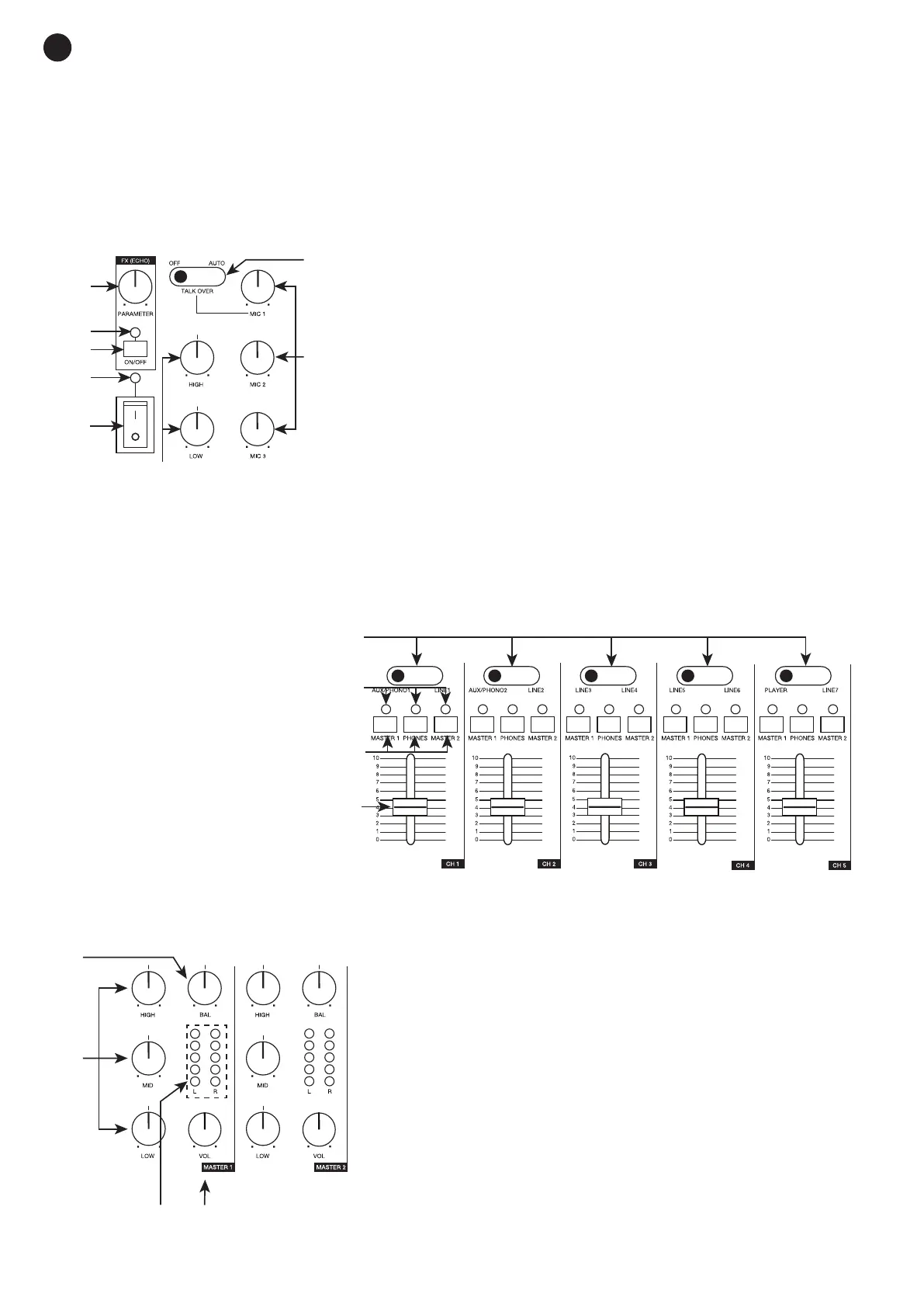

FRONT PANEL
1.- PARAMETER: volume control that regulates the intensity of
the ECHO effect.
2.- ECHO mode LED indicator.
3.- ON/OFF: pressing this button activates the ECHO effect on the
3 microphones.
4.- Mixer operation LED indicator.
5.- Mixer on/off switch.
6.- HIGH, LOW: tone controls for microphone inputs MIC 1, MIC
2 and MIC 3 with a gain of ±12 dB.
- HIGH: high-pass filter with 3,000 Hz cut-off frequency.
- LOW: high-pass filter with 150 Hz cut-off frequency.
7.- MIC 1, MIC 2, MIC 3: microphone input volume controls.
8.- TALK OVER: talk over function power selector. When a signal is detected at the MIC 1 input with the
selector switch set to AUTO, the talk over function is activated by attenuating the level of the input
channels CH 1 - CH 5.
9.- Input selectors. Allows you to
select the input source to each
channel.
10.- LED indicators of the channel
send selectors to the output
buses.
11.- MASTER 1, PHONES, MASTER 2:
selector switch for
sending the channel
to the various output buses:
MASTER 1, PHONES and
MASTER 2.
12.- Volume slider. Controls the volume level of each channel.
13.- BAL: control that adujsts the stereo image in the final mixes
MASTER 1 and MASTER 2.
14.- LOW, MID, HIGH: tone controls for each of the MASTER 1
and MASTER 2 outputs.
- HIGH: high-pass filter with 1,000 Hz cut-off frequency.
- MID: band pass filter with a centre frequency of 1,400 Hz.
- LOW: low-pass filter with 320 Hz cut-off frequency.
15.- LED indicators showing the signal level of the final mixes
MASTER 1 and MASTER 2.
16.- VOL: volume control of MASTER 1 and MASTER 2 outputs.
