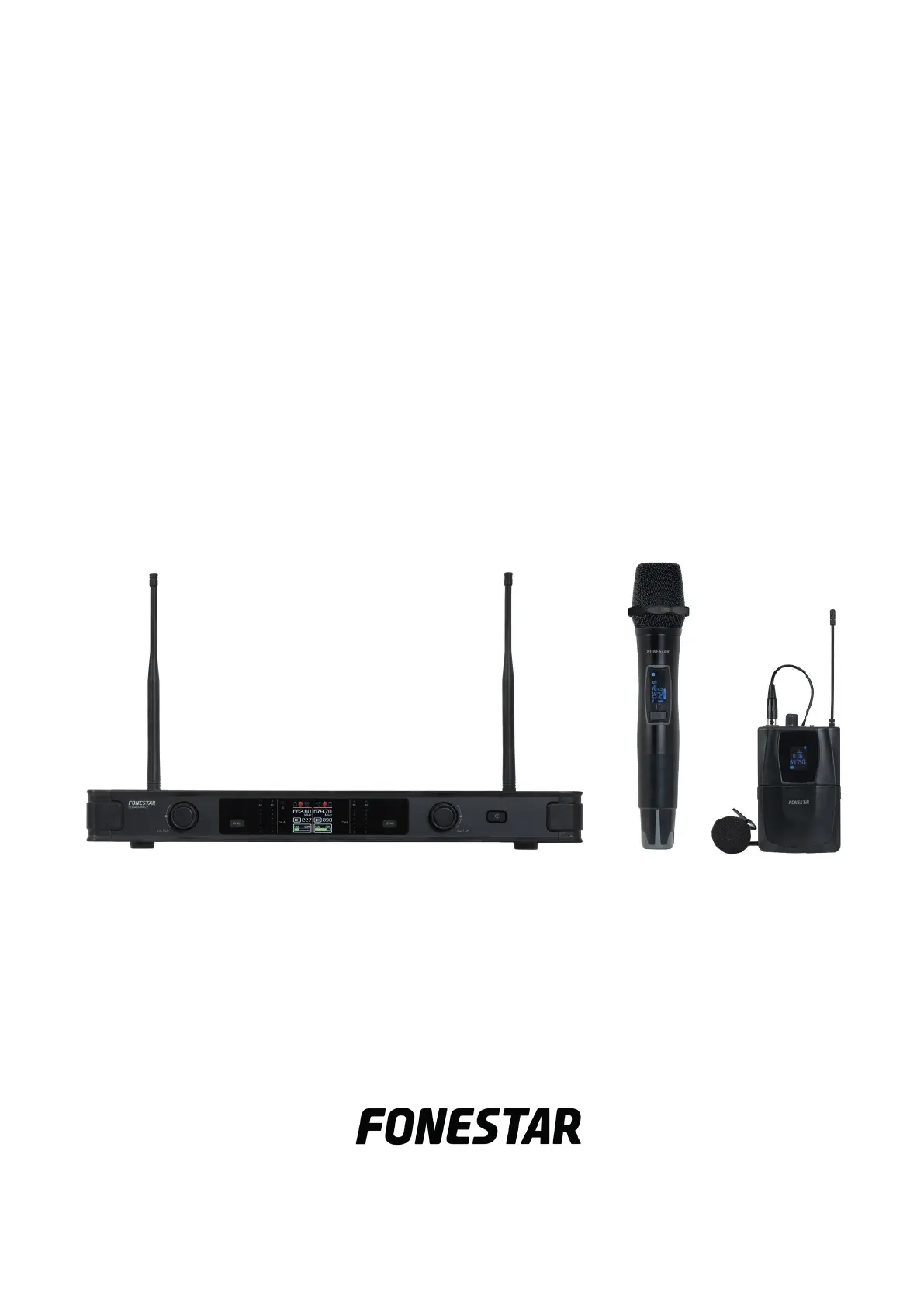

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

SONAIR-PRO-2M,

SONAIR-PRO-2MP

DUAL UHF WIRELESS MICROPHONE SYSTEM

SISTEMA DOBLE DE MICROFONÍA INALÁMBRICA UHF

SYSTÈME DE MICROPHONE SANS FIL UHF DOUBLE

SISTEMA DE MICROFONES DUPLO SEM FIOS UHF

- 2 -

DESCRIPTION

- Wireless microphone with superior sound, stable operation and excellent interference behaviour.

- The microphone integrates the ID Pilot function which pairs the receiver and transmitter with a unique

16-bit code, preventing other microphones from interfering even on the same frequency. In addition, the

diversity reception with two antennas ensures the best RF reception.

- The display on the microphone and on the receiver easily informs about frequency and battery status.

Facilitating the control of microphones.

- The transmitter uses an integrated audio and transmission management solution on a single chip, with

frequency selection and efﬁcient power management to maximise battery life. FM modulation technology

with high sound quality.

- The receiver and microphone channels are quickly synchronised with the IR synchronisation function.

- UHF frequency range with selectable transmission channels.

- Receiver with colour display and low noise balanced and unbalanced output for easy connection.

- SONAIR-PRO-2M: dual receiver + 2 hand-held microphone.

SONAIR-PRO-2MP: dual receiver + 1 hand-held+ 1 belt-pack with clip-on microphone.

CONTROLS AND FUNCTIONS

SONAIR-PRO-2M RECEIVER & SONAIR-PRO-2MP

402

398

680.10

MHz

679.70

MHz

A B A B

VOL

97%

VOL

76%

1 12 23 4 346 75

1 12 3 4

1.- VOL | CH: multifunction controls.

- rotation: independent volume controls for channels A and B on the audio outputs.

- long press + rotate: enters the conﬁguration mode and selects the channel (transmission

frequency), the channel number will be shaded when this mode is active

HI MUTE

CHANNEL

MHz

402

398

680.10

MHz

679.70

MHz

A B A B

VOL

97%

VOL

76%

402

CH CH

3 seg.

MUTE

CHANNEL

MHz

402

398

680.10

MHz

679.70

MHz

A B A B

VOL

97%

VOL

76%

A B A B

A B

MUTE

402

. To exit

the conﬁguration mode, long press again or wait a few seconds and it will automatically deactivate.

2.- SYNC: a long press activates the synchronisation of the transmission channel (frequency) and a short

press stops it. For more information, see section OPERATING INSTRUCTIONS - RECEIVER AND

TRANSMITTER SYNCHRONISATION.

3.- AF: audio signal indicator lights for channel A and channel B audio signals. It will light up orange when

receiving audio signal from the microphone. Do not allow the last red LED to illuminate as this will mean

that the signal is saturating; if this happens, decrease the volume of the channel.

4.- RF: radio frenquency signal indicator lights for channel A and channel B. It will light up green when

receiving radio frequency signal from the microphone.

5.- IR: IR sensor for synchronisation of the transmission channel (frequency).

6.- Information display.

7.-

: receiver on/off button and indicator light. Make a short press to switch on and a long press to switch

off the receiver.

402

398

680.10

MHz

679.70

MHz

A B A B

VOL

97%

VOL

76%

1 12 23 4 346 75

12 3 4

1.- ANT A/B: antennas for signal reception of A and B channel microphones with diversity technology.

2.- MIX OUT: audio signal output of the mix of both channels A and B, 6.3 mm unbalanced jack connector.

3.- AUDIO OUT CH A/CH B: audio signal outputs for each independent channel A and B, balanced XLR

connectors.

4.- POWER IN: power input 12 V DC, 1 A.
