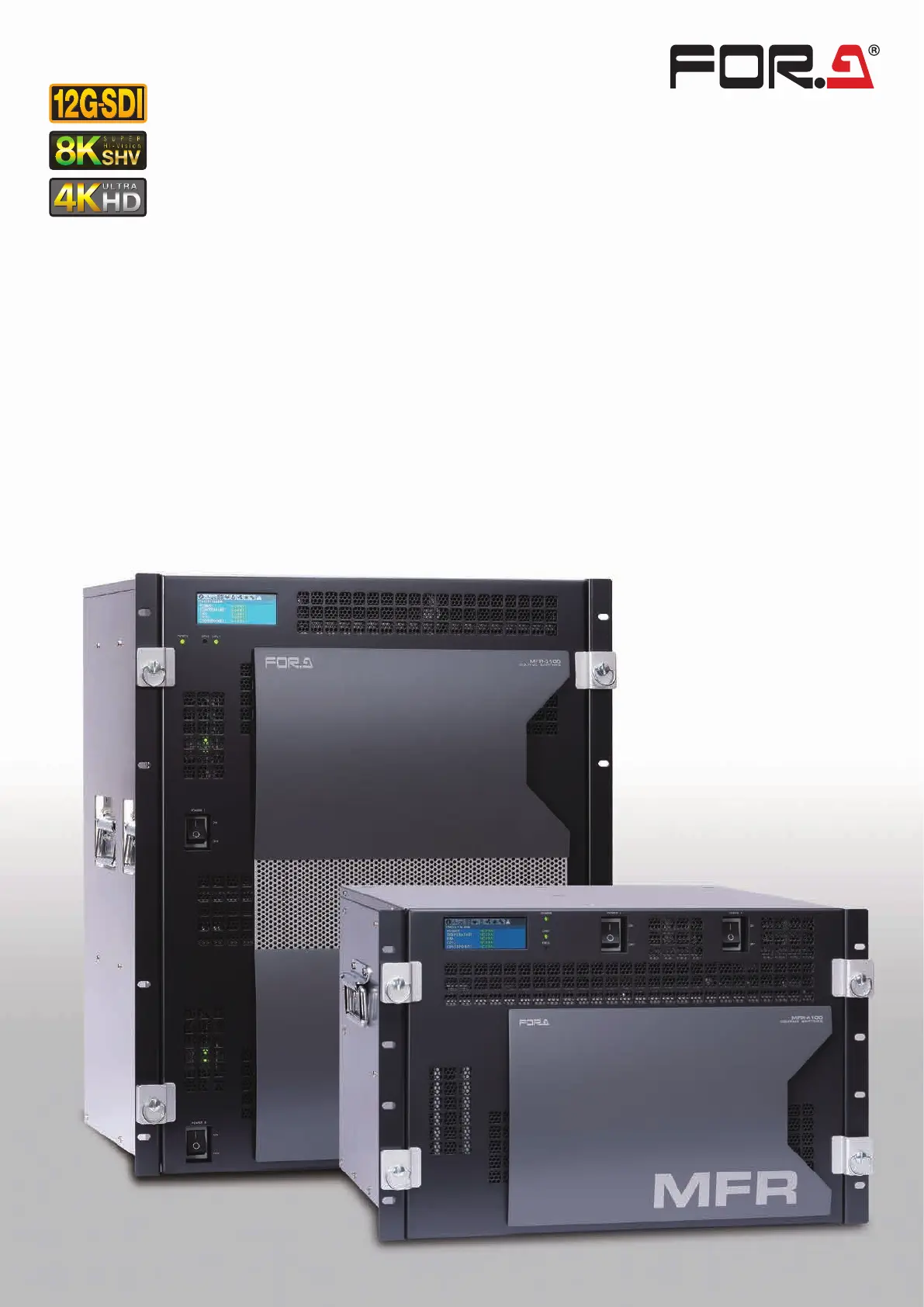

MFR-4100/6100
12G/6G/3G/HD/SD/ASI Routing Switcher
12G/6G/3G/HD/SD/ASI Routing Switcher
MFR-4100/6100
MFR-4100/6100
12G/6G/3G/HD/SD/ASI Routing Switcher
With 12G-SDI*
1
or 6G-SDI compatibility across all inputs and outputs,
the MFR-4100/6100 brings powerful support to 4K routing.
The MFR-4100 supports up to 72 inputs/72 outputs and the MFR-6100 supports up to 144 inputs/144 outputs.
Building on the solid MFR series performance, those units inspire confidence thanks to their redundant design.
With 12G-SDI support, 4K signals are carried over a single cable, resulting in less space needed for equipment and
easier setup.
Support for 12G*
1
/6G/3G/HD/SD*
2
-SDI and DVB-ASI*
3
input and output. With auto signal detection,
there’s no need to worry about signal formats.
Multi-format video input and output
Lineup
MFR-4100
■ Max. 72 in/72 out matrix in a 7 RU frame
■ Up to 8 input cards and 8 output cards, with
 nine channels per card
MFR-6100
■ Max. 144 in/144 out matrix in a 13 RU frame
■ Up to 16 input cards and 16 output cards, with
 nine channels per card
SDI input signal error detection*
5
Alerts in the GUI*
6
inform the user of any SDI input signal errors
(CRC/TRS). This supports solid operation as a 12G-SDI system.
*5 When equipped with MFR-9SDI12GA *6 To check error details, use a waveform monitor.
Jitter cleaning*
7
Reduce jitter in SDI signals to ensure stable signals sent to downstream
equipment.
*7 MFR-9SDI12GA/MFR-9SDO12GA are required
Front control panel
Equipped with a control panel for menu display. Error display possible,
when needed.
SNMP support
Can be integrated into an SNMP monitoring system. Enables monitoring
of various operational status, such as power, fan, and CPU status, SDI
signal input*
8
, and crosspoint errors. If system failure and recovery occur,
SNMP traps are sent to managers.
*8 MFR-9SDI12GA required
Outstanding redundancy
Can be congured with redundant CPUs and power supplies (optional).
As core system components, FOR-A routing switchers can incorporate
redundancy to ensure nonstop operation in case of problems.
Features to maintain a stable system
Matrix partition capability
One routing switcher can be virtually partitioned to build any theoretical
hierarchy, creating possibilities for use in various operations.
Application Examples
■ 4K/8K switcher (supporting crosspoint)
4K and 8K signal switching with coordinated control of multiple
crosspoints
■ 4K/HD simul-switcher
Simulcast operations involving separate or simultaneous control of 4K
and HD material
■ Fully independent switching
Use a single enclosure as multiple routing switchers by partitioning a
conguration. Ideal for operation equivalent to multiple units without
sharing sources.
■ V/Key linking switcher
Divide the matrix into two partitions for coordinated control of video and
key signals.
GUI-based configuration
A built-in webserver enables immediate setup without installing software
on external devices.
Versatile crosspoint control
Besides typical crosspoint switching, the unit enables a variety of
crosspoint control:
■ Salvo ■ Take ■ Link ■ Level ■ Chop
Interface expansion units
Two types of interface expansion units are available:
■ MFR-TALM: Tally Manager 
■ MFR-GPI: GPI Unit
Improved usability
Video I/O Cards
12G-SDI support 6G-SDI support
MFR-9SDI12GA MFR-9SDO12GA MFR-9SDI*
4
MFR-9SDO*
4
Supported formats
12G/6G/3G/HD/SD*
2
-SDI 12G/6G/3G/HD/SD*
2
-SDI
6G/3G/HD/SD*
2
-SDI/
DVB-ASI/AES10(MADI)
6G/3G/HD/SD*
2
-SDI/
DVB-ASI/AES10(MADI)
BNC 9 9 9 9
*1 MFR-9SDI12GA and MFR-9SDO12GA are required
　
*2 Planned for future support
　
*3 MFR-9SDI and MFR-9SDO are required
　
*4 To be released
