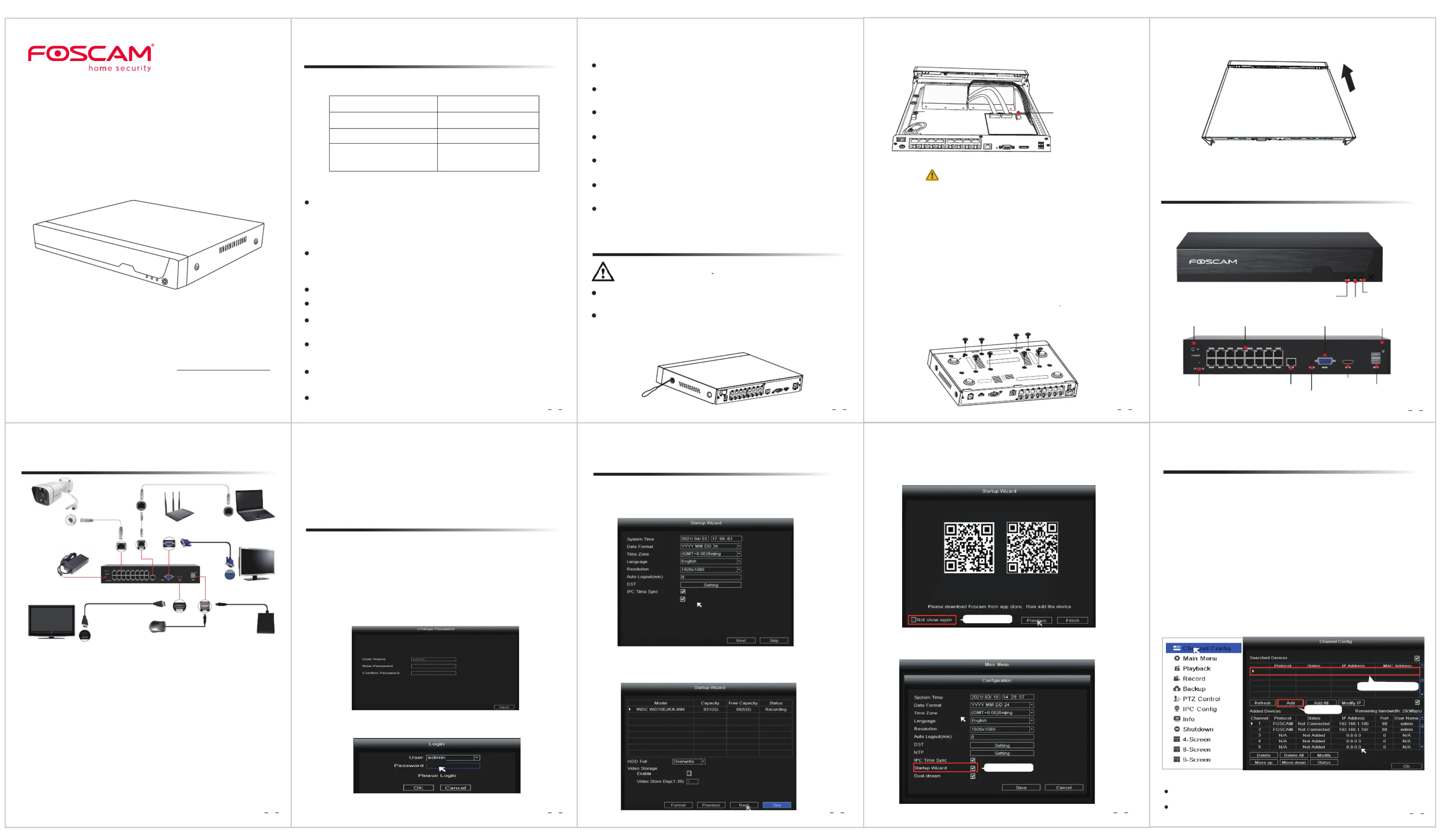

Quick Setup Guide
Network Video Recorder
V2.0
305503001059
WARNING
is disconnected from the NVR.
It is recommended that a hard drive be used in 7200 high-speed or
above.
1. Remove the cover from the NVR by unfastening the screws on the
rear and bottom.
2. Connect one end of the data cable and power cable to the
motherboard of NVR and the other end to the HDD.
3. Place the HDD on the bottom of the device and then fasten the
screws on the bottom to x the HDD.
Must be disposed of properly, always follow the local waste and
recycle laws when you get rid of the used battery
May explode if damaged or disposed of in re.
Do not short-circuit.
Do not disassembie
Do not use if soaked into water.
Do not attempt to disassemble, open or service the battery.
Non rechargeable.
If the battery level is low, please replace the button battery with a
new one according to the model after disassembling in steps 1 and 2.
4. Re-install the cover of the NVR and fasten screws.
Foscam cameras and NVRs require good security practices to
safeguard your privacy. You should regularly change your camera or
NVR password which is the combination of numbers, letters and
symbols.
You should update your camera or NVR regularly. Make sure your
camera or NVR has the latest rmware installed for your specic model
and better experience.
Please keep the device horizontally and avoid inclination or inversion.
Do not install the NVR in humid and dusty environment.
Put the NVR in drafty environment in case of ventilation port being
blocked.
Don't touch the power switch with wet hand or damp items to avoid
shock.
Do not splash liquid or metal ling on the NVR To avoid short-circuit
fault or blaze.
Explosion may happen because of improper replacement of battery,
Quick Setup Guide
NVR
Screw Pack
DC Power Adapter
Ethernet Cable
Data Wire and Power Wire
of the Hard Drives
Warning Card
USB Mouse
Uncheck the checkbox
3. P2P. If you want to know the UID of the device, please scan
the QR code. If you don’t want to use the Setup Wizard
next time, uncheck the Setup Wizard checkbox. Click the
Finish button to complete the setup wizard.
or Right-click uncheck the →Main Menu →Conguration →
Setup Wizard Finish checkbox. Click the button to complete the
setup wizard.
Uncheck the checkbox
Download Foscam APP P2P
HDD
HDD
+
CR1220
CAUTION:
Package Contents
Security Warning
1 Before You Start
2 Hard Disk Installation
Procedure
1. If you want to use Foscam VMS or App, the NVR needs to be connected
to a router. If you only use the LAN to connect to the monitor, you don’t
need to connect to the router.
2. Connect your display to one of the video outputs (VGA or HD-OUT
interface).
3. Connect an external storage device to the USB interface of the NVR as
a backup.
4. Connect a mouse to the USB interface.
5. Some devices need to connect to your router using an Ethernet cable,
including the NVR, PC and IP Camera.
6. Connect the power adapter to the power input port.
7. The NVR DHCP server will open if it does not detect and connect a
router within the 30s, which is used for searching and connecting to
the IPC on the PoE NVR or switch.
Computer
Router
Ethernet
Cable
Ethernet
Cable
VGA Cable
Monitor
Mouse
NVR
HDMI Cable
USB HDD
Ethernet
Cable
(PoE) Camera
NVR Power Adapter
(DC 52V)
TV
4 Device Connection
5 Log In
6 Setup Wizard
1. Turn on the power switch on the rear panel.
After the NVR starts up successfully, the power LED and HDD LED
indicators will turn green. The startup page is displayed on the
screen.
2. Change user name and password .
For your security, please set a new user name and password for your
NVR before Log In.
4. After modifying the password, you will be taken to the .Setup Wizard
3. Login page.
Enter the Username and Password, then click on the button.OK
*You need to set an inital user name and password for the rst use.
*The maximum username lngth is 20, including numbers, letters and symbols:
_-@$*
*The password should be a combination of 6-12 numbers, letters, symbols.
Sybbols support: ~!@#%^*()_+{}:|<>?’-;\,./
3 NVR Rear Panel
Power Switch
GND
Power Input
(DC52V )
RJ45
VGA Output
Audio Out
Network
HD-OUT
USB Port
Alarm Indicator
REC Indicator
Power Indicator
If a router is connected at this time, the NVR cannot be found when
adding it by APP or VMS, and the NVR needs to be restarted.
Remarks: Users can customize the startup time or close of the NVR
DHCP server.
CR1220 Battery
(3V, 35mAh,0.105Wh,
Chemical System:
Lithium)
For detailed manuals, tools, etc., please visit foscam.com/downloads.
The Setup Wizard can walk you through some important settings on
the NVR.
1. Setting the time.
2. Format HDD. Click the button to set up the HDD. Format
Note that this will delete all les on the HDD.
HDD Full Setting Select Stop Record and Overwrite . .
9
Auto-add Foscam camera(s)
7
Add IP Camera
You can add an IP Camera that is connected to the internet on the NVR.
1. Right-click on main interface, select .Channel Cong
2. Select or your IP Camera Auto-add Foscam camera(s)
3. Click Add.
4. Enter username and password of the camera. If your camera is in the
factory default state, you do not need to enter the user name and
password.
5. Click OK.
Select a protocol depending on which IP Camera you have.
FOSCAM protocol: The High Denition (HD) IP Cameras for Foscam.
ONVIF protocol: IP Cameras which support ONVIF protocol.
Kitchen
Garden
FOSCAM
FOSCAM
FOSCAM
Not Connected
Not Connected
Not Connected
192.168.1.100
192.168.1.107
192.168.1.109
1. Select Your IP Camera
2. Click Add
Camera Name
Doorway
Bitrate Adaptive
Auto-add Foscam camera(s)
Note: If the camera is added during factory default status, the username
and password will be the same as the NVR.
●
●
●
●
●
●
●
do not replace it by yourself; If you need, make sure it is the same type
of battery. And do not open or repair the battery.
Do not take the device apart when it is operating (or connecting to
power).
Please use suitable and professional hard disk to ensure continues
and stable recording.
Lightning protection is needed when device is connected to commu-
nication cables.
Check the power supply to avoid damage because of voltage
mismatch.
Make sure the NVR working within suitable temperature and humidity
environment.
Short circuit may occur when dust become wet on circuit board.
Please clean the dust on connectors and NVR case.
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F).:
15
16
17
1312
18
10 11
14
19
FAQS
Foscam APP
Facebook
CE Certificate statement Website:
https://www.foscam.com/company/ce-certificate.html
Exporter and Importer Information Opened to Public:
https://www.foscam.com/company/open-information.html
www.foscam.com
Due to product upgrades and other reasons, this guide may be slow to update,
resulting in slight inconsistencies with the ocial website information. Please take
the ocial website (www.foscam.com) information as the current standard.
Manufacturer: Shenzhen Foscam Intelligent Technology Co., Ltd
Addr: Room 902, Building 1B, Shenzhen International Innovation
Valley, Xingke 1st Street, Nanshan District, Shenzhen,
Guangdong, China, 518055
Support email: support@foscam.com
Set the event alarm according to the following methodRight-click →
Main Menu Event Motion Detect → → → choose target channel,
setting Schedule, Delay, Record Channel, Tour, PTZ Activation, Send
Email Buzzer→ Save.
The maximum number of 16 playback video channels have been
reached, please deselect other channels rst to continue.
Note
Power Supply: DC 52V 4.0A 208W
Foscam VMS is a new tool for PC. It does not require plug-ins and is
compatible with Windows & Mac, It supports all Foscam HD cameras
and up to 36 cameras at the same time. If you would like to manage
multiple cameras, we suggest you install the Foscam VMS. You can
download the “Foscam VMS” from , and can foscam.com/vms
download the "Foscam VMS" Mac version from the APP store:
https://apps.apple.com/cn/app/foscamvms/id1521202507?mt=12
Add the NVR
1. Run Foscam VMS, then create a local administrator account or a
Foscam account and login.
2. Tap the "+" button on the Foscam VMS and follow the setup
wizard to add your NVR.
Please refer to the user manual for more detailed adding steps.
Note: For the best experience, please update Foscam VMS to the latest
version!
If you want to start event recording, select in Type, use the left Event
mouse button to select the time (turned to green), if the other channels
operate in the same way, select .Copy
Note The default alarm type is : Motion Detect
You can also access the NVR or IP Camera directly through Foscam
VMS and Foscam App
You can see the recording information, include Manual Record, Alarm
Record, Schedule Record.
9
Playback
10 Remote Access
13 Technical Support
12 Product Performance
Right-click choose channel and date →Main Menu →Playback → →
click timeline to check record.
3. Preview: click device in Lan Device list to enter preview interface,
select a channel to view it’s picture, click to enter, as follow
shows:
4. Preview: click device in list to enter preview interface, select a
channel to view it’s picture, as follow shows:
If you have problems with your Foscam device, please contact the
reseller you purchased from, or you can e-mail the headquarters
technical support team: support@foscam.com
Your valuable comments and suggestions on improving Foscam
products are welcomed!
10.1 Access to the Foscam VMS
After the IP Camera is added successfully to the NVR, enable Scheduled
Record functionality to the following methods when in the Live View
mode.
In the Live View mode, the icon is at the bottom right of the screen
for each channel, indicating recording is on going.
8
Recording
Right-click choose recording channel → → →Main Menu Record →
Save (Actually, the NVR system have default set 24h scheduled
recording).
8.1 Scheduled Record
8.2 Event Record
In the Live View mode, the icon is at the bottom right of the screen
for each channel, indicating recording is on going.
11 Upgrade
1. You can upgrade your NVR and cameras system with local Software.
NVR Upgrade:
Download the rmware to the U disk Insert U disk to NVR USB port →
→ → → → → Right-click Main Menu Update click Refresh click
Update to upgrade your NVR.
Note:
Don't shut down the power during upgrade. After upgrading, NVR
restarts.
3. You can upgrade the rmware of your NVR and cameras with
Foscam App.
Open Foscam APP and Login the NVR, select Settings > NVR Firmware
Upgrade.
2. You can upgrade the rmware of your NVR with Foscam VMS.
Open and Login Foscam VMS, select Setup > > System System
Upgrade.
Note:
In all upgrade methods, don't shut down the power during upgrade.
After upgrading, NVR restarts.
Firmware upgrade step:
① Click " " button to downloadDownload the latest rmware
the latest rmware to your computer.
② Click " " button , choose le rmware version youBrowse
want to upgrade on the web page.
③ Click " " button and wait till it's nished.Upgrade
3. Device Adding: Once logged in, you can tap the "+" button on the
APP, after that scan the QR code, which is located at the bottom
of your NVR.
1
Basic
Device Manager
Application
System
Factory Reset
Camera Firmware
Reboot
NVR Firmware
Current firmware version 2.71.1.79：
Download the latest firmware
2
Browse
Device Settings
Upgrade
3
FNA216HE
10.2 Access to the Foscam App
2. Run the APP, and then register for a Foscam account. Foscam
1. You can also simply go to the App Store or Google Play and
search for the term " ". Download the APP to yourFoscam
smartphone, or scan the QR Code on the below, it will take you to
the download page to install the Foscam APP.
1.Click the button to select
the rmware to the U disk
2.Click the button to
Update
update
Restore
Local upgrade
update
Note: The Foscam app is subject to the latest version, and its
functions are constantly iterated.

Produkt Specifikationer

Mærke: Foscam
Kategori: Ikke kategoriseret
Model: FNA216HE

Har du brug for hjælp?

Hvis du har brug for hjælp til Foscam FNA216HE stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Foscam Manualer

Foscam

Foscam FNA108E-B4 Manual

4 August 2025
Foscam

Foscam FN9108W-B4 Manual

11 Februar 2025
Foscam

Foscam FNA216HE Manual

13 Januar 2025
Foscam

Foscam FNA216H Manual

13 Januar 2025
Foscam

Foscam FN9108E-B4 Manual

24 August 2024
Foscam

Foscam FNA108HE Manual

24 August 2024
Foscam

Foscam FN9108HE Manual

24 August 2024
Foscam

Foscam T8EP Manual

24 August 2024
Foscam

Foscam T5EP Manual

24 August 2024
Foscam

Foscam FN8108W-B4 Manual

10 Juni 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

T'nB

T'nB MHMECA Manual

18 September 2025
Marmitek

Marmitek BoomBoom 55 HD Manual

18 September 2025
CTA Digital

CTA Digital PAD-HFS Manual

18 September 2025
Vestil

Vestil ATP-C-2436 Manual

18 September 2025
Active Intent Play

Active Intent Play GSBV16T Manual

18 September 2025
Vestil

Vestil D-33-MD Manual

18 September 2025
Vestil

Vestil LAD-13-14-P Manual

18 September 2025
Cambro

Cambro VBRTHD6110 Manual

18 September 2025
Vicoustic

Vicoustic VicFix Base Manual

18 September 2025
Vestil

Vestil LAD-10-14-P Manual

18 September 2025
