ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
(with cooktop combination installations)
Figure 1
30" Single Wall Ovens
PN 807153708 Rev. A (2021/07)
English – pages 1-10
Español – páginas 11-20
Français – pages 21-30
All dimensions are in inches (cm).
NOTES:
1. Allow at least 23" (58.4 cm) clearance in front of
oven for door depth when it is open.
2. Dimension G (cutout depth) is critical to the proper
installation of the built-in oven. If the oven trim does
not butt against the cabinet, or if noise is heard on
convection models, verify dimension G to assure it
is the required depth.
Printed in U.S.A.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
ammable vapors and liquids in the vicinity of this or any other appliance.
Your new wall oven has been designed to t a variety of cutout sizes to make the job of installing easier. The rst
step of your installation should be to measure your current cutout dimensions and compare them to the cutout
dimensions chart below for your model. You may nd little or no cabinet work being necessary.
PRODUCT DIMENSIONS
A B C D E
297/8 (75.9 cm) 28 (71.1 cm) 287/16 (72.2 cm) 253/16 (63.9 cm) 26 (66.1 cm)
CUTOUT DIMENSIONS AND CABINET WIDTH
F G H. Standard Height
(**Others, see note 3) I
Min. Max. Min. Min. Max.
281/2 (72.4 cm) 29 (73.7 cm) 23 1/2 (59.7 cm) 263/4 (68.0 cm) 28 (71.1 cm) 301/8 (76.5 cm) Min
United States
and Canada
Hole for Cord
Electrical Junction Box
2" (5 cm) Wide Wood Spacer if Needed

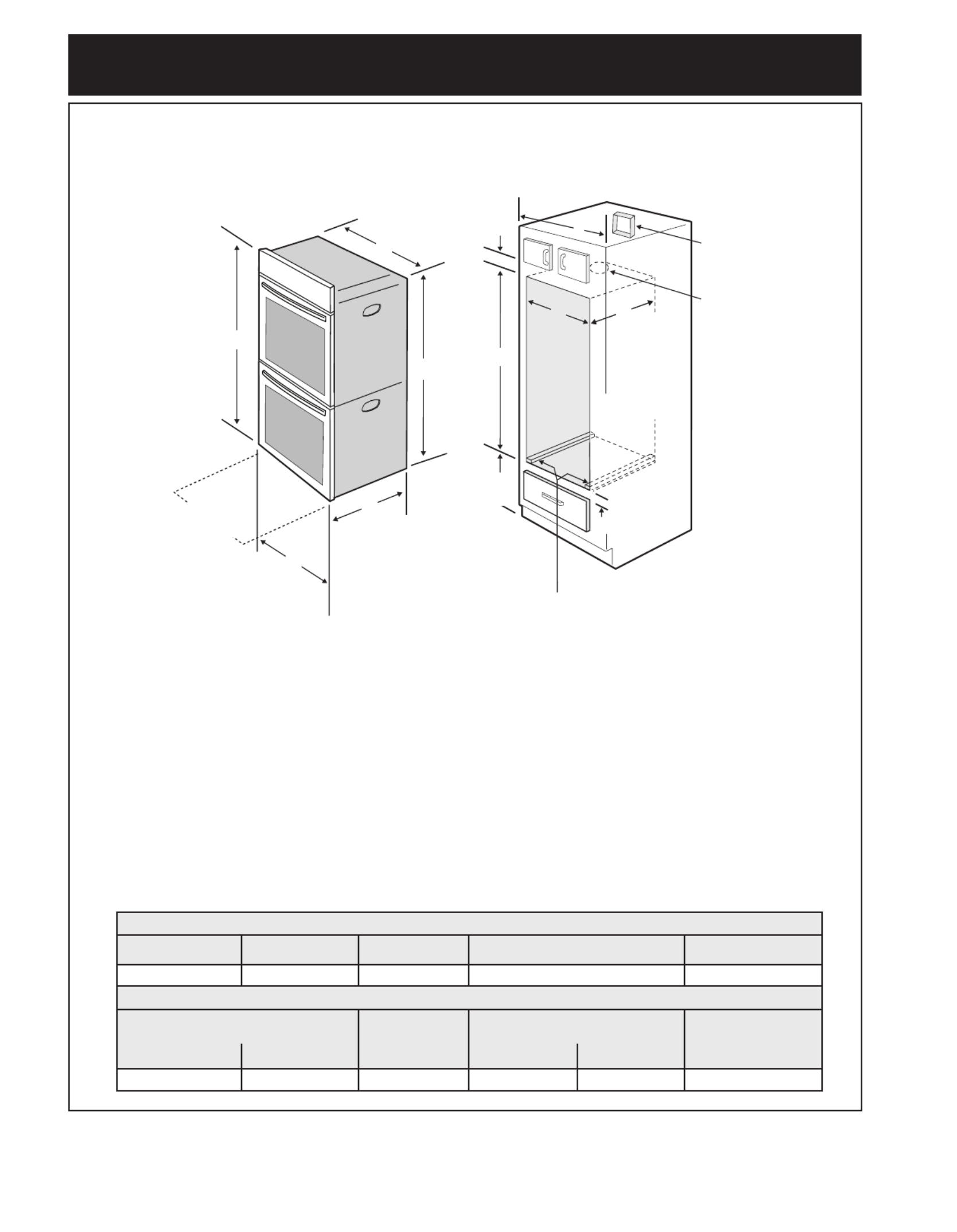

SINGLE WALL OVEN INSTALLATION
B
D
C
E
A
H F
I
G
Door Open
(see note 2)
21/8" (5.4 cm)
Min.
31" *
(78.7 cm)
2" (5.1 cm)
Min.
3. For a cutout height greater than the maximum (H),
add one 2"(5 cm) wide wood shim of appropriate
height to each side of the opening under the
appliance side rails. A trim kit may be purchased
through a dealer, service, or on the brand website.
* Suggested distance from
oor is 31" (78.7cm).
Minimum required distance
is 4 ½" (11.4cm).
