echoMAP 70/90 Series Installation
Instructions
To obtain the best performance and to avoid damage to your
boat, install the device according to these instructions.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin® Product Support.
Important Safety Information
WARNING
See the guide in the Important Safety and Product Information
product box for product warnings and other important
information.
When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
CAUTION
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
To obtain the best performance and to avoid damage to your
boat, install the device according to these instructions.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
Registering Your Device
Help us better support you by completing our online registration
today.
Go to .http://my.garmin.com
Keep the original sales receipt, or a photocopy, in a safe
place.
Contacting Garmin Product Support
Go to for in-country support www.garmin.com/support
information.
In the USA, call 913-397-8200 or 1-800-800-1020.
In the UK, call 0808 238 0000.
In Europe, call +44 (0) 870 850 1241.
Tools Needed
Drill and drill bits
#2 Phillips screwdriver
Jigsaw or rotary tool
File and sandpaper
Marine sealant (optional)
Mounting Considerations
The device can be mounted using the included bracket, or it can
be mounted flush with the dashboard using a flush-mount kit
(may be sold separately).
Before permanently installing any part of your device, you
should plan the installation by determining the location of the
various components.
The mounting location must provide a clear view of the
screen and access to the keys on the device.
The mounting location must be sturdy enough to support the
device and the mount.
The cables must be long enough to connect the components
to each other and to power.
The cables can be routed under the bail mount or behind the
device.
To avoid interference with a magnetic compass, the device
should not be installed closer to a compass than the
compass-safe distance value listed in the product
specifications.
Bail Mounting the Device
NOTICE
If you are mounting the bracket on fiberglass with screws, it is
recommended to use a countersink bit to drill a clearance
counterbore through only the top gel-coat layer. This will help to
avoid cracking in the gel-coat layer when the screws are
tightened.
Stainless-steel screws may bind when screwed into fiberglass
and overtightened. It is recommended to apply an anti-seize
lubricant on the screws before installing them.
1Select the mounting hardware appropriate for your mounting
surface and for the bail-mount bracket.
2Using the bail-mount bracket À as a template, mark the pilot
holes through the screw holes Á.
3Using a drill bit appropriate for the mounting hardware, drill
the four pilot holes.
4Using the selected mounting hardware, secure the bail-mount
bracket to the mounting surface.
5Place the device into the cradle Â.
6Install the bail-mount knobs à on the sides of the device.
7Place the cradle in the bail-mount bracket and tighten the
bail-mount knobs.
Flush Mounting the Device
NOTICE
Be careful when cutting the hole to flush mount the device.
There is only a small amount of clearance between the case and
the mounting holes, and cutting the hole too large could
compromise the stability of the device after it is mounted.
Using a metal pry tool such as a screwdriver can damage the
trim caps and the device. Use a plastic pry tool when possible.
A flush-mount template and hardware can be used to mount the
device in your dashboard.
September 2016 Printed in Taiwan 190-01835-12_0A

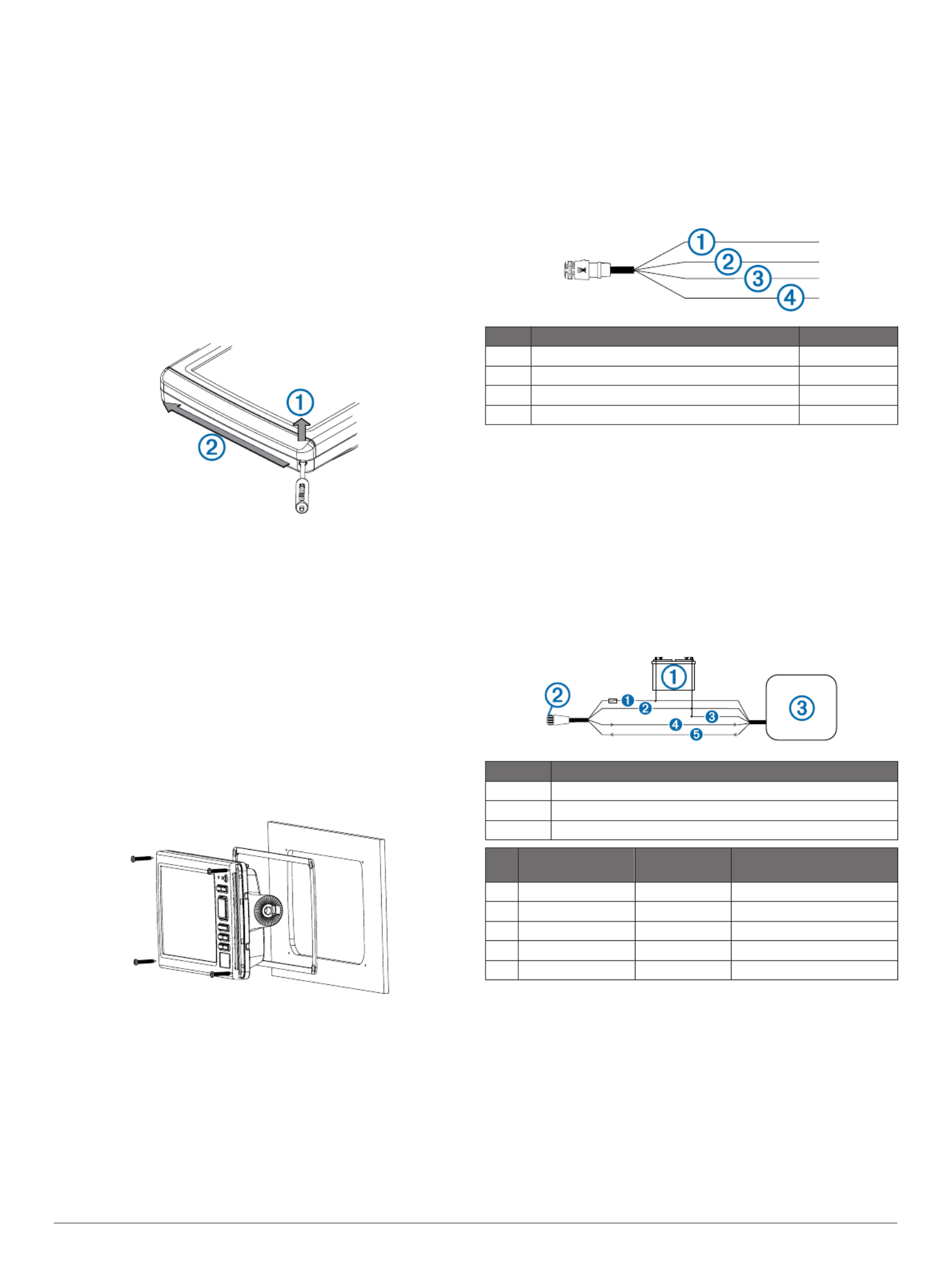

1Trim the template and make sure it fits in the location where
you want to mount the device.
2Secure the template to the selected mounting location.
3Using a 9.5 mm (3/8 in.) drill bit, drill one or more of the holes
inside the corners of the solid line on the template to prepare
the mounting surface for cutting.
4Using a jigsaw or rotary cutting tool, cut the mounting surface
along the inside of the solid line indicated on the template.
5Place the device into the cutout to test the fit.
6If necessary, use a file and sandpaper to refine the size of
the hole.
7NOTE: Not all devices have trim caps.
Using a pry tool such as a flat piece of plastic or a
screwdriver, carefully pry up the corners of the trim caps À
and slide the pry tool to the center
Á to remove the trim caps.
8Ensure the mounting holes on the device line up with the pilot
holes on the template.
9If the mounting holes on the device do not line up, mark the
new pilot-hole locations.
10 Using a 3.2 mm (1/8 in.) drill bit, drill the pilot holes.
11 Remove the template from the mounting surface.
12 If you will not have access to the back of the device after you
mount it, connect all necessary cables to the device before
placing it into the cutout.
NOTE: To prevent corrosion of the metal contacts, cover
unused connectors with weather caps.
13 Install the rubber gasket pieces on the back of the device.
The pieces of the rubber gasket have adhesive on the back.
Make sure you remove the protective liner before installing
them on the device.
14 Place the device into the cradle.
15 Securely connect each cable to a port on the cradle.
16 Place the locking bracket over the cables.
17 Place the device into the cutout.
18 Secure the device to the mounting surface using the included
screws.
19 Install the trim caps by snapping them in place around the
edges of the device.
Wiring Harness
The wiring harness connects the device to power and NMEA
®
0183 devices.
The device has one internal NMEA 0183 port that is used to
connect to NMEA 0183 compliant devices.
If it is necessary to extend the power and ground wires, you
must use .82 mm2 (18 AWG) or larger wire.
If it is necessary to extend the NMEA 0183 or alarm wires,
you must use .33 mm2 (22 AWG) wire.
Item Wire Function Wire Color
À NMEA 0183 internal port Rx (in) Brown
Á NMEA 0183 internal port Tx (out) Blue
 Ground (power and NMEA 0183) Black
à Power Red
Connecting the Wiring Harness to Power
1Route the wiring harness to the power source and to the
device.
2Connect the red wire to the positive (+) battery terminal, and
connect the black wire to the negative (-) battery terminal.
NMEA 0183 Connection Considerations
The installation instructions provided with your NMEA 0183
compatible device should contain the information you need to
identify the transmitting (Tx) and receiving (Rx) A (+) and B
(-) wires.
NMEA 0183 Connection Diagram
+-
Item Description
À12 Vdc power source
ÁWiring harness
ÂNMEA 0183 compliant device
Item Garmin Wire
Function
Garmin Wire
Color
NMEA 0183 Device Wire
Function
Ê Power Red Power
Ë Ground Black Data ground
Ì Tx/Rx Tx/Rx/B (-)
Í Tx Blue Rx/A (+)
Î Rx Brown Tx/A (+)
Installing the Cables and Connectors
Wiring to Power
1Route the power cable from the swivel mount to the boat
battery or fuse block.
2If necessary, extend the wires using .82 mm
2 (18 AWG) or
larger wire.
3Connect the red wire to the positive terminal on the battery or
fuse block, and connect the black wire to the negative
terminal.
2 echoMAP 70/90 Series Installation Instructions
