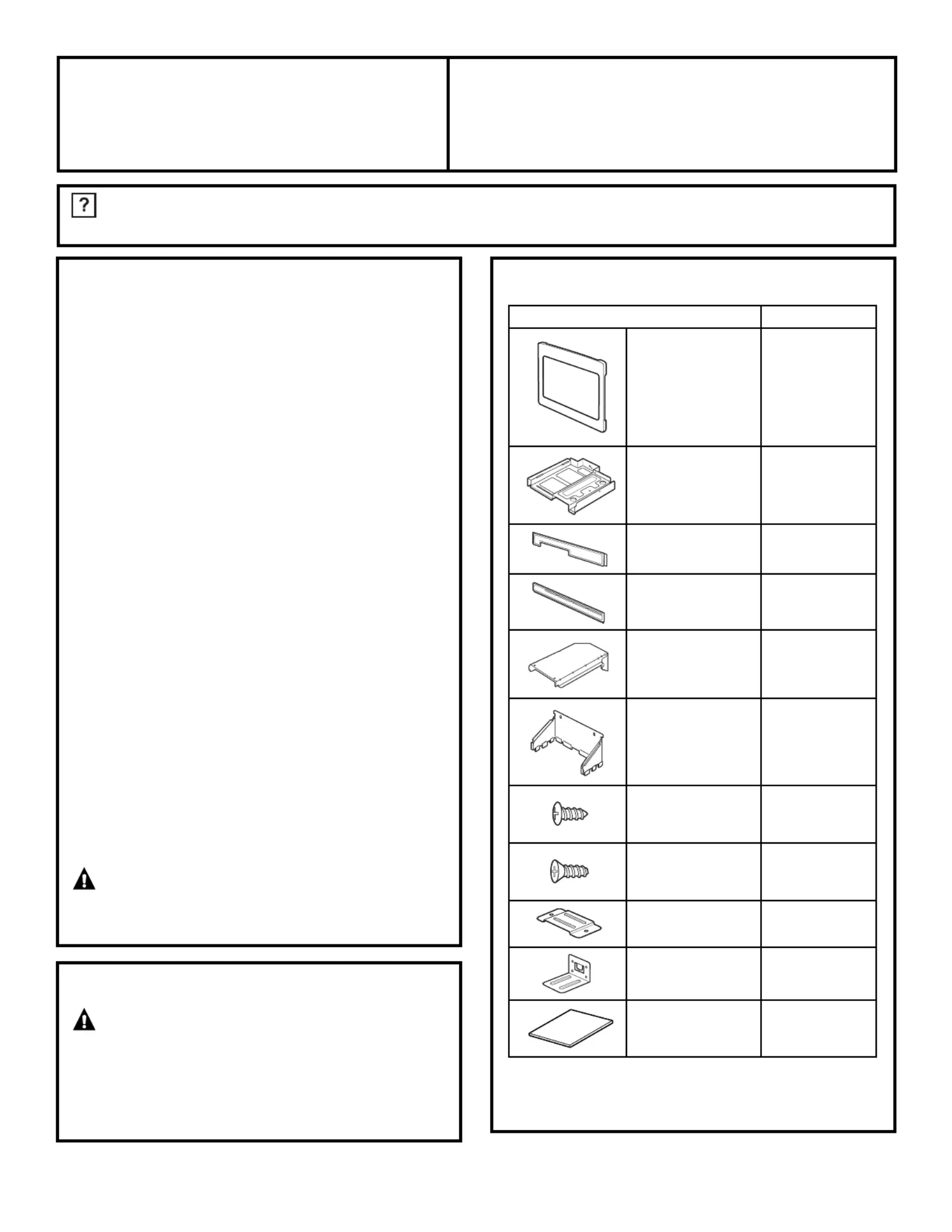

PARTS INCLUDED

NOTE: This kit has extra screws to prevent the technician

from spending extra time locating a replacement screw

during installation.

PART QUANTITY

❒ Trim Frame 1

❒ Bottom Duct 1

❒ Top Bracket 1

❒ Bottom Bracket 1

❒ Upper Duct 1

❒ Rear Duct 1

❒ 4 mm x 14 mm 22 required

Round-Head 2 extra

Screws

❒ 4 mm x 14 mm 4 required

Flat-Head 2 extra

Screws

❒ Anti-Tip Brace 1

❒ Anti-Tip Bracket 1

❒ Template 1

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

Installation

Built-In Trim Kits

Instructions

JX1527 JX1530

❒

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT —Save these instructions

for local inspector’s use.

•

IMPORTANT —Observe all governing codes

and ordinances.

• Note to Installer – Be sure to leave these instructions

with the Consumer.

• Note to Consumer – Keep these instructions for future

reference.

• Skill level – Installation of this appliance requires basic

mechanical and electrical skills.

• Completion time – 1 to 3 hours

•Proper installation is the responsibility of the installer.

•Product failure due to improper installation is not covered

under the Warranty.

•This kit is UL/CSA listed for installation alone or over any

GE/GE Profile single electric wall oven. Not for use adjacent

to (within 2 feet of) any gas or electric range, cooktop

or oven.

•For easier installation and personal safety, we

recommend that two people install this microwave oven.

•Unplug the microwave oven before attempting installation

of this kit.

•This kit is for use on models: PEB1590DMBB,

PEB1590DMWW, PEB1590SMSS, PEB159CDNBB,

PEB159CSNSS and PEB159CDNWW.

•Do not alter or modify any part of this kit or the oven.

WARNING —This oven must be plugged into a

properly grounded 3-hole, 120V receptacle as required by

the National Electrical Code or Canadian Electrical Code.

FOR YOUR SAFETY:

WARNING —Before beginning the installation,

switch power off at service panel and lock the service

disconnecting means to prevent power from being switched

on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

Questions? In the U.S., call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com.

In Canada, call 1.800.561.3344 or Visit our Website at: GEAppliances.ca.

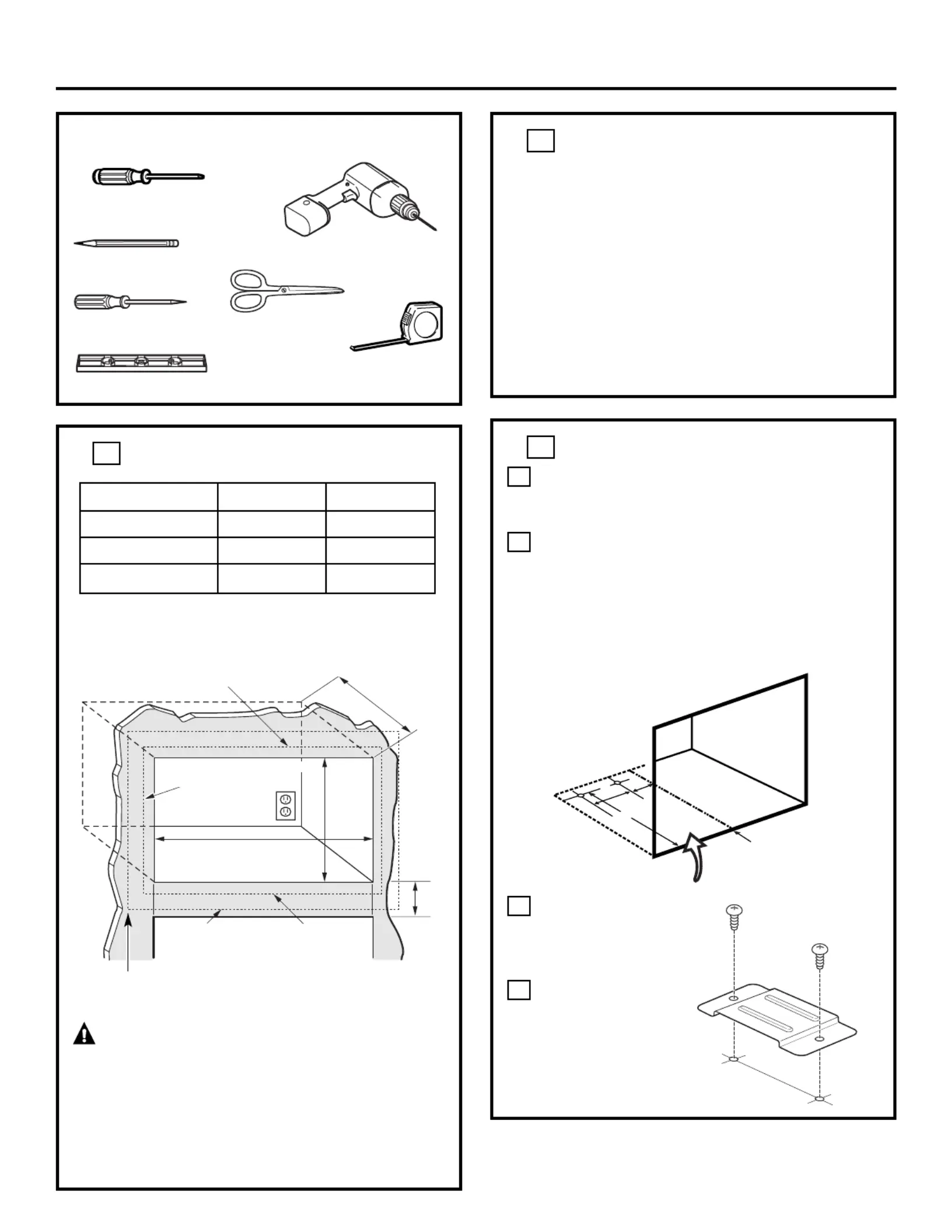

TOOLS YOU WILL NEED

Installation Instructions

❒ #2 Phillips Screwdriver

❒ Tape Measure

❒ Drill with 7/64 Bit or #35″

❒ Scissors (Optional)

❒ Pencil

❒ Awl or Punch

❒

CUTOUT DIMENSIONS

WARNING — This trim kit uses air flow

from the top, bottom and sides of the trim frame.

Blocking the air flow can cause the microwave to

function improperly and may cause damage to

the microwave.

Allow a 1 clearance beyond the edge of the trim″

frame to provide proper air flow.

Depth

Height

⁄2″Overlap

Width

⁄2″Overlap

1″Clearance beyond

trim frame

(on all sides)

3″Min.

27″Models: 1

⁄2″overlap

30″Models: 3″overlap

❒

CUTOUT DIMENSIONS (CONT.)

On 27″models, allow 1

⁄2″on all sides for overlap

of the trim frame over the edges of the cutout.

On 30″models, allow 1

⁄2″at the top and bottom

and 3 on each side for overlap of the trim frame″

over the edges of the cutout.

FOR INSTALLATION ABOVE A BUILT-IN OVEN:

Microwave oven should be installed on a 3/8″

plywood base and supported by 2x4 or 1x2

equivalent runners on all sides. Base must be capable

of supporting a minimum of 100 lbs (45.3 kg).

* Min. depth with 120V–60 Hertz grounded power

receptacle outside cabinet 21

⁄2″

Min. depth with 120V–60 Hertz grounded power

receptacle inside cabinet 23″

Models 27″30″

Height 18

⁄4″18

⁄4″

Width 24″±

⁄ ±16″24″

⁄16″

Depth (min.)* 21

⁄2″or 23″21

⁄2″or 23″

❒

INSTALL THE ANTI-TIP BRACE

Draw a line on the cutout floor at the center of

the cutout, and extend the line 1/2 down the″

face of the cabinet.

Fold or cut the front edge of the template,

along the front guide line. Place the template

flush along the front edge of the cutout floor,

aligning the center line of the template with the

center line of the cutout floor. Mark the centers

of the two screw holes with an awl or center

punch for the anti-tip brace location as shown.

Remove the

template and drill

two holes for the

anti-tip brace.

Install the anti-tip

brace onto the

cutout floor using

two round-head

screws.

Round-Head

Screws

Anti-Tip

Brace

Cutout

Floor

Center

Line

DIMENSIONS:

A =

⁄16″

B = 3″

C = 20

⁄16″

❒ Level

Bottom of trim kit must be

minimum of 36 from floor″

1′= 0.3 m

1″= 2.5 cm
