EM31SF/EF/BM/FM
GE Profile
™

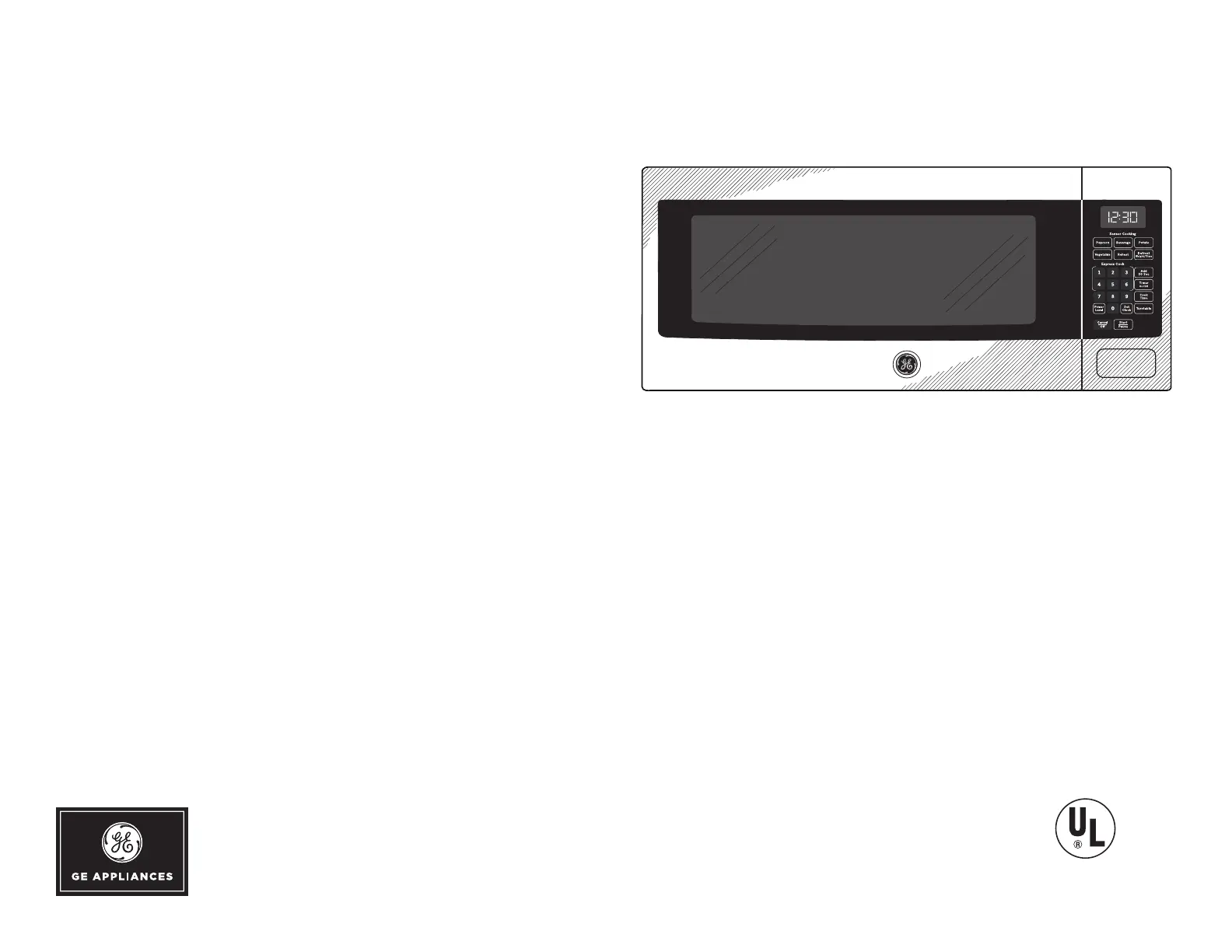

Series 1.1 Cu. Ft. Countertop Microwave Oven

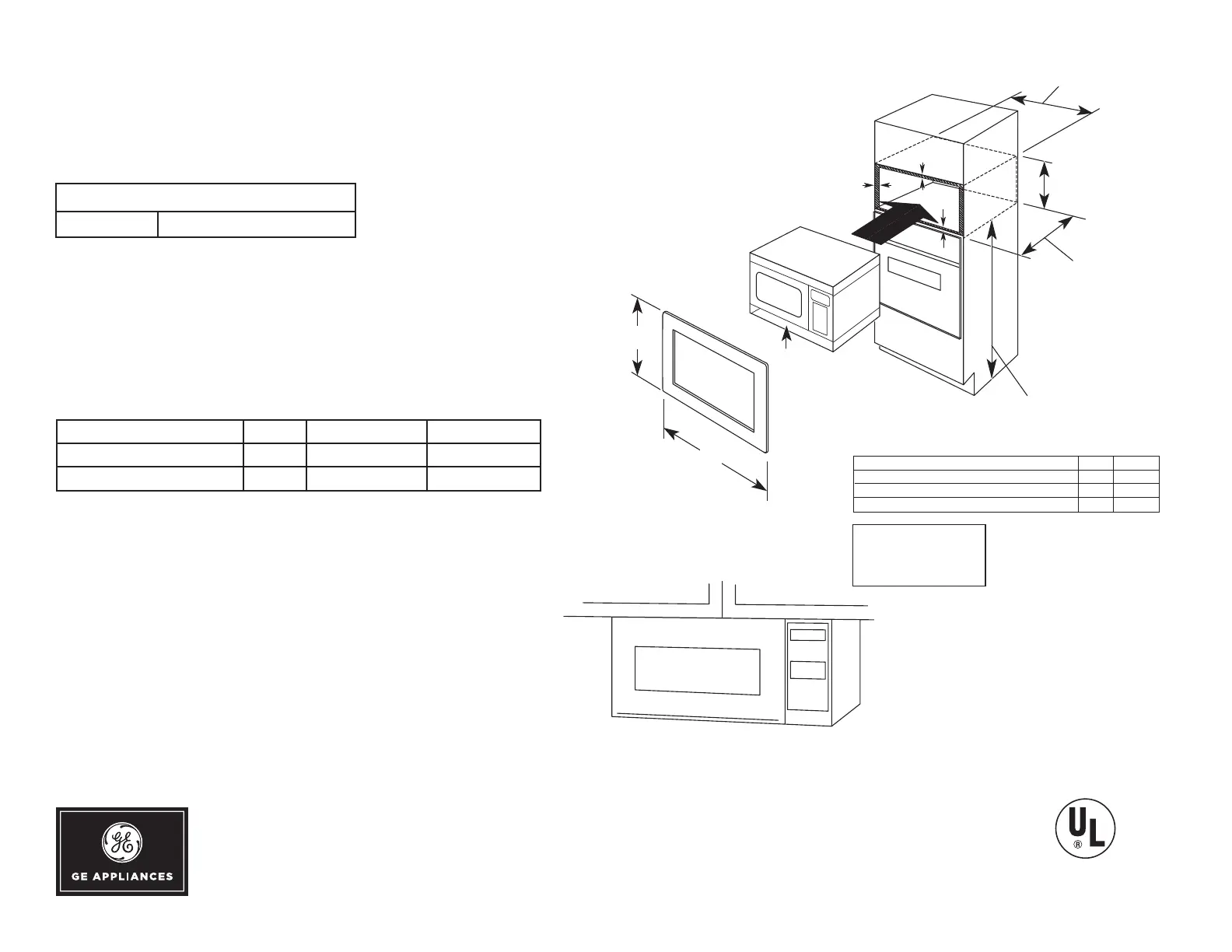

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
Not to be used over a thermal oven.
Undercabinet mounting kit Pub. No. JXA019K for Spacemaker II
microwave oven models available at additional cost.
15" ± 1/8"
18" MIN.
receptacle
in cabinet
16" MIN.
receptacle
outside
cabinet
Bracket
24-7/8" ± 1/8"
36" MIN.*
Cabinet overlap requirements 30" 27"
A - Overlap of trim kit over top of cabinet 3/4" 3/4"
B - Overlap of trim kit over bottom of cabinet 5/8" 5/8"
C - Overlap of trim kit over sides of cabinet 2-1/2" 1"
Note:
Allow an additional inch
of clearance beyond trim
frame on all sides
B
A
C
*For ADA compliance, the microwave must be
installed no higher than 37-7/8".
16-1/2"
Z
Trim
Kit
Accessory Trim Kits Z
JX830 29-7/8"
JX827 26-7/8"
INSTALLATION I
NFORMATION: This information is not
intended to be used for installing unit described. Before
installing, consult installation instructions packed with product
for current dimensional data.
NOTE: UNDERCABINET INSTALLATION
Install countertop microwave ovens in just a few easy steps
with the mounting template, which provides all the necessary
measurements. Installation may vary depending on cabinets.
These microwave ovens can be installed on practically any
wood or metal cabinets.
NOTE: 120V, 60-cycle, grounded power receptacle location
optional on back within cabinet opening.
*Height includes feet. Depth does not include handle and
excludes receptacle plug, + 1/2"-3/4".
OPTIONAL ACCESSORY TRIM KITS FOR GE MICROWAVE
OV
ENS: For a custom built-in appearance, these kits allows
built-in installation of the countertop microwave oven into a
wall or cabinet alone, and is U. L. approved for installation over
a GE single electric wall oven. These kits should not be
installed over a gas wall oven.
ACCESSORY TRIM KIT "Z" MAX HEIGHT TRIM KIT
27"
Deluxe 26-7/8" 16-1/2" JX827SFSS
30" Deluxe 29-7/8" 16-1/2" JX830SFSS
EXTERIOR DIMENSI
ONS* (IN INCHES)
W x H x D 24 x 11-3/4 x 12-7/8
