Side 1/7

March 3, 2012

WiFi USB Adaptor

The WiFi USB Adaptor is designed to connect the GV IP devices to the wireless network.

This product complies with IEEE 802.11 b/g/n (Draft 3.0) standards for wireless networking.

The WiFi USB Adaptor is a plug-and-play device; you don’t need to install any driver for the

device to work.

Compatible GV IP Devices

The WiFi USB Adaptor is compatible with the following hardware and firmware.

GV-Video Server

• GV-VS04H, GV-VS04A (firmware V1.05 and later)

• GV-VS12 (firmware V1.05 and later)

• GV-VS11 (firmware V1.0 and later)

GV-Compact DVR

• GV-Compact DVR V2 (firmware V1.07 and later)

• GV-Compact DVR V3 4-CH (firmware V1.01 and later)

• GV-Compact DVR V3 8-CH (firmware V1.0 and later)

PN300, SQP133 (firmware V1.01 and later)

Packing List

1. WiFi USB Adaptor

2. Installation Guide

Overview

March 3, 2012

GV-Video Server and GV-Compact DVR

To configure the GV-Video Server or GV-Compact DVR to be connected to a wireless

network, follow the steps below.

1. Connect the WiFi USB Adaptor to the GV IP device.

2. Set up WLAN Configuration on the GV IP device.

A. Start the Internet Explorer browser, and enter the IP address or the domain name of

the IP device to access its Web interface.

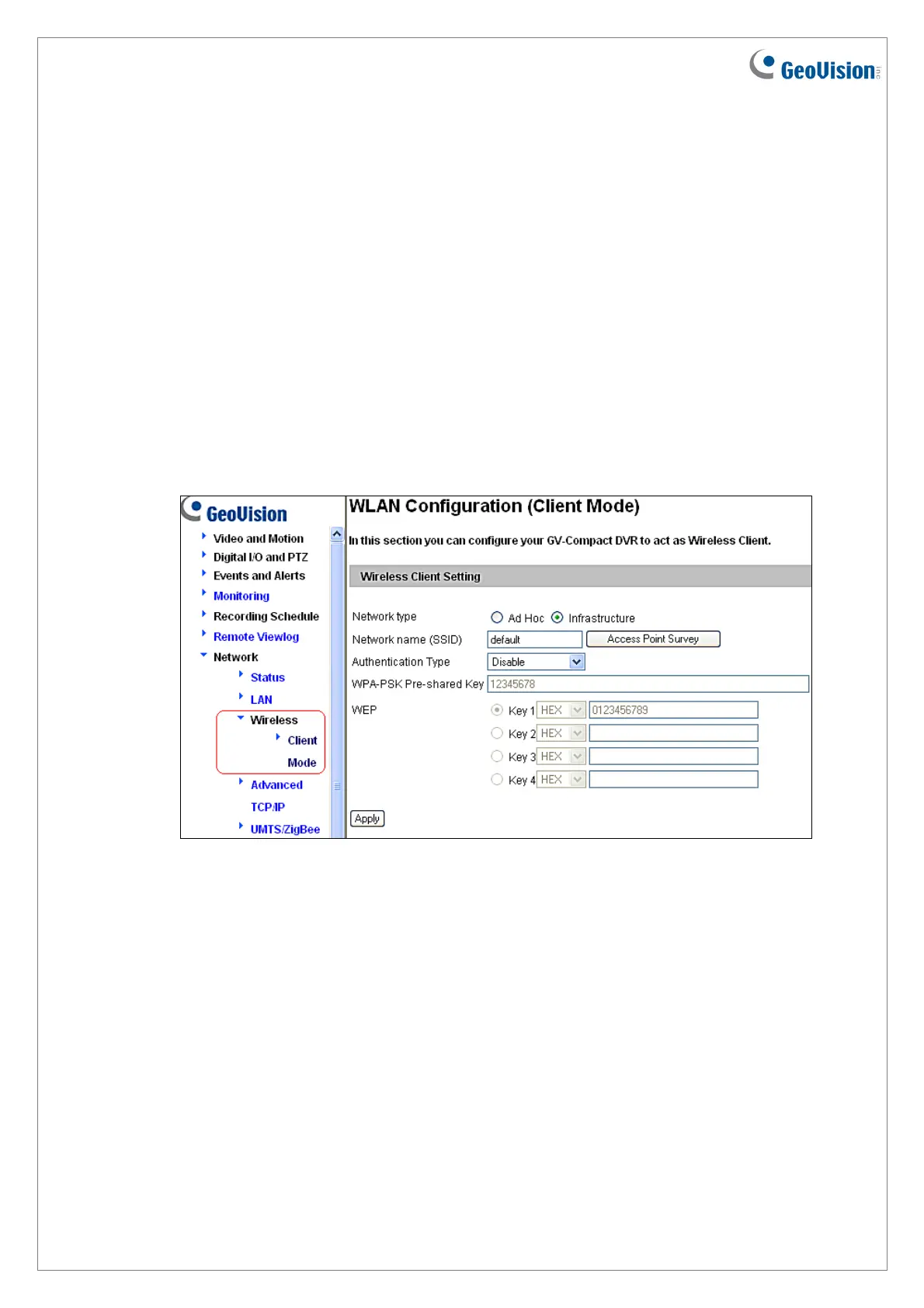

B. From the left menu, select Network, select Wireless and select Client Mode. This

page appears.

C. Select the network type Ad Hoc or Infrastructure. The default network type is

Infrastructure.

 Infrastructure: Via the Access Point to connect to the Internet. This mode

further gives wireless access to the Internet or data sharing under a previously

wired environment.

 Ad-Hoc: A Peer-to-Peer mode. This mode connects to other computer with the

WLAN card, and does not need the Access Point to connect to each other.

Produkt Specifikationer

Mærke:	Geovision
Kategori:	Netværkskort/adapter
Model:	WiFi USB Adapter
Bredde:	15 mm
Dybde:	15 mm
Højde:	155 mm
Produktfarve:	Sort
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Forbindelsesteknologi:	Trådløs
Bedste Wi-Fi standard:	Wi-Fi 4 (802.11n)
Netværksstandarder:	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
USB version:	2.0
Værtsgrænseflade:	USB
Grænseflade:	WLAN
Intern:	Ingen
Antenne:	Ja
Maksimal dataoverførselshastighed:	- Mbit/s
Plug and play:	Ja
USB-drevet:	Ja
Kompatible produkter:	GV‐VS04H, GV‐VS04A, GV‐VS12, GV‐VS11, GV‐Compact DVR V2, GV‐Compact DVR V3 4‐CH, GV‐Compact DVR V3 8‐CH, GV‐BX1200 Series, GV‐BX1300 Series, GV‐BX1500 Series, GV‐BX2400 Series, GV‐BX2500 Series, GV‐BX3400 Series, GV‐BX5300 Series, GV‐MFD1501 Series, GV‐MFD2401 Series, GV‐MFD2501 Series, GV‐MFD3401 Series, GV‐MFD5301 Series, GV‐FE2302, GV‐FE3402, GV‐FE5302, GV‐FE3403, GV‐FE5303, PN300, SQP133, GV‐IP Decoder Box, GV‐Pad
Strømstiktype:	Type A
Chipsæt:	Ralink RT3070
