Side 1/100
GA-770T-D3L
AM3 socket motherboard for
AMD Phenom™ II processor/ AMD Athlon™ II processor
User's Manual
Rev. 1301
12ME-770TD3L-1301R
Motherboard
GA-770T-D3L
May 25, 2010
May 25, 2010
Motherboard
GA-770T-D3L
Copyright
© 2010 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE with-
out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the information
on/from the Support&Downloads\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 6 -
Box Contents
GA-770T-D3L motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
One IDE cable
Two SATA cables
I/O Shield
Optional Items
Floppy disk drive cable (Part No. 12CF1-1FD001-7*R)
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
S/PDIF In cable (Part No. 12CR1-1SPDIN-0*R)
• The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
• The motherboard image is for reference only.
- 7 -

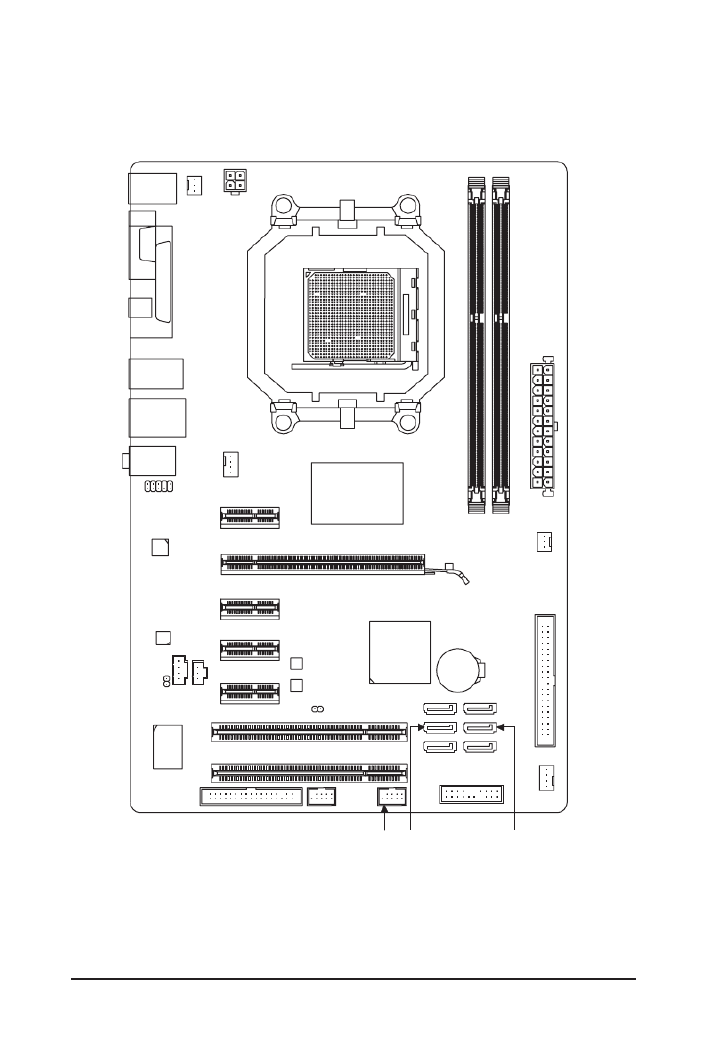

GA-770T-D3L Motherboard Layout
(Note) Use this port to connect a PS/2 keyboard or PS/2 mouse.
KB(Note)_USB
CPU_FAN
ATX
GA-770T-D3L
CD_IN
F_AUDIO
AUDIO
SPDIF_OUT
PCIEX1_1
IDE
PWR_FAN
DDR3_1
DDR3_2
ATX_12V
AMD 770
AMD SB710
SATA2_3SATA2_0
SATA2_4
SATA2_2
SATA2_1
PCI1
CODEC
USB
LAN
PCI2
CLR_CMOS
BAT
M_BIOS
FDD
F_PANEL
Realtek
RTL8111C/D
B_BIOS
iTE
IT8720
SYS_FAN1
PCIEX16
F_USB1
F_USB2
SYS_FAN2
COAXIAL
COMA
LPT
R_USB
PCIEX1_2
PCIEX1_3
PCIEX1_4
SATA2_5
SPDIF_IN
Socket AM3
- 8 -

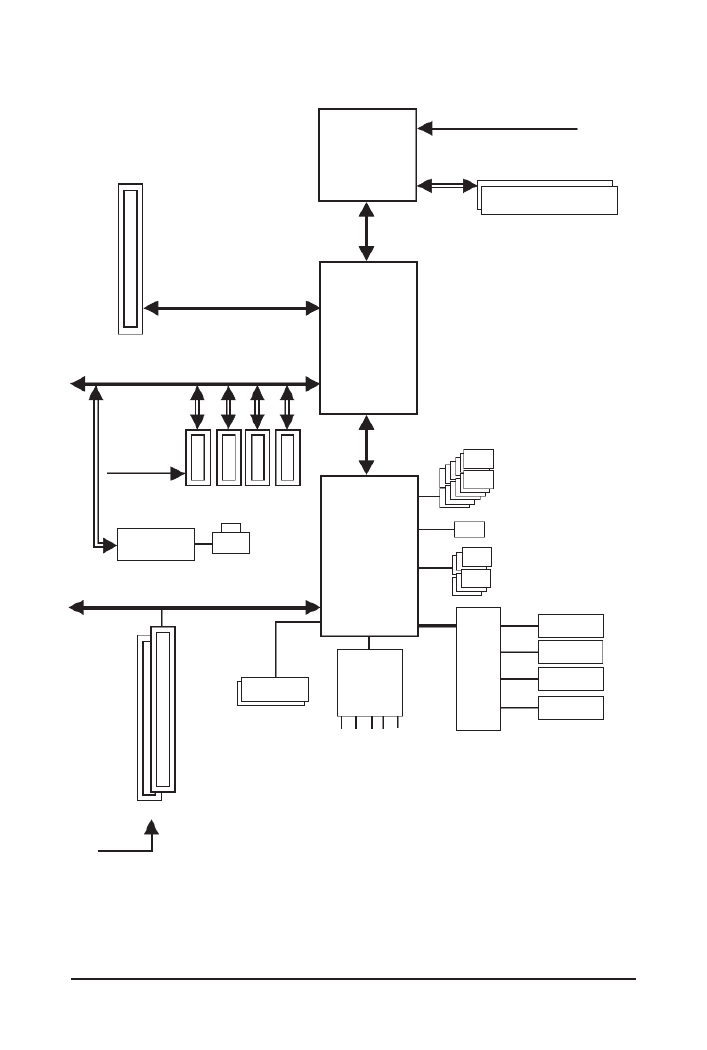

GA-770T-D3L Motherboard Block Diagram
Hyper Transport 3.0
AMD 770
PCIe CLK
(100 MHz)
PCI Express Bus
CPU CLK+/- (200 MHz)
4 PCI Express x1
PCIe CLK
(100 MHz)
1 PCI Express x16
x1
PCI Express x16
Dual Channel Memory
PS/2 KB or Mouse
Floppy
ATA-133/100/66/33 IDE Channel
COM Port
12 USB Ports
LPC
Bus
6 SATA 3Gb/s
LPT Port
S/PDIF In
S/PDIF Out
2 PCI
PCI Bus
PCI CLK
(33 MHz)
Realtek
RTL8111C/D LAN
RJ45
x1 x1 x1
iTE
IT8720
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line-In (Rear Speaker Out)
AMD SB710
CODEC
Dual BIOS
AM3 CPU DDR3 1666 (O.C.)/1333/1066 MHz
