When you installing AGP card, please make sure the following notice
is fully understood and practiced. If your AGP card has "AGP 4X/8X
(1.5V) notch"(show below), please make sure your AGP card is AGP
4X/8X.
Caution: AGP 2X card is not supported by nVIDIA® nForce™ 2 IGP/SPP.
You might experience system unable to boot up normally. Please
insert an AGP Pro 4X/8X card.
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X
mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V) mode
by adjusting the jumper. The factory default for this card is 2X(3.3V). The
GA-7NNXPV / GA-7NNXP / GA-7N400V Pro / GA-7N400 Pro / GA-7N400-
L1 (or any AGP Pro 4X/8X only) motherboards might not function properly, if
you install this card without switching the jumper to 4X(1.5V) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",
the graphics card manufacturer & some SiS 305 cards, their golden finger is
compatible with 2X(3.3V) / 4X(1.5V) mode AGP slot, but they support
2X(3.3V) only. The GA-7NNXPV / GA-7NNXP / GA-7N400V Pro / GA-7N400
Pro / GA-7N400-L1 (or any AGP Pro 4X/8X only) motherboards might not
function properly, If you install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage
128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)
specification. Therefore, AG32S(G) will work fine with nVIDIA ® nForce2 IGP/
SPP based motherboards.
Before you install PCI cards, please remove the Dual BIOS label from PCI
slots if there is one.
AGP 4X/8X notch
The author assumes no responsibility for any errors or
omissions that may appear in this document nor does the
author make a commitment to update the information
contained herein.
Third-party brands and names are the property of their
respective owners.
Please do not remove any labels on motherboard, this may
void the warranty of this motherboard.
Due to rapid change in technology, some of the
specifications might be out of date before publication of
this booklet.
- 12 -NXP / N400 Pro Series Motherboard
English
COM1COM2
CD_IN
GA-7N400
KB_MS
LPT
USB
ATX_12V
SOCKET A
CPU_FAN
IDE1
IDE2
DDR2
PWR_LED
BAT
PCI1
PCI2
PCI3
F_USB
IT8712F
BIOS
CODEC
PWR_FAN
nVIDIA®
nForce™ 2
MCP
DDR3
PCI4
PCI5
GAME
F_AUDIO
AUX_IN
IR
WOL
DDR4
RAM_LED
ATX
SYS_FAN
CI
DDR1
SPDIF_IO
SUR_CEN
2X_DET
AUDIO
F_PANEL

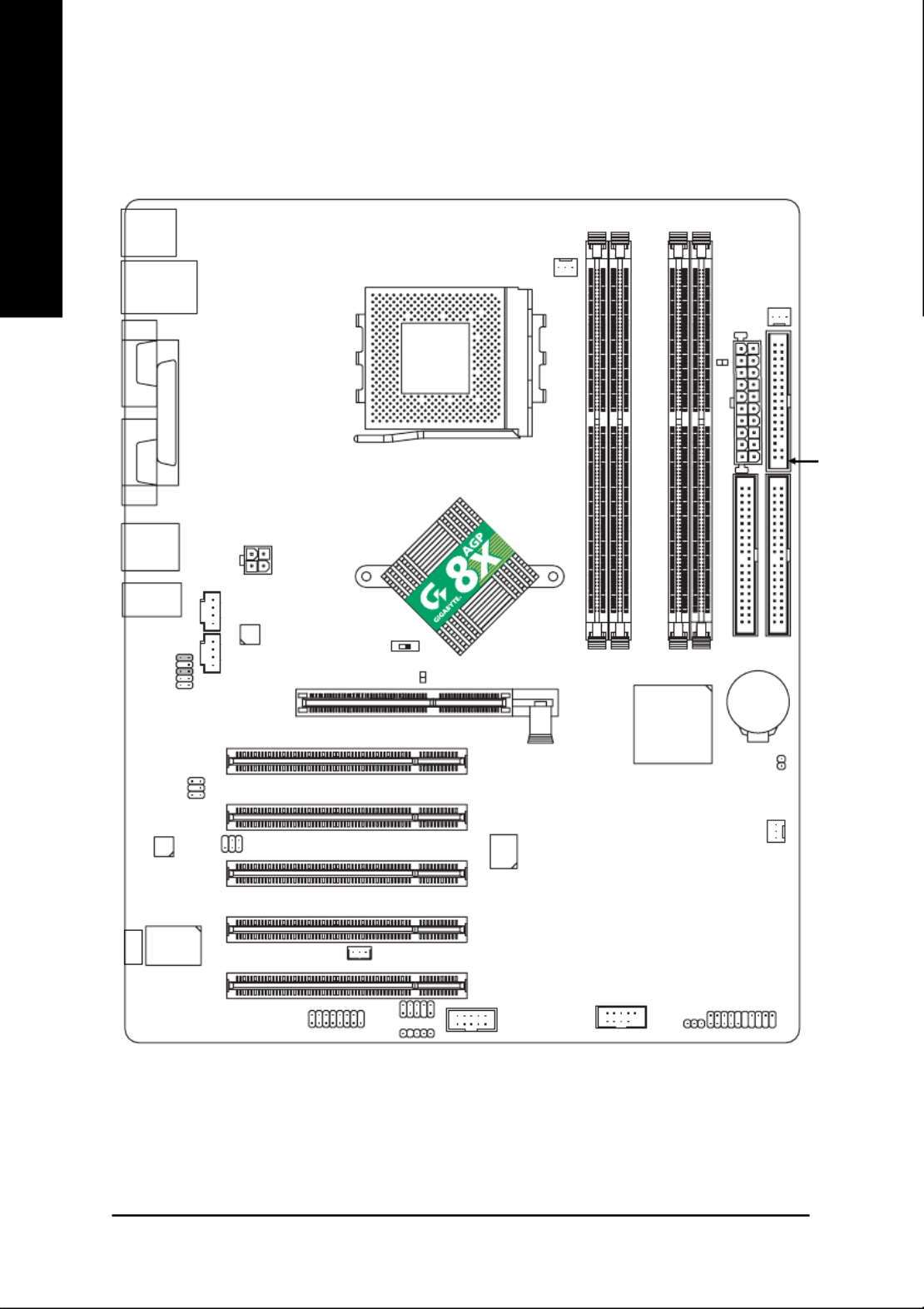

GA-7N400-L1 Motherboard Layout
Dual Channel DDR
INFO_LINK
AGP
nVIDIA®
nForce™ 2 SPP
FDD
CLK_SW
RTL8201
SC
-L1 USB
LAN1
(10/100)
Hardware Installation Process
English
- 15 -

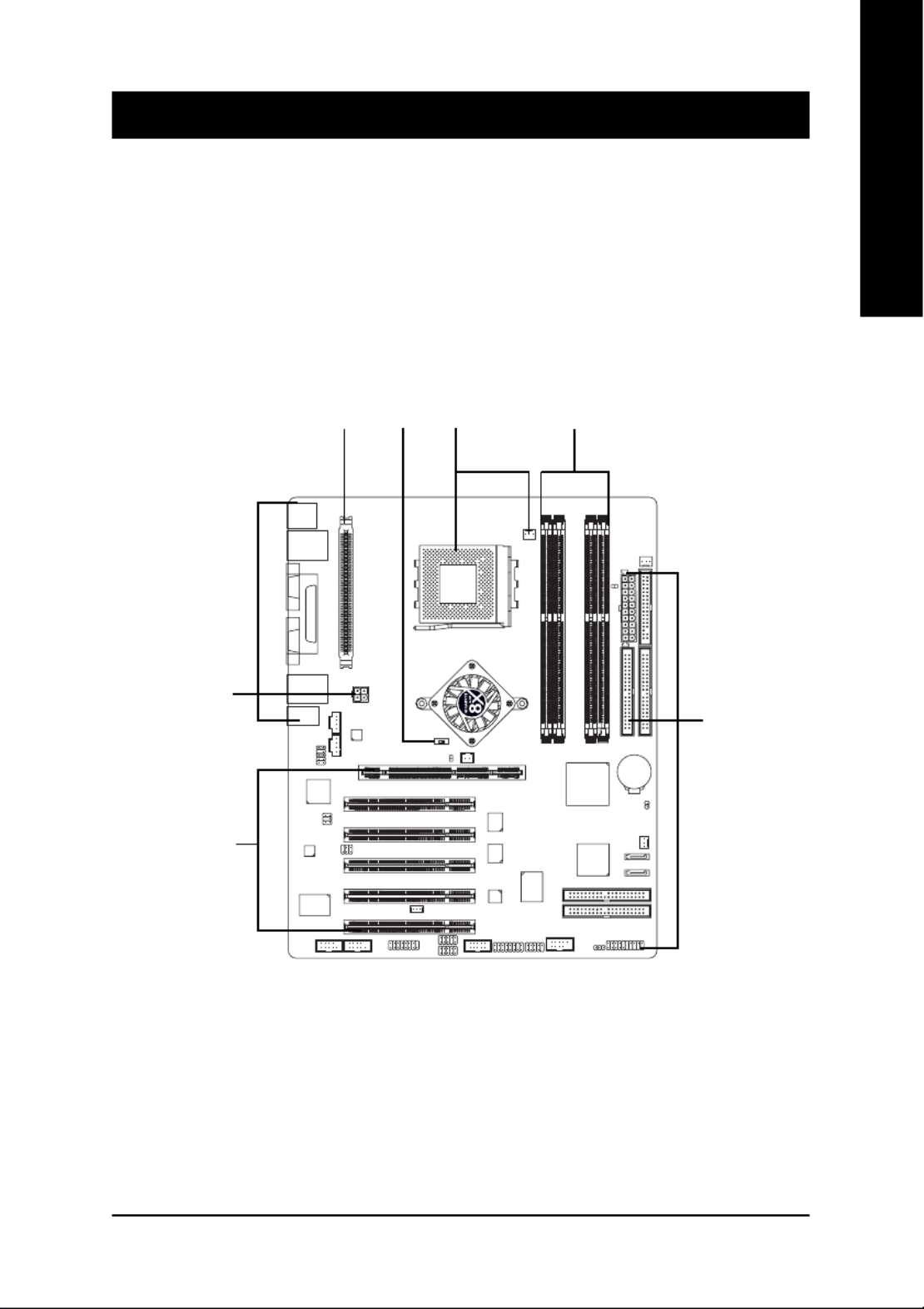

To set up your computer, you must complete the following steps:
Step 1- Set system jumper (CLK_SW)
Step 2- Install the Central Processing Unit (CPU)
Step 3- Install memory modules
Step 4- Install expansion cards
Step 5- Connect ribbon cables, cabinet wires, and power supply
Chapter 2 Hardware Installation Process
Step 3Step 4
Step 4
Step 5
Step 2
Step 5
Congratulations! You have accomplished the hardware installation!
Turn on the power supply or connect the power cable to the power outlet. Continue with the
BIOS/software installation.
Step 1
