GA-B85M-D3PH

User's Manual

12ME-B85M3PH-1101R

Go to GIGABYTE's website for detailed information on the hardware installation, BIOS congurations,

and driver installation.

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

KB_MS_USB

CPU_FAN

LGA1150

ATX

GA-B85M-D3PH

AUDIO

F_AUDIO

DDR3_1

DDR3_2

BAT

F_PANEL

ATX_12V

R_USB30

CODEC

CLR_CMOS

BIOS

DVI

VGA

USB_LAN

F_USB2

F_USB1

PCI

SPDIF_O

Realtek

GbE LAN

SYS_FAN

iTE

Super I/O

Box Contents

5GA-B85M-D3PH motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

PCIEX4

2 3

0 1

SATA3

Intel

B85

HDMI

DDR3_3

DDR3_4

F_USB30

LPT

COM

PCIEX1

PCIEX16

PCIe to PCI

Bridge

4 5

SATA2

USB 2.0/1.1 Port

PS/2 Keyboard/Mouse Port

D-Sub Port

DVI-D Port

(Note)

DisplayPort

HDMI Port

USB 3.0/2.0 Port

RJ-45 LAN Port

Line In Jack (Blue)

Line Out Jack (Green)

Mic In Jack (Pink)

Installing the CPU

Installing the Memory/Expansion Card

Drivers Installation

"Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to

install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click

the arrow icon to individually install the drivers you need.

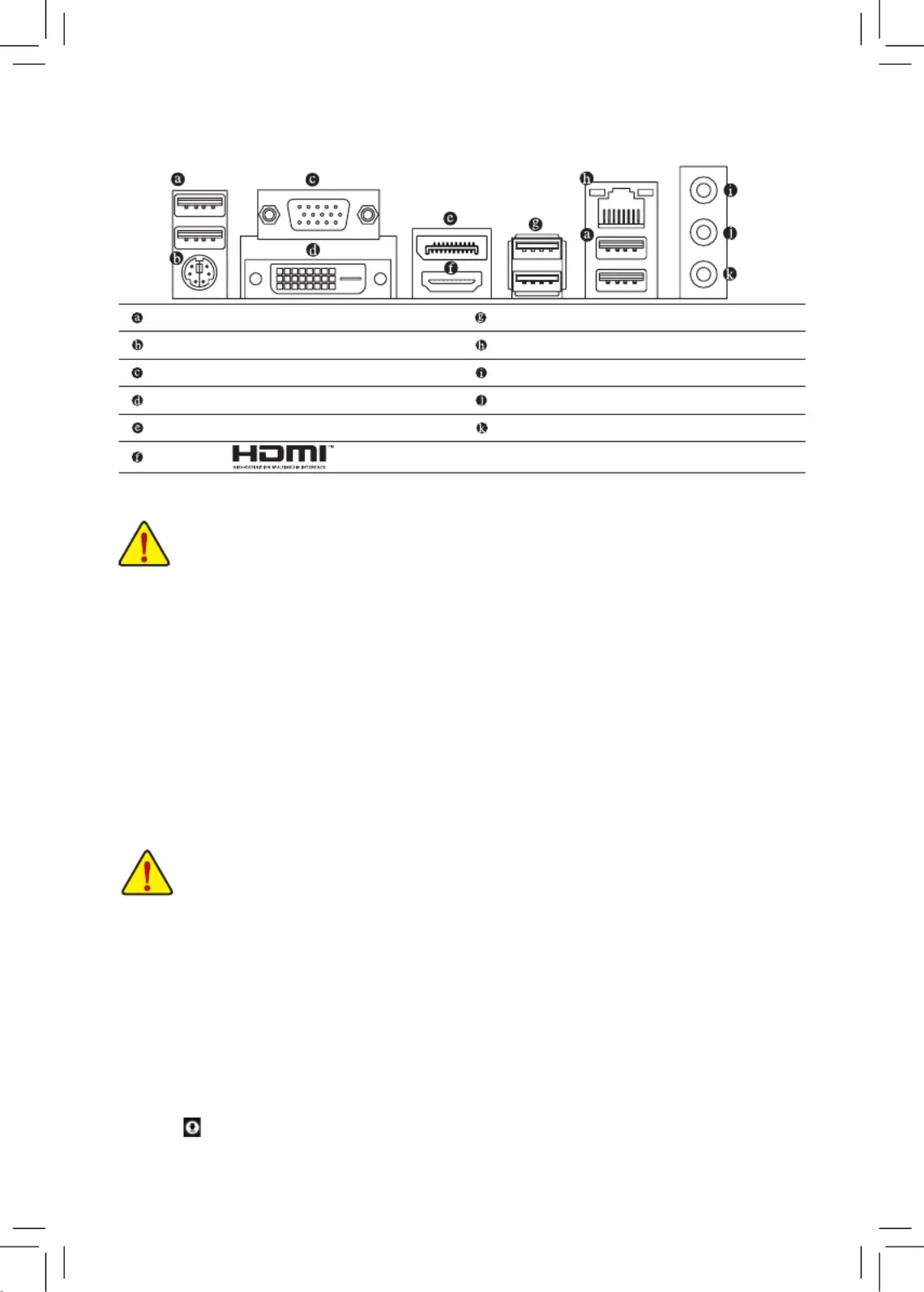

Back Panel Connectors

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest

supported memory speeds and memory modules.)

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

(Note) The DVI-D port does not support D-Sub connection by adapter.
