GA-EP43-UD3L/
GA-EP43-US3L
LGA775 socket motherboard for Intel® CoreTM processor family/
Intel® Pentium® processor family/Intel® Celeron® processor family
User's Manual
Rev. 1002
12ME-EP43UD3L-1002R
Dec. 12, 2008
Moth erb oard
GA-EP43-UD3L/GA-EP43-US3L
Motherboard
GA-EP43-UD3L/
GA-EP43-US3L
Dec. 12, 2008
Copyright
© 2008 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE without prior
notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the
information on/from the Support\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents ................................................................................................................. 6
Optional Items................................................................................................................. 6
GA-EP43-UD3L/US3L Motherboard Layout .................................................................. 7
Block Diagram................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Installation Precautions ..................................................................................... 9
1-2 Product Specifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler .............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 Installing the Memory ..................................................................................... 16
1-4-1 Dual Channel Memory Configuration ................................................................ 16
1-4-2 Installing a Memory ............................................................................................. 17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Back Panel Connectors ................................................................................. 19
1-7 Internal Connectors ........................................................................................ 21
Chapter 2 BIOS Setup................................................................................................. 33
2-1 Startup Screen ................................................................................................ 34
2-2 The Main Menu .............................................................................................. 35
2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 37
2-4 Standard CMOS Features ............................................................................. 45
2-5 Advanced BIOS Features .............................................................................. 47
2-6 Integrated Peripherals ..................................................................................... 50
2-7 Power Management Setup ............................................................................. 53
2-8 PnP/PCI Configurations................................................................................. 55
2-9 PC Health Status ........................................................................................... 56
2-10 Load Fail-Safe Defaults ................................................................................... 58
2-11 Load Optimized Defaults ................................................................................. 58
2-12 Set Supervisor/User Password ..................................................................... 59
2-13 Save & Exit Setup ......................................................................................... 60
2-14 Exit Without Saving ....................................................................................... 60
- 5 -
Chapter 3 Drivers Installation ...................................................................................... 61
3-1 Installing Chipset Drivers ............................................................................... 61
3-2 Application Software ....................................................................................... 62
3-3 Technical Manuals .......................................................................................... 62
3-4 Contact ........................................................................................................... 63
3-5 System ........................................................................................................... 63
3-6 Download Center ............................................................................................ 64
Chapter 4 Unique Features ......................................................................................... 65
4-1 Xpress Recovery2 ......................................................................................... 65
4-2 BIOS Update Utilities ..................................................................................... 68
4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 68
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 71
4-3 EasyTune 6 .................................................................................................... 72
4-4 Dynamic Energy Saver Advanced ................................................................ 73
4-5 Q-Share ......................................................................................................... 75
4-6 Time Repair .................................................................................................... 76
Chapter 5 Appendix .................................................................................................... 77
5-1 Configuring Audio Input and Output ................................................................. 77
5-1-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 77
5-1-2 Configuring S/PDIF In/Out .................................................................................. 79
5-1-3 Configuring Microphone Recording ................................................................... 81
5-1-4 Using the Sound Recorder ................................................................................. 83
5-2 Troubleshooting ............................................................................................... 84
5-2-1 Frequently Asked Questions ............................................................................. 84
5-2-2 Troubleshooting Procedure ................................................................................ 85
5-3 Regulatory Statements ................................................................................... 87
- 6 -

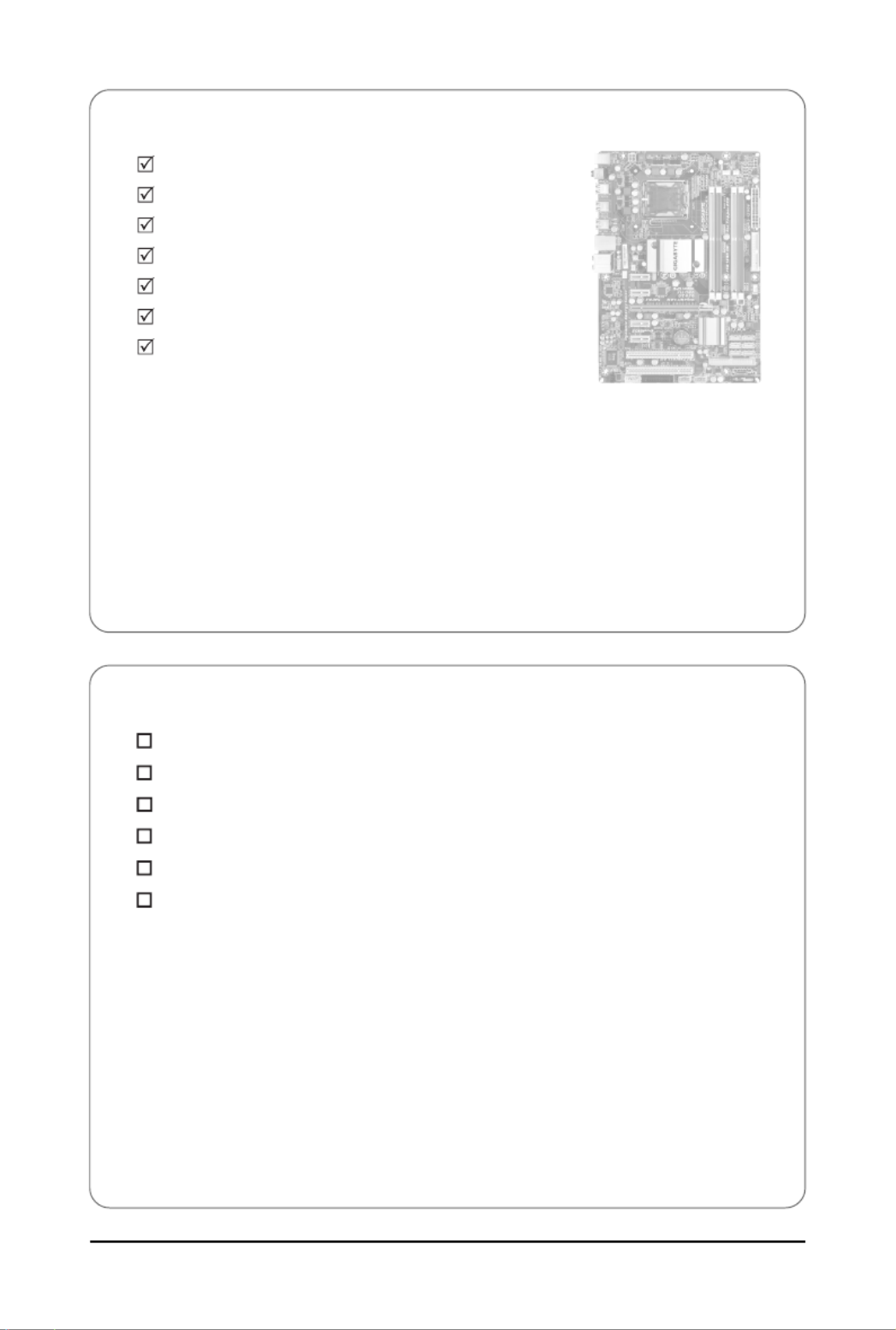

Box Contents
GA-EP43-UD3L or GA-EP43-US3L motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
One IDE cable
Two SATA 3Gb/s cables
I/O Shield
Optional Items
Floppy disk drive cable (Part No. 12CF1-1FD001-7*R)
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
S/PDIF in cable (Part No. 12CR1-1SPDIN-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
LPT port cable (Part No. 12CF1-1LP001-0*R)
•The box contents above are for reference only and the actual items shall depend on product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 7 -
GA-EP43-UD3L/US3L Motherboard Layout
Only for GA-EP43-UD3L.
Only for GA-EP43-US3L.
"*" The GA-EP43-UD3L adopts All-Solid Capacitor design.
KB_MS CPU_FAN
LGA775
ATX
GA-EP43-UD3L/US3L
F_AUDIO
ATX_12V
Intel® P43
SYS_FAN2
F_PANEL
PWR_LED
F_USB2
IDE
F_USB1
CD_IN
FDD
PCIEX1_1
CODEC
PCI1
PCI2
BATTERY
IT8718
Intel® ICH10
CLR_CMOS
CI
DDR2_1
DDR2_2
DDR2_3
DDR2_4
SPDIF_I
SATA2_3
RTL8111C
SATA2_2
SATA2_1
SATA2_0
PHASE LED
AUDIO
R_SPDIF
COAXIAL
R_USB_1
USB_LAN
PWR_FAN
JMicron 368
M_BIOS
SATA2_5
SATA2_4
LPTCOMA
SPDIF_O
PCIEX16
PCIEX1_2
PCIEX1_3
SYS_FAN1
R_USB_2
R_USB_3
B_BIOS
PCIEX1_4
- 8 -

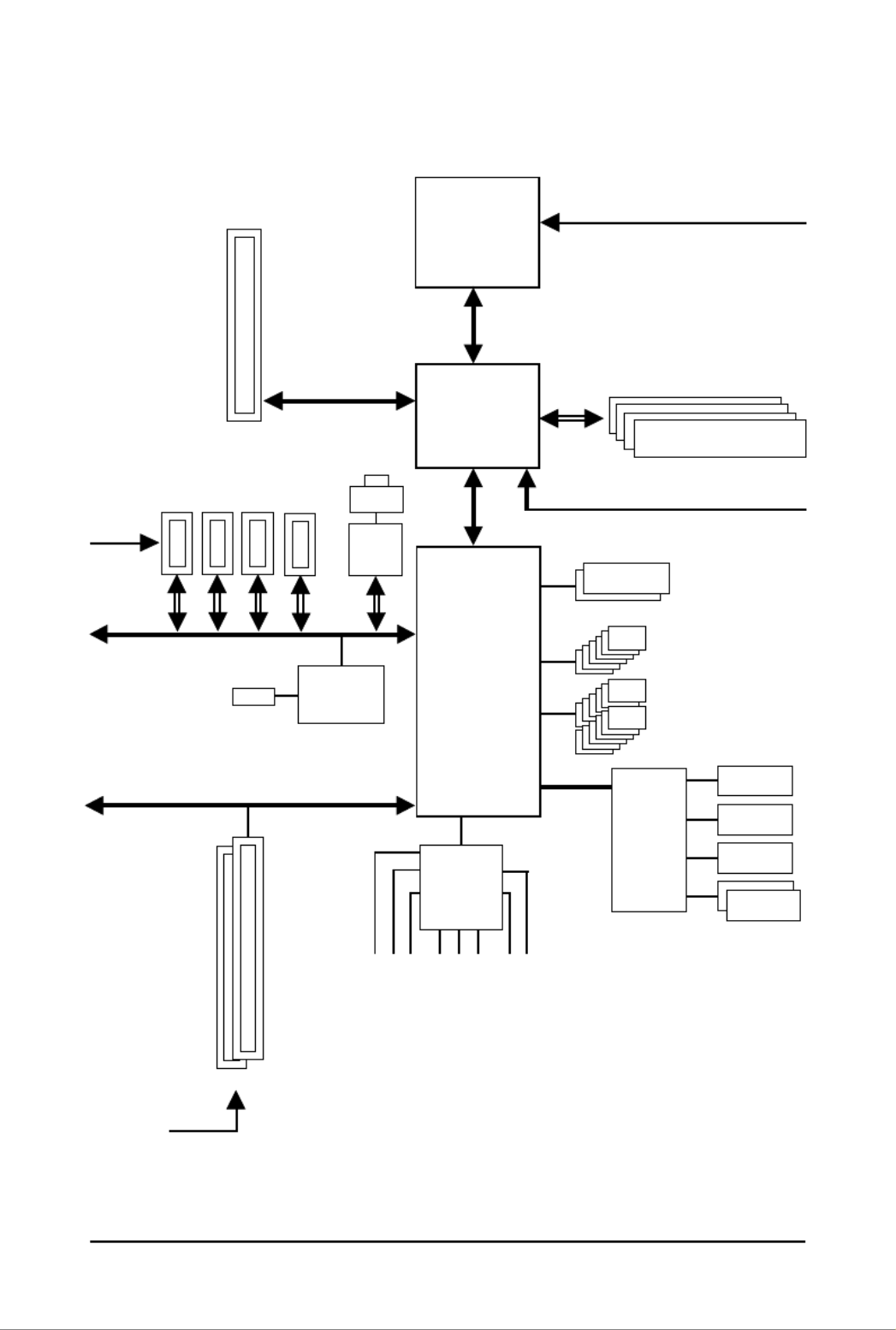

Block Diagram
1 PCI Express x16 LGA775
Processor
Host
Interface
Intel®
P43
Dual BIOS
2 PCI
PCI Bus
6 SATA 3Gb/s
PCI CLK
(33 MHz)
12 USB Ports
CPU CLK+/-
(400(O.C.)/333/266/200 MHz)
Center/Subwoofer Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
PCIe CLK
(100 MHz)
PCI Express x16
4 PCI Express x1
PCI Express Bus
x 1
x 1
ATA-133/100/66/
33 IDE Channel
JMicron
368
x 1 x 1
PCIe CLK
(100 MHz)
RTL
8111C
LAN
RJ45
Floppy
PS/2 KB/Mouse
LPT Port
COM Port
IT8718
LPC Bus
MCH CLK
(400(O.C.)/333/266/200 MHz)
DDR2 1200/1066/
800/667 MHz
Dual Channel Memory
x 1
Intel
® ICH10
Hardware Installation- 9 -
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and first touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface
.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Chapter 1 Hardware Installation
GA-EP43-UD3L/US3L Motherboard - 10 -
1-2 Product Specifications
CPU Support for an Intel® CoreTM 2 Extreme processor/
Intel® CoreTM 2 Quad processor/Intel® CoreT M 2 Duo processor/
Intel® Pentium® Dual-Core processor/Intel®
Celeron® processor
in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU
Front Side Bus 1600(O.C.)/1333/1066/800 MHz FSB
Chipset North Bridge: Intel® P43 Express Chipset
South Bridge: Intel® ICH10
Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1200/1066/800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN 1 x Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express p10-x16 slot, running at x16
(The PCI Express p10-x16 slot conforms to PCI Express 2.0 standard.)
4 x PCI Express p10-x1 slots
2 x PCI slots
Storage Interface South Bridge:
- 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
JMicron 368 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
"*" The GA-EP43-UD3L adopts All-Solid Capacitor design.
Hardware Installation- 11 -
Internal Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x power LED header
1 x chassis intrusion header
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side
Speaker Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 2)
Only for GA-EP43-UD3L.
GA-EP43-UD3L/US3L Motherboard - 12 -
BIOS 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOSTM
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 3)
Support for Dynamic Energy Saver Advanced
Support for Time Repair
Support for Q-Share
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft®
Windows® Vista/XP
Form Factor ATX Form Factor; 30.5cm x 21.0cm
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether the CPU/System fan speed control function is supported will depend on the CPU/
System cooler you install.
(Note 3) Available functions in EasyTune may differ by motherboard model.
Produkt Specifikationer
| Mærke: | Gigabyte |
| Kategori: | Bundkort |
| Model: | GA-EP43-US3L |
Har du brug for hjælp?
Hvis du har brug for hjælp til Gigabyte GA-EP43-US3L stil et spørgsmål nedenfor, og andre brugere vil svare dig
Bundkort Gigabyte Manualer
31 August 2025
31 August 2025
4 August 2025
4 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
Bundkort Manualer
- AOpen
- Biostar
- Raspberry Pi
- Festo
- Asus
- MSI
- NZXT
- Elitegroup
- Advantech
- Evga
- EPoX
- Sapphire
- Asrock
- Sharkoon
- ECS
Nyeste Bundkort Manualer
17 September 2025
16 September 2025
16 September 2025
16 September 2025
13 September 2025
13 September 2025
12 September 2025
12 September 2025
11 September 2025
11 September 2025
