GA-H57M-USB3
GA-H55M-USB3
LGA1156 socket motherboard for Intel® Core i7 processor family/
Intel® Core i5 processor family/ Intel® Core i3 processor family
User's Manual
Rev. 1001
12ME-H57MUB3-1001R
Motherboard
GA-H57M-USB3/
GA-H55M-USB3
Jan. 14, 2010
Jan. 14, 2010
Motherboard
GA-H57M-USB3/GA-H55M-USB3
Copyright
© 2010 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE with-
out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the information
on/from the Support&Downloads\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 6 -
Box Contents
GA-H57M-USB3 or GA-H55M-USB3 motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
One IDE cable
Two SATA 3Gb/s cables
I/O Shield
Optional Items
Floppy disk drive cable (Part No. 12CF1-1FD001-7*R)
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
S/PDIF In cable (Part No. 12CR1-1SPDIN-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
The motherboard image is for reference only.
- 7 -
GA-H57M-USB3/GA-H55M-USB3 Motherboard Layout
j Only for GA-H57M-USB3.
k Only for GA-H55M-USB3.
KB_USB
VGA_DVI
CPU_FAN
SYS_FAN
PHASE LED
LGA1156
ATX
GA-H57M-USB3/
GA-H55M-USB3
F_AUDIOAUDIO
B_BIOS
M_BIOS
PCIEX16
IDE
SPDIF_O
DDR3_2
DDR3_1
DDR3_4
DDR3_3
BAT
TSB43AB23
IT8720
ATX_12V_2X4
Intel® H57 j
Intel® H55 k
GIGABYTE
SATA2
PCIEX4_X1
DP_HDMI_SPDIF
USB30_LAN
ESATA_1394_USB
CLR_CMOS
CODEC
F_USB1F_USB2F_USB3COMACD_IN
SPDIF_I
F_USB4j
F_1394
FDD
F_PANEL
PCI1
PCI2
RTL8111D SATA2_0
SATA2_1 SATA2_3 GSATA2_6
SATA2_2 SATA2_4 GSATA2_5
NEC
D720200F1
- 8 -

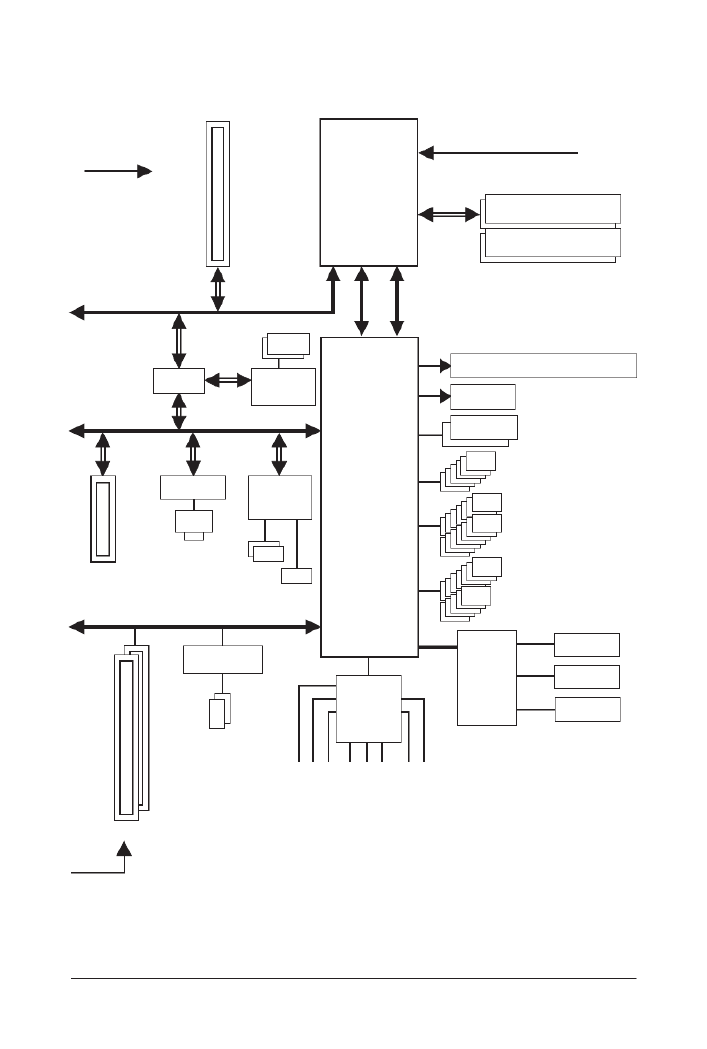

GA-H57M-USB3/GA-H55M-USB3 Motherboard Block Diagram
j Only for GA-H57M-USB3.
k Only for GA-H55M-USB3.
(Note 1) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for
output when in the BIOS Setup program or when during the POST screens.
(Note 2) Two share the same ports with USB 3.0.
12 USB Ports (Note 2) k
14 USB Ports (Note 2) j
LGA1156
CPU
Intel® H57 j
Intel® H55 k
PCI Bus
PCI Express Bus
CPU CLK+/- (133 MHz)
PCIe CLK
(100 MHz)
6 SATA 3Gb/s
Dual BIOS
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
2 PCI
PCI CLK
(33 MHz)
DDR3 1666 (O.C.)/1333/1066/800 MHz
Dual Channel Memory
1 PCI Express x16
x16
TSB43AB23
2 IEEE 1394a
D-Sub
DisplayPort, HDMI, or DVI-D (Note 1)
DMI Interface
FDI Interface
PS/2 KB/Mouse
Floppy
COM
IT8720
LPC
Bus
PCI Express Bus
1 PCI Express p8-x4
j
1 PCI Express p8-x1
k
x1
ATA-133/100/66/33
IDE Channel
GIGABYTE
SATA2
2 SATA 3Gb/s
x4/ X1
LAN
x1
RTL8111D
RJ45
Gen 1
2 USB 3.0
NEC
D720200F1
Switch
Gen 2
x1
x1
Hardware Installation - 12 -
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is
installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard DisplayPort, HDMI, DVI-D, and D-Sub ports, you must install an Intel CPU with
integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for
output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install
it in the PCIEX16 slot.
(Note 6) The PCIEX16 slot operates at up to p12-x4 mode when ATI CrossFireX
is enabled. j
(Note 7) Two share the same ports with USB 3.0.
(Note 8) Whether the CPU/system fan speed control function is supported will depend on the CPU/system
cooler you install.
(Note 9) Available functions in EasyTune may differ by motherboard model.
I/O Controller w iTE IT8720 chip
Hardware Monitor w System voltage detection
w CPU/System temperature detection
w CPU/System fan speed detection
w CPU overheating warning
w CPU/System fan fail warning
w CPU/System fan speed control (Note 8)
BIOS w 2 x 64 Mbit ash
w Use of licensed AWARD BIOS
w Support for DualBIOS
w PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features w Support for @BIOS
w Support for Q-Flash
w Support for Xpress BIOS Rescue
w Support for Download Center
w Support for Xpress Install
w Support for Xpress Recovery2
w Support for EasyTune (Note 9)
w Support for Dynamic Energy Saver 2
w Support for Smart 6
w Support for Auto Green
w Support for eXtreme Hard Drive (X.H.D) j
w Support for Q-Share
Bundled Software w Norton Internet Security (OEM version)
Operating System w Support for Microsoft® Windows® 7/Vista/XP
Form Factor w Micro ATX Form Factor; 24.4cm x 24.4cm
j Only for GA-H57M-USB3.
- 19 - Hardware Installation
1-6 Back Panel Connectors
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB key-
board/mouse, USB printer, USB ash drive and etc.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 keyboard or mouse.
D-Sub Port (Note 1)
The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.
DVI-D Port (Note 1) (Note 2) (Note 3)
The DVI-D port supports DVI-D specictation. Connect a monitor that supports DVI-D connection to this port.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
HDMI Port (Note 1) (Note 3)
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface to transmit the
uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to this port.
The HDMI Technology can support a maximum resolution of 1920x1080p but the actual resolutions supported
depend on the monitor being used.
After installing the HDMI device, make sure the default device for sound playback is the HDMI
device. (The item name may differ from operating system. Refer to the gure below for details.)
Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats. (AC3 and
DTS require the use of an external decoder for decoding.)
In Windows Vista, select Start>Control Panel>Sound>
Playback, set to the Intel(R) Display Audio HDMI 2
default playback device.
Hardware Installation - 20 -
DiplayPort (Note 1) (Note 3)
DisplayPort is one of the new generation interface technologies that delivers high quality digital imaging
and audio, supporting bi-directional audio transmition. DisplayPort can support both DPCP and HDCP
content protection mechanisms. Connect the audio/video device that supports DisplayPort to this port.
The DisplayPort Technology can support a maximum resolution of 2560x1600p but the actual resolutions
supported depend on the monitor being used.
(Note 1) To use the onboard DisplayPort, HDMI, DVI-D, and D-Sub ports, you must install an Intel CPU with
integrated graphics.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for
output when in the BIOS Setup program or when during the POST screens.
After installing the DisplayPort device, make sure the default device for sound playback is the
DisplayPort device. (The item name may differ from operating system. For example, in Windows
Vista, go to Start>Control Panel>Sound>Playback and set the DisplayPort device as the default
playback device. Refer to the HDMI settings information on the previous page for the congura-
tion dialog box.)
Dual Display Congurations for the Onboard Graphics:
The table below shows
the supported dual display congurations for the onboard graphics ports when in
the BIOS Setup program or when during the POST stage. There is no such limitation in operating system
environment.
Combination Supported or Not
DVI-D + D-Sub Yes
DVI-D + HDMI No
DVI-D + DP No
HDMI + D-Sub Yes
HDMI + DP No
DP + D-Sub No
Display
Matrix
IEEE 1394a Port
The IEEE 1394 port supports the IEEE 1394a specication, featuring high speed, high bandwidth and
hotplug capabilities. Use this port for an IEEE 1394a device.
eSATA 3Gb/s Port
The eSATA 3Gb/s port conforms to SATA 3Gb/s standard and is compatible with SATA 1.5Gb/s standard.
Use the port to connect an external SATA device or a SATA port multiplier. The H57j Chipset supports
RAID function. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions on conguring a
RAID array.
j Only for GA-H57M-USB3.
- 21 - Hardware Installation
• When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
In addition to the default speakers settings, the ~ audio jacks can be recongured to perform
different functions via the audio software. Only microphones still MUST be connected to the
default Mic in jack ( ). Refer to the instructions on setting up a 2/4/5.1/7.1-channel audio con-
guration in Chapter 5, "Conguring 2/4/5.1/7.1-Channel Audio."
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs. Center/Subwoofer Speaker Out Jack (Orange)
Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio conguration.
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED
Connection/
Speed LED
LAN Port
USB 3.0/2.0 Port
The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB ash drive and etc.
Center/Subwoofer Speaker Out Jack (Orange)
Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio conguration.
Rear Speaker Out Jack (Black)
Use this audio jack to connect rear speakers in a 7.1-channel audio conguration.
Side Speaker Out Jack (Gray)
Use this audio jack to connect side speakers in a 4/5.1/7.1-channel audio conguration.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be
used to connect front speakers in a 4/5.1/7.1-channel audio conguration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.


Produkt Specifikationer

Mærke: Gigabyte
Kategori: Bundkort
Model: GA-H55M-USB3
Bredde: 244 mm
Dybde: 244 mm
Antal HDMI-porte: 1
Ethernet LAN-porte (RJ-45): 1
Antal USB 2.0-porte: 6
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte: 2
Udgange til hovedtelefoner: 6
Lyd-output kanaler: 7.1 kanaler
Strømkilde type: ATX
Maksimal intern hukommelse: 16 GB
On-board grafikkort: Ja
Mikrofonindgang: Ja
Medfølgende software: Norton Internet Security
Kompatible operativsystemer: Win XP, Vista, 7
Processorproducent: Intel
Drivere inkluderet: Ja
Antal VGA-porte (D-sub): 1
Netværksfunktioner: 10/100/1000 Mbps
Antal PS/2-porte: 1
Processor sokkel: LGA 1156 (Socket H)
FireWire-porte (IEEE 1394): 1
PCI Express x16 slots: 2
Lydchip: Realtek ALC889
Antal hukommelsesstik: 4
Ikke-fejlkorrigerende kode: Ja
USB 2.0-stik: 3
Antal SATA stik: 7
S/PDIF-udgangsstik: Ja
CPU-ventilatorstik: Ja
ATX strømstrik (24 stikben): Ja
Lydstik på frontpanel: Ja
Antal DVI-D-porte: 1
Motherboard form faktor: micro ATX
BIOS-type: AWARD
Antal IEEE1394-stik: 1
Antal eSATA-porte: 1
RAID-niveauer: 0, 1,JBOD
Hukommelsesspænding: 1.5 V
CD/AUX lyd, indgående: Ja
Floppy-drev, stik: Ja
S/PDIF-indgangsstik: Ja
PCI-slots: 2
Antal parallelle ATA-stik: 1

Har du brug for hjælp?

Hvis du har brug for hjælp til Gigabyte GA-H55M-USB3 stil et spørgsmål nedenfor, og andre brugere vil svare dig
