Side 1/52
GA-H81TN
GA-B85TN
GA-H87TN
GA-Q87TN
User's Manual
12ME0-H81TN0-00R
Sept. 23, 2013
Motherboard
GA-H81TN
Motherboard
GA-H81TN
Sept. 23, 2013
Sept. 23, 2013
Motherboard
GA-B85TN
Motherboard
GA-B85TN
Sept. 23, 2013
Sept. 23, 2013
Motherboard
GA-H87TN
Motherboard
GA-H87TN
Sept. 23, 2013
Sept. 23, 2013
Motherboard
GA-Q87TN
Motherboard
GA-Q87TN
Sept. 23, 2013
Copyright
© 2015 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
- 5 -
Table of Contents
Box Contents 6 ...................................................................................................................
GA-H81TN/GA-B85TN/GA-H87TN Motherboard Layout 7 ................................................
GA-Q87TN Motherboard Layout 8 .....................................................................................
Chapter 1 Hardware Installation 9 .....................................................................................
1-1 Installation Precautions 9 ....................................................................................
1-2 ProductSpecications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler 13 ...............................................................
1-4 Installing the Memory/Expansion Card 13 ..........................................................
1-5 Back Panel Connectors 14 ..................................................................................
1-6 Internal Connectors 16 ........................................................................................
Chapter 2 BIOS Setup 29 ..................................................................................................
2-1 The Main Menu 31 ..............................................................................................
2-2 Advanced Menu 33 .............................................................................................
2-2-1 CPUConguration ..................................................................................................34
2-2-2 SATAConguration.................................................................................................36
2-2-3 Trusted Computing 37 .................................................................................................
2-2-4 Intel (R) Rapid Start Technology 38 .............................................................................
2-2-5 Intel(R) Smart Connect Technology 39 ........................................................................
2-2-6 AMTConguration ..................................................................................................40
2-2-7 SuperIOConguration ...........................................................................................41
2-2-8 H/W Monitor 42 ............................................................................................................
2-3 Chipset Menu 43 .................................................................................................
2-4 Boot Menu 45 ......................................................................................................
2-5 Security Menu 48 ................................................................................................
2-6 Save & Exit Menu 49 ...........................................................................................
- 6 -
Box Contents
;GA-H81TN, GA-B85TN, GA-H87TN or GA-Q87TN motherboard
;Motherboard driver disk
;User's Manual
;I/O Shield (AIO Thin Mini-ITX x1, Standard Type x 1)
;Screws kit for expansion cards
;COM serial cable
;Cable SATA Power x 1
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
- 7 -
Socket 1150
PCIE4X
Intel® H81 /j
B85 H87k l
CODEC
ATX_19V
GA-H81TN
GA-B85TN
GA-H87TN
FUSB2_3
SATAIII_1 FUSB3 l
SATA_3kl
HDMI
EXT_CON
DMIC_CON
LPT
CLR_CMOS
FP_AUDIO
SPKR
MIC_IN
LINE_OUT
BATTERY
BIOS
USBX_1
USB3_1
DP
LAN
DC_IN
FUSB2_5
SATAIII_0
SATA_2
SYS_FAN
SATA_PWR
MPCIE1X
SO_DIMM1
SO_DIMM2
WF_LED
BL_SW
FPD
LVDS
SYS_PANEL
MON_SW
CPU_FAN
COM1
FPD_PWR
LCD_VCC

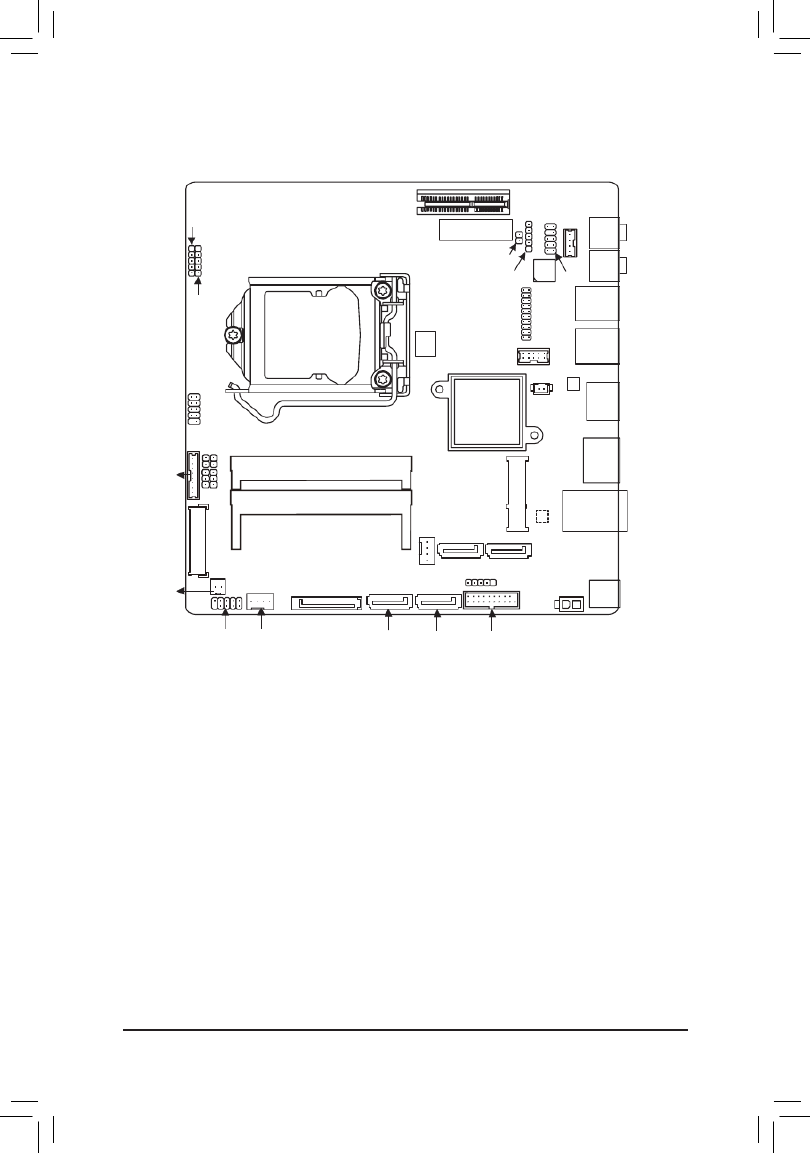

GA-H81TN/GA-B85TN/GA-H87TN Motherboard Layout
FUSB2_2 FUSB2_4
jOnly for GA-H81TN.
kOnly for GA-B85TN.
lOnly for GA-H87TN.
(Note) The chip is located on the back of the motherboard.
Realtek®
GbE LAN (Note)
- 8 -
GA-Q87TN

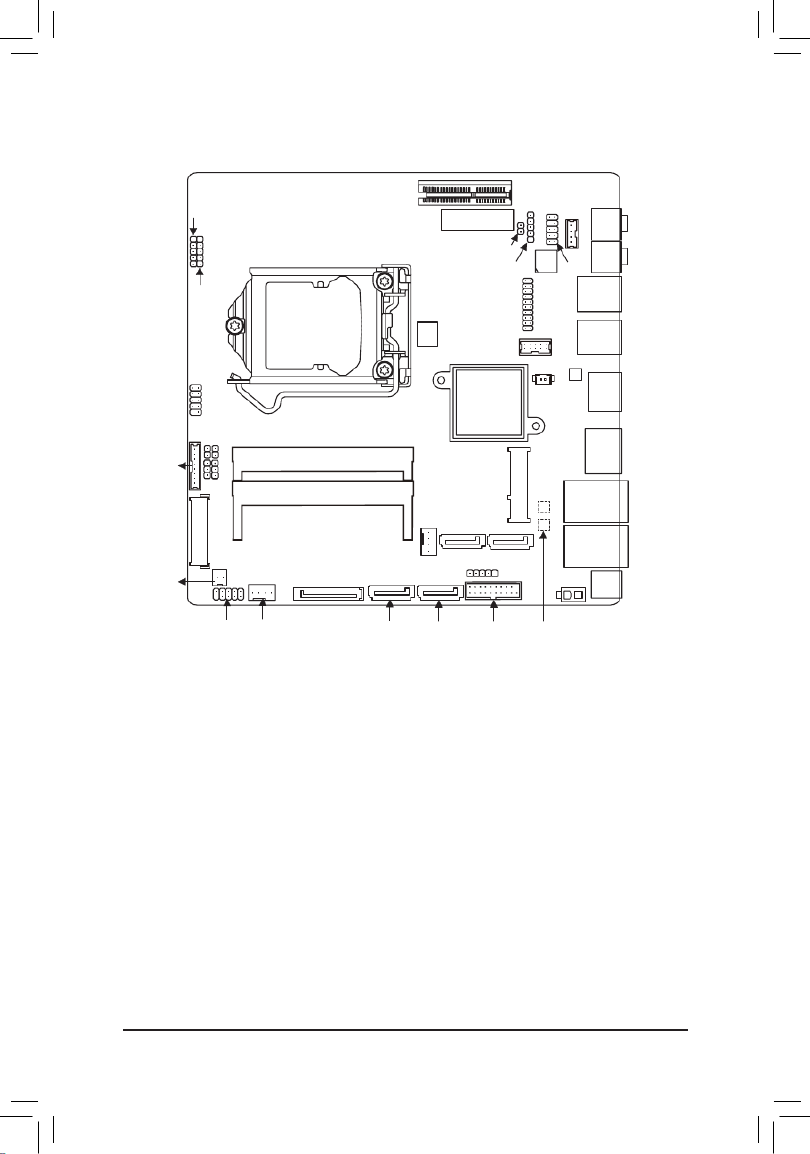

GA-Q87TN Motherboard Layout
Socket 1150
PCIE4X
Intel® Q87
CODEC
ATX_19V
FUSB2_3
SATAIII_1 FUSB3 Intel®
GbE LAN (Note)
SATAIII_3
HDMI
EXT_CON
DMIC_CON
LPT
CLR_CMOS
FP_AUDIO
SPKR
MIC_IN
LINE_OUT
BATTERY
BIOS
USBX_1
USB3_1
DP
LAN
LAN
DC_IN
FUSB2_5
SATAIII_0
SATAIII_2
SYS_FAN
SATA_PWR
MPCIE1X
SO_DIMM1
SO_DIMM2
FPD
LVDS
SYS_PANEL
MON_SW
CPU_FAN
COM1
Realtek®
GbE LAN (Note)
FUSB2_2 FUSB2_4
(Note) The chip is located on the back of the motherboard.
WF_LED
BL_SWFPD_PWR
LCD_VCC
- 10 -
1-2 ProductSpecications
jOnly for GA-H81TN.
kOnly for GA-B85TN.
lOnly for GA-H87TN.
POnly for GA-Q87TN.
CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/
Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
in the LGA1150 package (Supports up to 84W)
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel® H81 /B85 /H87 /Q87 Express Chipsetj k l P
Memory 2 x 1.5V DDR3 SO-DIMM sockets supporting up to 16GB(8GB X2) of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of
physical memory is installed, the actual memory size displayed will be less than
the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and
memory modules.)
Onboard Graphics Chipset:
- 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160
- 1 x DisplayPort, supporting a maximum resolution of 2560x1600
- 1 x LVDS connector
Audio Realtek® ALC887 codec
HighDenitionAudio
2/4/5.1/7.1-channel
* To congure 5.1/7.1-channel audio, you haveto use an HD frontpanelaudio
module and enable the multi-channel audio feature through the audio driver.
LAN 1 x Realtek ®
GbE LAN chip (10/100/1000 Mbit) (LAN1) jklP
1 x Intel
® GbE LAN chip (10/100/1000 Mbit) (LAN2) P
Expansion Slots 1 x PCI Express p10-x4 slot (Supports 25W only)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
1 x Mini PCI Express p10-x1 slot
Storage Interface Chipset:
- 2 x SATA 6Gb/s connectors (SATAIII 0/1); 1 x SATA 3Gb/s connector
(SATAII 2) j
- 3 x SATA 6Gb/s connectors (SATAIII 0/1/3); 1 x SATA 3Gb/s connector
(SATAII 2) k
- 4 x SATA 6Gb/s connectors (SATAIII 0/1/2/3) lP
- 1 x mSATA connector
- 11 -
USB Chipset:
- 2 x USB 3.0/2.0 ports; 7 x USB 2.0/1.1 ports j
- 4 x USB 3.0/2.0 ports; 5 x USB 2.0/1.1 ports k
- 6 x USB 3.0/2.0 ports; 5 x USB 2.0/1.1 ports lP
* USB 2.0/1.1 ports available through the internal USB headers (Card reader/Touch
panel/webcam and other devices)
Internal
Connectors
1 x 2-pin power connector
1 x CPU fan header
1 x system fan header
2 x SATA 6Gb/s connectors j
3 x SATA 6Gb/s connectors k
4 x SATA 6Gb/s connectors lP
1 x SATA 3Gb/s connector jk
1 x mSATA connector
1 x SATA power connector
4 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x front panel header
1 x front panel audio header
1 x digital microphone header
1 x AIO speaker header
1 x LVDS connector
1 x LVDS drive voltage header
1xatpaneldisplaypowerheader(bothpanelandbacklightinverter)
1xatpaneldisplaypowerconnector
1 x backlight switch header
1xatpaneldisplayswitchheader
1 x WIFI activity indicator LED header
1xClearCMOSjumper
Back Panel
Connectors
1 x HDMI port
1 x DisplayPort
4 x USB 3.0/2.0 ports klP
2 x USB 3.0/2.0 ports j
2 x USB 2.0/1.1 ports j
1 x RJ-45 port jkl
2 x RJ-45 ports P
2xaudiojacks(LineOut,MicIn)
1 x DC-In power connector
jOnly for GA-H81TN.
kOnly for GA-B85TN.
lOnly for GA-H87TN.
POnly for GA-Q87TN.
- 13 -
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU/CPU cooler:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before installing
the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,
graphics card, memory, hard drive, etc.
•For installing the CPU cooler, please refer to chassis user's manual.
1-4 Installing the Memory/Expansion Card
Read the following guidelines before you begin to install the memory expansion card:
•Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest
supported memory speeds and memory modules.)
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing
the memory/expansion card to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
- 15 -
•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
•When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
USB 3.0/2.0/1.1 Port
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveandetc.
Line Out Jack (Green)
Thedefault LineOut (Front Speaker Out)jack. Stereospeakers, earphone orfront surroundspeakers
canbeconnectedtoLineOut(FrontSpeakerOut)jack.
Mic In Jack (Pink)
ThedefaultMICInjack.MicrophonecabbeconnectedtoMICInjack.
USB 2.0/1.1 Port j
The USB port supports the USB 2.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveandetc.
jOnly for GA-H81TN.
- 16 -

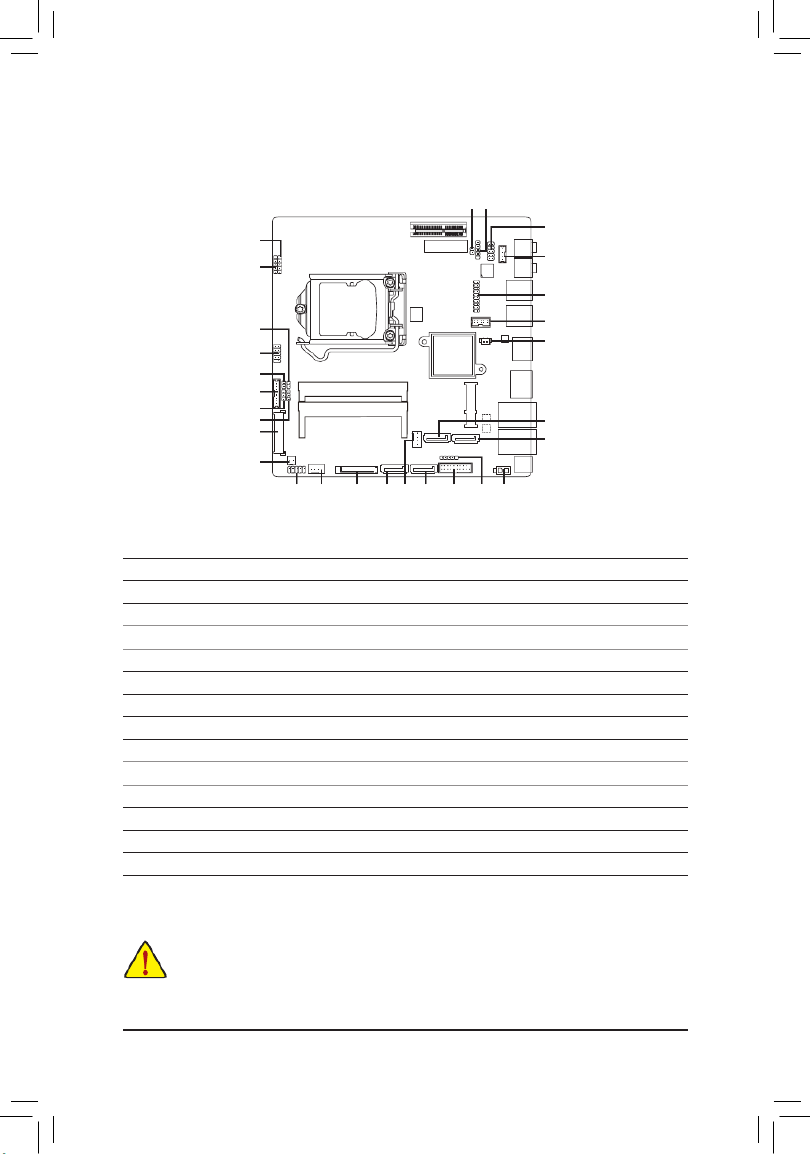

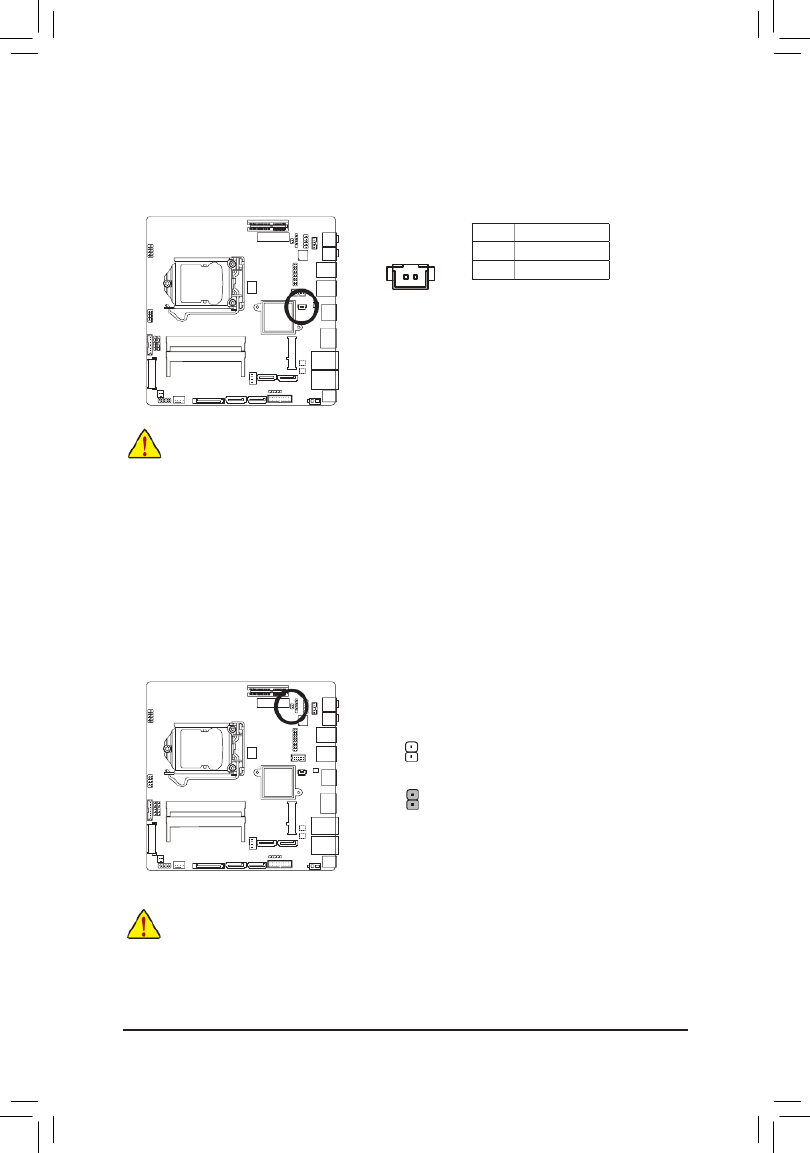

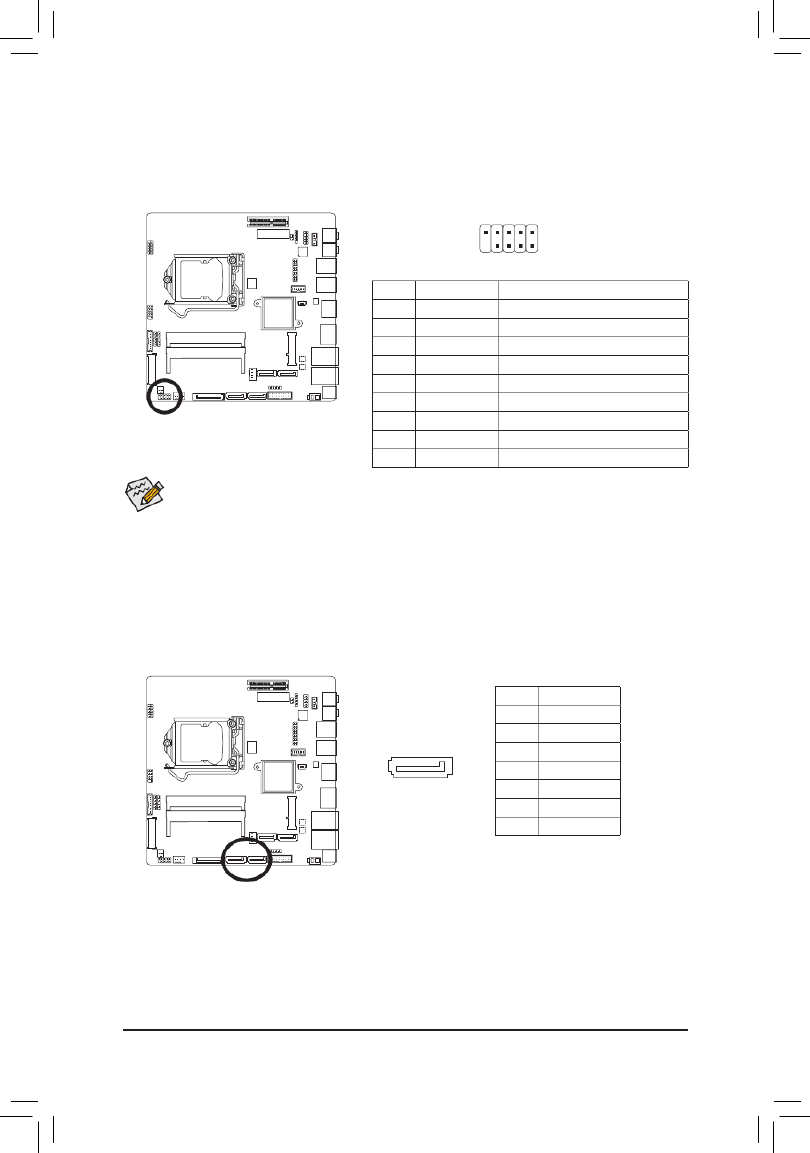

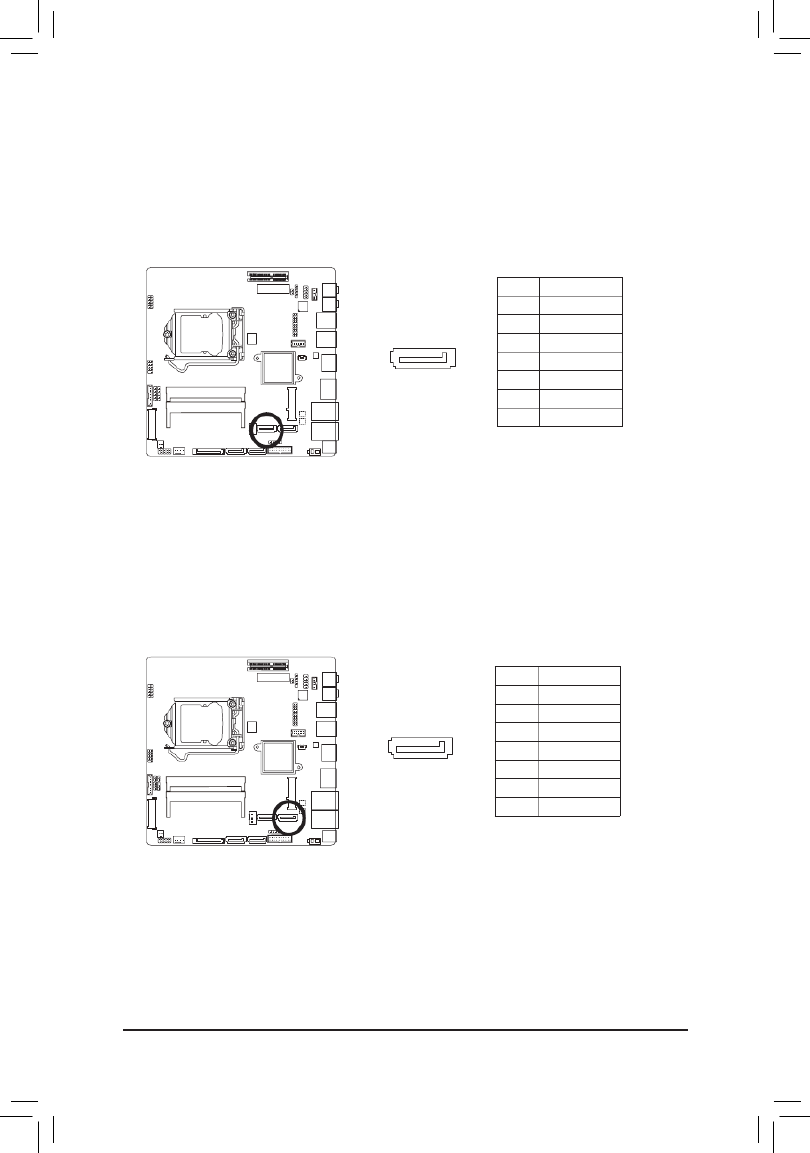

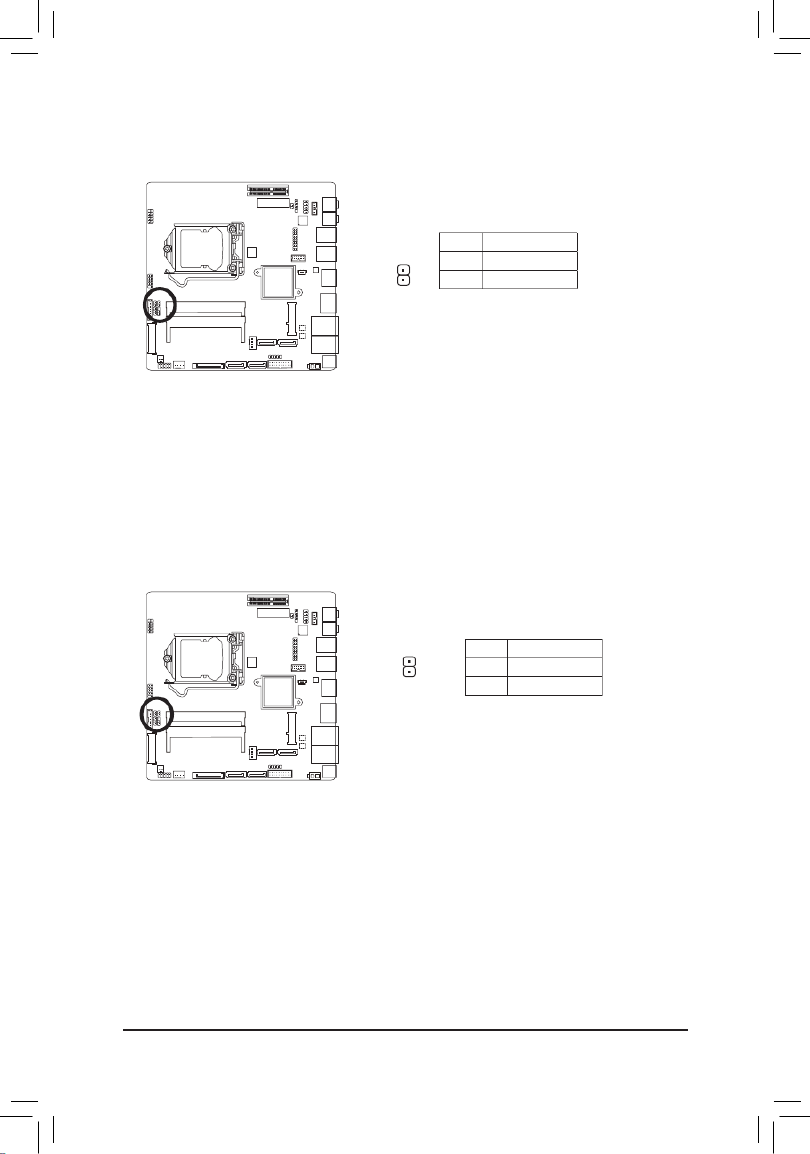

1-6 Internal Connectors
Read the following guidelines before connecting external devices:
•First make sure your devices are compliant with the connectors you wish to connect.
•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from
the power outlet to prevent damage to the devices.
•After installing the device and before turning on the computer, make sure the device cable has been securely
attached to the connector on the motherboard.
1) SYS_PANEL
2) SATAIII_0
3) SATAIII_1
4) SATAIII_2
5) SATAIII_3
6) FUSB2_2
7) FUSB2_3
8) FUSB2_4
9) FUSB2_5
10) FUSB3
11) FP_AUDIO
12) FPD
13) LVDS
14) CPU_FAN
15) SYS_FAN
16) DMIC_CON
17) ATX_19V
18) MON_SW
19) SATA_PWR
20) SPKR
21) BATTERY
22) CLR_CMOS
23) LCD_VCC
24) FPD_PWR
25) WF_LED
26) BL_SW
27) LPT
28) COM1
21
14
5
31 2 10
13
15
4
7
20
27
28
11
6
8
9
12
1622
17
18
26
23
24
25
19
- 17 -
The front panel design may differ by chassis. A front panel module mainly consists of power switch,
reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis
front panel module to this header, make sure the wire assignments and the pin assignments are
matched correctly.
10
9
2
1
1) SYS_PANEL (Front Panel Header)
Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status
indicator on the chassis to this header according to the pin assignments below. Note the positive and
negative pins before connecting the cables.
2/3) SATAIII_0/1 (SATA 6Gb/s Connector)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
1
SATAIII_0/1
7
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Pin No. Signal Name Denition
1 HD+ Hard Disk LED Signal anode (+)
2 MPD+ Power LED Signal anode (+)
3 HD- Hard Disk LED Signal cathode(-)
4 MPD- Power LED Signal cathode(-)
5 GND Ground
6 PW+ Power Button anode (+)
7 RST Reset Button
8 Power Button cathode(-)PW-
9 WF_LED WiactiveLEDSignal
jOnly for GA-H81TN.
kOnly for GA-B85TN.
lOnly for GA-H87TN.
POnly for GA-Q87TN.
- 18 -
4) SATAIII_2 (SATA 6Gb/s Connector) Pl
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
SATAIII_2 (SATA 3Gb/s Connector) jk
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device.
1
SATAIII_2
7
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
jOnly for GA-H81TN.
kOnly for GA-B85TN.
lOnly for GA-H87TN.
POnly for GA-Q87TN.
5) SATAIII_3 (SATA 6Gb/s Connector) klP
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
1
SATAIII_3
7
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
- 19 -
6/8/9) FUSB2_1/2/4/5 (USB Header)
TheheadersconformtoUSB2.0/1.1specication.Eachheadersupportsasingledevice.
109
21
Pin No. Denition
1 VCC
2 VCC
3 USB-
4 USB-
5 USB+
6 USB+
7 GND
8 GND
9 No Pin
10 NC
jOnly for GA-H81TN.
kOnly for GA-B85TN.
lOnly for GA-H87TN.
POnly for GA-Q87TN.
7) FUSB2_3 (USB Headers)
TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
1 5
1
5
Pin No. Denition
1 VCC
2 USB-
3 USB+
4 GND
5 No Pin
FUSB2_2/FUSB2_4
FUSB2_5
- 20 -
12
910
11) FP_AUDIO (Front Panel Audio Header)
The front panel audio header supports Intel®High Denition audio (HD)andAC'97audio. Youmay
connect your chassis front panel audio module to this header. Make sure the wire assignments of the
module connector match the pin assignments of the motherboard header. Incorrect connection between
the module connector and the motherboard header will make the device unable to work or even damage
it.
•The front panel audio header supports HD audio by default.
•Audio signals will be present on both of the front and back panel audio connections simultaneously.
•Some chassis provide a front panel audio module that has separated connectors on each wire
instead of a single plug. For information about connecting the front panel audio module that has
different wire assignments, please contact the chassis manufacturer.
Pin No. Denition
1 F_MIC_L
2 GND
3 F_MIC_R
4 GPIO_DET
5 F_LINE_R
6 F_MIC_JD
7 GND
8 No Pin
9 F_LINE_L
10 F_LINE_JD
Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord
from the power outlet to prevent damage to the USB bracket.

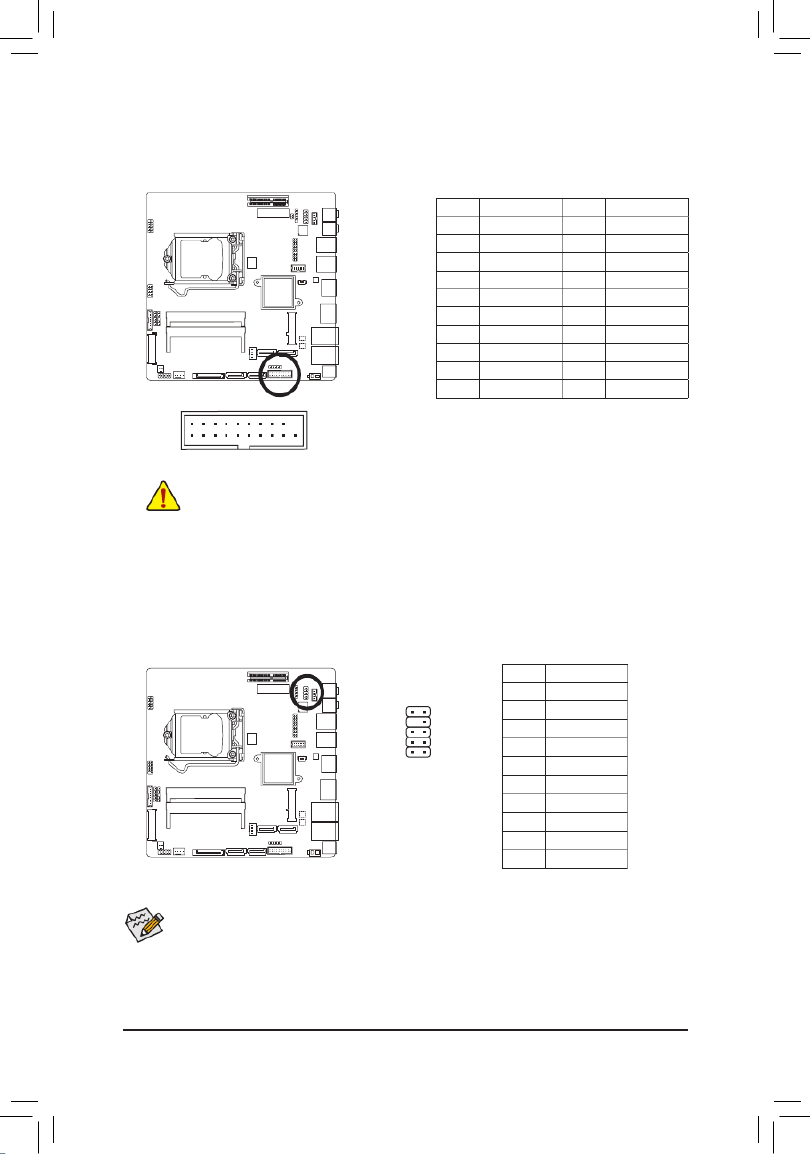

10) FUSB3 (USB 3.0/2.0 Header)
TheheaderconformstoUSB3.0/2.0specicationandcanprovidetwoUSBports.Forpurchasingthe
optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer.
Pin No. Pin No.Denition Denition
1 VBUS D2+11
2 SSRX1- 12 D2-
3 SSRX1+ 13 GND
4 GND 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 GND
7 GND 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS
10 NC 20 No Pin
10
11 20
1
- 21 -

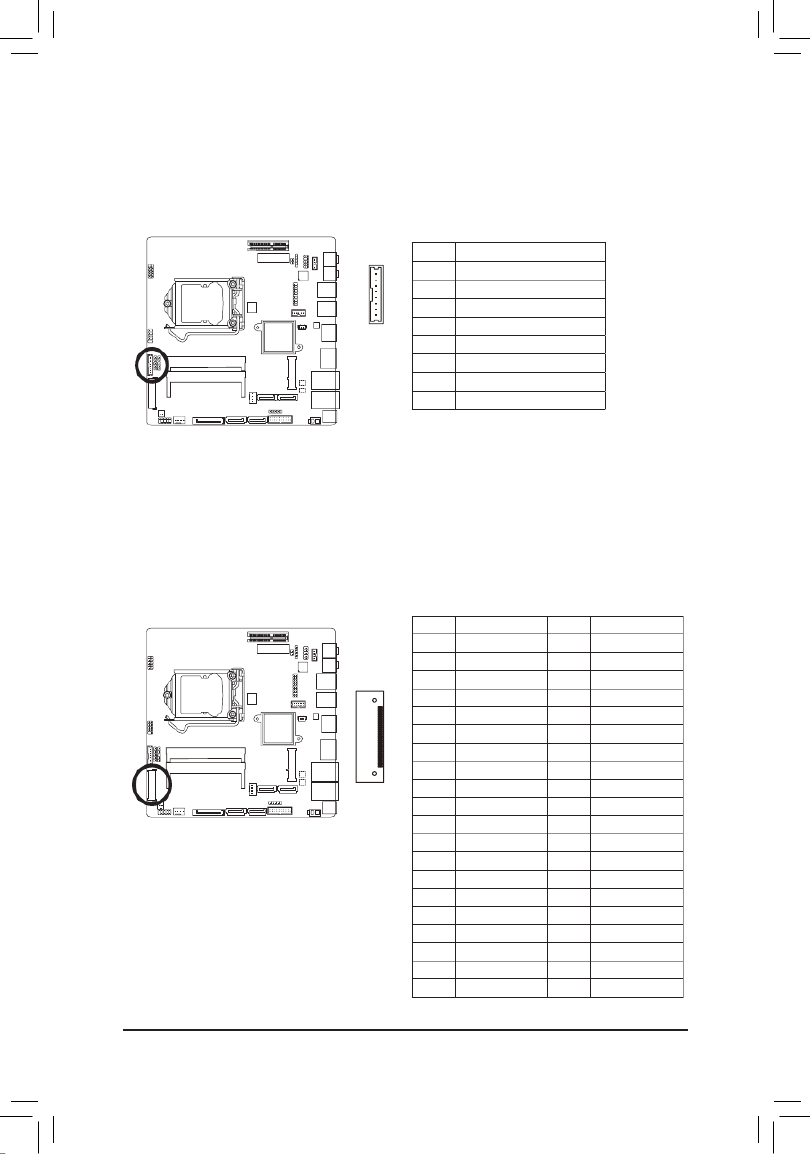

12) FPD (Flat Panel Display Headers)
The FPD is a high-speed interface connecting the output of a video controller in a laptop computer,
computer monitor or LCD television set to the display panel. Most laptops, LCD computer monitors and
LCD TVs use this interface internally.
TheheadersconformtoFPDspecication.
1
8Pin No. Denition
1 BKLT_EN
2 BKLT_PWM
3 BKLT_PWR
4 BKLT_PWR
5 BKLT_GND/Brightness_GND
6 BKLT_GND/Brightness_GND
7 Brightness_Up
8 Brightness_Down
13) LVDS (LVDS Header)
LVDS stands for Low-voltage differential signaling, which uses high-speed analog circuit techniques to
provide multigigabit data transfers on copper interconnects and is a generic interface standard for high-
speed data transmission.
1
40
Pin No. Pin No.Denition Denition
1 ODD_Lane3_P 21 NC
2 ODD_Lane3_N 22 EDID_3.3V
3 ODD_Lane2_P 23 LCD_GND
4 ODD_Lane2_N 24 LVDS SENSE (Note)
5 ODD_Lane1_P 25 LCD_GND
6 ODD_Lane1_N 26 ODD_CLK_P
7 ODD_Lane0_P 27 ODD_CLK_N
8 ODD_Lane0_N 28 BLKT_GND
9 EVEN_Lane3_P 29 BLKT_GND
10 EVEN_Lane3_N 30 BLKT_GND
11 EVEN_Lane2_P 31 EDID_CLK
12 EVEN_Lane2_N 32 BLKT_ENABLE
13 EVEN_Lane1_P 33 BLKT_PWM_DIM
14 EVEN_Lane1_N 34 EVEN_CLK_P
15 EVEN_Lane0_P 35 EVEN_CLK_N
16 EVEN_Lane0_N 36 BLKT_PWR
17 EDID_GND 37 BLKT_PWR
18 LCD_VCC 38 BLKT_PWR
19 LCD_VCC 39 NC
20 LCD_VCC 40 EDID_DATA
(Note) LVDS SENSE must link cable LCD Panel GND.
- 22 -

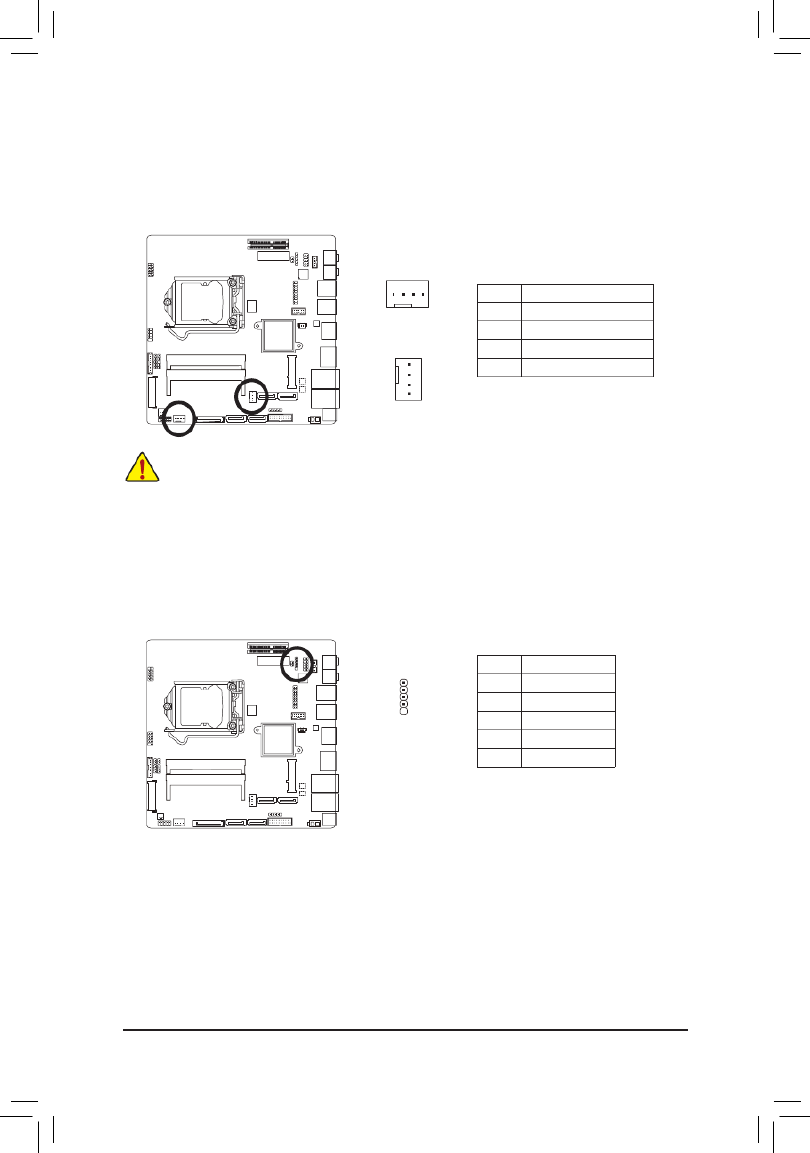

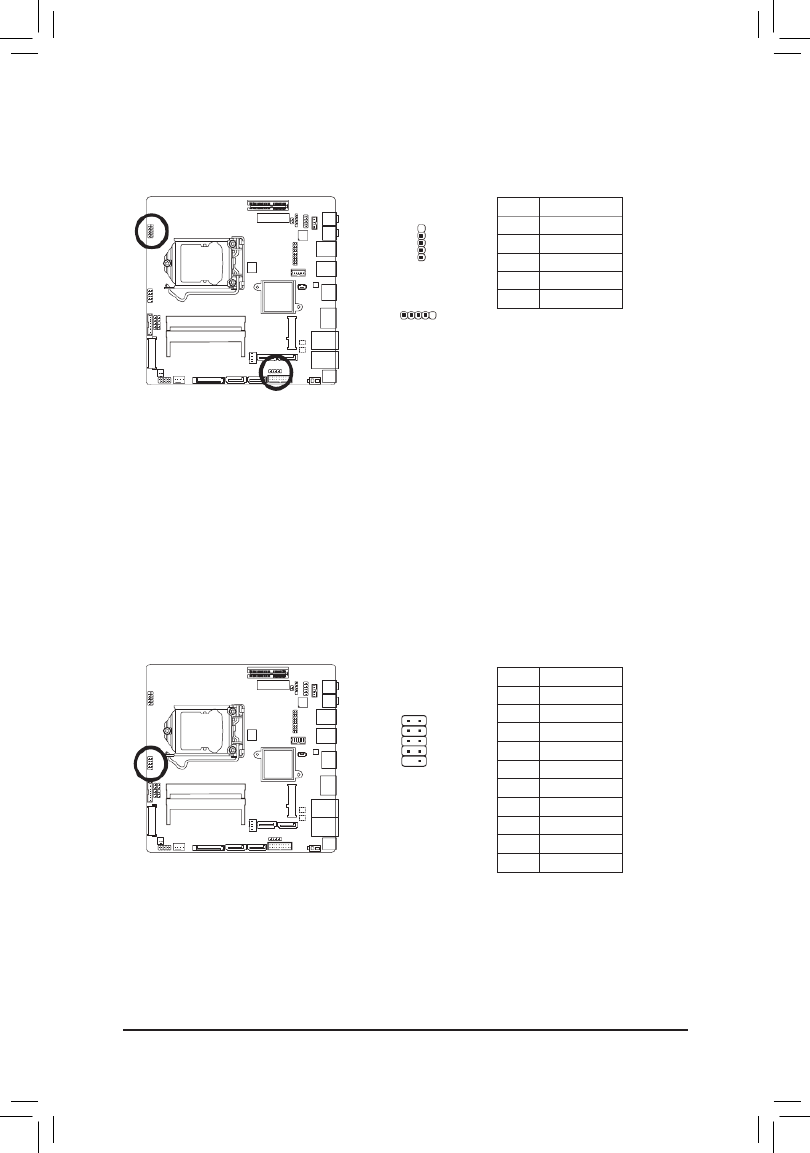

14/15) CPU_FAN/SYS_FAN (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
•Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
•Thesefanheadersarenotcongurationjumperblocks.Donotplaceajumpercapontheheaders.
16) DMIC_CON (DMIC Headers)
This header is for a digital microphone.
5
1
Pin No. Denition
1 GND
2 +12V
3 Sense
4 Speed Control
SYS_FAN
1
1
CPU_FAN
Pin No. Denition
1 Power
2 DMI DATA
3 GND
4 DMI CLK
5 No Pin
- 23 -

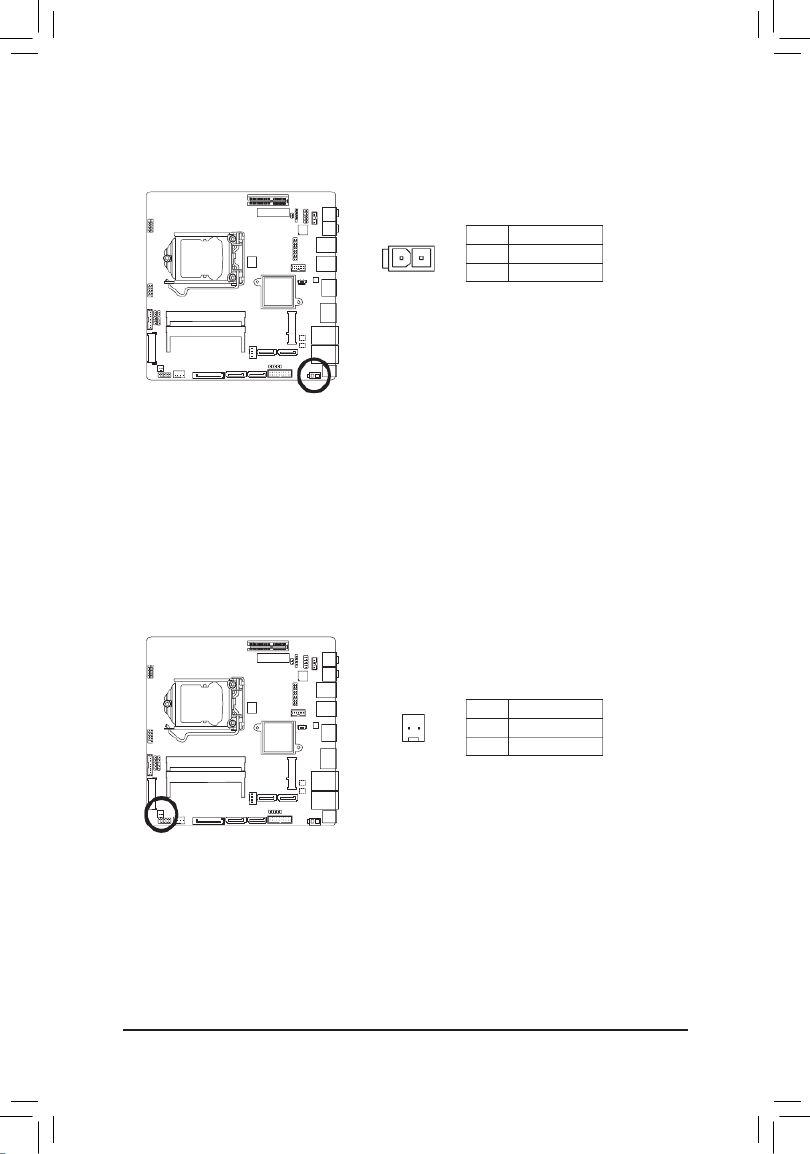

17) ATX_19V (2 Pin Power Connector)
This power connector is for the integrated 19V chassis power supply.
12
Pin No. Denition
1 GND
2 +19V
18) MON_SW (Flat panel display switch header)
This header allows you to connect an on/off switch for the display.
1
Pin No. Denition
1 Mon_SW
2 GND
- 24 -
20) SPKR (Speaker Header)
This speaker header is connected to a L/R audio pins from the board to support the 3W (4ohm) stereo
speaker on your AIO chassis.
1
4Pin No. Denition
1 Speaker OUT L-
2 Speaker OUT L+
3 Speaker OUT R+
4 Speaker OUT R-

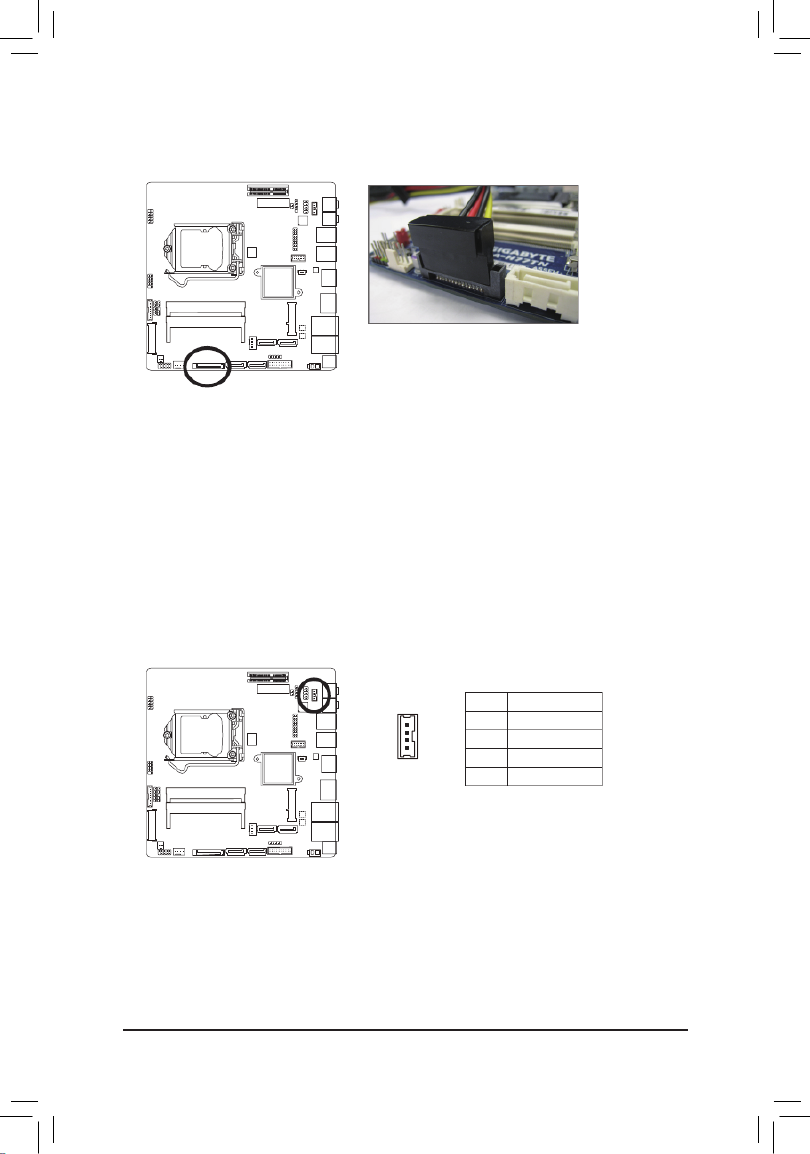

19) SATA_PWR (SATA Power Connector)
This connector provides power to installed SATA devices.
Connect the included SATA power cable to the SATA_PWR connector.
Then connect the SATA/optical drive power connectors to your hard
drive and optical drive.
- 25 -
21) BATTERY (Battery Cable Connector)
Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a
low level, or the CMOS values may not be accurate or may be lost.
•Always turn off your computer and unplug the power cord before replacing the battery.
•Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect
model.
•Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or
uncertain about the battery model.
•Used batteries must be handled in accordance with local environmental regulations.
12
Pin No. Denition
1 RTC Reset
2 GND
22) CLR_CMOS (Clearing CMOS Jumper)
UsethisjumpertocleartheCMOSvalues(e.g.dateinformationandBIOScongurations)andresetthe
CMOSvaluesto factorydefaults.Toclearthe CMOSvalues,usea metalobjectlikeascrewdriverto
touch the two pins for a few seconds.
Open: Normal operation (Default setting)
Close: Clear CMOS data
•Always turn off your computer and unplug the power cord from the power outlet before clearing the
CMOS values.
•After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or
manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).
- 26 -

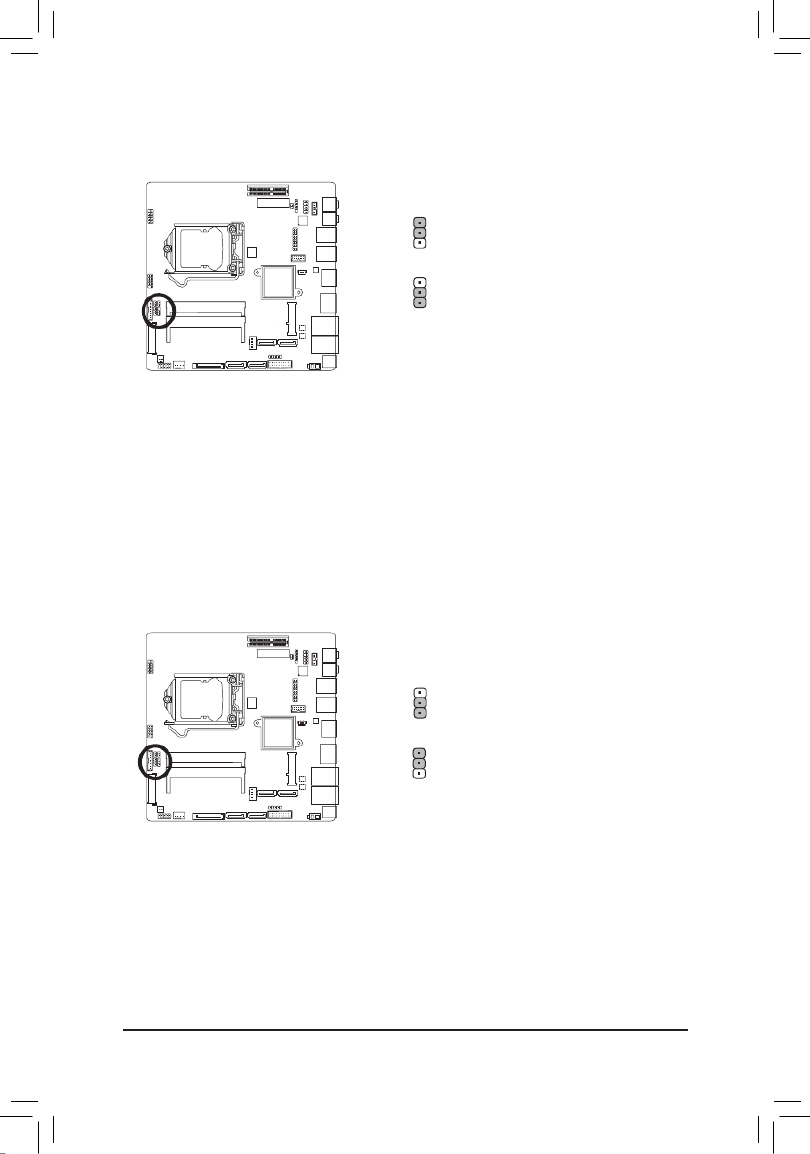

23) LCD_VCC (LVDS Drive Boltage Jumper)
Thisjumpercanbeusedtoprovidedifferentscreenvoltagesettings.
1
1
1-2 Close: Set to 3V.
2-3 Close: Set to 5V. (Default setting)
24) FPD_PWR (Flat Panel Display Power Jumper)
Thisjumperallowsyoutoselecttherequiredoperatingvoltageforthebacklightpanel.
1-2 Close: Set to 12V.
2-3 Close: Set to 19V. (Default setting)
1
1
- 27 -
25) WF_LED (WIFI Activity Indicator LED Header)
This header allows you to connect a WiFi operation indicator LED.
1
Pin No. Denition
1 GND
2 LED_WLAN
26) BL_SW (Back Light Switch)
TheBackLightswitchprovidesthefunctionforscreenbacklightadjustment.
1Pin No. Denition
1 BL_DOWN
2 BL_UP
- 28 -
10
9
2
1

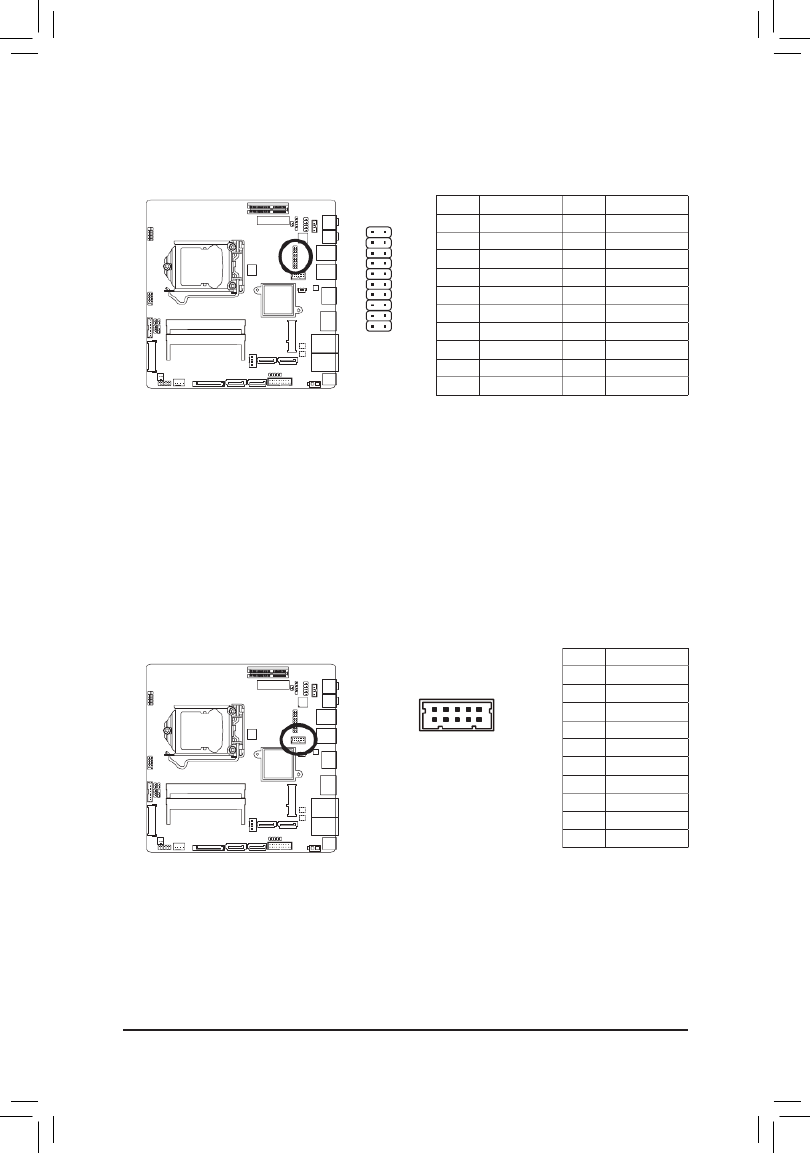

28) COM1 (Serial Port Header)
The COM header can provide one serial port via an optional COM port cable. For purchasing the
optional COM port cable, please contact the local dealer.
Pin No. Denition
1 NDCD-
2 NDSR-
3 NSIN
4 NRTS-
5 NSOUT
6 NCTS-
7 NDTR-
8 NRI-
9 GND
10 No Pin
27) LPT (Parallel Port Header)
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional
LPT port cable, please contact the local dealer.
Pin No. Pin No.Denition Denition
1 STB- PD411
2 BUSY 12 INIT-
3 PD0 13 PD5
4 PE 14 SLIN-
5 PD1 15 PD6
6 SLCT 16 GND
7 PD2 17 PD7
8 AFD- 18 GND
9 PD3 19 ACK-
10 ERR- 20 GND
2019
21
- 30 -
Main
This setup page includes all the items in standard compatible BIOS
Advanced
This setup page includes all the items of AMI BIOS special enhanced features.
(ex:Autodetectfanandtemperaturestatus,automaticallycongureharddiskparameters.)
Chipset
NorthbridgeandSouthbridgeadditionalfeaturesconguration.
Boot
Thissetuppageprovidesitemsforcongurationofbootsequence.
Security
Change,set,ordisablesupervisoranduserpassword.Congurationsupervisorpasswordallowsyouto
restrict access to the system and BIOS Setup.
A supervisor password allows you to make changes in BIOS Setup.
A user password only allows you to view the BIOS settings but not to make changes.
Save & Exit
Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing <F10>
can also carry out this task.)
Abandonallchangesandtheprevioussettingsremainineffect.Pressing<Y>totheconrmationmessage
will exit BIOS Setup. (Pressing <Esc> can also carry out this task.)
Produkt Specifikationer
| Mærke: | Gigabyte |
| Kategori: | Bundkort |
| Model: | GA-H81TN |
| Bredde: | 170 mm |
| Dybde: | 170 mm |
| Antal HDMI-porte: | 1 |
| Ethernet LAN-porte (RJ-45): | 1 |
| Antal USB 2.0-porte: | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte: | 2 |
| Ethernet LAN: | Ja |
| Maksimal opløsning: | 4096 x 2160 pixel |
| Lyd-output kanaler: | 7.1 kanaler |
| Strømkilde type: | ATX |
| Maksimal intern hukommelse: | 16 GB |
| Mikrofonindgang: | Ja |
| Processorproducent: | Intel |
| HDMI-version: | 1.4a |
| Antal DisplayPorts: | 1 |
| Ethernet-grænsefladetype: | Gigabit Ethernet |
| Komponent til: | PC |
| Processor sokkel: | LGA 1150 (stik H3) |
| Kompatibel processor serie: | Intel Celeron, Intel Pentium |
| Bundkort chipset familie: | Intel |
| Bundkort chipsæt: | Intel® H81 |
| Understøttede hukommelsestyper: | DDR3-SDRAM |
| Antal hukommelsesstik: | 2 |
| Hukommelses slots type: | SO-DIMM |
| Understøttede hukommelsesclock-hastigheder: | 1333,1600 Mhz |
| Antal SATA III-stik: | 2 |
| Hukommelseskanaler: | To-kanals |
| USB 2.0-stik: | 5 |
| CPU-ventilatorstik: | Ja |
| Antal SATA II stik: | 1 |
| Motherboard form faktor: | mini ITX |
| Understøttede lagerdrev brugerflader: | SATA II, SATA III |
| BIOS-type: | EFI AMI |
| ACPI-version: | 2.0a |
| Nulstil CMOS-jumper: | Ja |
| Hukommelsesspænding: | 1.5 V |
| PCI Ekspres x4 slots: | 1 |
| PC sundhedsovervågning: | CPU |
| Seriel port overskrifter: | 1 |
| Mini PCI ekspres slots: | 1 |
| Antal mSATA-porte: | 1 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Gigabyte GA-H81TN stil et spørgsmål nedenfor, og andre brugere vil svare dig
Bundkort Gigabyte Manualer
31 August 2025
31 August 2025
4 August 2025
4 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
Bundkort Manualer
- Asrock
- EPoX
- Raspberry Pi
- Biostar
- AOpen
- Intel
- Foxconn
- Asus
- ECS
- Sharkoon
- Advantech
- Elitegroup
- NZXT
- Supermicro
- Festo
Nyeste Bundkort Manualer
7 Oktober 2025
5 Oktober 2025
4 Oktober 2025
4 Oktober 2025
4 Oktober 2025
4 Oktober 2025
4 Oktober 2025
4 Oktober 2025
4 Oktober 2025
4 Oktober 2025
