Side 1/112
GA-MA790X-UD4P
AM2+/AM2 socket motherboard for
AMD PhenomTM II X3 processor/AMD PhenomTM II X4 processor/
AMD PhenomTM FX processor/AMD Phenom TM X4 processor/
AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/
AMD AthlonTM processor/AMD SempronTM X2 processor/
AMD SempronTM processor
User's Manual
Rev. 1001
12ME-MA79U4P-1001R
Motherboard
GA-MA790X-UD4P
Feb. 26, 2009
Feb. 26, 2009
Mot h erboard
GA-MA790X-UD4P
Copyright
© 2009 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE without prior
notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the
information on/from the Support\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents ................................................................................................................. 6
Optional Items................................................................................................................. 6
GA-MA790X-UD4P Motherboard Layout....................................................................... 7
Block Diagram................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Installation Precautions..................................................................................... 9
1-2 Product Specifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler .............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 Installing the Memory ..................................................................................... 16
1-4-1 Dual Channel Memory Configuration ................................................................ 16
1-4-2 Installing a Memory ............................................................................................. 17
1-5 Installing an Expansion Card ......................................................................... 18

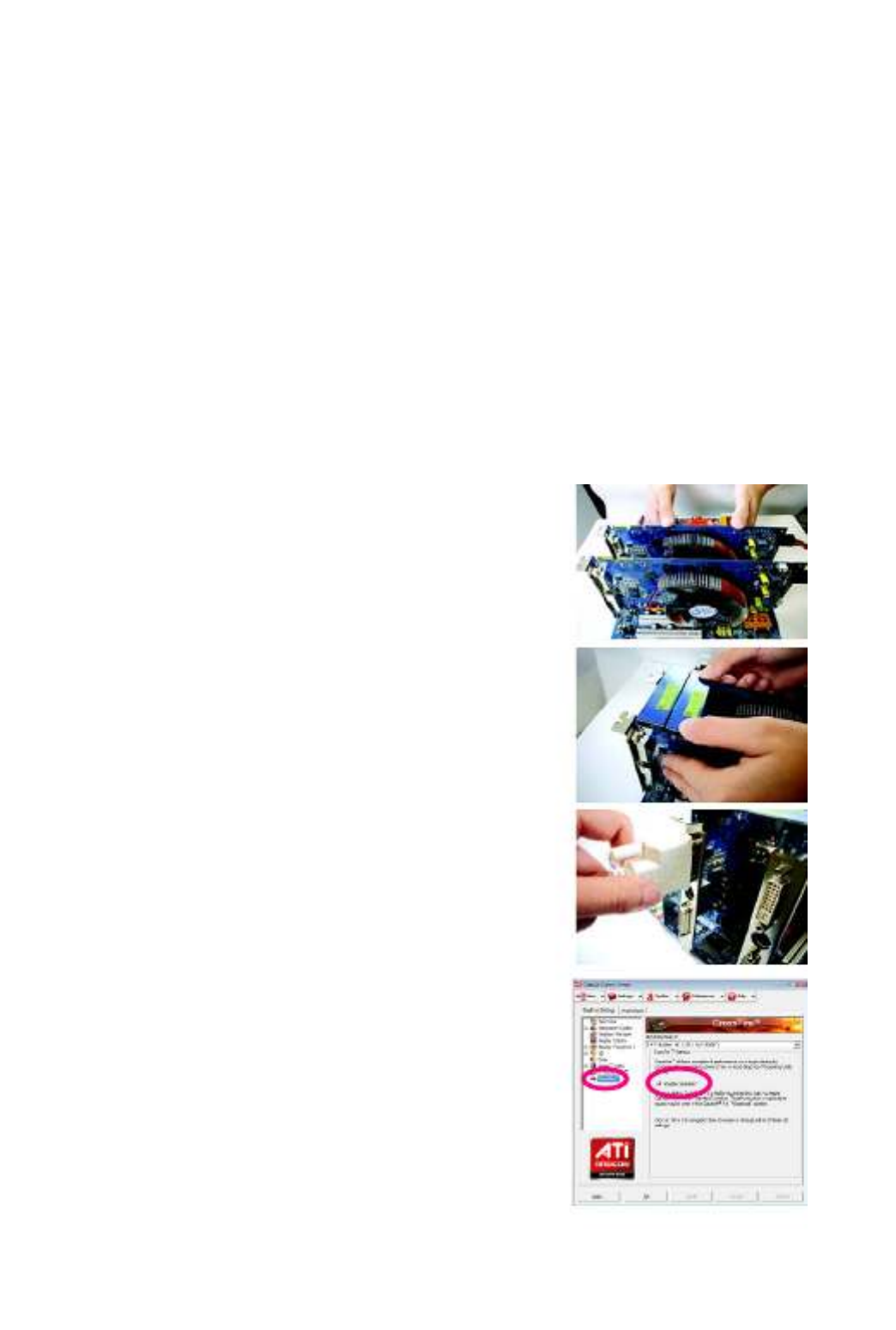

1-6 Configuring an ATI CrossFireXTM System ...................................................... 19
1-7 Installing the SATA Bracket ............................................................................. 20
1-8 Back Panel Connectors ................................................................................. 21

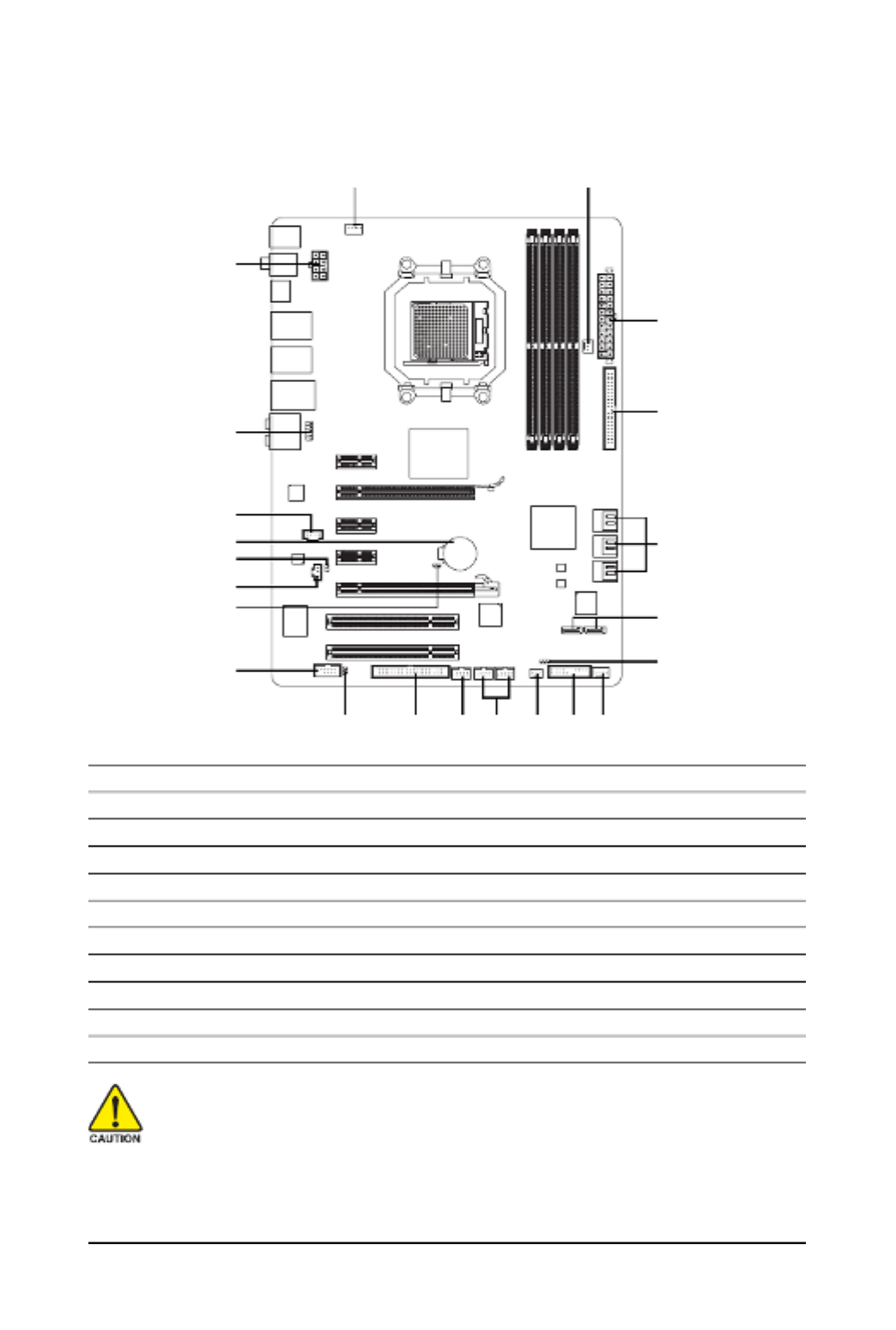

1-9 Internal Connectors ........................................................................................ 23
Chapter 2 BIOS Setup................................................................................................. 35
2-1 Startup Screen................................................................................................ 36
2-2 The Main Menu .............................................................................................. 37
2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 39
2-4 Standard CMOS Features ............................................................................. 44
2-5 Advanced BIOS Features .............................................................................. 46
2-6 Integrated Peripherals ..................................................................................... 48
2-7 Power Management Setup ............................................................................. 51
2-8 PC Health Status ........................................................................................... 53
2-9 Load Fail-Safe Defaults................................................................................... 55
2-10 Load Optimized Defaults................................................................................. 55
2-11 Set Supervisor/User Password ..................................................................... 56
2-12 Save & Exit Setup ......................................................................................... 57
2-13 Exit Without Saving ....................................................................................... 57
- 5 -
Chapter 3 Drivers Installation ...................................................................................... 59
3-1 Installing Chipset Drivers ............................................................................... 59
3-2 Application Software....................................................................................... 60
3-3 Technical Manuals .......................................................................................... 60
3-4 Contact........................................................................................................... 61
3-5 System........................................................................................................... 61
3-6 Download Center............................................................................................ 62
Chapter 4 Unique Features ......................................................................................... 63
4-1 Xpress Recovery2 ......................................................................................... 63
4-2 BIOS Update Utilities..................................................................................... 66
4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 66
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 69
4-3 EasyTune 6.................................................................................................... 70
4-4 Easy Energy Saver ...................................................................................... 71
4-5 Q-Share ......................................................................................................... 73
4-6 Time Repair .................................................................................................... 74
Chapter 5 Appendix .................................................................................................... 75
5-1 Configuring SATA Hard Drive(s) .................................................................... 75
5-1-1 Configuring AMD SB750 SATA Controllers ...................................................... 75
5-1-2 Configuring GIGABYTE SATA2 SATA Controller ............................................. 81
5-1-3 Making a SATA RAID/AHCI Driver Diskette for W indows XP ........................ 87
5-1-4 Installing the SATA RAID/AHCI Driver and Operating System ...................... 88
5-2 Configuring Audio Input and Output ................................................................. 97
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 97
5-2-2 Configuring S/PDIF In/Out .................................................................................. 99
5-2-3 Enabling the Dolby Home Theater Function .................................................. 101
5-2-4 Configuring Microphone Recording ................................................................. 102
5-2-5 Using the Sound Recorder ............................................................................... 104
5-3 Troubleshooting ............................................................................................. 105
5-3-1 Frequently Asked Questions ........................................................................... 105
5-3-2 Troubleshooting Procedure .............................................................................. 106
5-4 Regulatory Statements ................................................................................. 108
- 6 -

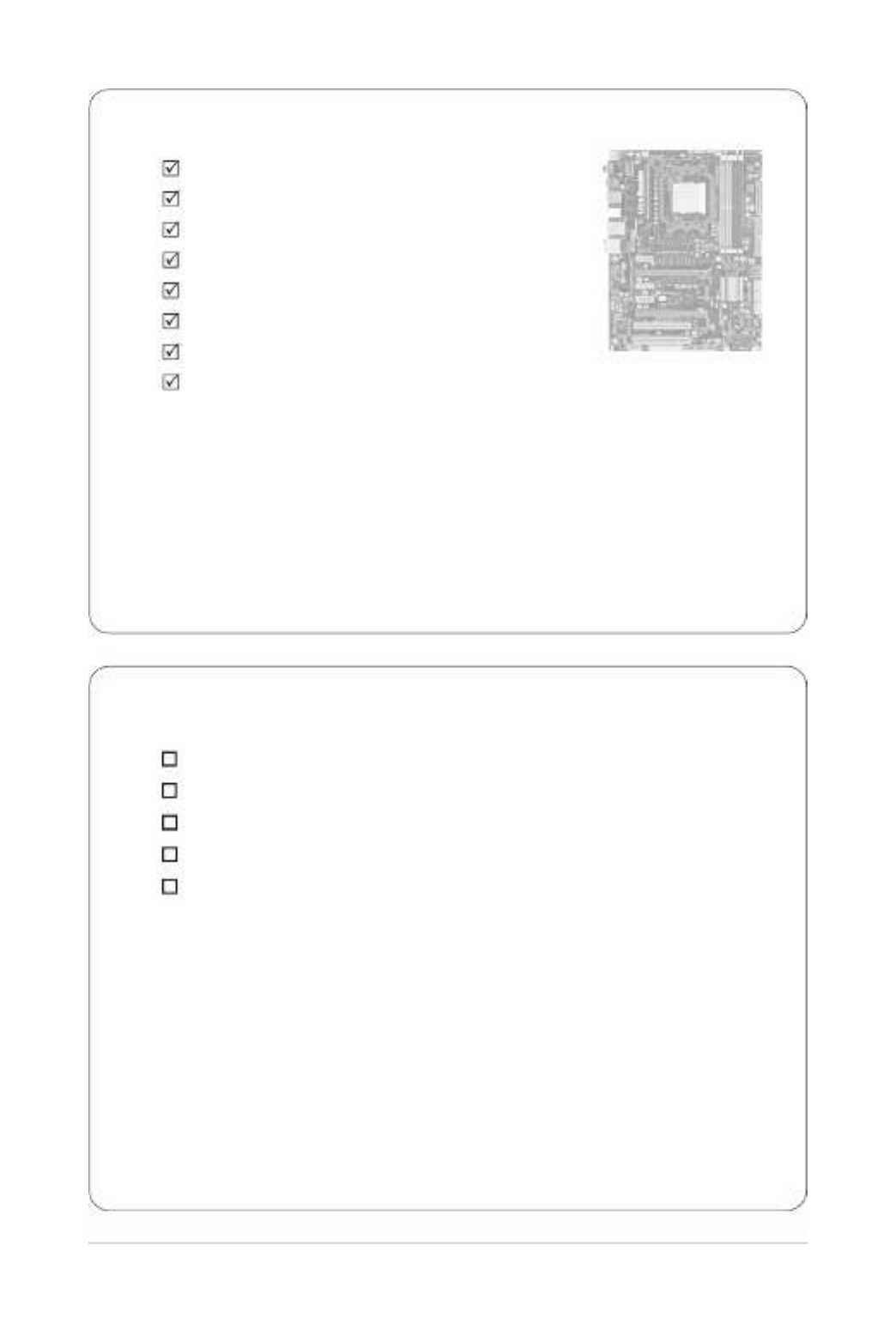

Box Contents
GA-MA790X-UD4P motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
One IDE cable and one floppy disk drive cable
Four SATA 3Gb/s cables
One SATA bracket
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
S/PDIF in cable (Part No. 12CR1-1SPDIN-0*R)
•The box contents above are for reference only and the actual items shall depend on product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 7 -

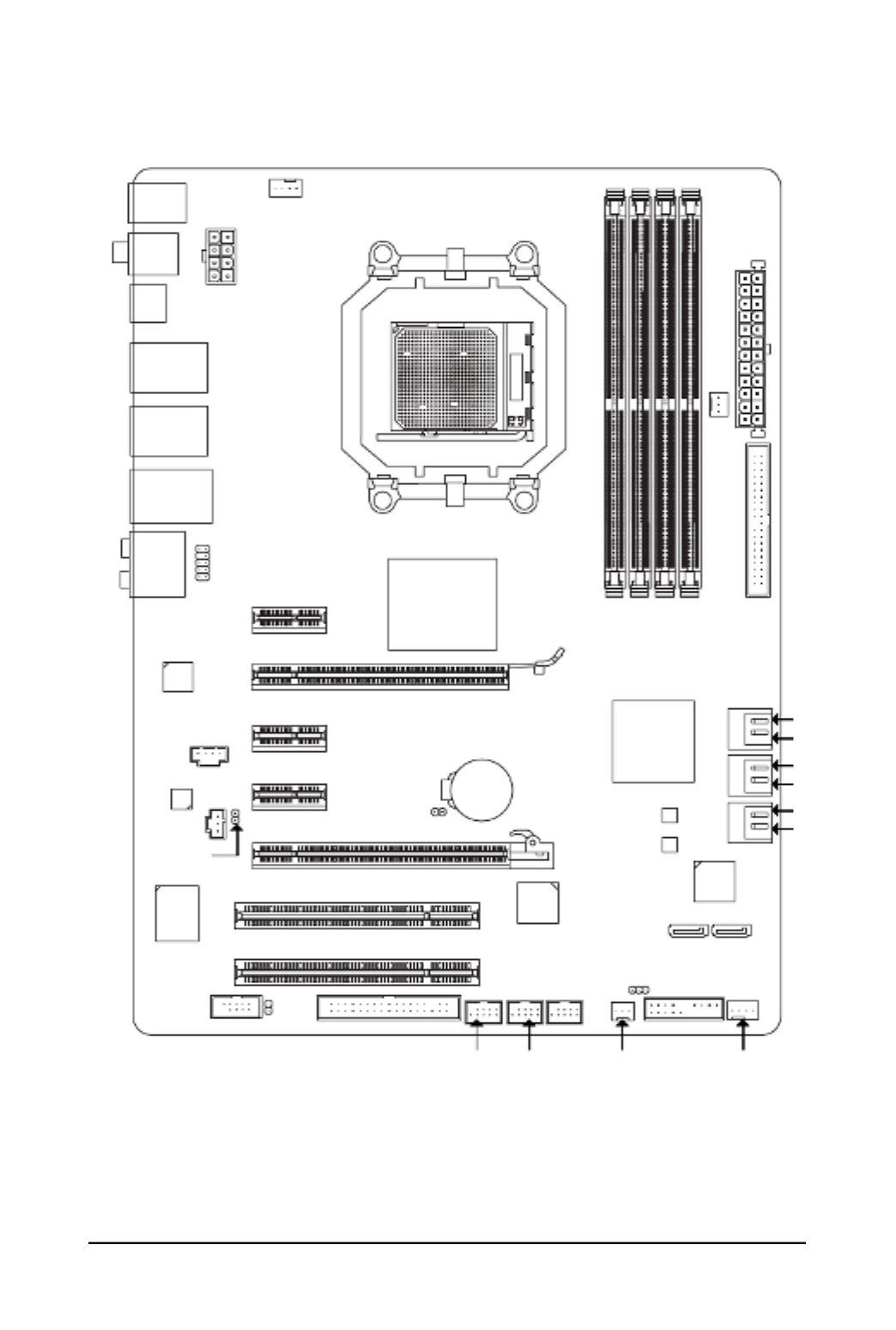

GA-MA790X-UD4P Motherboard Layout
KB_MS
Socket AM2
ATX
GA-MA790X-UD4P
USB
LAN
F_AUDIO
M_BIOS
FDD
PCIEX16_1
IT8720
IDE
DDR2 _1
DDR2_ 2
DDR2 _3
DDR2 _4
F_13 94
TSB43AB23
PCIEX1_1
PCI1
BATTERY
CODEC
ATX_12V_2X4
AMD 790X
COM
PWR_LED
F_USB1
CLR_CMOS
RTL8111DL
CPU_FAN
GSATA2_0
GSATA2_1
F_USB2
PCI2
SYS_FAN2
AMD SB750
F_PANEL
CI
SATA2_4
PWR_FAN
B_BIOS
AUDIO
RCA_SPDIF
R_USB
USB_1394_1
USB_1394
PCIEX1_2
PCIEX1_3
PCIEX8_1
SATA2_5
SYS_FAN1
SATA2_2
SATA2_3
SATA2_0
SATA2_1
GIGABYTE
SATA2
SPDIF_IN
SPDIF_OUT
CD_IN
- 8 -

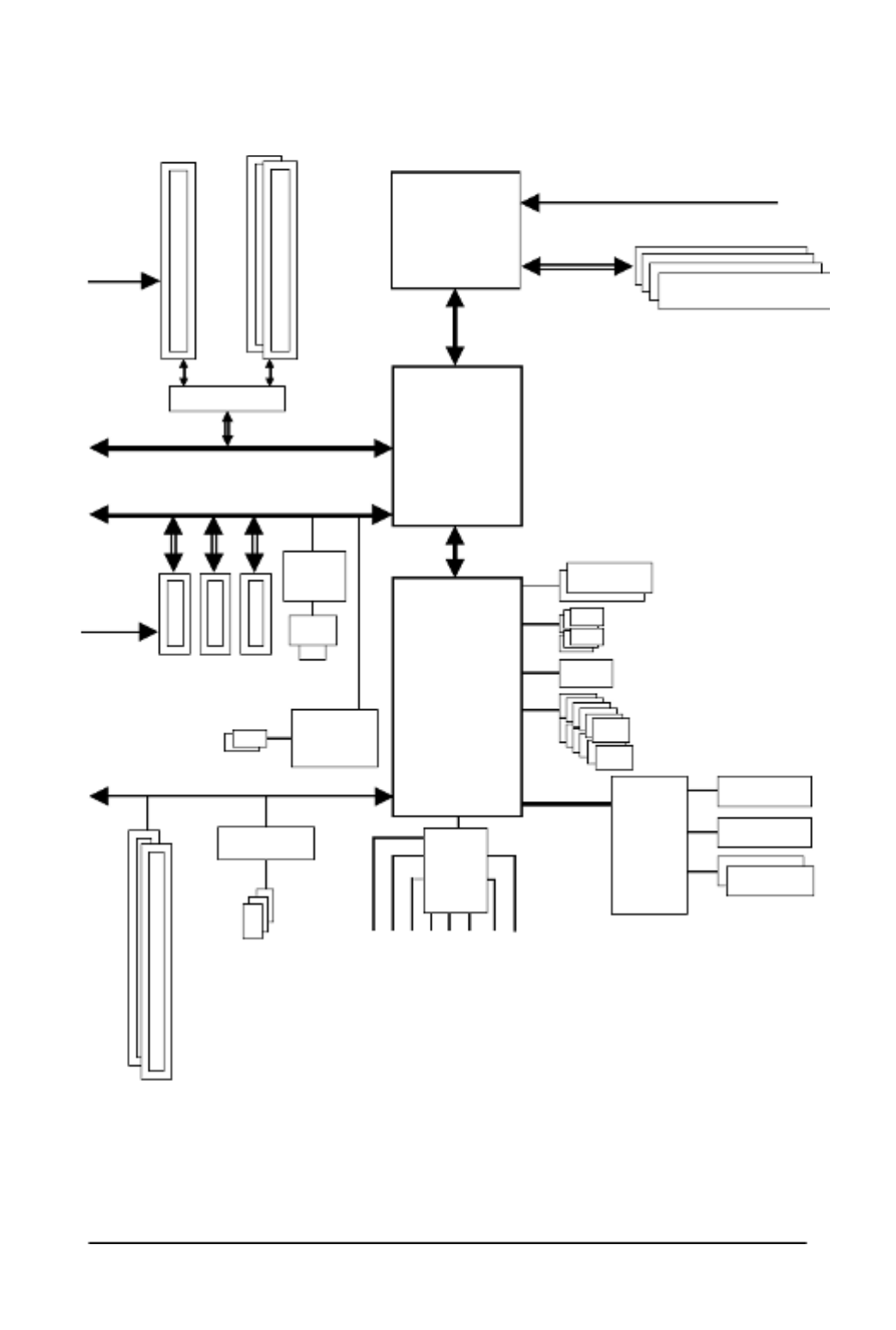

Block Diagram
(Note) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1
slot. The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot. When PCIEX8_1 is populated with a PCI Express
graphics card, the PCIEX16_1 slot will operate at up to p8-x8 mode.
AM3/AM2+/AM2
CPU
CPU CLK+/-(200 MHz)
Hyper Transport 3.0
AMD 790X
DDR2 1333(O.C.)/1066/800 MHz
Dual Channel Memory
2 PCIe p8-x8
(Note)
1 PCIe p8-x16
(Note)
or
Switch
PCIe CLK
(100 MHz)
PCI Express Bus
3 PCI Express x1
PCI Express Bus
x 1
PCIe CLK
(100 MHz)
x 1 x 1
RJ45
RTL
8111DL
LAN
x 1
2 SATA 3Gb/s GIGABYTE
SATA2
ATA-133/100/66/33
IDE Channel
LPC BUS Floppy
COM Port
PS/2 KB/Mouse
IT8720
Dual BIOS
6 SATA 3Gb/s
12 USB Ports
PCI Bus
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
2 PCI
3 IEEE 1394a
TSB43AB23
AMD SB750
GA-MA790X-UD4P Motherboard - 1 2 -
Unique Features Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 4)
Support for Easy Energy Saver (Note 5)
Support for Time Repair
Support for Q-Share
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft ® Windows
® Vista/XP
Form Factor ATX Form Factor; 30.5cm x 23.3cm
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure
to install it in the PCIEX16_1 slot. The PCIEX8_1 slot shares bandwidth with the PCIEX16_1
slot. When PCIEX8_1 is populated with a PCI Express graphics card, the PCIEX16_ slot will1
operate at up to p12-x8 mode.
(Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/
system cooler you install.
(Note 4) Available functions in EasyTune may differ by motherboard model.
(Note 5) Due to the hardware limitation, you must install the AMD AM3 Phenom TM II/AM2+ PhenomTM
Series CPU toenable support for Easy Energy Saver.
Hardware Installation- 13 -
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the frequency
beyond the standard specifications, please do so according to your hardware specifications
including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installing the CPU

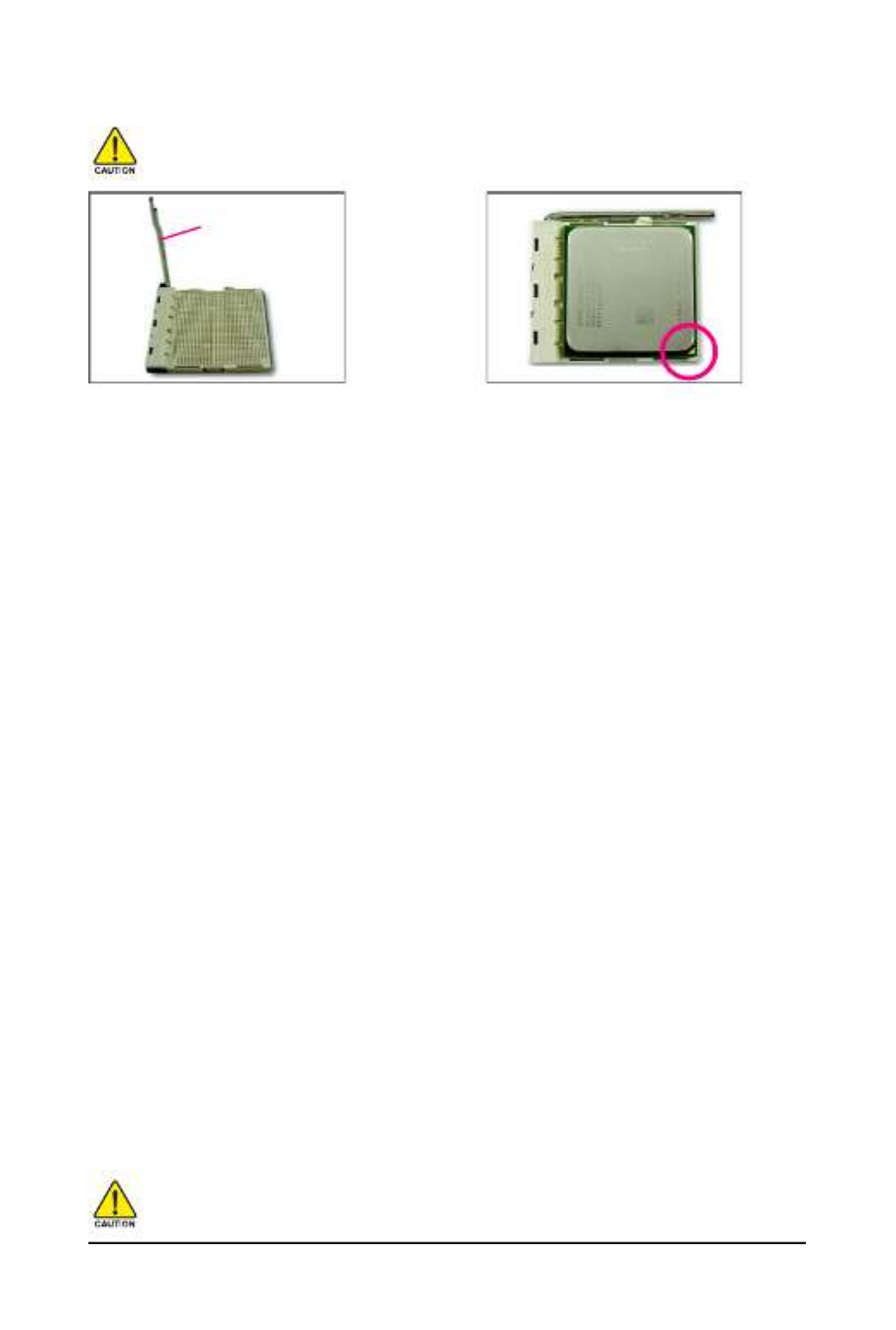

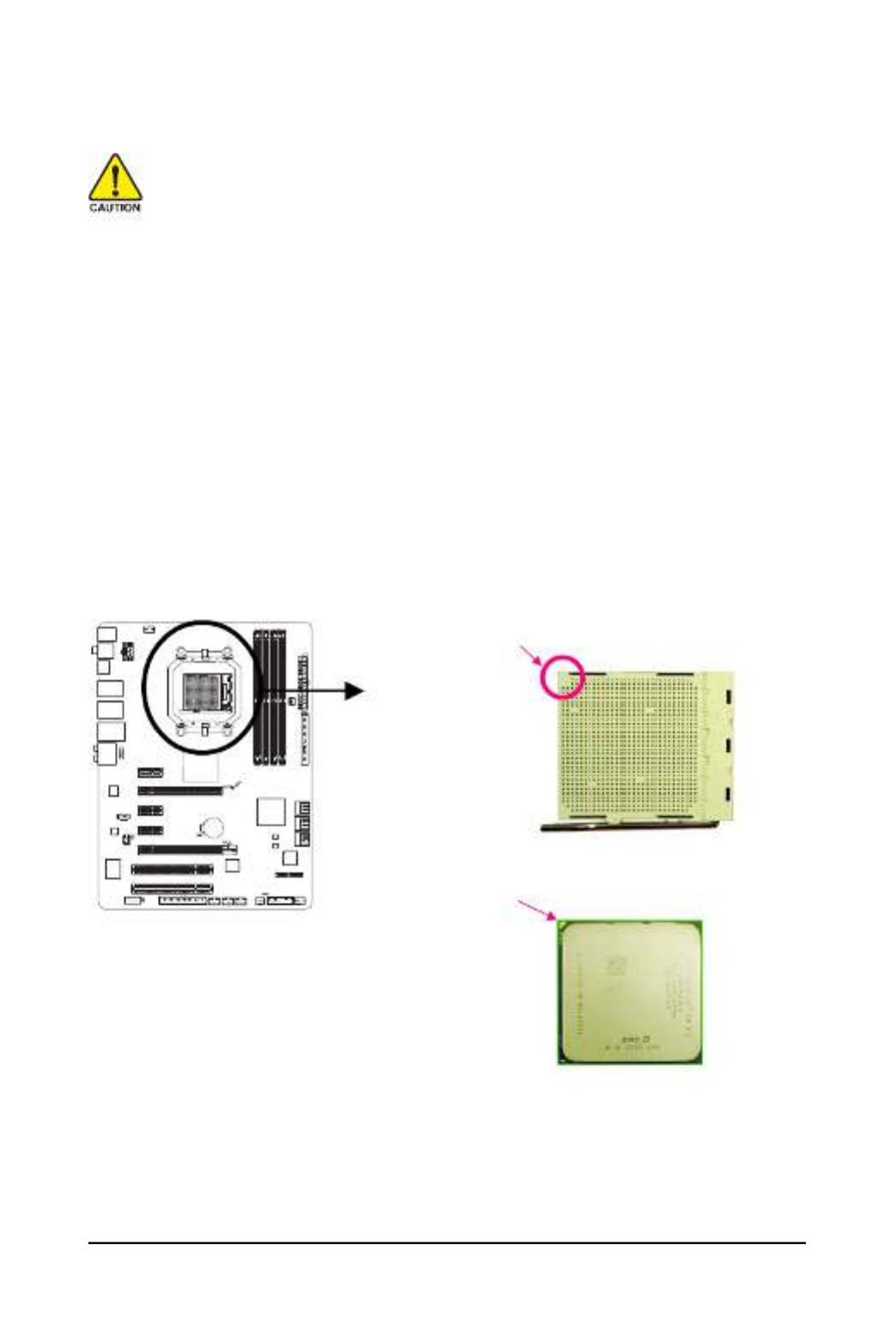

A. Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.
AM3/AM2+/AM2 CPU
AM2 Socket
A Small Triangle Mark
Denotes Pin One of the
Socket
A Small Triangle Marking
Denotes CPU Pin One
GA-MA790X-UD4P Motherboard - 1 4 -
Do not force the CPU into the CPU socket. The CPU cannot fit in if oriented incorrectly. Adjust
the CPU orientation if this occurs.
Step 2:
Align the CPU pin one (small triangle marking)
with the triangle mark on the CPU socket and
gently insert the CPU into the socket. Make
sure that the CPU pins fit perfectly into their
holes. Once the CPU is positioned into its
socket, place one finger down on the middle of
the CPU, lowering the locking lever and latch-
ing it into the fully locked position.
Step 1:
Completely lift up the CPU socket locking lever.
CPU Socket Locking
Lever
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
Hardware Installation- 15 -
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler
may damage the CPU.

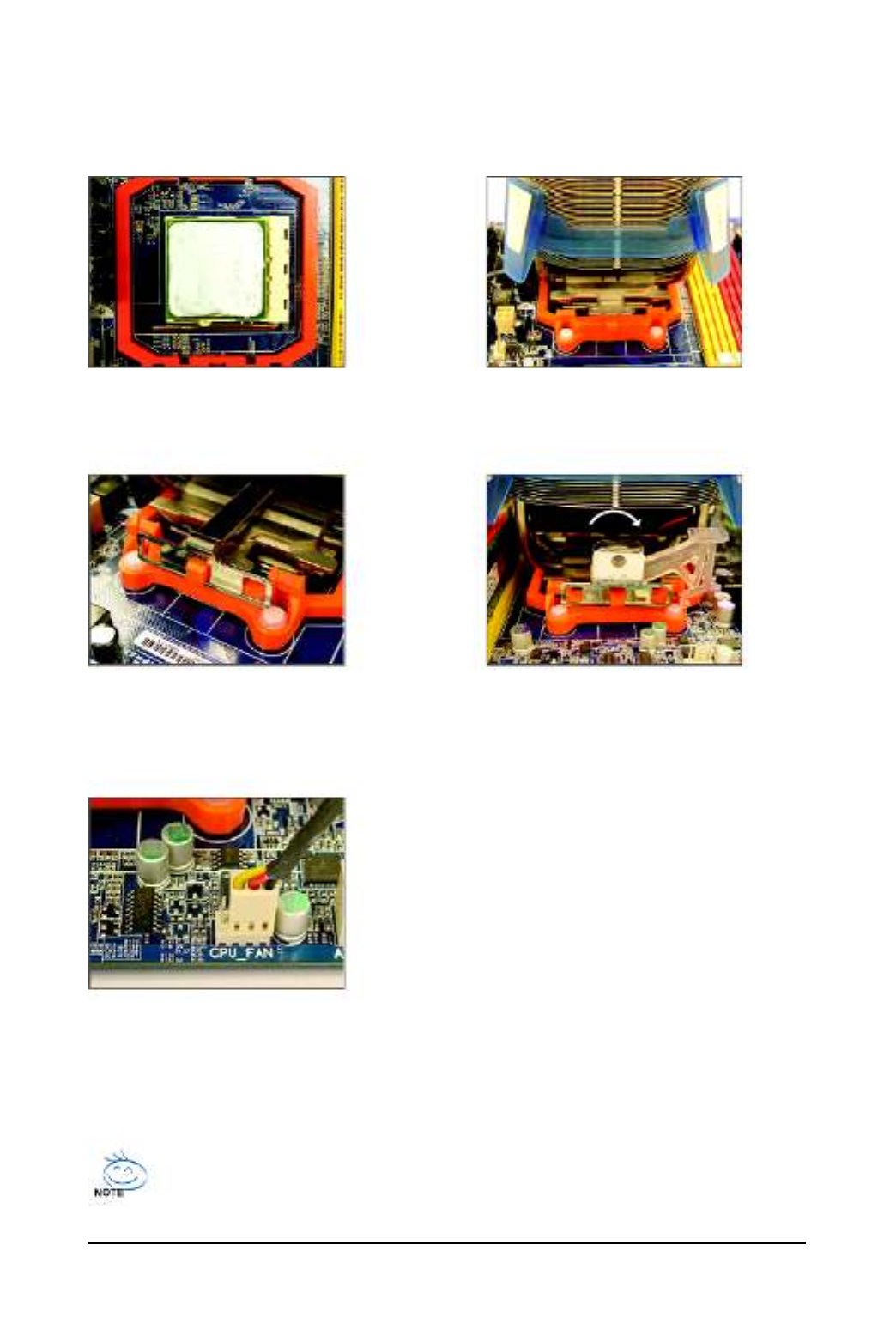

1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses
the GIGABYTE cooler as the example.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 2:
Place the CPU cooler on the CPU.
Step 4:
Turn the cam handle from the left side to the
right side (as the picture above shows) to lock
into place. (Refer to your CPU cooler installa-
tion manual for instructions on installing the
cooler.)
Step 3:
Hook the CPU cooler clip to the mounting lug on
one side of the retention frame. On the other side,
push straight down on the the CPU cooler clip to
hook it to the mounting lug on the retention frame.
Step 5:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.
Hardware Installation- 19 -
To enable CrossFireXTM technology, you need two graphics cards that support ATI CrossFireTM technology.
Before You Begin--
A. Power Requirements:
Use a power supply that is able to provide sufficient power to fully support an CrossFireX configuration and
other components in your system. We recommend a power supply that provides at least 20A 12V current.
The exact power requirements depend on your overall system configurations.
B. Supported Operating Systems:
Windows Vista and Windows XP.
C. BIOS Settings:
Before configuring your system for CrossFire X, make sure to set Init Display First under Advanced BIOS
Features in BIOS Setup to PEG first. (Start your system with a single PCIe x16 graphics card and then go
to BIOS Setup to set Init Display First to PEG. Then install the second graphics card to enable CrossFire.)
1-6 Configuring an ATI CrossFireX
TM
System
Enabling CrossFireX Mode--
Connecting Two Graphics Cards:
Step 1:
Observe the steps in "1-5 Installing an Expansion Card" and install
the graphics cards in the PCIEX16_1 slot and the PCIEX8_1 slot.
Step 2:
Depending on your graphics cards, install the connecting bridges
on the two cards.
(Note: Procedure for enabling CrossFireX may slightly differ by graphics cards. Refer
to the manual that came with your graphics cards for more information about enabling
CrossFireX.)
Graphics Card Driver Setting:
After installing the graphics card driver in your operating system,
access the Catalyst Control Center. From the CA TALYST Con-
trol Center, enter the CrossFire menu and select the Enable
CrossFire checkbox to complete the configuration.
Step 3:
Connect your LCD monitor cable to the DVI port on the graphics
card on the PCIEX16_1 slot (or connect your D-Sub monitor via a
DVI-to-D-Sub adapter).
GA-MA790X-UD4P Motherboard - 2 2 -
In addition to the default speakers settings, the ~ audio jacks can be reconfigured to
perform different functions via the audio software. Only microphones still MUST be
connected to the default Mic in jack ( ). Refer to the instructions on setting up a 2/4/5.1/
7.1-channel audio configuration in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."
Center/Subwoofer Speaker Out Jack (Orange)
Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio configuration.
Rear Speaker Out Jack (Black)
Use this audio jack to connect rear speakers in a 4/5.1/7.1-channel audio configuration.
Side Speaker Out Jack (Gray)
Use this audio jack to connect side speakers in a 7.1-channel audio configuration.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman,
etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can
be used to connect front speakers in a 4/5.1/7.1-channel audio configuration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
Hardware Installation- 23 -
1-9 Internal Connectors
Read the following guidelines before connecting external devices:
•First make sure your devices are compliant with the connectors you wish to connect.
•Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
•After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1
2
3
8
11
12
21
4
7
14
16
5
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0 / 1 / 2 / 3 / 4 / 5
9) GSATA2_0/GSATA_1
10) PWR_LED
11) F_PANEL
12) F_AUDIO
13) CD_IN
14) SPDIF_IN
15) SPDIF_OUT
16) F_USB1 / F_USB2
17) F_1394
18) COM
19) C I
20) CLR_CMOS
21) BATTERY
46
10
9
17
18
19
20
13
15
Hardware Installation- 25 -

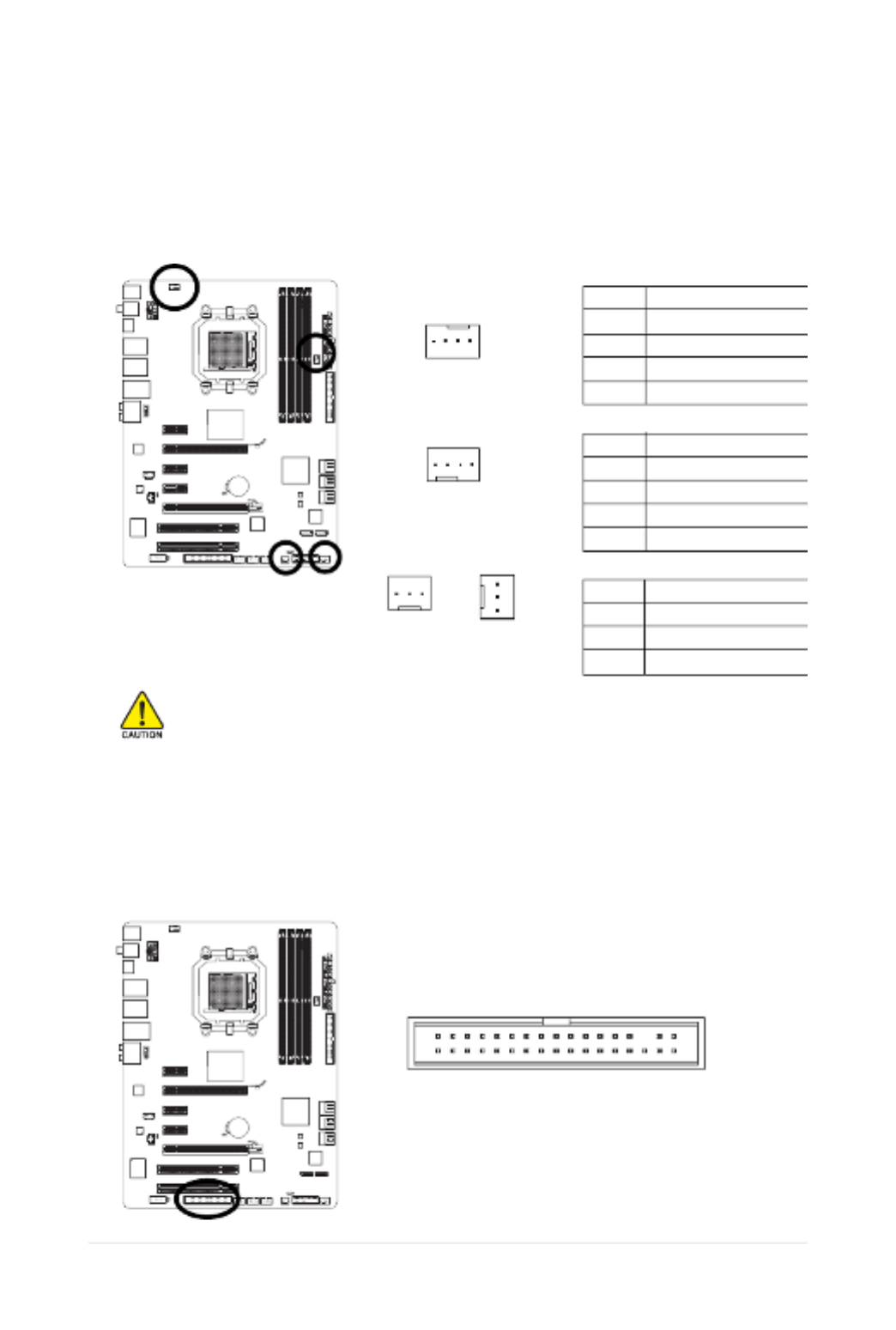

3/4/5) CPU_FAN / SYS_FAN1 / SYS_FAN2 / PWR_FAN (Fan Headers)
The motherboard has a 4-pin CPU fan header (CPU_FAN), a 4-pin (SYS_FAN 1) and two 3-pin
(SYS_FAN2) system fan headers, and a 3-pin power fan header (PWR_FAN). Most fan headers
possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct
orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed
control, which requires the use of a CPU fan with fan speed control design . For optimum heat
dissipation, it is recommended that a system fan be installed inside the chassis.
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
CPU_FAN:
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Reserve
SYS_FAN1:
•Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
•These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.
Pin No. Definition
1 GND
2 +12V
3 Sense
SYS_FAN2/PWR_FAN:
6) FDD (Floppy Disk Drive Connector)
This connector is used to connect a floppy disk drive. The types of floppy disk drives supported
are: 360 KB, 720 KB, 1.2 MB, 1.44 MB, and 2.88 MB. Before connecting a floppy disk drive, be
sure to locate pin 1 of the connector and the floppy disk drive cable. The pin 1 of the cable is
typically designated by a stripe of different color.
1
2
33
34
1
CPU_FAN
1
SYS_FAN1
PWR_FAN
SYS_FAN2
1
1
Hardware Installation- 27 -

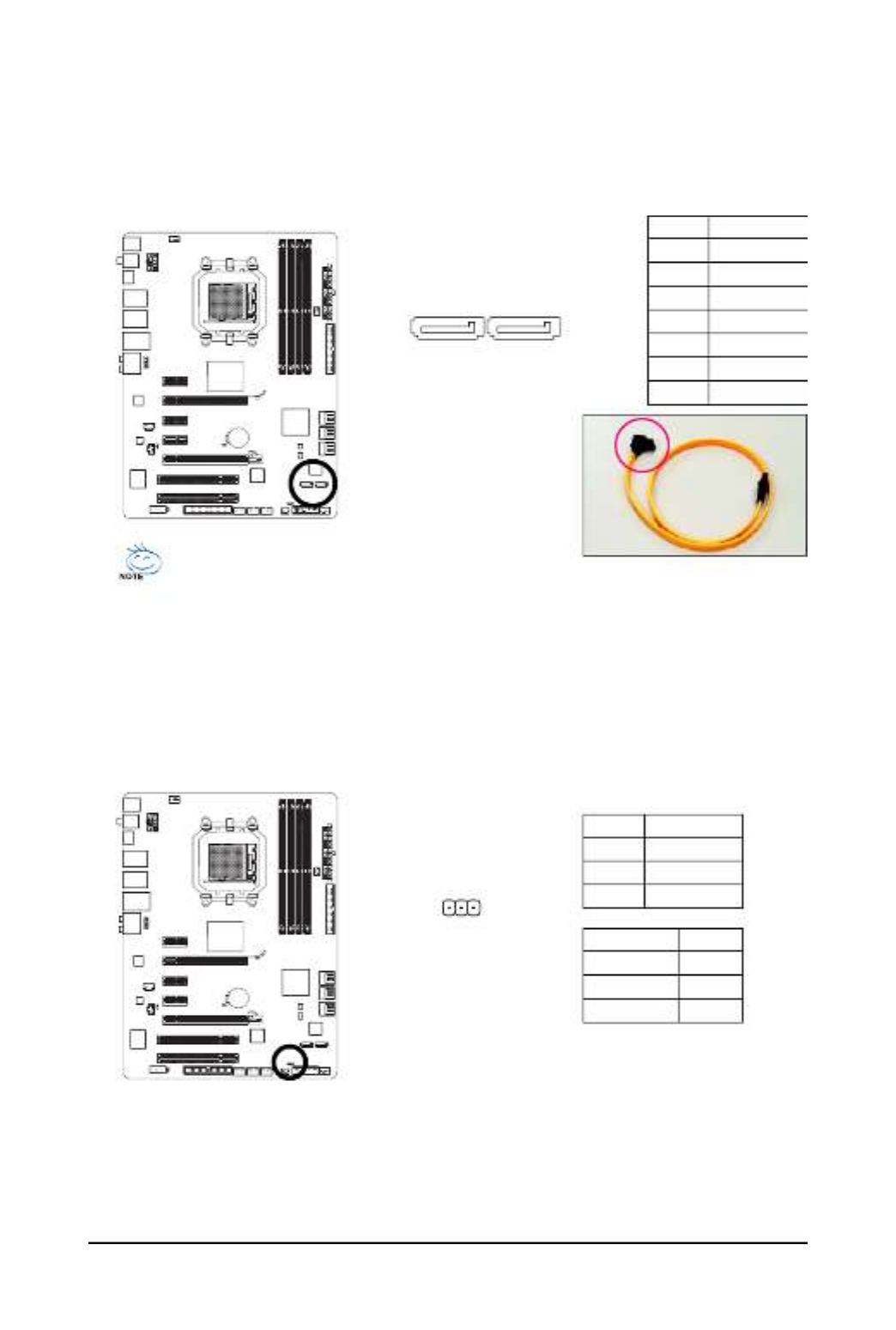

10) PWR_LED (System Power LED Header)
This header can be used to connect a system power LED on the chassis to indicate system power
status. The LED is on when the system is operating. The LED keeps blinking when the system is
in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
System Status LED
S0 On
S1 Blinking
S3/S4/S5 Off
9) GSATA2_0/1 (SATA 3Gb/s Connectors, Controlled by GIGABYTE SATA2, Purple)
The SATA connectors conform to SA TA 3Gb/s standard and are compatible with SA TA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The GIGABYTE SATA2 controller
supports RAID 0 and RAID 1. Refer to Chapter 5, "Configuring SA TA Hard Drive(s)," for instructions
on configuring a RAID array.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
A RAID 0 or RAID 1 configuration requires at
least two hard drives. Please connect the L-shaped end
of the SATA 3Gb/s cable to your
SATA hard drive.
71
GSATA2_0 GSATA2_1
1
Hardware Installation- 29 -

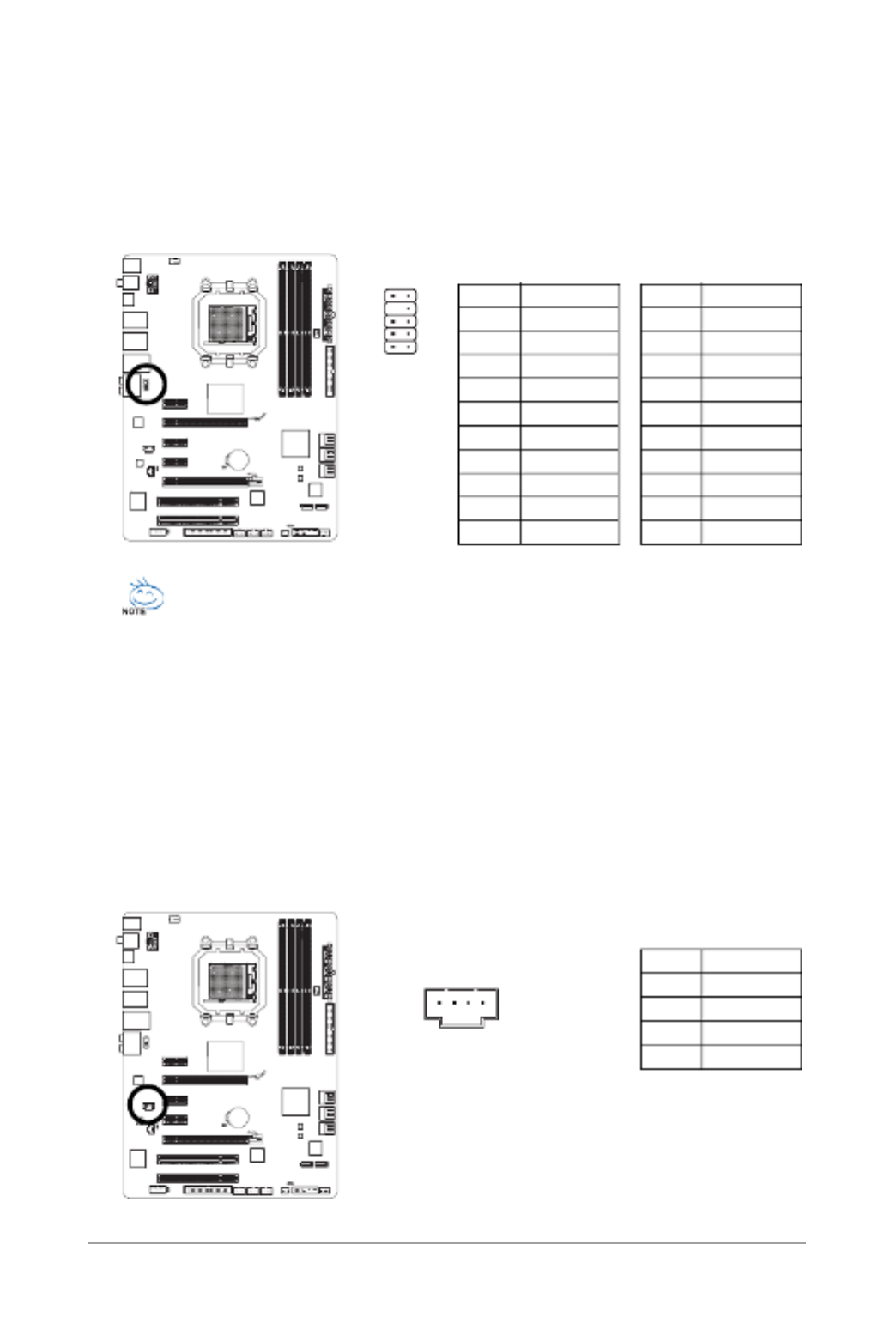

12) F_AUDIO (Front Panel Audio Header)
The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may
connect your chassis front panel audio module to this header. Make sure the wire assignments of
the module connector match the pin assignments of the motherboard header. Incorrect connection
between the module connector and the motherboard header will make the device unable to work
or even damage it.
10 9
2 1
For AC'97 Front Panel Audio:
•The front panel audio header supports HD audio by default. If your chassis provides an
AC'97 front panel audio module, refer to the instructions on how to activate AC'97 functioninality
via the audio software in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."
•Audio signals will be present on both of the front and back panel audio connections
simultaneously. If you want to mute the back panel audio (only supported when using an HD
front panel audio module), refer to Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."
•Some chassis provide a front panel audio module that has separated connectors on each
wire instead of a single plug. For information about connecting the front panel audio
module that has different wire assignments, please contact the chassis manufacturer.
Pin No. Definition
1 MIC
2 GND
3 MIC Power
4 NC
5 Line Out (R)
6 NC
7 NC
8 No Pin
9 Line Out (L)
10 NC
Pin No. Definition
1 MIC2_L
2 GND
3 MIC2_R
4 -ACZ_DET
5 LINE2_R
6 GND
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 GND
For HD Front Panel Audio:
13) CD_IN (CD In Connector, Black)
You may connect the audio cable that came with your optical drive to the header .
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
GA-MA790X-UD4P Motherboard - 3 0 -
14) SPDIF_IN (S/PDIF In Header, Red)
This header supports digital S/PDIF in and can connect to an audio device that supports digital
audio out via an optional S/PDIF in cable. For purchasing the optional S/PDIF in cable, please
contact the local dealer.
15) SPDIF_OUT (S/PDIF Out Header)
This header supports digital S/PDIF out and connects a S/PDIF digital audio cable (provided by
expansion cards) for digital audio output from your motherboard to certain expansion cards like
graphics cards and sound cards. For example, some graphics cards may require you to use a
S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if
you wish to connect an HDMI display to the graphics card and have digital audio output from the
HDMI display at the same time. For information about connecting the S/PDIF digital audio cable,
carefully read the manual for your expansion card.
Pin No. Definition
1 SPDIFO
2 GND
Pin No. Definition
1 Power
2 SPDIFI
3 GND
1
1
GA-MA790X-UD4P Motherboard - 3 2 -

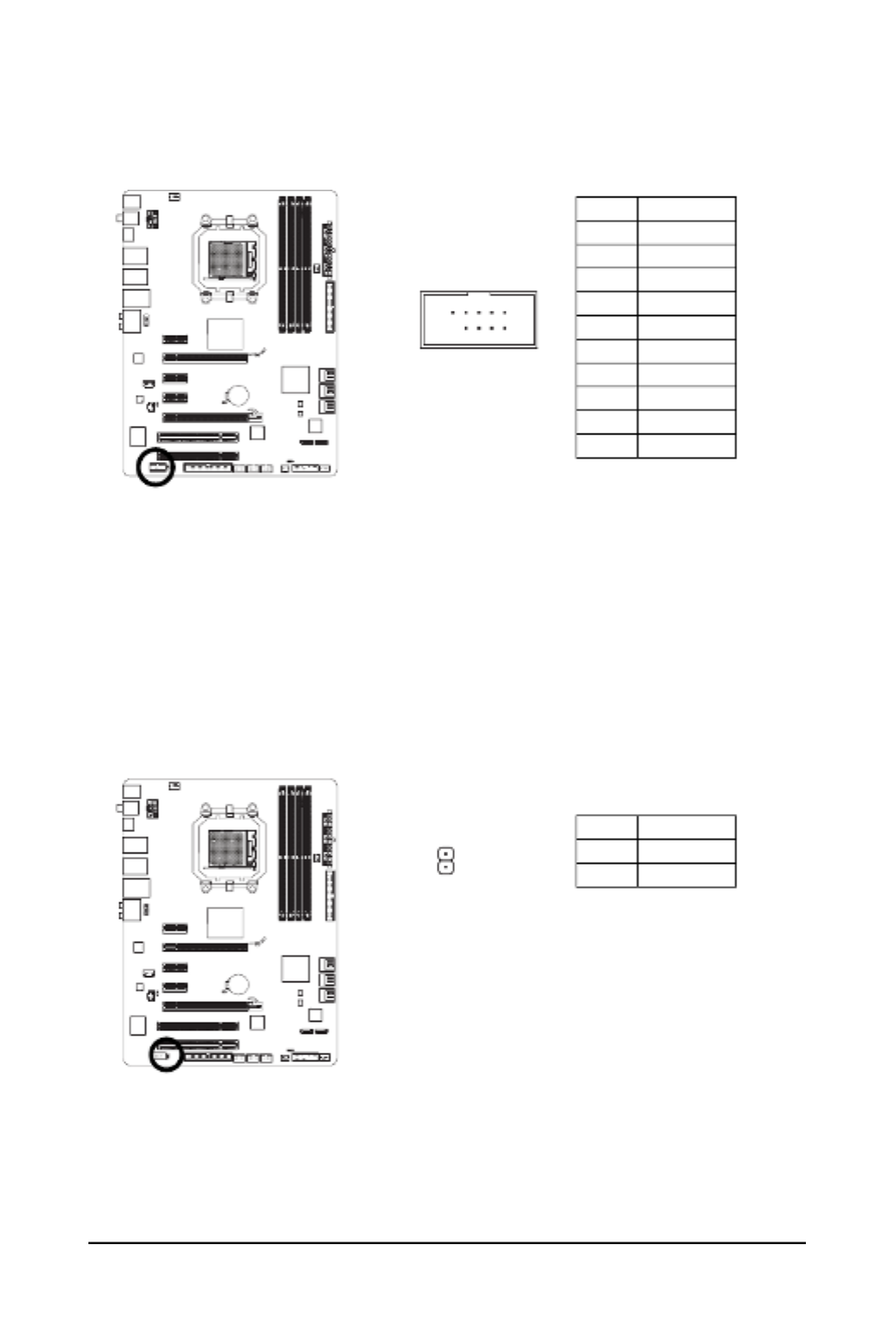

18) COM (Serial Port Header, White)
The COM header can provide one serial port via an optional COM port cable. For purchasing the
optional COM port cable, please contact the local dealer.
Pin No. Definition
1 NDCD -
2 NSIN
3 NSOUT
4 NDTR -
5 GND
6 NDSR -
7 NRTS -
8 NCTS -
9 NRI -
10 No Pin
10
9
2
1
19) CI (Chassis Intrusion Header)
This motherboard provides a chassis detection feature that detects if the chassis cover has been
removed. This function requires a chassis with chassis intrusion detection design.
Pin No. Definition
1 Signal
2 GND
1
Produkt Specifikationer
| Mærke: | Gigabyte |
| Kategori: | Bundkort |
| Model: | GA-MA790X-UD4P |
Har du brug for hjælp?
Hvis du har brug for hjælp til Gigabyte GA-MA790X-UD4P stil et spørgsmål nedenfor, og andre brugere vil svare dig
Bundkort Gigabyte Manualer
31 August 2025
31 August 2025
4 August 2025
4 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
Bundkort Manualer
- Festo
- Asus
- Intel
- Biostar
- Sapphire
- Raspberry Pi
- AOpen
- Supermicro
- Asrock
- Elitegroup
- MSI
- Evga
- NZXT
- Advantech
- Sharkoon
Nyeste Bundkort Manualer
17 September 2025
16 September 2025
16 September 2025
16 September 2025
13 September 2025
13 September 2025
12 September 2025
12 September 2025
11 September 2025
11 September 2025
