LED orientation light white LED illumination

Order-No. : 1161 66

LED orientation light white LED illumination

Order-No. : 1161 67

LED orientation light white LED illumination

Order-No. : 1161 65

LED orientation light blue LED illumination

Order-No. : 1162 66

LED orientation light blue LED illumination

Order-No. : 1162 67

LED orientation light blue LED illumination

Order-No. : 1162 65

LED orientation light orange LED illumination

Order-No. : 1159 66

LED orientation light orange LED illumination

Order-No. : 1159 67

LED orientation light orange LED illumination

Order-No. : 1159 65

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Danger of electric shock. Always disconnect device before working on it. At the same

time, take into account all circuit breakers that supply dangerous voltage to the device.

Fire hazard. Do not operate the LED luminaires on a dimmer. The LED luminaires cannot

be dimmed.

The LED luminaires may not be operated on an electronic switching insert (e.g. Tronic or

Triac insert). The switching inserts could be damaged.

The device is not suitable for use in safety systems or as an emergency light.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

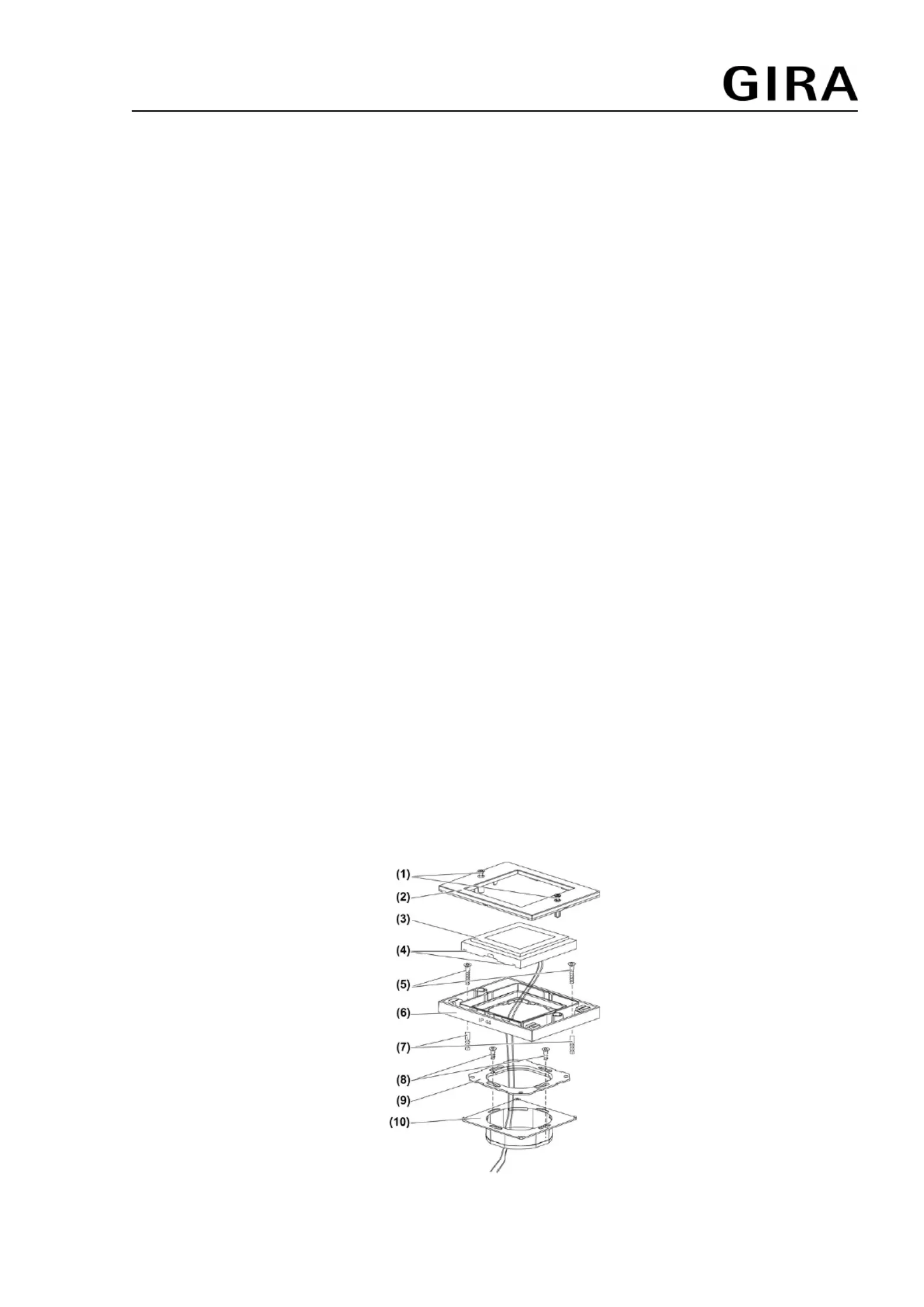

Figure 1: Orientation light in IP 44 housing

1/4

32544522 17.05.2011

LED orientation light

10499124 I00

(1) Torx screws

(2) Cover plate

(3) LED orientation light

(4) Condensation water holes

(5) Fastening screws

(6) Cover frame

(7) Anchor

(8) Supporting frame screws

(9) Supporting frame

(10) Sealing flange

3 Function

Intended use

- LED luminaire for orientation

- Installation in appliance box to DIN 49073

Product characteristics

- Can be installed splash-protected in TX 44 housing

- Usable in switch combinations or individually

- Makes it easier to find switches and to orient oneself in dark rooms

i Due to manufacturing tolerances during LED manufacture, noticeable differences in

brightness and colour are possible.

4 Information for electrically skilled persons

4.1 Fitting and electrical connection

Connecting and installing orientation light

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before working on the device, disconnect the power supply and cover up live

parts in the working environment.

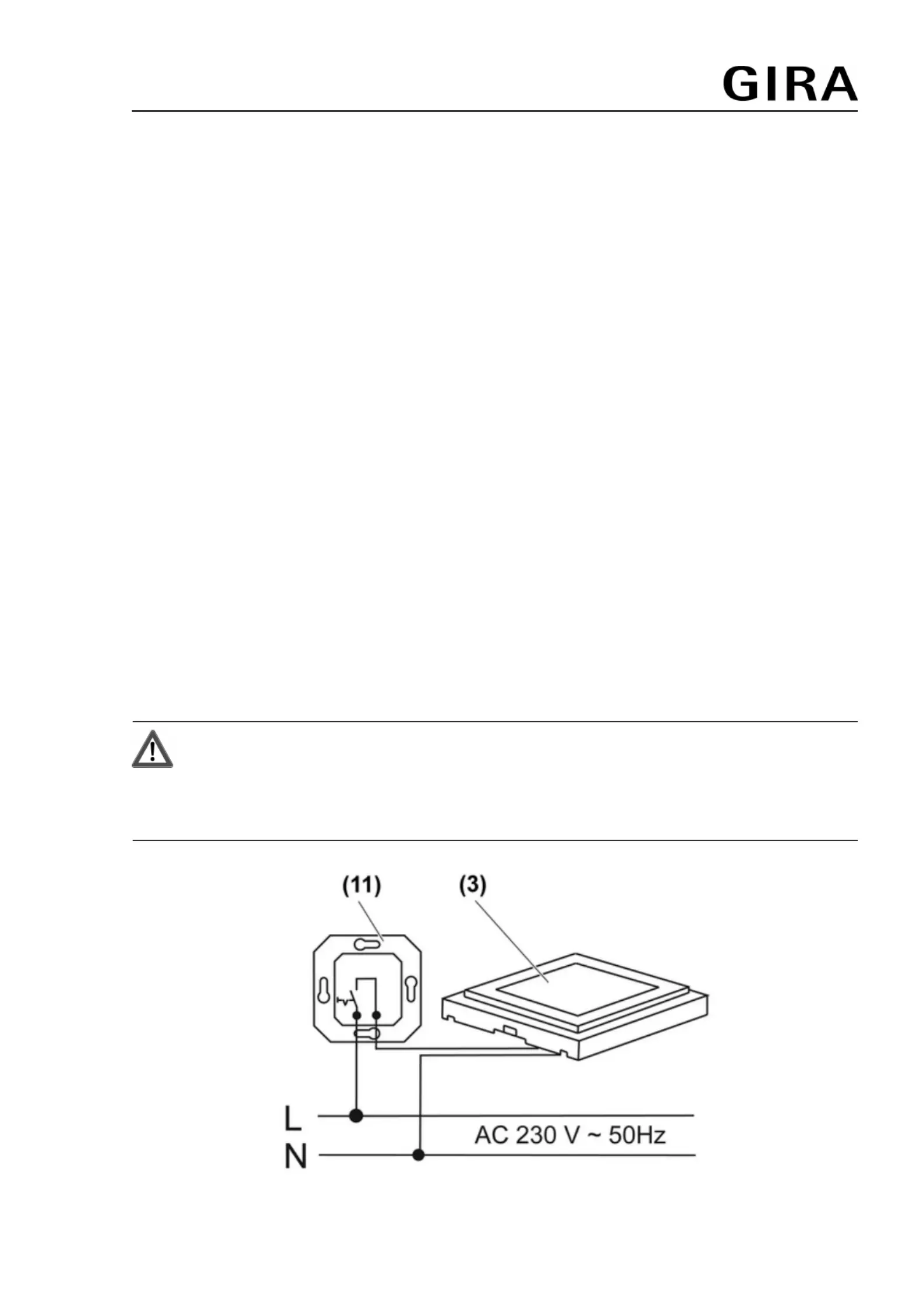

Figure 2

32544522 10499124 I00 17.05.2011 2/4

LED orientation light
