LED signal light

Order-No. : 1171 00

LED orientation light

Order-No. : 1169 00

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Danger of electric shock. Always disconnect device before working on it. At the same

time, take into account all circuit breakers that supply dangerous voltage to the device.

The device is not suitable for use in safety systems or as an emergency light.

Fire hazard. Do not operate the LED luminaires on a dimmer. The LED luminaires cannot

be dimmed.

The LED luminaires may not be operated on an electronic switching insert (e.g. Tronic or

Triac insert). The switching inserts could be damaged.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

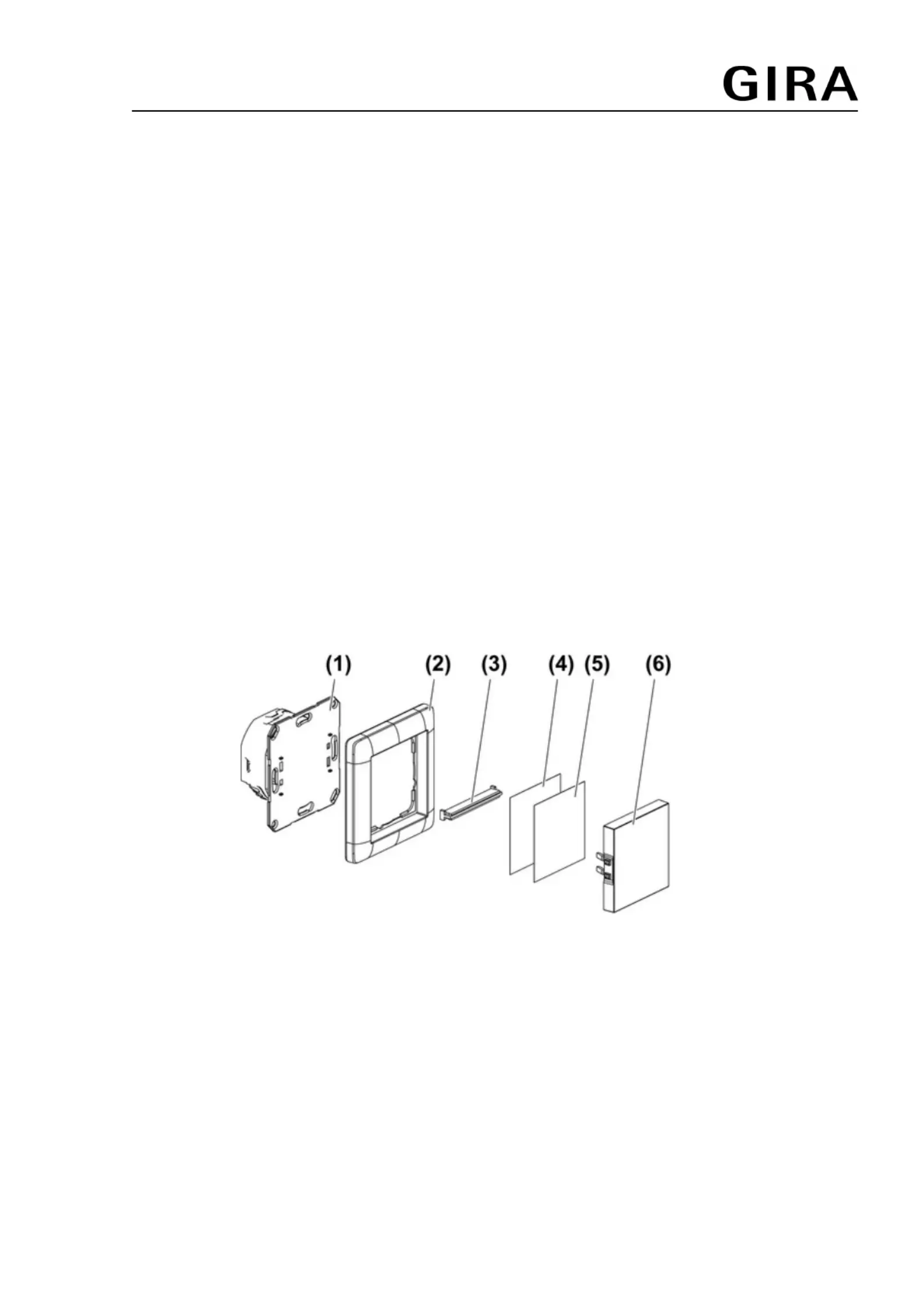

LED signal lamp (Figure 1)

Figure 1

(1) Flush-mounted insert

(2) Frame

(3) Separating strip

(4) Labelling film, optional

(5) Light-scattering film

(6) Lamp cover

1/7

32562632 30.06.2011

LED signal light, LED orientation light

10393481 I00

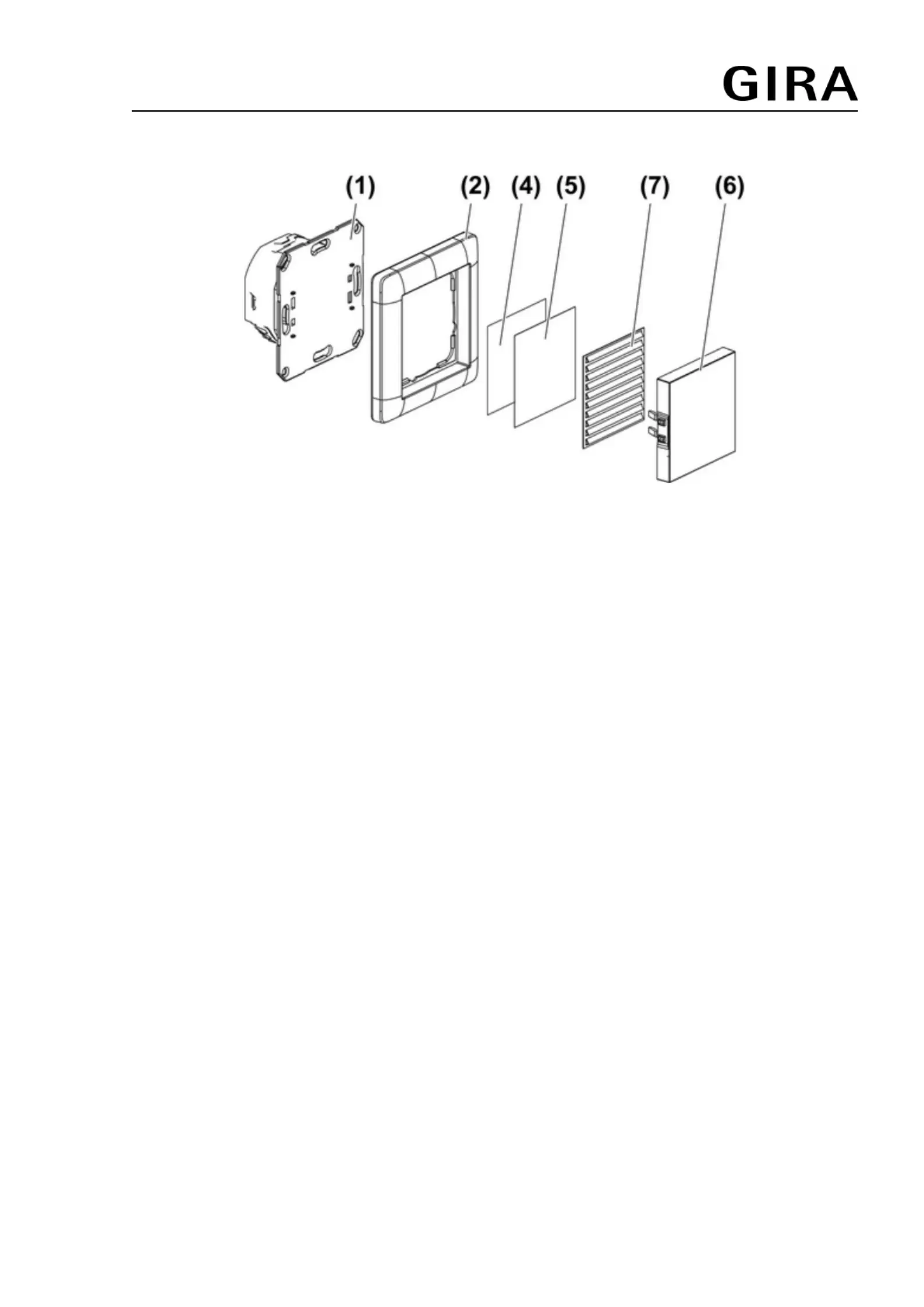

LED orientation light (Figure 2)

Figure 2

(1) Flush-mounted insert

(2) Frame

(4) Labelling film, optional

(5) Light-scattering film

(6) Lamp cover

(7) Slat, optional

3 Function

Intended use

- LED luminaire for orientation or indication

- Can be operated by means of external push-button or switch

- Installation in appliance box to DIN 49073

Product characteristics of LED signal lamp

- Two-colour signal lamp; can be used, for example, as an access control

- Can be used in switch combinations or individually

- Can be switched between red and green via an external switch

- Individually labelled film can be inserted

i Visible differences in the brightness and colour rendering are possible due to

manufacturing tolerances in production of the LEDs.

Product characteristics of LED orientation light

- Can be used in switch combinations or individually

- Makes it easier to find switches or to orient oneself in dark rooms.

- Individually labelled film can be inserted

- The colour can be switched via an external push-button

- Light colours white, blue, orange, red, green and colour sequence can be called up via

installation button

- The colour sequence can be stopped at any point

- Brightness can be changed using internal potentiometer

i Visible differences in the brightness and colour rendering are possible due to

manufacturing tolerances in production of the LEDs.

32562632 10393481 I00 30.06.2011

2/7

LED signal light, LED orientation light

Produkt Specifikationer

Mærke:	Gira
Kategori:	Ikke kategoriseret
Model:	117100
Kode for international beskyttelse (IP):	IP20
Vekselstrømsindgangsspænding:	230 V
Bredde:	55 mm
Dybde:	55 mm
Produktfarve:	Green, Red
Driftstemperatur (T-T):	-15 - 40 °C
Lampetype:	LED
Strømkilde type:	Vekselstrøm
Monteringstype:	Væg
Normal brug:	Indendørs
Pæreeffekt:	1 W
Form:	Rektandel
