INSTRUCTIONS FOR OPERATION AND CARE

XVSGH GRATER/SHREDDER HOUSING

AND ATTACHMENTS

Our slicer attachments can be used for slicing potatoes (from 1/16'' to 5/8''

thickness); cutting vegetables for salads and coleslaw; or for slicing fruits and

nuts.

Our versatile grater/shredder attachments can be used to grate and shred cheeses, raw vegetables, nuts,

breadcrumbs, etc. depending on the plate or disc selected. Our S/S discs are available with 3/32'', 3/16'', 1/4'',

5/16'', or 1/2'' size holes and a special grating disc for breadcrumbs & hard cheeses is available.

WARNING

Sharp rotating knives are behind the hopper; do not place hands in hopper and

use only the pusher plate to push food product. Always turn off, disconnect

or unplug machine before removing parts, cleaning, or servicing this unit. If

pusher plate is broken or not in position, immediately discontinue use and

call for service.

XVSGH

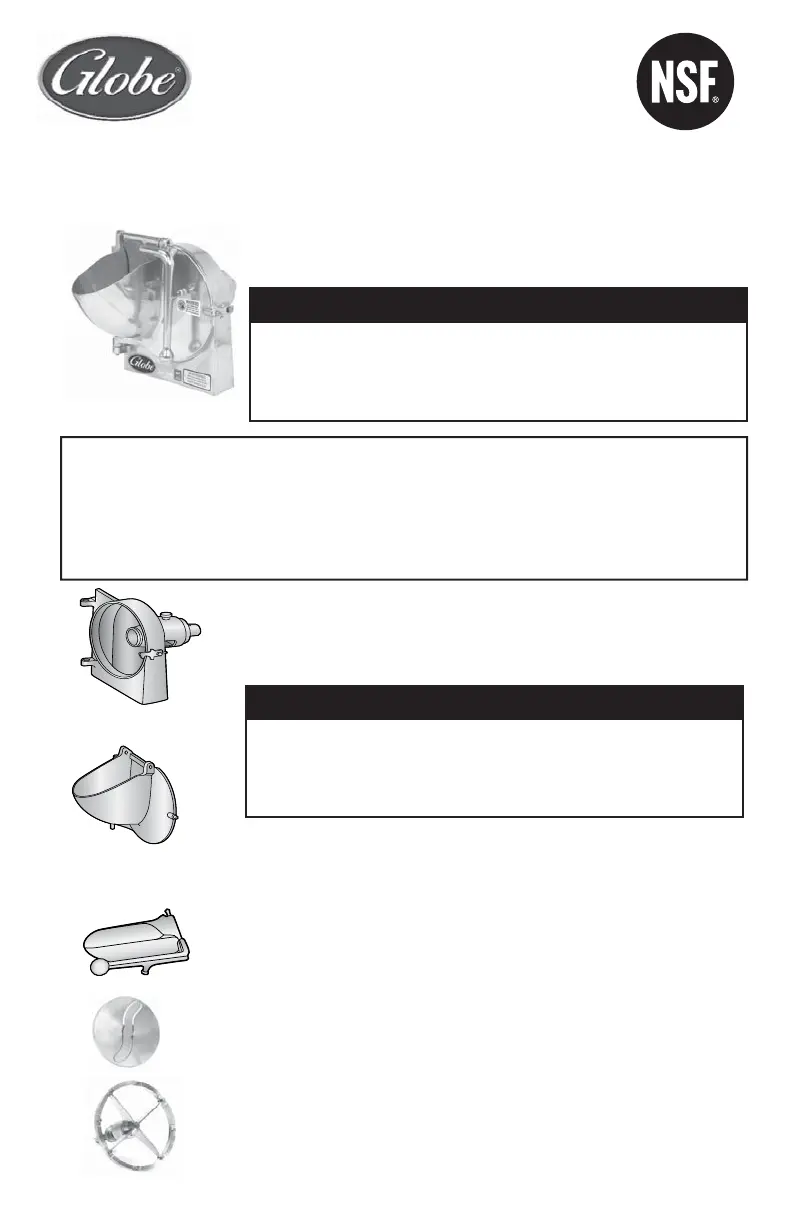

The XVSGH is made up of the following three basic components:

1. XVSH Housing

2. XVSD Door or Hopper

3. XVSP Pusher Plate

Plate Holder or Adjustable Slicer Plate units

• XASP Adjustable Slicer Shaft with S/S “S” knife

• XPH Plate Holder with Shaft

PLATE HOLDER WITH SHAFT

Shredder discs are available with 3/32'', 3/16'', 1/4'', 5/16'', or 1/2'' hole sizes. These

plates have keyhole slots for attaching to shouldered studs on the plate hubs.

HOPPER

The door is a hopper and lever feed design. It hinges onto the back case and is held

closed with an adjustable latch. To remove door, lift latch and swing door open while

lifting it from the hinge holes.

PUSHER PLATE

The pusher plate has an integrated handle to push the food into the rotating disc or

slicer knife. It has pins at both sides of the top and hinges into door. The pusher plate

has a rubber-tipped stop screw under the handle that can be adjusted to prevent the

pusher plate from coming in contact with the disc or blade.

HOUSING OR BACK CASE

The housing or back case mounts into the attachment socket of a mixer, food cutter or

power drive unit. The housing is held on with the pointed thumbscrew that goes through

the attachment hole into the indentation on neck of the machine.

ADJUSTABLE SLICER PLATE WITH STAINLESS STEEL “S” KNIFE AND SHAFT

Stainless steel “S” knife is ideal for slicing vegetables.

1. XVSH

2. XVSD

3. XVSP

XASP

XPH

WARNING

Serious injury can result if this product is used improperly. Proper training

is important to prevent injury. It is important to read the manual completely

prior to use. Never put your hand or fingers inside the hopper. Sharp knife will

cause serious injury. Only trained and qualified persons 18 years and older

should use these attachments.

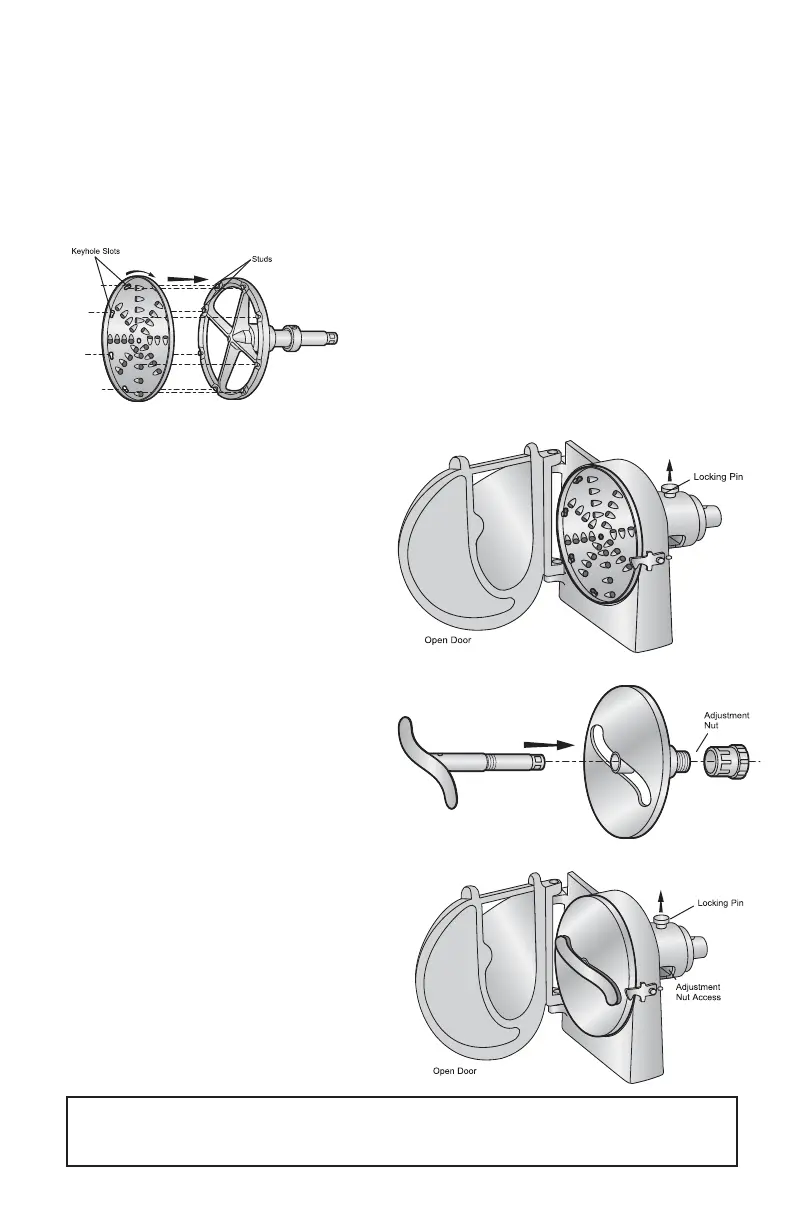

TO INSTALL SHREDDER OR GRATER DISCS

Stop the machine. Point disc with cutting edge away from shaft assembly. Engage keyhole slots on plate

and slide the wide part of keyhole slots over studs on plate holder. When plate is flush with plate holder,

rotate it clockwise to lock it in position. It is possible to loosely assemble the disc to hub (sharp edge out),

then put it on a work surface (the “teeth” on plate will mar a finished table). Press down and turn hub

until plate locks into position. The sharp “teeth” must face out on plate holder. To detach plate from hub,

reverse the installation procedure. A safe method is to use protective gloves and press the palm of one

hand against the disc to rotate it.

Note: The discs are slightly bent to supply holding pressure when in position.

SHREDDER DISC

The coarse plates are normally used for making

chopped slaw, cutting vegetables for soup stock, salad

blends or “hash brown” potatoes. The medium and finer

plates are for fine shredding of carrots, beets, turnips,

etc., and for salads. See our application chart at the end

of these instructions.

GRATER DISC

The grater plates can be used for crumbling hard

cheese or grating hard vegetables.

TO INSTALL PLATE HOLDER ASSEMBLY

Stop the machine. With door open, pull locking

pin up and put plate holder assembly in until the

square end of shaft fits snugly into power unit.

Release locking pin to hold plate holder assembly

in correct position. Close door.

ADJUSTABLE SLICER PLATE ASSEMBLY &

INSTALLATION

Turn off and unplug the machine. Adjust the

slicing thickness from approximately 1/16'' to 5/8''

by turning adjustment nut. Lift the locking pin on

top of housing. Open door and slide adjustable

slicer plate assembly back into operating position.

The square end of shaft can be manually rotated

to seat into machine socket correctly. Tighten

adjustable slicer plate assembly to machine with

locking pin on top of housing. Attach pusher plate

and close door before turning on machine.

TO ADJUST THICKNESS OF SLICES

Stop the machine. Remove adjustable slicer plate

assembly from housing and turn adjustment nut

while carefully holding adjustable slicer plate

assembly.

Note: Thickness of slices can be adjusted with

slicer plate assembly in position. Turn adjustment

nut, accessed through the adjustment nut access

in rear housing to adjust thickness of slices. Globe

recommends that the adjustable slicer plate is

removed to adjust slice thickness.

Caution: The adjustment nut turns with shaft. Adjustments must not be attempted unless the unit is

turned off and unplugged.
