诺力全彩 LED 影视柔性布灯
KNOWLED Full color Flexible LED Light
使用手册
Instruction Manual

1
重要的安全说明及注意事项
首先作为最基本原则:本产品为专业灯光布景设备,应由专业灯光师使用或在专业人士指导
下使用。使用时必须始终遵循基本的安全预防措施,具体安全预防措施如下:
使用前必须阅读并理解产品说明书。
专业灯具,禁止儿童使用。当儿童靠近时,家长或陪护人必须密切监督,以免儿童因碰撞
灯具或私用灯具造成人身伤害。
本灯具并非普通照明灯具,不可用于普通照明,任何有过眼部损伤或眼部敏感的人群均
应避免使用本灯具。
灯具点亮时,必须小心使用,禁止接触高温部件,如 LED 灯珠,以免造成灼伤。
灯具点亮时,任何情况下均禁止直视灯珠。应该在专业灯光师指导下使用强光,任何情况
下避免长时间处于强光环境,如引起眼睛不适,请及时关闭灯具,暂停使用,请及时就医。
倘灯珠损坏或因热变形,应停止使用,并及时联系制造商、服务代理商或合格的维修人员
更换灯珠,以免发生意外。
本产品仅适用于 -20℃~ 45℃工作环境温度及正常湿度环境下使用。
请勿使用损坏的设备或设备配件,待专业维修人员检查维修,确认设备正常方可使用。
在使用过程中,如果本产品由于跌落、受到挤压或遭受强烈冲击而造成外壳破裂的,请勿
继续使用,以免因接触到内部电子元件而受到电击伤害。
如需要延长线,请使用额定电流≥该设备额定电流的延长线。如延长线额定电流小于该
设 备 ,可 能 导 致 过 热 。
部分产品电源线较长,请合理放置电源线,使其处于安全位置。避免电源线接触过热物
体表面、避免放置不当导致拉扯损坏或绊倒现场人员。请使用本厂原装电源线,如使用
非本厂电源线导致产品损坏,一概不在本厂维修范围内。
在清洁和维修之前,请务必从电源插座上拔下该设备插头。不使用时,禁止拉扯电源线以
将设备插头从电源插座中拔出。正常断电,应是用手抓住该设备插头两端,将插头从电源
插座中拔出。此设备需连接到接地插座中。
请勿私自拆卸产品,如产品出现故障,须由本公司或授权的维修人员进行检查维修。
存放本设备之前,请确保设备已完全冷却。存放时,将电源线从设备上拔出。设备应放置
于设备便携包内或通风干燥处。
请勿将设备放置在酒精、汽油等易燃易挥发的溶剂附近。
本厂不推荐的产品附件,请勿使用,以免导致火灾、触电或人身伤害。
清洁本设备时,请勿用湿布擦拭,请用干布,软布擦拭设备污垢。
设备使用前,请注意将保护罩取下。
本产品已通过 ROHS,CE 和 FCC 认证,请参考相关国家标准使用和操作。
安全说明依据本厂严格测试制定,设备设计和规格如有变更,恕不另行通知。客户可以
上神牛官网查看最新的电子版说明,了解产品最新资讯。
部分产品内置锂电池,此类产品请使用专用的充电器进行充电,并且按正确的操作说明,
在规定的电压、温度范围内使用。
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.

2
部分产品使用电池供电,此类产品请勿使用说明书中未指定的任何电池、电源或附件。
请将电池和其他附件置于儿童及婴幼儿无法触及之处。如果儿童或婴幼儿吞下电池或
附 件 ,请 立 刻 就 医 。如 果 电 池 漏 液 、变 色 、变 形 、冒 烟 或 发 出 异 味 ,请 立 刻 将 其 取 出 。在
取出过程中请小 心,以免烫伤。如果 继 续使用,可能会引起火灾、触电 或皮肤烫伤。请
勿使用任何变形或改造过的电池。请勿拆卸或改造本产品或电池。请勿加热电池或焊
接电池。请勿让电池与火或水接触。请勿让电池受到强烈的外力撞击。请勿将电池的正
负端错误插入,或将新旧电池或不同类型的电池混合使用。
—年保修期,消耗品电池、适配器、电源线等配件不在此保修范围内。
经发现,擅自检修设备,将取消一年保修期,维修需要收取相关费用。
对于不规范操作引起的机器故障不在保修范围内。
F100R 布灯禁止踩踏、禁止折叠或卷曲灯体,收纳时请平铺放置。
F200R 与 F200SR 布灯禁止踩踏、禁止卷曲收纳,收纳时请沿中间折叠收纳。
如果该灯具的外部软电缆或软线损坏,应由制造商或其服务代理或类似的合格人员进
行专门更换,以避免危险。
本灯具的光源不可更换;当光源寿命到期时,应更换整个灯具。
低压供电导线和控制导线之间的绝缘为加强绝缘。
灯具仅供专业人员使用。
不使用接口时,必须盖上防水罩。
对于装有插头的不可拆分电线,在潮湿地点使用时,用户应提供与灯具同等程度的防尘
防潮保护,如连接到防潮电源插座上。
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
本设备包含型号核准代码为: CMIIT ID: 24J44V807298,为该产品的无线电发射模块。
0.2m
:与照明物体的最小距离为 0.2 米。

3
前 言
主要特点
感谢您购买神牛产品。
神牛全新推出三款全彩 LED 影视柔性布灯 F100R、F200R、F200SR,三款布灯皆支持
100V-240V 供电,可在全球范围内使用;另购 14.8V 或 26V 的 V 口电池插入预留的电池槽
即可实现电池供电;三款产品同时做到 IP54 级防尘防水,以 全彩光色、千分级亮度调节、宽
广色温 1800K-10000K 可调、14 类 FX 光效、4 种调光曲线、以及多种无线控制等特性完美
胜任灯光工作场合;适用于短视频拍摄、广告拍摄、电商直播、商业摄影、影视剧等场景。
全彩光色 ,配合多样化场景主题 ;
千分级亮度调节,调节范围:0.0%-100%;
宽广色温, 调节范围:1800K-10000K;
整机 IP54 级防尘防水,轻松应对室内外环境 ;
多种控制方式,支持 DMX512/LumenRadio CRMX/ 蓝牙控制 ;
14 类 FX 光效:闪光灯、雷闪电、多云、坏灯泡、电视机、蜡烛、火、烟花、爆炸、焊接、警车、
SOS、彩光循环、派对。
请勿直视光源

4
PRESET LOCK MENU MODE
DC OUTPUT
100W
灯体
控制器

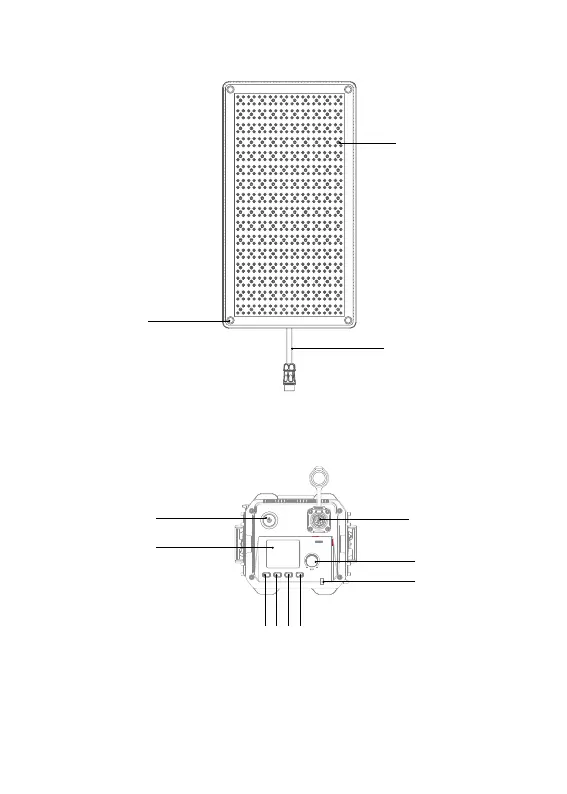

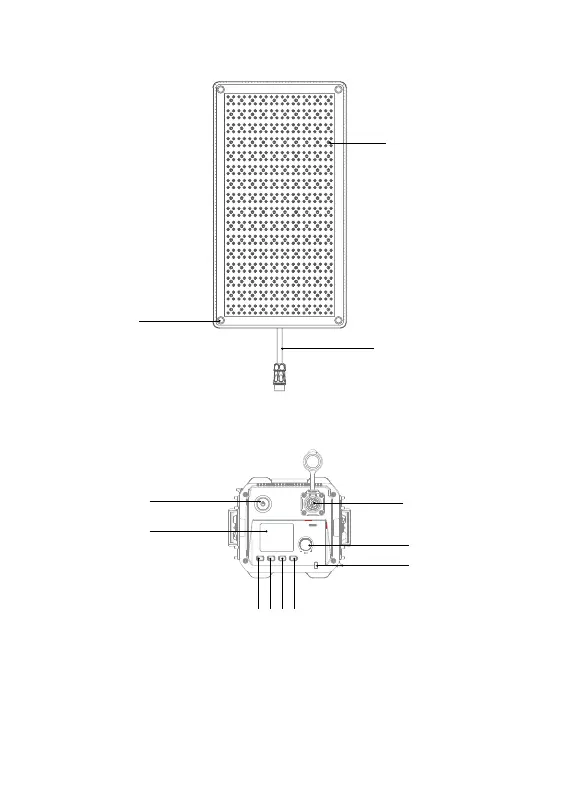

部件名称
1. 灯珠
2. 连接线
3. 安装孔
注:F100R、F200R、F200SR 灯体区别在于尺寸不同,部件介绍以 F100R 为例子。
1. 开关按键
2.DC OUTPUT 接口
3. 彩屏
4. 调节旋钮
5.MODE 按键
6.MENU 按键
7.LOCK 按键
8.PRESET 按键
9.LED 状态灯
2
8 7 6 5
2
4
9
1
3
1
3

5
13 12
10
11

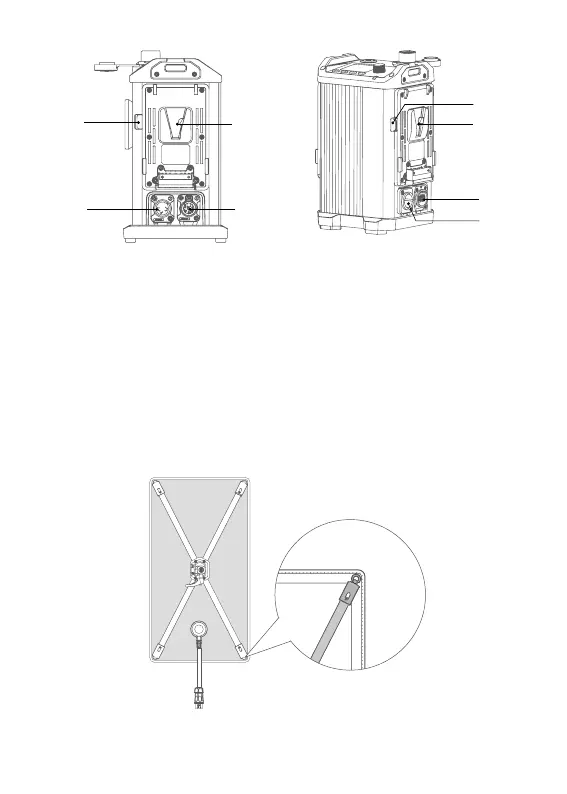

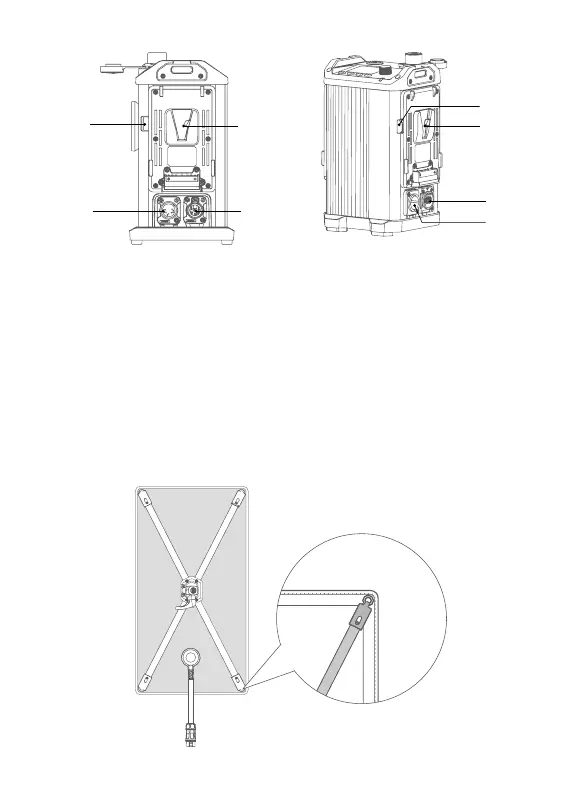

10. 左侧 V 口电池槽
11. 左侧电池推制
12.DMX OUT 接口
13.DMX IN 接口
14. 右侧 V 口电池槽
15. 右侧电池推制
16.USB-A 接口
17.AC INPUT 接口
14
15
16
17

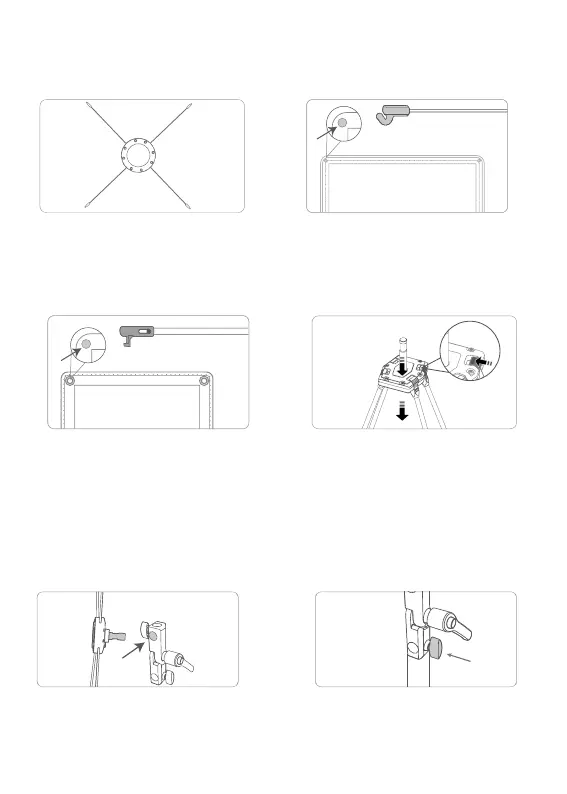

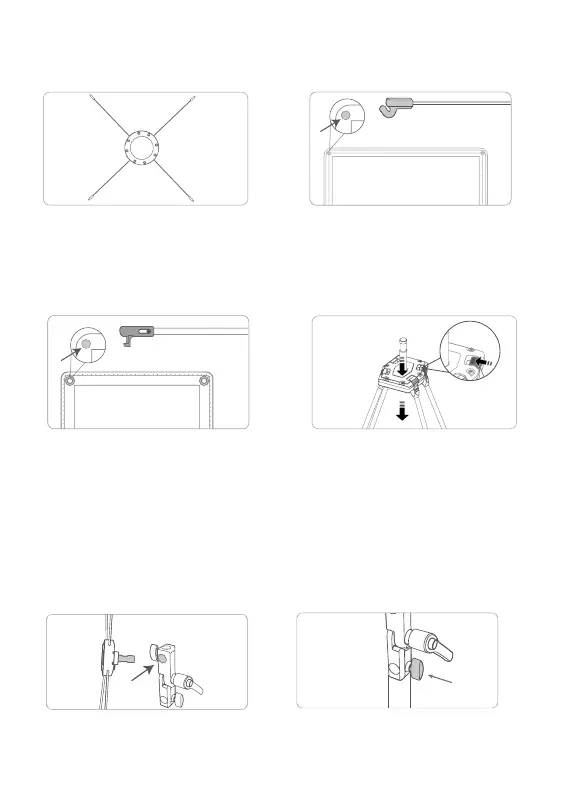

将布灯安装至灯架
第一步:装上支撑架
F100R:直接将支撑架尾端的弯钩沿着布灯上的安装孔扣入。
注:DMX OUT、DMX IN、USB-A、AC INPUT 接口不使用时将盖子盖紧。

6
F200R:将支撑架的四根杆子沿着凹槽依次展开,再将支撑架尾端的弯钩沿着布灯上的安装
孔扣入。
F200SR:将支撑架尾端的弯钩沿着布灯上的安装孔扣入,往下按压支撑架中心部位,将“咔”
一声自动锁紧;如需将杆子收拢回去,按住杆子上的推制往中心推动即可。
F100R/F200R/F200SR 支撑架按以上步骤
安装好,将支撑架的安装头插入转接座的
安装孔中,再将固定旋钮拧紧,转接座即安
装完成。
将转接座插入另购的灯架,旋转固定旋钮
进 行 锁 紧 ,整 灯 便 安 装 在 灯 架 上 。
第二步:装上转接座 第 三 步 :装 上 灯 架

7

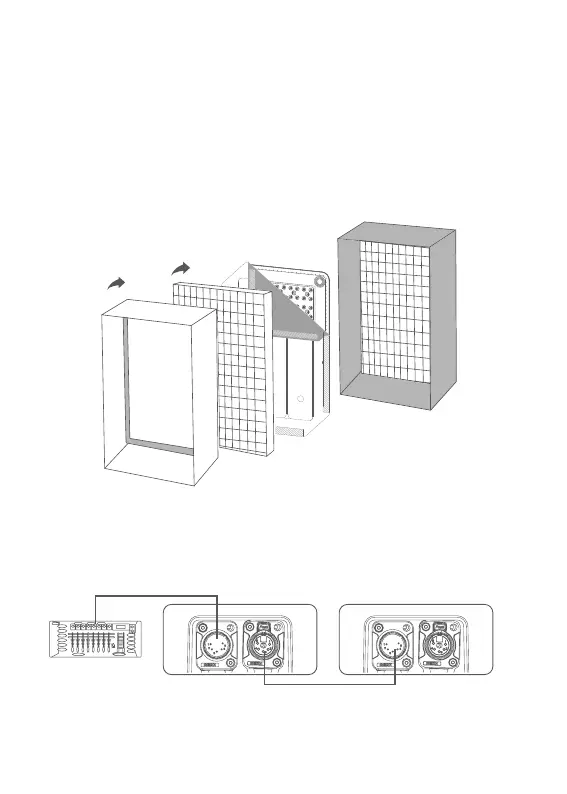

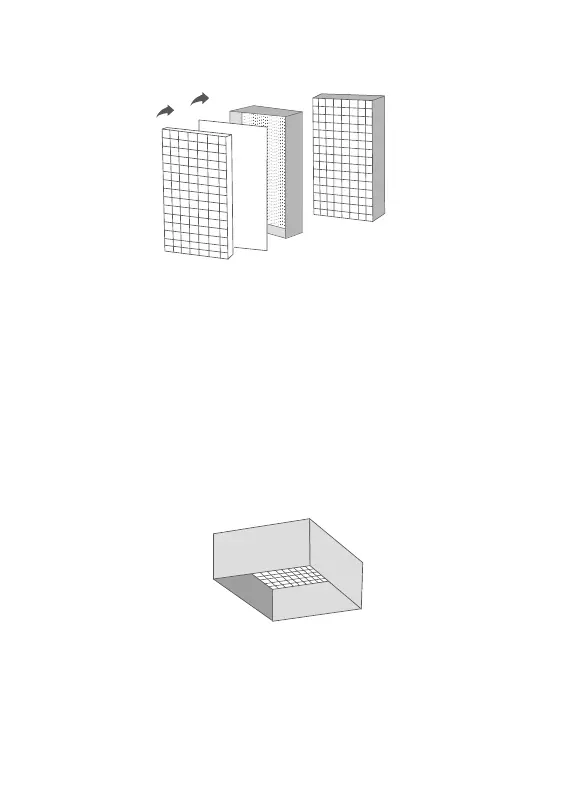

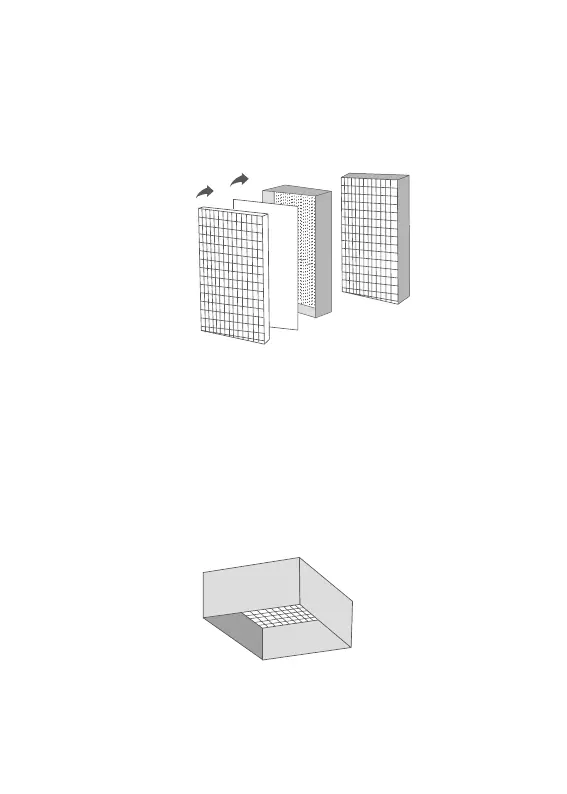

标配柔光箱中内含①柔光箱、②柔光布、③格栅,以及收纳袋。
灯体与柔光箱的边缘均设有魔术贴,先沿着布灯的边,将柔光箱粘贴在布灯上,然后在柔光
箱的内侧依次粘贴柔光布和格栅,标配的柔光箱即安装完毕。
如需更好的束光效果,可另购裙边。
按照以上步骤安装好柔光箱,将裙边沿着柔光箱外侧的魔术贴粘好,使裙边完整地将光源
笼罩住,另购的裙边即安装完毕;裙边四周设有可撕魔术贴条,根据需要的控光效果自行设
定即可。
安 装 柔 光 箱( 标 配 )
安 装 裙 边( 另 购 )
①
②
③

8

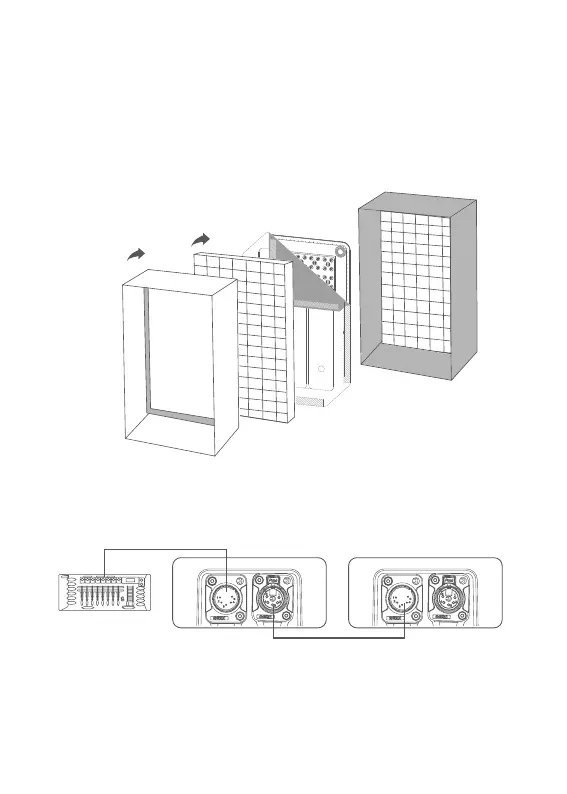

安 装 气 垫 柔 光 箱( K 2 套 装 )
购入 F100R K2/F200R K2/F200SR K2 套装,三款产品的 K2 套装中有对应尺寸的气垫柔
光箱 , 您也可单独另购气垫柔光箱,下图以 F100R 的气垫柔光箱为例子。
气 垫 柔 光 箱 中 内 含 ① 气 垫 柔 光 箱 、② 格 栅 、③ 裙 边 ,以 及 气 泵 、修 补 贴 、收 纳 袋 。
灯体与气垫柔光箱的边缘均设有魔术贴,先将气垫柔光箱手动充气完成,沿着布灯的边将其
粘贴在布灯上,然后沿着气垫柔光箱的魔术贴依次粘贴上格栅和裙边,K2 套装中的气垫柔
光箱 即安装完毕。
①
②
③
DMX 连接展示
连接多台
DMX512 控制台
注 :D M X 连 接 线 需 另 购 。

9

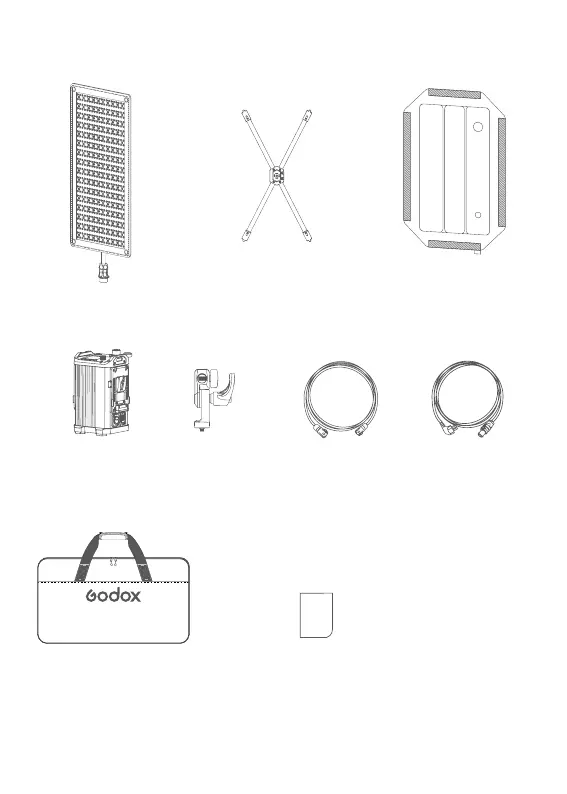

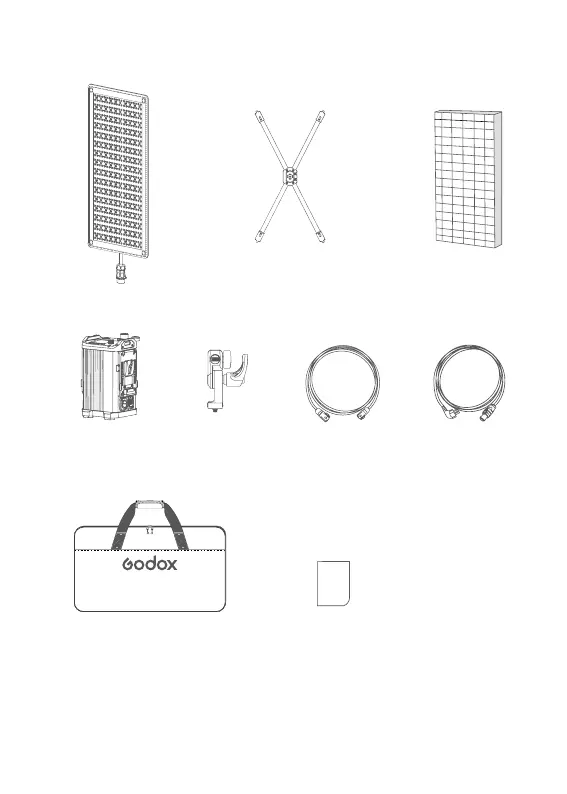

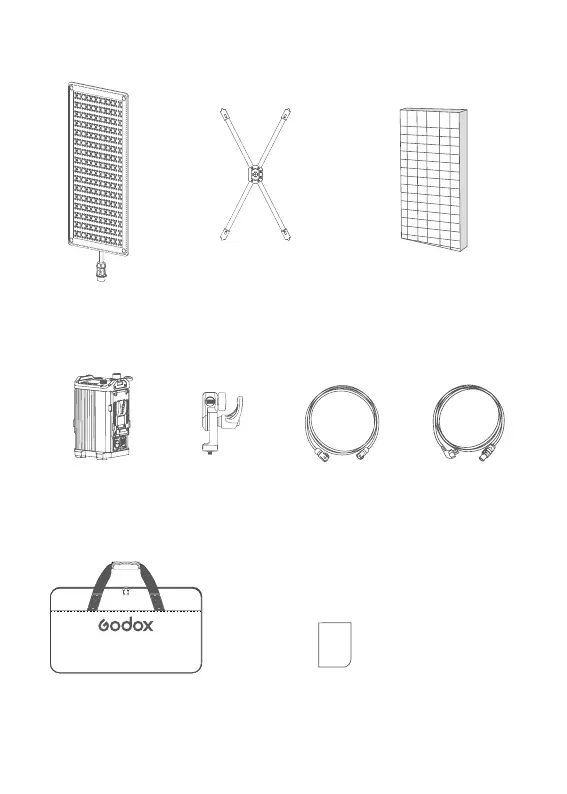

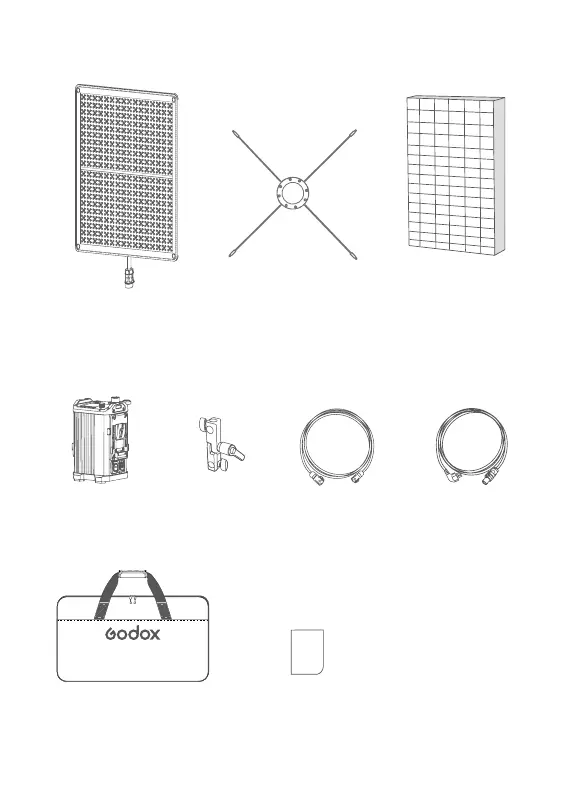

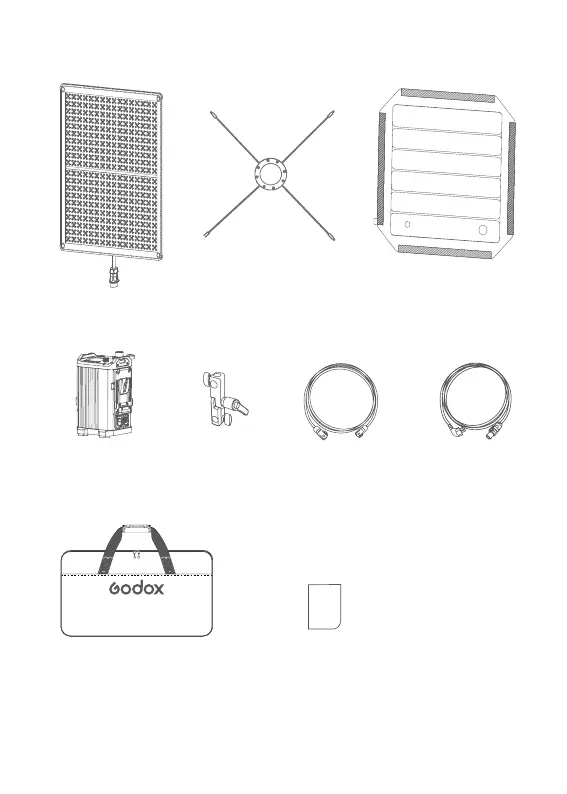

F100R K1 物品清单
灯体 ×1 支撑架 ×1
AC 电源线 ×1
转接座 ×1
控制器 ×1
柔光箱 FS100 ×1
连接线 ×1
收纳包 ×1 说明书 ×1

10

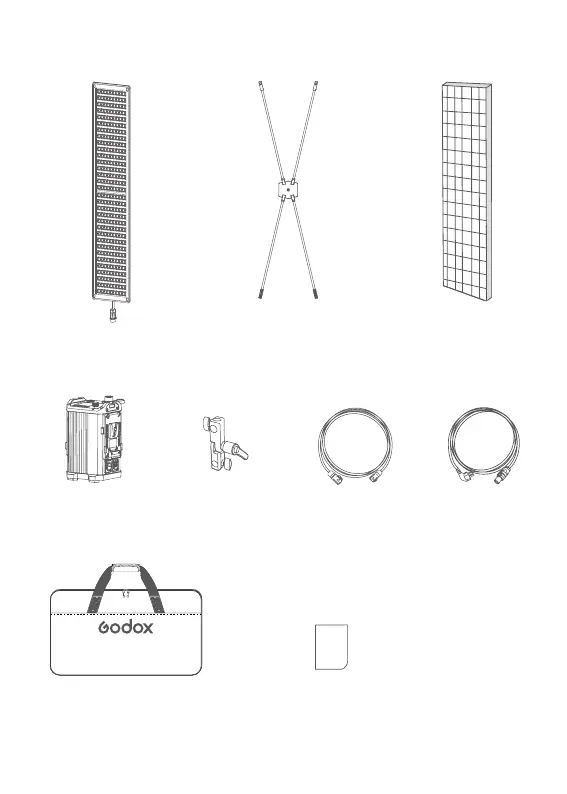

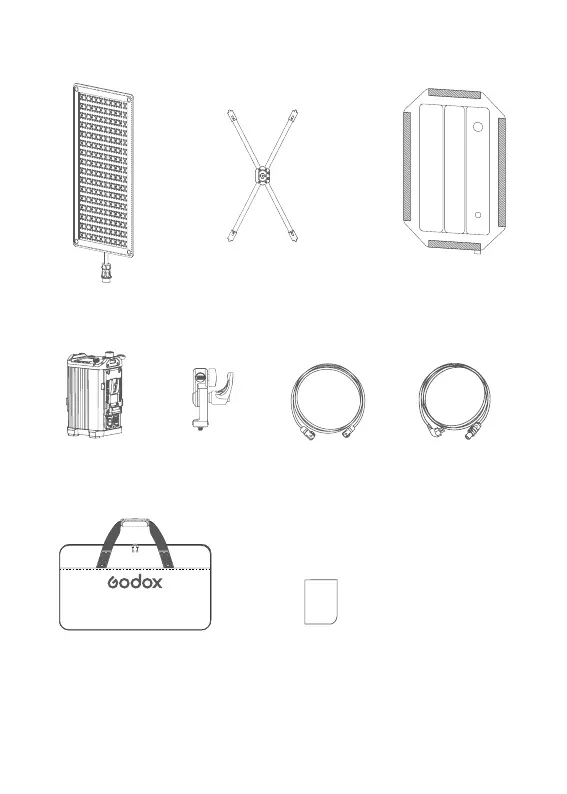

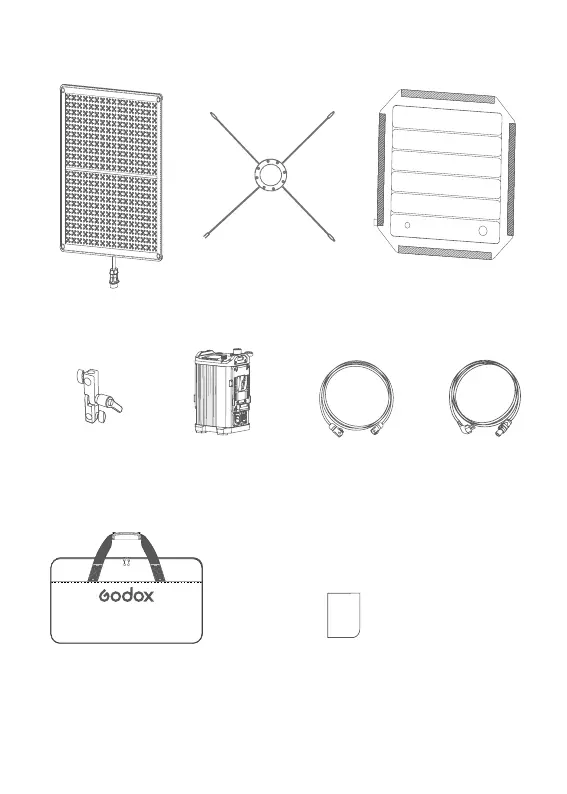

F200R K1 物品清单
灯体 ×1 支撑架 ×1
AC 电源线 ×1转接座 ×1
控制器 ×1
柔光箱 FS200 ×1
连接线 ×1
收纳包 ×1 说明书 ×1

11
AC 电源线 ×1转接座 ×1
控制器 ×1 连接线 ×1
收纳包 ×1 说明书 ×1
F200SR K1 物品清单
灯体 ×1
支撑架 ×1
柔光箱 FS200S ×1

12

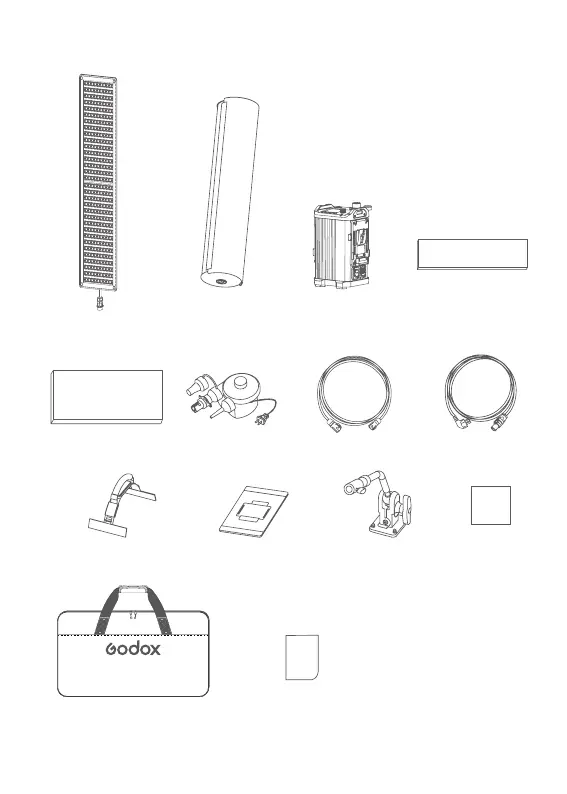

F100R K2 物品清单
灯体 ×1 支撑架 ×1 气垫柔光箱 FA100 ×1
AC 电源线 ×1
转接座 ×1
控制器 ×1 连接线 ×1
收纳包 ×1 说明书 ×1
注:气垫柔光箱 FA100 内含气垫柔光箱 ×1、格栅 ×1、裙边 ×1、气泵 ×1、修补贴 ×1、收纳袋 ×1

13

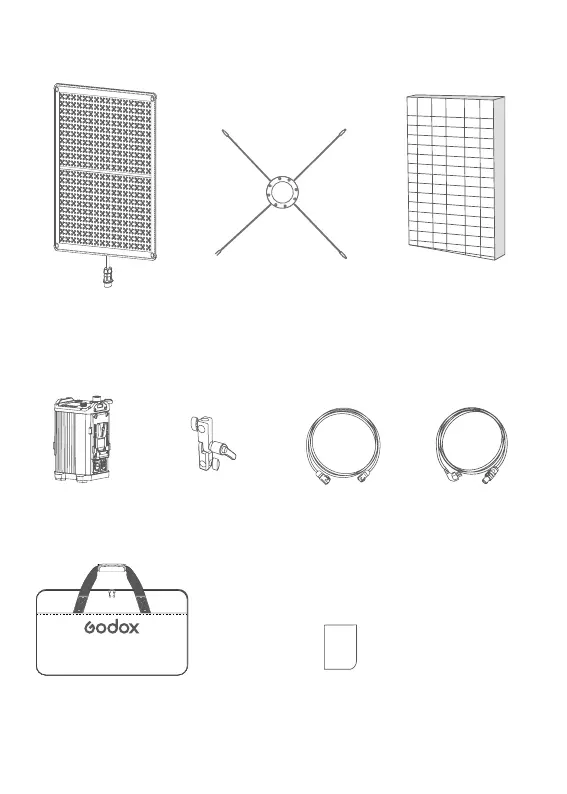

F200R K2 物品清单
灯体 ×1 支撑架 ×1 气垫柔光箱 FA200 ×1
AC 电源线 ×1转接座 ×1
控制器 ×1 连接线 ×1
收纳包 ×1 说明书 ×1
注:气垫柔光箱 FA200 内含气垫柔光箱 ×1、格栅 ×1、裙边 ×1、气泵 ×1、修补贴 ×1、收纳袋 ×1

14

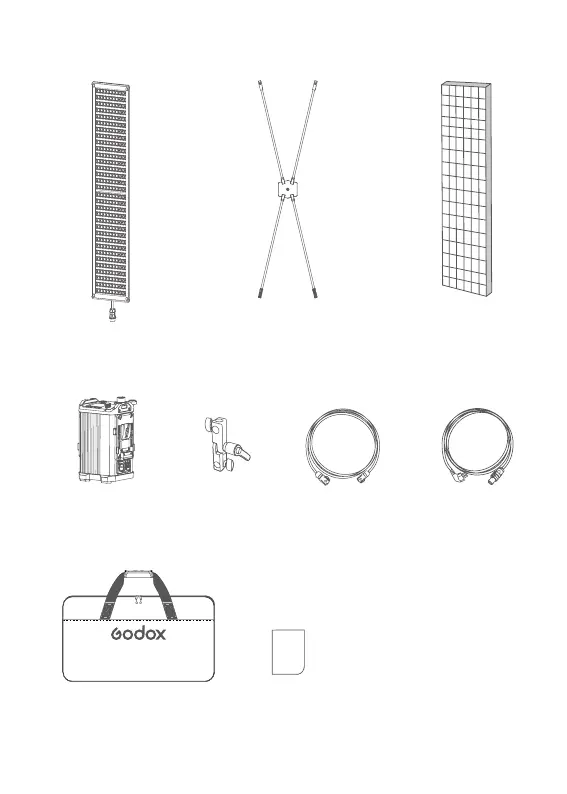

F200SR K2 物品清单
灯体 ×1
支撑架 ×1 气垫柔光箱 FA200S ×1
AC 电源线 ×1转接座 ×1
控制器 ×1 连接线 ×1
收纳包 ×1 说明书 ×1
注:气垫柔光箱 FA200S 内含气垫柔光箱 ×1、格栅 ×1、裙边 ×1、气泵 ×1、修补贴 ×1、收纳袋 ×1

15

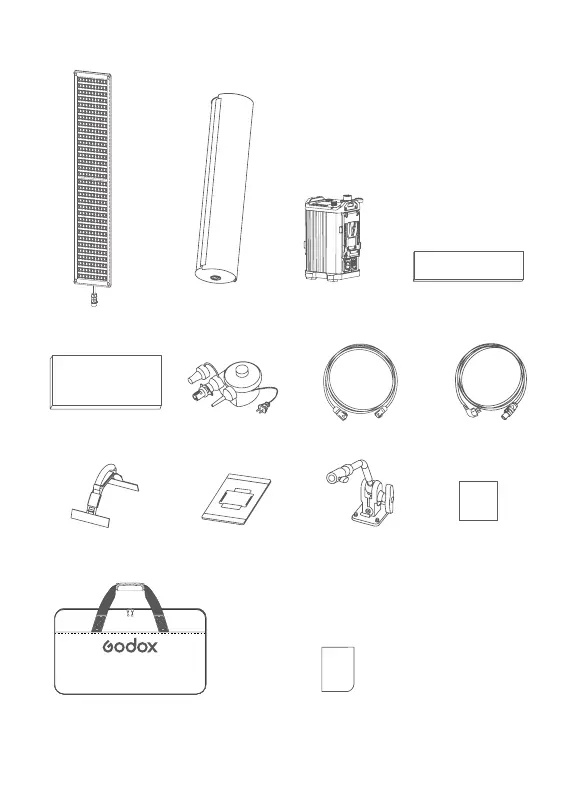

F200SR K3 物品清单
温馨提示:说明书线图均为示意图,仅供参考。由于产品不断更新与升级,产品实物与线图可能存在差异,请以实物为准。
AC 电源线 ×1
格栅 ×1
裙边 ×1 充气泵 ×1
修补贴 ×1
控制器 ×1灯体 ×1 气柱 ×1
连接线 ×1
可拆卸布质把手 ×2 可拆卸固定布 ×1 连接支架 ×1
收纳包 ×1 说明书 ×1

16
可另购配件
供电方式
F100R 布灯:气垫柔光箱FA100、柔光箱裙边SS-FS100
F200R 布灯:气垫柔光箱FA200、柔光箱裙边SS-FS200、半球柔光箱FP200
F200SR 布灯:气垫柔光箱FA200S、柔光箱裙边SS-FS200S
三款布灯通用:5mDC 连接线F-DC5D、控制器固定件PC01
①在拆装连接线或电源线时请先关闭电源,
严禁通电时插拔。
②在拆卸有锁扣按钮的电源线时,需要先按
住锁扣按钮同时逆时针旋转再拔出。

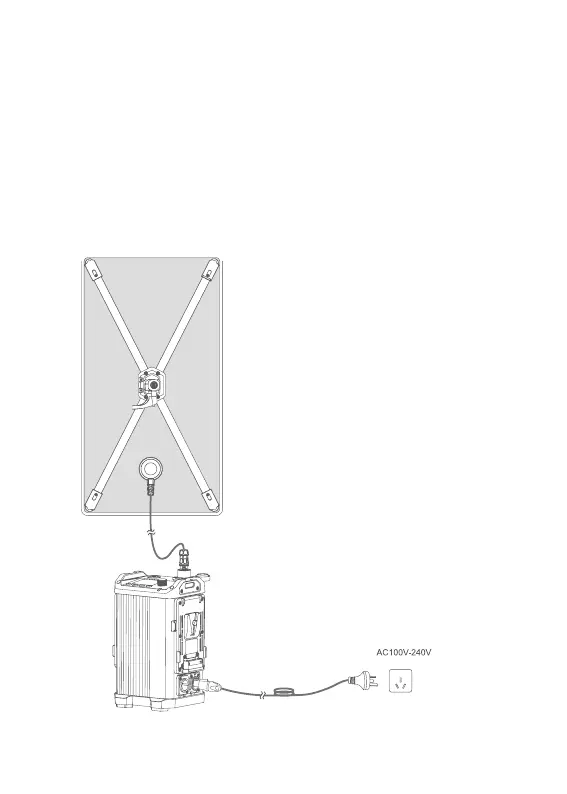

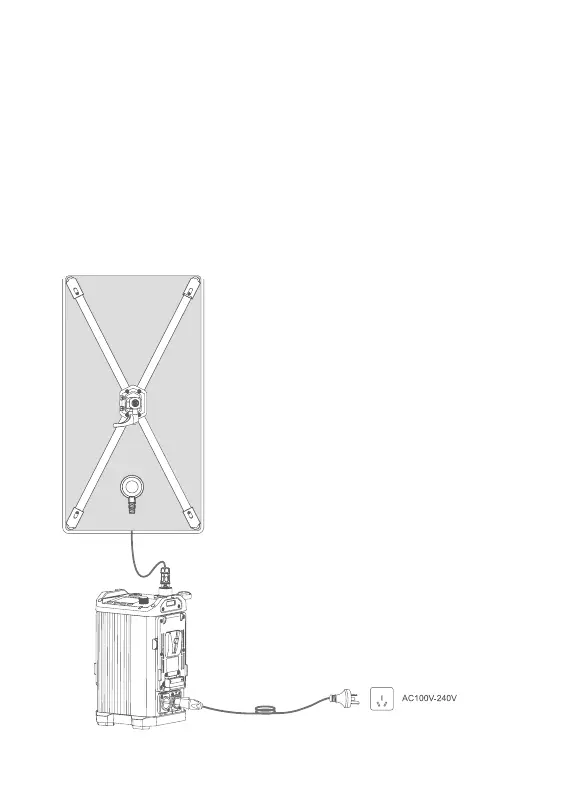

AC 供电

17
V 口电池供电
不同状态下 F200R、F200SR 灯具的最大亮度值
开关机

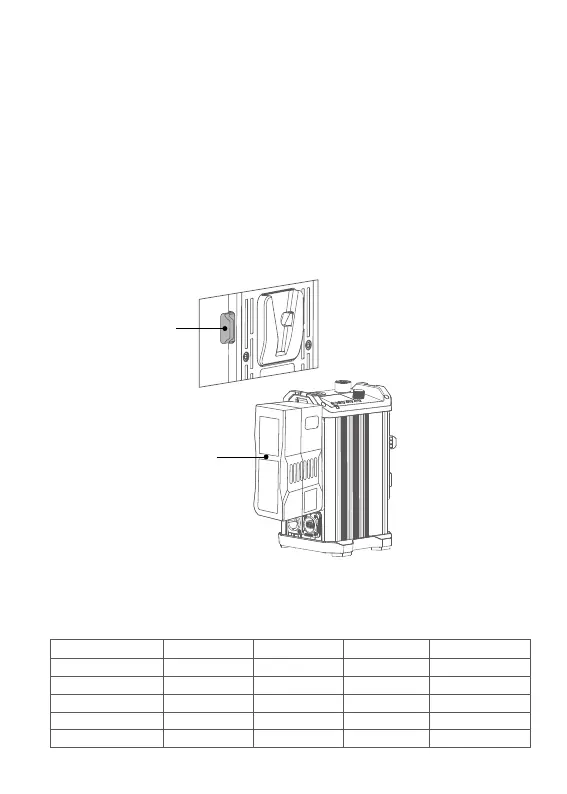

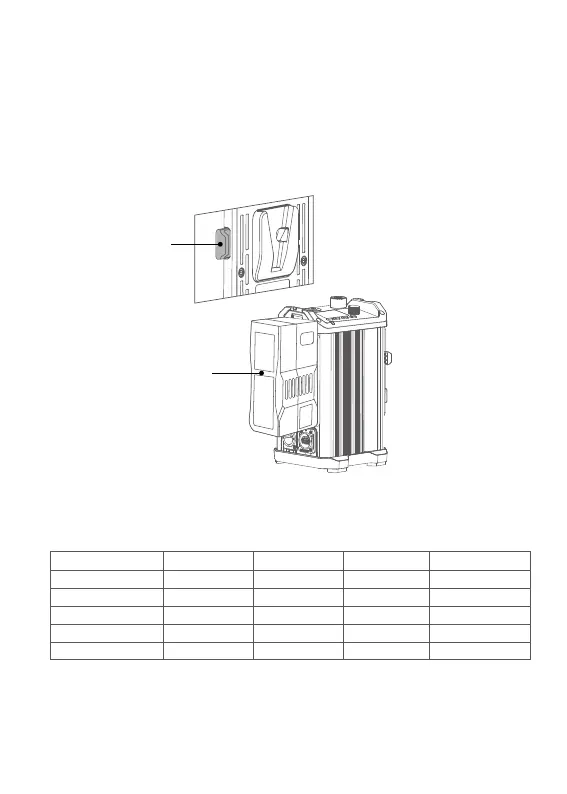

控制器左右两侧各设有一个 V 口电池槽,您可另购 14.8V 或 26V 的 V 口电池。
① AC 供电切换 V 口电池供电时,请先关机并将电源线拔掉,再插入 V 口电池开机使用。
②只有左侧电池槽支持单边供电,若您只有一节电池,请将其插入左侧电池槽方可实现设备
工作。
③双电池供电时,其中一节电池低电量,另一节电池即使满电,设备依然无法正常工作,建议
提前检查两个电池是否都有充足电量。
V 口电池
14.8V(1 节)
14.8V(2 节)
2 6 V( 1 节 )
2 6 V( 2 节 )
14.8V+26V
线性
70%
100%
100%
100%
100%
S 曲线
58.8%
100%
100%
100%
100%
指数
87.2%
100%
100%
100%
100%
对数
39.2%
100%
100%
100%
100%
接通电源后按下开关按键实现开机,再次按下实现关机。
左侧单边供电
如需取下电池请按住
左侧电池推制

18

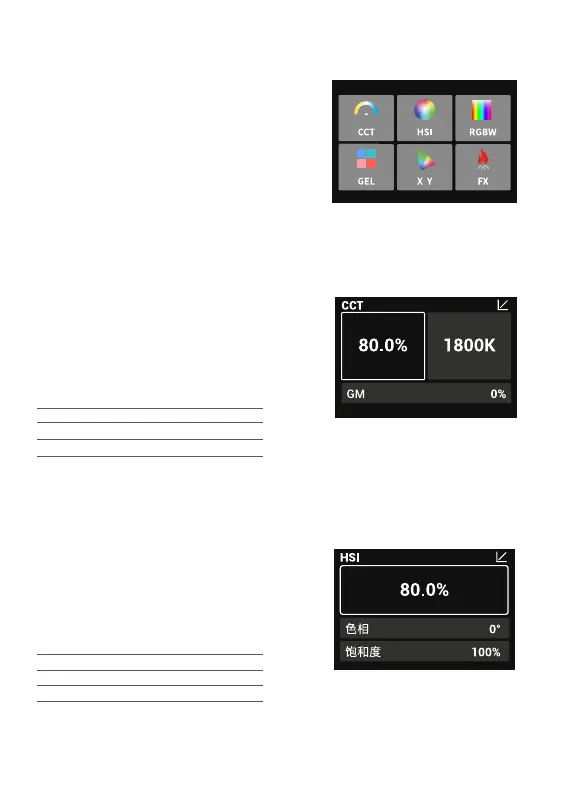

CCT 模式
HSI 模式
短按 MODE 按键进入模式选择,选中 CCT
后短按调节旋钮进入该模式,可选亮度 /
色温 / GM。通过短按并旋转调节旋钮设置
参数值,顺时针旋转递增参数值,逆时针旋
转递减参数值。
短按 MODE 按键进入模式选择,选中 HSI
后短按调节旋钮进入该模式,可选亮度 /
色相 / 饱和度。通过短按并旋转调节旋钮
设置参数值,顺时针旋转递增参数值,逆时
针旋转递减参数值。
亮度范围:0%~100%(以 0.1% 为增量)
色温范围:1800K~10000K
GM 范围:-100% ~ +100%
亮度范围:0%~100%(以 0.1% 为增量)
色相范围:0°~360°
饱和度范围:0% ~100%
模式选择
短按 MODE 按键进入模式选择,旋转调节
旋钮可选图中任意一种模式,短按调节旋
钮进入该模式进行具体设置。
MODE

19

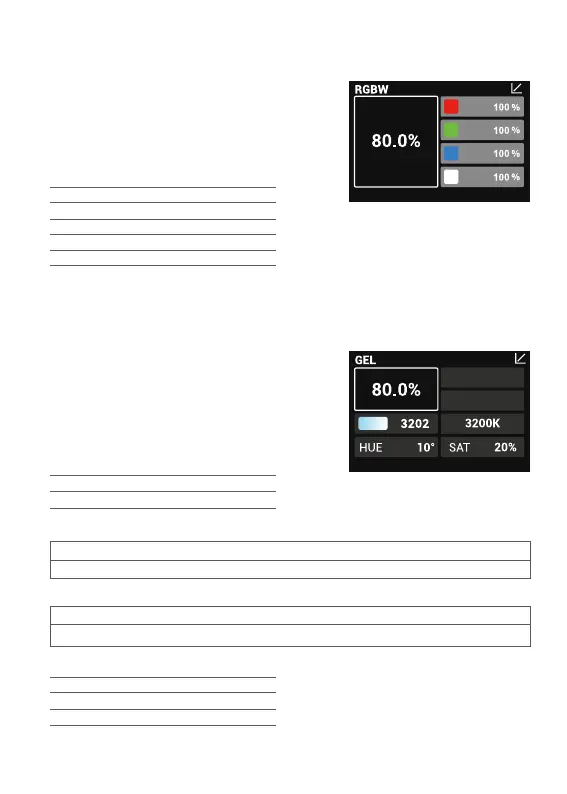

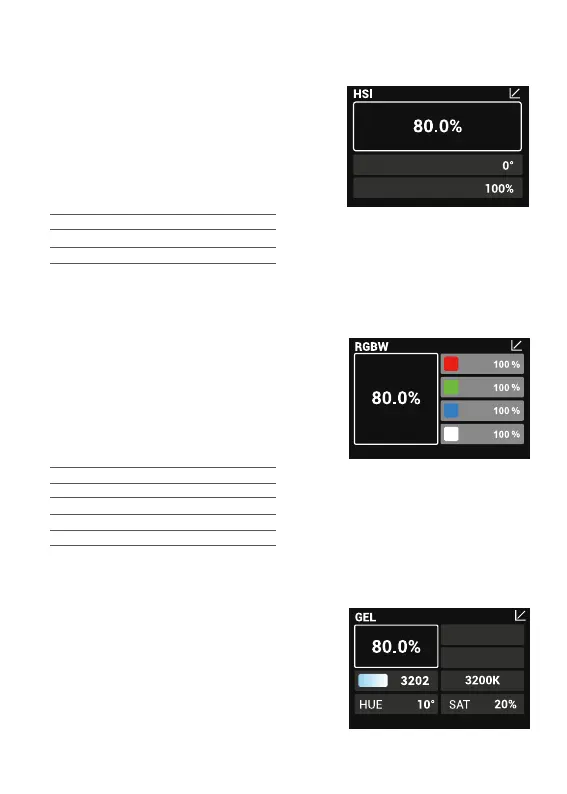

RGBW 模式
短按 MODE 按键进入模式选择,选中
RGBW 后短按调节旋钮进入该模式,可选
亮度 / 红光 / 绿光 / 蓝光 / 白光。通过短按
并旋转调节旋钮设置参数值,顺时针旋转
递增参数值,逆时针旋转递减参数值。
亮度范围:0%~100%
红光范围:0%~100%
绿光范围:0%~100%
蓝光范围:0%~ 100%
白光范围:0%~ 100%
注 :都 将 以 0 . 1 % 为 增 量
GEL 模式
短 按 M O D E 按 键 进 入 模 式 选 择 ,选 中 G E L
后短按调节旋钮进入该模式,可选亮度 /
色片类型 / 色片组类型 / 颜色选择 / 色温 /
色相 / 饱和度。通过短按并旋转调节旋钮
设置参数值,顺时针旋转递增参数值,逆时
针旋转递减参数值。
亮度范围:0%~100%(以 0.1% 为增量)
色片类型:R-GEL/L-GEL
色温:3200K 或 5600K
色相范围:-10°~10°
饱和度范围:-20%~ 20%
色 片 组 类 型( R - G E L )
COR./CAL./SPC./CINE.
色 片 组 类 型( L - G E L )
COR./COLOR./600/COS./700
R-GEL
COR.

20

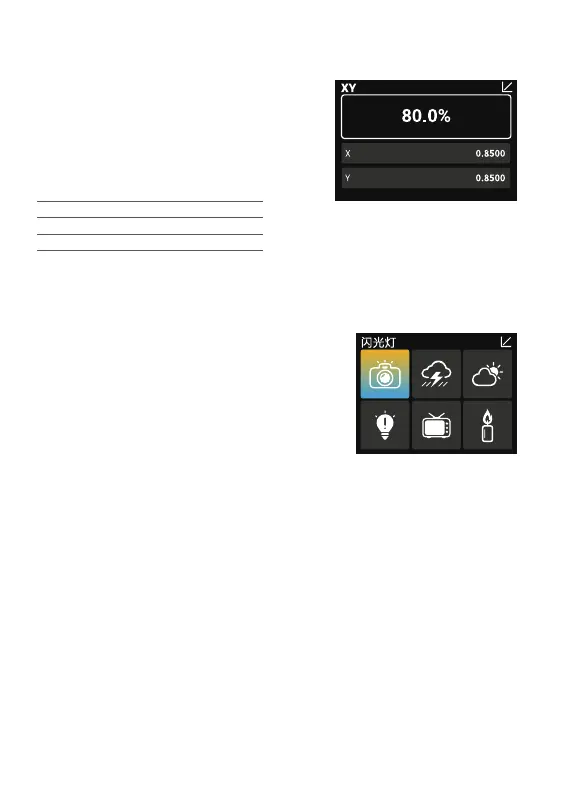

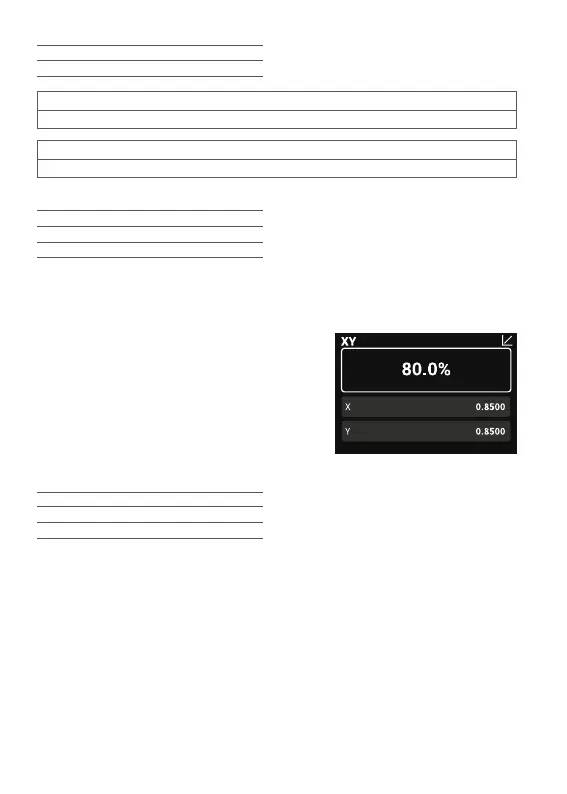

XY 模式
短按 MODE 按键进入模式选择,选中 XY
后短按调节旋钮进入该模式,可选亮度调
节/X坐标调节/Y坐标调节/颜色温度或
颜 色 空 间 。通 过 短 按 并 旋 转 调 节 旋 钮 设 置
参数值,顺时针旋转递增参数值,逆时针旋
转递减参数值。
亮度范围:0%~100%(以 0.1% 为增量)
X 坐标:0.0000~ 0.8500
Y 坐标:0.0000~ 0.8500

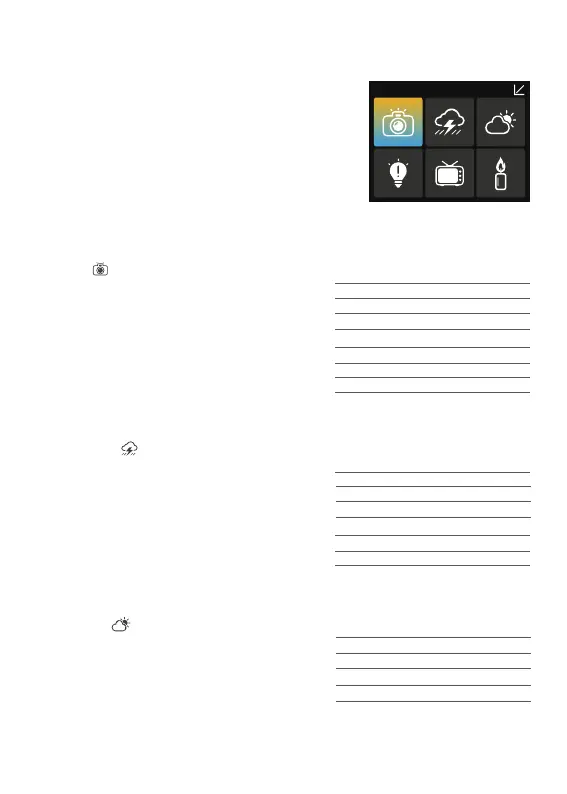

FX 模式
短按 MODE 按键进入模式选择,选中 FX
后短按调节旋钮进入该模式,可选光效有
以 下 1 4 类 ;通 过 短 按 并 旋 转 调 节 旋 钮 设 置
某个光效的参数值,顺时针旋转递增参数
值 ,逆 时 针 旋 转 递 减 参 数 值 。

21
1. 闪光灯
此光效模拟闪光灯闪光或传统镁光灯闪光,
常用于营造一种生动、活泼的氛围。
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
触发:A 自动 /M 手动
颜色:CCT/HSI
色温 / 色相:1800K-10000K/0-360°
速度:1-100
模式:闪光灯 / 镁光灯
此光效模拟雷电的闪电,常用于营造一种紧
张 、恐 怖 或 神 秘 的 氛 围 。
2. 雷闪电
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
触发:A 自动 /M 手动
色温:1800K-10000K
闪烁次数:随机 /1-10
频率:随机 /2-20
此 光 效 模 拟 云 层 遮 挡 效 果 ,常 用 于 营 造 一
种阴沉、压抑或悲伤氛围。
3. 多云
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
亮暗比例:30%-90%
速度:随机 /1-100
此光效模拟一盏损坏的灯泡闪光,常用于
营造昏黄的环境氛围。
4. 坏灯泡
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
颜色:CCT/HSI
色温 / 色相:1800K-10000K/0-360°
速度:1-100
此光效模拟电视机或屏幕的光线效果,常用
于营造出一种冷淡、机械或数字化的氛围。
5. 电视机
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
颜色:CCT/HSI
速度:1-100

22
此光效模拟蜡烛的光线效果,常用于营造
出一种柔和、温暖、闪烁的氛围。
6. 蜡烛
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
速度:1-100
此光效模拟火焰的光线效果,常用于营造
出一种明亮、热烈、闪烁氛围。
7. 火
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
速度:1-100
此光效模拟烟花的光线效果,常用于营造
出一种绚丽、多彩、浪漫的氛围。
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
余烬:1-100
速度:1-100
8. 烟花
9. 爆炸
此光效模拟爆炸的光线效果,常用于营造
出一种明亮、猛烈、闪烁氛围。
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
触发:A 自动 /M 手动
颜色:CCT/HSI
色温 / 色相:1800K-10000K/0-360°
余烬:1-100
速度:1-100
此光效模拟焊接的光线效果,常用于营造
出 一 种 炽 热 、机 械 的 氛 围 。
10. 焊接
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
颜色:CCT/HSI
色温 / 色相:1800K-10000K/0-360°
速度:1-100

23
此光效模拟警车灯光的闪烁效果,常用于
营造紧张、追逐或紧张氛围。
11. 警车
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
颜色:红 + 蓝、红、蓝、蓝 + 白、蓝 + 黄、黄、
红+白+蓝、红+黄+蓝
模式:1-5
12.SOS
此光效模拟 SOS 求救信号的闪烁效果,常
用于营造危险、求救或紧急情况氛围。
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
颜色:CCT/HSI
色温 / 色相:1800K-10000K/0-360°
13. 彩光循环
此光效模拟模拟彩色光线的循环和变化效果,
常用于营造一种梦幻、科幻的氛围。
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
饱和度:0%-100%
速度:1-100
亮度:0% -100%(以 0.1%为增量)
开关:开启 / 关闭
饱和度:0%-100%
速度:1-100
14. 派对
此光效模拟彩色光线、闪光灯和激光等效果,
常 用 于 营 造 出 一 种 狂 欢 、欢 乐 、高 能 氛 围 。
注:根据需求旋转调节旋钮设置当前参数值,设置完毕后短按并旋转调节旋钮可跳入下一栏参数进行设置;选
中手动时,通过短按一次调节旋钮触发一次该光效;某个光效设置完毕后短按 MODE 按键回到 14 类光效选
择界面。

24

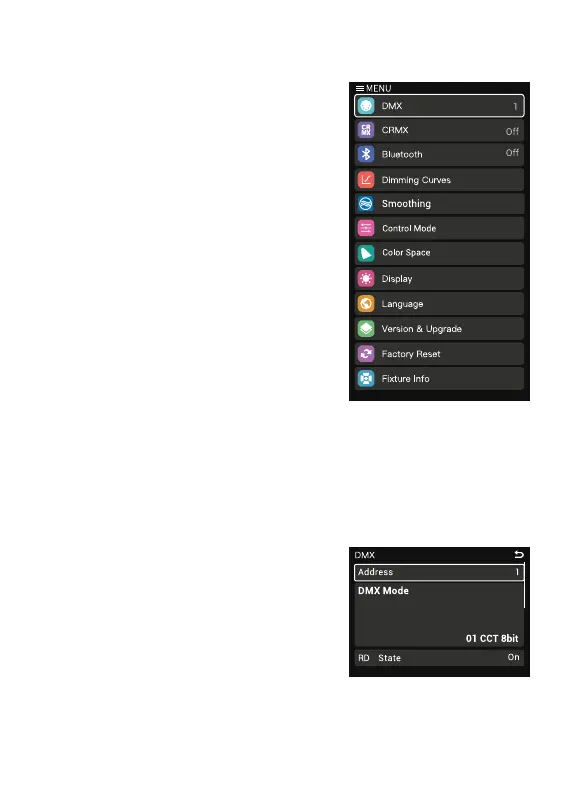

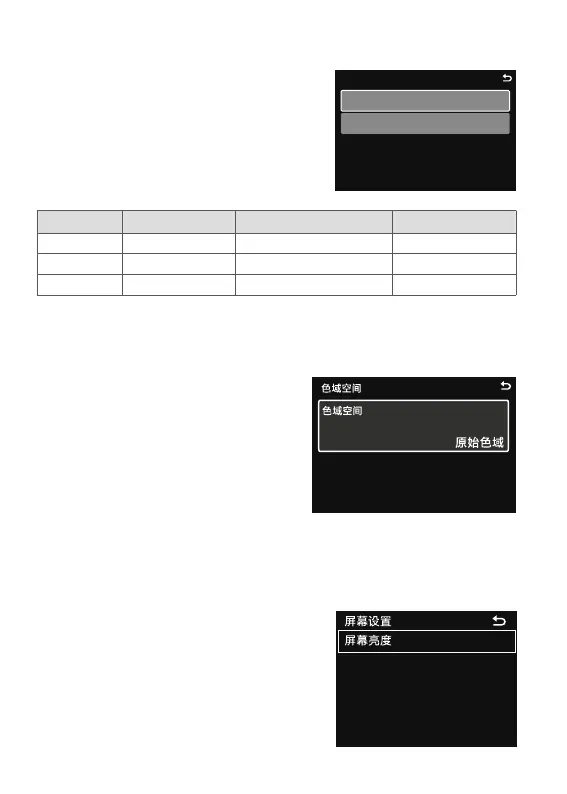

1.DMX
菜单设置

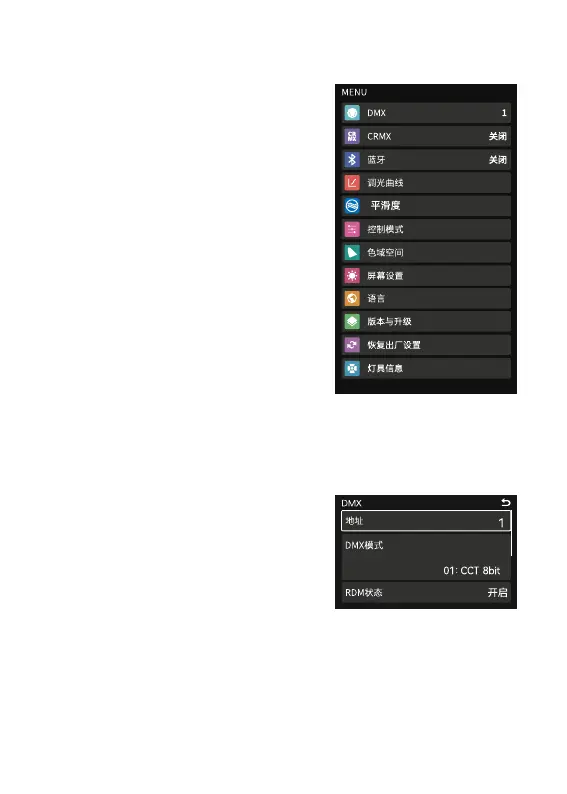

短按 MENU 按键进入菜单界面,旋转并短
按调节旋钮可进入图中各选项的设置,设
置完毕短按 MENU 按键回到菜单界面。
短按调节旋钮进入 DMX 设置,通过短按
并旋转调节旋钮设置参数值,如下表所示。
1

25
一级选项
地址
DMX 模式
RDM 状态
DMX 丢失状态
终止开关
增强通道
二级选项
001-512
01: CCT 8 Bit
02: HSI 8 Bit
03: RGB 8 Bit
04: RGBW 8 Bit
05: RGBWW 8 Bit
06: CCT+HSI 8 Bit
07: CCT+RGBW 8 Bit
08: FX 8 Bit
09: GEL 8 Bit
10: CCT 16 Bit
11: HSI 16 Bit
12: RGB 16 Bit
13: RGBW 16 Bit
14: XY 16 Bit
15: FX 16 Bit
16: GEL 16 Bit
开启
关闭
保持最后状态
直接关闭
保持最后状态 2 分钟熄灭
开启
关闭
开启
关闭
说明
起始地址
8 位 CCT 模式
8 位 HSI 模式
8 位 RGB 模式
8 位 RGBW 模式
8 位 RGBWW 模式
8 位 CCT+HS1 模式
8 位 CC T+RGBW 模式
8 位 FX 模式
8 位 GEL 模式
16 位 CCT 模式
16 位 HSI 模式
16 位 RGB 模式
16 位 RGBW 模式
16 位 X-Y 模式
16 位 FX 模式
16 位 GEL 模式
开启 RDM,开启后控制台可设置灯具地
址及 DMX 模式
关闭 RDM
失去 DMX 控制信号后,在关机或再次
接收有效 DMX 控制信号前, 持续使用
最后一次接收的 DMX 控制信号。
灯具直接熄灭
失 去 D M X 控 制 信 号 后 ,持 续 使 用 最 后
一次接收的 DMX 控制信号 2
分钟,2 分钟后灯具熄灭。注:如 2 分钟
内接收到有效 DMX 控制信号,则使用
新的 DMX 控制信号。
开启 DMX 终端
关闭 DMX 终端
开启增强通道信号
关闭增强通道信号
注:使用 DMX/RDM 控制台控制灯具,可登录官网 https://www.godox.com.cn/ 下载 DMX 模式表。

26

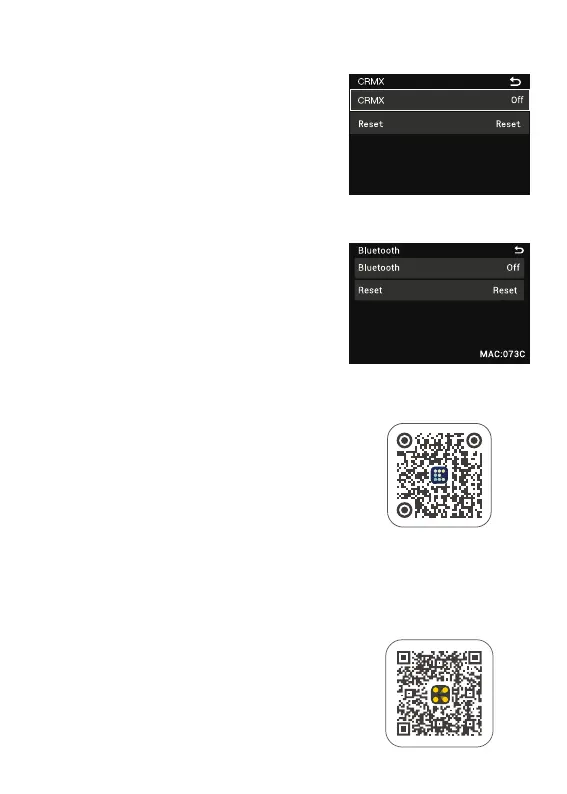

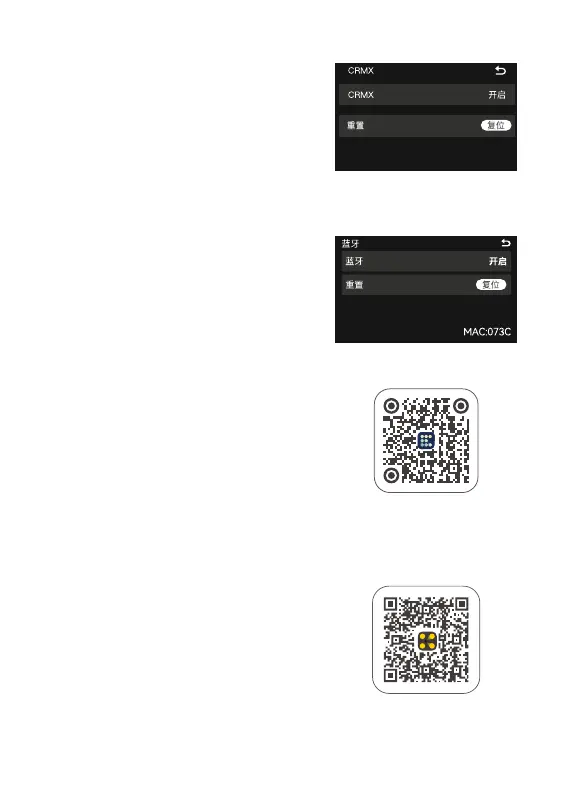

2.CRMX
3. 蓝牙
短按调节旋钮进入CRMX 设置,通过短按
并旋转调节旋钮设置开启或关闭;如需进
行重置,旋转调节旋钮到重置栏,短按调节
旋钮即可重置复位。
短按调节旋钮进入蓝牙设置,通过短按并
旋转调节旋钮设置开启或关闭;如需进行
蓝牙复位,旋转调节旋钮到复位栏,短按调
节旋钮即可复位;蓝牙 MAC 码位于右下角,
方便查找灯具。
“Godox Light”app下载
扫描二维码即可下载“Godox Light”手机
app(安卓和苹果系统都可以使用)。
注:
1.首个移动设备(手机或平板电脑)可直接使用
app 操控灯体。更换其他移动设备时,灯体需进行
蓝牙重置方可正常使用 app。
2.app 需升级至 V3.0 以上版本。
“Godox KNOWLED”app 下载
扫描二维码即可下载“Godox KNOWLED”app
( 目 前 仅 限 平 板 下 载 和 使 用 )。

27

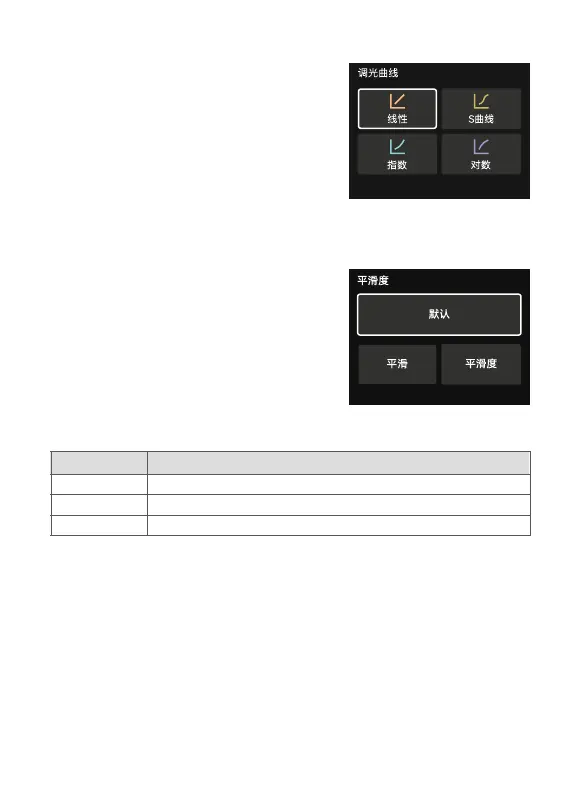

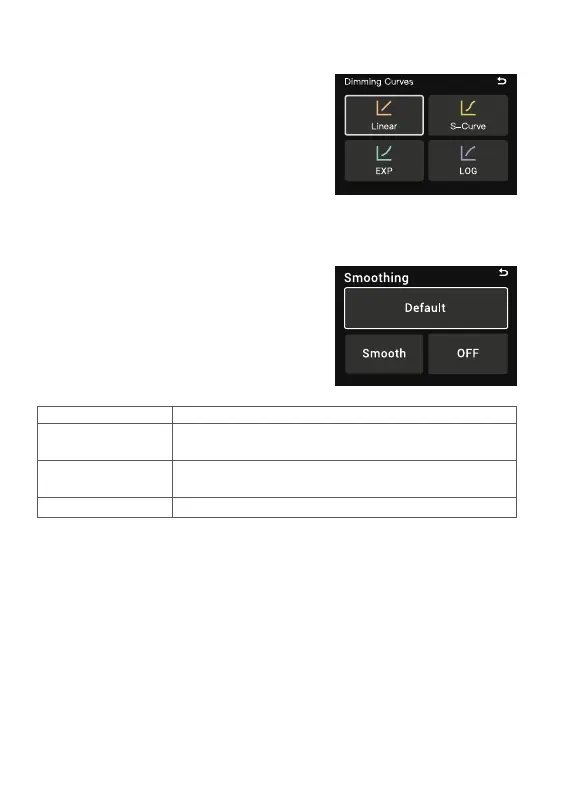

4. 调光曲线
短按调节旋钮进入调光曲线设置,通过旋
转调节旋钮可选线性 /S 曲线 / 指数 / 对数,
选定后短按调节旋钮完成设置。
5. 平滑度
短按调节旋钮进入平滑度设置,通过旋转
调节旋钮可选默认 / 平滑 / 平滑关,选定后
短按调节旋钮完成设置。
平滑度 备注
默认
平滑度
关闭
亮度数据进行基础平滑处理,实现平滑调光,缩短响应时间
亮度数据进行平滑处理,实现超平滑调光,响应时间慢
未对亮度数据进行平滑处理,响应时间最快

28
6. 控制模式
短按调节旋钮进入控制模式设置,通过短
按并旋转调节旋钮可选常规 / 低亮 / 高速
三种模式,选定后短按并旋转调节旋钮可
设置常规和低亮模式的频率,范围:1-11。
控制模式
常规模式
低亮模式
高速模式
正常调光
电视 / 电影
不支持调光
整个调光范围内都很好
低亮度水平时很好
/
不太会出现闪烁
可能出现闪烁
无闪烁
适用环境 调光特性 闪烁
7. 控制 模式
控制模式
模式
频率
常规
11
7. 色域空间
短 按 调 节 旋 钮 进 入 色 域 空 间 设 置 ,通 过 短
按并旋转调节旋钮设置。
色域空间:原始色域、校色色域、Rec.709、
DCI-P3。
8. 屏幕设置
短按调节旋钮进入屏幕设置,通过短按并
旋转调节旋钮设置 10%-100% 亮度值。
80%

29

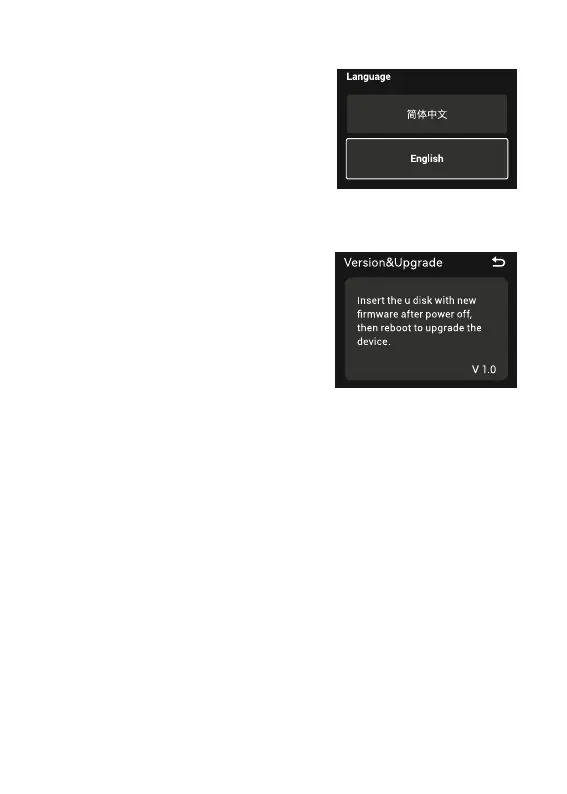

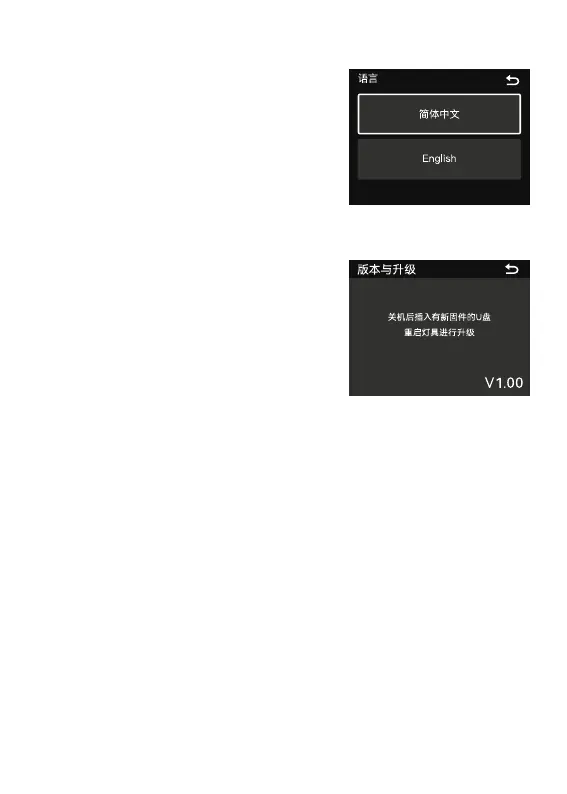

9. 语言
短按调节旋钮进入语言设置,通过旋转调
节旋钮可选简体中文 /English,选定后短
按调节旋钮完成设置。
10. 版本与升级
短按调节旋钮进入版本与升级,此界面可
查看固件版本号与升级提示。
升级详情
1. 在官网(https://www.godox.com.cn/rmware-continuous-light)下载新固件到 U 盘上。
2. 在关机状态下,将存有新固件的 U 盘插入 USB-A 接口。
3. 开机,灯具自动进入升级界面。
4. 升级完毕自动跳回主界面。
注:
1. 必须在官网上下载新固件,存放在 U 盘根目录里,而且仅有一个 BIN 文件。
2.USB-A 接口支持供电,输出电压电流 5V/1.5A,请勿接入大功率 USB 设备。

30

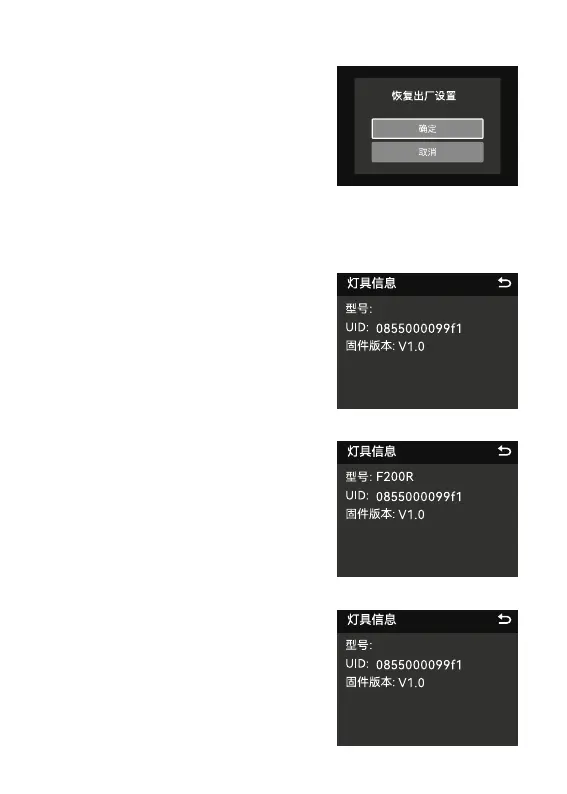

11. 恢复出厂设置
12. 灯具信息
短按调节旋钮进入恢复出厂设置,通过旋
转 调 节 旋 钮 可 选 确 定 / 取 消 ,当 您 短 按 调
节 旋 钮 确 定 恢 复 出 厂, 灯 具 将 自 动 重 启 ,界
面会出现简体中文和 English 选项,设置您
需要的语言后灯体亮度值自动变为 100%
且界面来到 CCT 模式。
短按调节旋钮进入灯具信息,此界面可查
看如图示内容。
F100R
F200SR

31

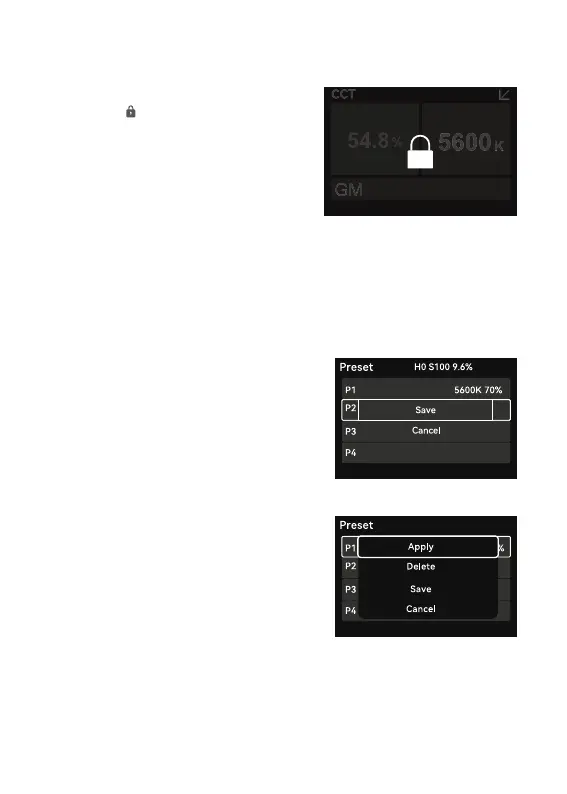

锁定设置

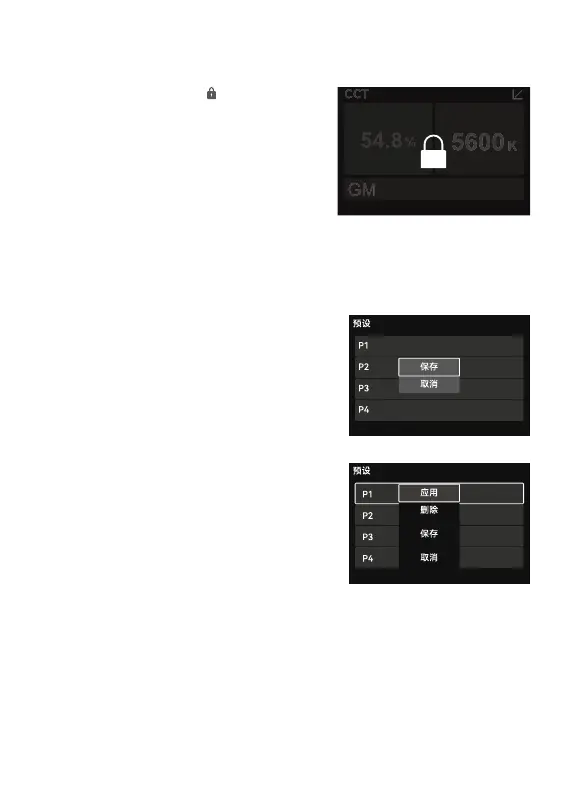

短 按 L O C K 按 键 ,屏 幕 出 现〈 〉表 示 当 前
界 面 被 锁 定 ;再 次 短 按 L O C K 按 键 便 可 解
锁。
注:此锁定功能仅锁定控制器操控面板,其他操作方式仍可正常进行。
预设设置
短按 PRESET 按键进入灯具光效的预设界
面 ,旋 转 调 节 旋 钮 选 择 1 - 2 0 组 预 设 。
1. 短按 MODE 按键进入主界面,设置好光
效参数;
2. 短按 PRESET 按键进入预设界面,如果
想将此光效参数存入预设 1,选定预设 1 后
短按调节旋 钮进行保 存即可;
3. 对于已保存的预设组,短按调节旋钮可
进行应用 / 删除 / 保存 / 取消设置。

32
F100R 照度数据
色温
1800K
2800K
3200K
4300K
5600K
6500K
8500K
10000K
R( 红 光 )
G( 绿 光 )
B( 蓝 光 )
测试
条件
裸灯
照度
单位
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
1m
( 常规模式)
899
84
2920
272
3310
307
3470
322
3840
357
3510
326
3390
315
3520
327
1m
( 高速模式)
1070
99
3570
331
3520
327
4340
403
4740
440
4080
379
3720
346
3740
348
432
40
829
77
191
18
2m
( 常规模式)
227
21
774
72
879
82
921
86
1020
95
933
87
902
84
937
87
2m
( 高速模式)
286
27
961
89
946
88
1170
108
1270
118
110 0
102
1000
93
1010
94
118
11
223
21
52
5
3m
( 常规模式)
100
9
346
32
392
36
410
38
454
42
416
39
403
37
419
39
3m
( 高速模式)
131
12
440
41
435
40
536
50
585
54
504
47
460
43
463
43
54
5
102
10
24
2

33
色温
1800K
2800K
3200K
4300K
5600K
6500K
8500K
10000K
R( 红 光 )
G( 绿 光 )
B( 蓝 光 )
测试
条件
裸灯
照度
单位
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
1m
( 常规模式)
2100
195
6000
557
6900
641
7500
697
8070
750
7330
681
7000
650
7250
673
1m
( 高速模式)
2140
199
6080
559
6980
643
8470
786
8900
827
7380
685
7030
653
7270
675
813
76
1960
182
430
40
2m
( 常规模式)
579
54
1690
157
1940
180
2110
196
2280
212
2070
192
1980
184
2050
190
2m
( 高速模式)
611
57
1710
158
1970
181
2410
224
2530
235
2110
196
2010
187
2080
193
241
22
570
53
122
11
3m
( 常规模式)
265
25
778
72
895
83
972
90
1050
98
952
89
911
85
945
88
3m
( 高速模式)
284
26
791
74
896
83
1120
104
1180
109
980
91
934
87
966
90
114
11
265
25
56
5
F200R 照度数据

34
色温
1800K
2800K
3200K
4300K
5600K
6500K
8500K
10000K
R( 红 光 )
G( 绿 光 )
B( 蓝 光 )
测试
条件
裸灯
照度
单位
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
1m
( 常规模式)
1990
185
5470
508
6300
585
6830
635
7350
683
6620
615
6380
592
6610
614
1m
( 高速模式)
2010
187
5540
512
6410
586
7560
703
7900
734
6680
617
6410
596
6640
616
860
80
1910
177
513
48
2m
( 常规模式)
587
55
1640
153
1890
176
2050
191
2210
205
1990
185
1920
178
1990
185
2m
( 高速模式)
597
56
1690
156
1920
178
2290
213
2390
222
2050
187
1960
180
2040
187
259
24
572
53
156
15
3m
( 常规模式)
268
25
762
71
875
81
952
89
1020
95
922
86
889
83
921
86
3m
( 高速模式)
282
26
768
71
868
81
1080
101
1130
105
945
88
905
84
936
87
118
11
263
24
73
7
F200SR 照度数据

35
规格参数
型号
供电
输入功率
色温
品红 / 绿调节
调光范围
调光模式
CRI
TLCI
灯体 / 控制器防
水等级
控制方式
蓝牙控制距离
USB-A 接口
工作环境温度
尺寸≈
净重≈
F100R
130W
裸灯灯体:344*636mm
控制器:154*128*232mm
裸 灯 灯 体 :0 . 6 k g
控制器:2.8kg
F200R
250W
裸灯灯体:637*637mm
控制器:154*128*232mm
裸 灯 灯 体 :1 k g
控制器:2.8kg
F200SR
250W
裸灯灯体:344*1220mm
控制器:154*128*232mm
裸 灯 灯 体 :1 . 0 5 k g
控制器:2.8kg
1800K-10000K
-100% ~100%
0%-100%
线性 /S 曲线 / 指数 / 对数
平均≥ 96
平均≥ 98
IP54
DMX 512 控制台控制,支持 RDM 协议 /LumenRadio CRMX 控制 / 蓝牙 APP 控制
30 米
固件升级 /5V 1.5A 供电
-20℃~45℃
100V-240V~50/60Hz
设计和规格如有变更,恕不另行通知。

36
Safety Instructions and Attentions
First of all, as the most basic principle: This product is a professional lighting set
equipment and should be used by professional lighting engineers or under the guidance of
professionals. Basic safety attentions must always be followed during use, as follows:
Before use, please read and understand these instructions and attentions.
Professional lighting is prohibited for children. When children are near, parents or
accompanying persons must supervise closely to prevent children from personal injury due
to collision with lamps or private use of lamps.
This lighting product is not ordinary lighting product and cannot be used for general lighting.
Anyone who has suffered eye damage or has sensitive eyes should avoid using this product.
When the lamp is on, it must be used with care. Do not touch high-temperature parts, such
as LED lamp beads, to avoid burns.
When the lamp is on, it is forbidden to look directly at the lamp beads under any
circumstances. Strong light should be used under the guidance of professional lighting
engineers. Avoid prolonged exposure to strong light under any circumstances. If eye
discomfort, please turn off the lamp in time, suspend use, and see a doctor immediately.
If the lamp bead is damaged or deformed by heat, stop using this equipment, and contact
the manufacturer, service agent or qualied maintenance personnel to replace the lamp
bead in time to avoid accidents.
This product is only suitable for use in -20
℃
to 45
℃
operating environment and normal
humidity environment.
Do not use damaged equipment or accessories, and wait for professional maintenance
personnel to check and repair to conrm being normal before use.
During using, if the casing of this product is broken due to being dropped, squeezed or
subjected to strong impact, please do not use it, so as to avoid electric shock injury due to
contact with internal electronic components.
If an extension cord is required, please use an extension cord with a current rating greater
than or equal to that of the equipment. If an extension cord is rated less than the equipment,
overheating may result.
Some products have long power cords, please place the power cords properly and keep
them in a safe place. Avoid contacting the power cord with overheating surfaces, avoid
improper placement that could cause pulling damage, or trip on-site personnel. Please use
the certied power cord from the original manufacturer. If the product is damaged by using
a non-certied power cord, it will not be repaired by our factory.
Be sure to unplug equipment from the power outlet before cleaning and repairing. When not
in use, do not pull the power cord to unplug the equipment. For normal power-off, please
hold both ends of the plug of the equipment with your hands and pull the plug out of power
outlet. This equipment needs to be connected to a grounded outlet.
Do not disassemble the product without permission. If the product fails, it must be checked
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

37
and repaired by authorized maintenance personnel.
Before storing, make sure that the equipment has cooled down completely. For storage,
unplug the power cord from the equipment. The equipment should be placed in the carrying
case or in a ventilated dry place.
Do not place equipment near flammable and volatile solvents such as alcohol and gasoline.
Do not use accessories that are not recommended by our factory to avoid re, electric
shock or personal injury.
When cleaning, do not wipe it with a damp cloth, please use a dry cloth or a soft cloth to
wipe the dirt of the equipment.
Please take off the protective cover before using.
This product complies with ROHS
,
CE and FCC certication, please refer to the relevant
national standards for use and operation.
The safety instructions are formulated according to the strict testing of the factory, and
the design and specications of the equipment are subject to change without prior notice.
For latest product information, please check the GODOX website and view latest electronic
instruction.
Some products have built-in lithium batteries. Please use specied chargers, and use them
within a proper range of the specied voltage and temperature according to the correct
operating instructions.
Some products are battery powered. Do not use any batteries, power sources or
accessories not specied in the instructions for such products. Keep batteries and other
accessories out of the reach of children and infants. In the instance that a child or infant
swallows a battery or accessory, immediate emergency medical attention is required. If
the battery leaks, becomes discolored, deformed, emits smoke, or emits an abnormal odor,
remove it immediately. Be careful during removal to avoid burns. Continued use could
result in re, electric shock, or burns. Do not use any deformed or modied batteries. Do not
disassemble or modify this product or battery. Do not heat or solder the battery. Keep the
battery away from re or water. Do not incorrectly insert the positive and negative ends of
batteries, or mix old and new batteries or batteries of different types together.
One-year warranty period, accessories such as consumable batteries, adapters, power
cords, etc. are not covered by this warranty.
If it is found that the equipment is repaired without authorization, the one-year warranty
period will be cancelled and relevant fees will be charged for maintenance.
Machine failures caused by non-standard operation are not covered by the warranty.
No stepping on F100R or folding or rolling it up for storage, please lay flat when storing it.
No stepping on F200R and F200SR or rolling them up for storage, please fold them along
the center when storing them.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualied person in order
to avoid a hazard.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.

38
Keep these instructions!
0.2m
:
The minimum distance from lighted objects is 0.2m.
The light source of this luminaire is not replaceable; when the light source reaches its
end of life the whole luminaire shall be replaced.
The insulation between LV supply and control conductors is reinforced insulation.
The luminaire is intended for professional use only.
When the port is not in use, it must be covered with the waterproof cover.
For the Non-detachable cord tted with a plug, when in damp and wet location, the
user shall provide an equivalent degree of protection against harmful ingress of dust
and moisture as that provided by the luminaire. such as connected to the moisture
protected power outlet.
29.
30.
31.
32.
33.

39
Foreword
Main Features
Thank you for purchasing!
KNOWLED full color flexible LED light F100R, F200R and F200SR have the following
prominent features: 100V-240V power supply supports global use, separately purchased
14.8V or 26V V-mount battery into the battery slot can realize battery power supply,
flexible and collapsible light body is easy to store, the whole device meets IP54 dustproof
and waterproof standard, built-in full-color, thousand-bit adjustable brightness, wide CCT
ranges from 1800K to 10000K, 14 FX modes, four dimming curves, and various controlling
methods. They are suitable for short video shooting, advertising shooting, e-commerce
live streaming, commercial photography, film and television shooting and other scenes,
perfectly competent for any lighting occasions.
Full-color together with diversied lighting scenes.
Thousand-bit adjustable brightness from 0.0% to 100
%
.
Wide CCT ranges from 1800K to 10000K.
IP54 provides protection from dust and water in both outdoor and indoor environments.
Support various controlling methods: DMX512/LumenRadio CRMX/ Bluetooth control.
14 FX modes: flash, lightning, cloudy, broken bulb, TV, candle, re, rework, explosion,
welding, cop car, SOS, RGB cycle, party.
Do not stare at the operating light source.

40
Names of Parts
Light Body
Controller
1. Lamp Bead
2. Connecting Cable
3. Mounting Hole
Note: The difference between F100R, F200R and F200SR light bodies is that they are different in size, and the
name of parts takes F100R as an example.
1. Power Switch Button
2. DC OUTPUT Port
3. Display
4. Select Dial
5. MODE Button
6. MENU Button
7. LOCK Button
8. PRESET Button
9. LED Status Indicator
PRESET LOCK MENU MODE
DC OUTPUT
100W
2
8 7 6 5
2
4
9
1
3
1
3

41
10. Left V-mount Battery Slot
11. Left Battery Locking Pusher
12. DMX OUT Port
13. DMX IN Port
14. Right V-mount Battery Slot
15. Right Battery Locking Pusher
16. USB-A Port
17. AC INPUT Port
13 12
10
11
14
15
16
17
Mount the LED Light on the Light Stand
Step 1: Mount on the metal bracket
F100R: Snap the curved hooks at the ends of the metal bracket into the mounting holes on
the light.
Note: Please close the covers of DMX OUT port, DMX IN port, USB-A port and AC INPUT port when not in
using.

42
F200R: Unfold the four poles of the metal bracket along the grooves, then snap the curved
hooks at the ends of the metal bracket into the mounting holes on the light.
F200SR: Snap the curved hooks at the ends of the metal bracket into the mounting holes on
the light, press down on the center of the metal bracket and it will be locked automatically
with a “click”. To retract the pole, press and hold the pusher on it to the center.
Mount F100R, F200R and F200SR on the
metal bracket according to the above
steps, insert the mounting head of the
metal bracket into the mounting hole of
the adapter, then tighten the xing knob.
Insert the adapter into the light stand,
rotate the xing knob to lock the light as a
whole on the light stand.
Step 2: Attach to the adapter Step 3: Mount on the light stand

43
Install the Attached Softbox
The attached softbox includes
①
softbox,
②
diffuser,
③
grid, and storage bag.
Since the edges of LED light and softbox both have velcros, stick the softbox to the LED
light along the sides rst, then stick the diffuser and grid in order along the inner side of the
softbox.
①
②
③
Install the Separately Sold Skirt Set
You can separately purchase a skirt set for better lighting effect.
Install the softbox according to the above steps, stick the skirt set along the outer side of
the softbox to make it completely covers the light source. There are velcros around the skirt,
which can be teared off to set the needed lighting effects.

44
Install the Air Softbox in K2
F100R K2,F200R K2 and F200SR K2 have air softbox which includes
①
air softbox,
②
grid,
③
skirt set, and air pump, patch tape, storage bag.You can also separately purchase air
softbox.The pictures below take F100R as an example.
Since the edges of LED light and air softbox both have velcros, manually inflat the air
softbox and stick it to the LED light along the sides rst, then stick the grid and skirt set in
order along the inner side of the air softbox.
DMX Connection
Note: DMX connection cable is sold separately.
Multiple connections
DMX512 controller
①
②
③

45
What’s Inside F100R K1
Adapter Holder ×1
Light Body ×1
Softbox FS100 ×1Metal Bracket ×1
Controller ×1
Connection Cable ×1 AC Power Cord ×1
Storage Bag ×1 Instruction Manual ×1

46
What’s Inside F200R K1
Light Body ×1
Softbox FS200 ×1Metal Bracket ×1
Adapter Holder ×1
Controller ×1
Connection Cable ×1 AC Power Cord ×1
Storage Bag ×1 Instruction Manual ×1

47
Adapter Holder ×1
Controller ×1
Connection Cable ×1 AC Power Cord ×1
What’s Inside F200SR K1
Light Body ×1
Softbox FS200S ×1Metal Bracket ×1
Storage Bag ×1 Instruction Manual ×1

48
What’s Inside F100R K2
Light Body ×1
Air Softbox FA100 ×1Metal Bracket ×1
Adapter Holder ×1
Controller ×1
Connection Cable ×1 AC Power Cord ×1
Storage Bag ×1 Instruction Manual ×1
Note: Air softbox FA100 includes air softbox*1, grid*1, skirt set*1, air pump*1, patch tape*1, storage bag*1.

49
What’s Inside F200R K2
Light Body ×1
Air Softbox FA200 ×1Metal Bracket ×1
Adapter Holder ×1
Controller ×1
Connection Cable ×1 AC Power Cord ×1
Storage Bag ×1 Instruction Manual ×1
Note: Air softbox FA200 includes air softbox*1, grid*1, skirt set*1, air pump*1, patch tape*1, storage bag*1.

50

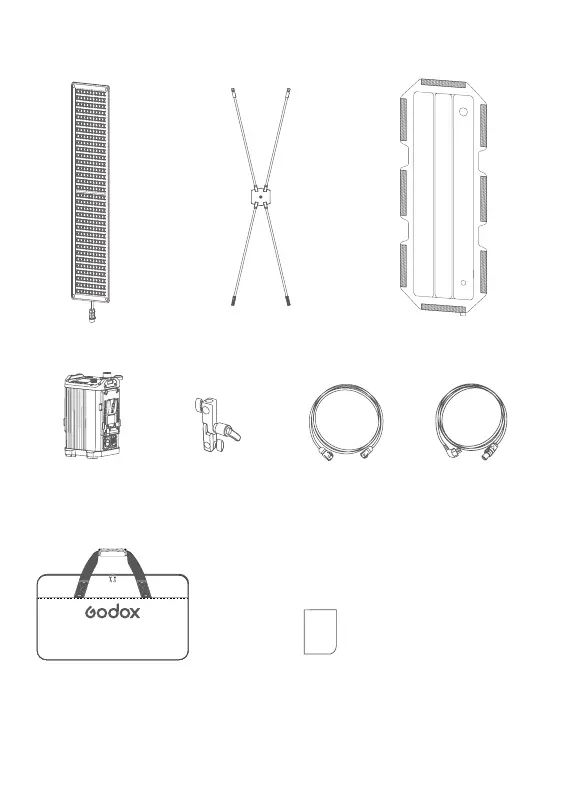

What’s Inside F200SR K2
Light Body ×1
Air Softbox FA200S ×1Metal Bracket ×1
Adapter Holder ×1
Controller ×1
Connection Cable ×1 AC Power Cord ×1
Storage Bag ×1 Instruction Manual ×1
Note: Air softbox FA200S includes air softbox*1, grid*1, skirt set*1, air pump*1, patch tape*1, storage bag*1.

51
What’s Inside F200SR K3
Light Body ×1 Air Column ×1
Controller ×1 Grid ×1
Connection Cable ×1Skirt ×1 AC Power Cord ×1Inflator ×1
Note: Due to continuous updates and upgrades of the products, there may be differences between the actual products and
the pictures. Therefore, the pictures are for reference only, products to prevail in kind.
Storage Bag ×1 Instruction Manual ×1
Patch Tape ×1Fabric Handle ×2
Velcro Hook
Fastener ×1
Connecting
Holder ×1

52
Separately Sold Accessories
F100R: Air Softbox FA100, Skirt Set for Softbox SS-FS100
F200R: Air Softbox FA200, Skirt Set for Softbox SS-FS200, Pancake Lantern FP200
F200SR: Air Softbox FA200S, Skirt Set for Softbox SS-FS200S
General Accessories for All: 5m DC Connection Cable F-DC5D, Pipe Clamp PC01
Power Supply
AC Power Supply
① Please turn o the power when
disassembling and installing the
connection cable or power cord,
it is strictly forbidden to plug and
unplug when the power is on.
② Please press the latch button
and rotate anticlockwise when
disassembling the connection
cable and power cord with latch
button.

53
V-mount Battery Power Supply
There is one V-mount battery slot on the left and right sides of the controller, to inserted one
separately purchased 14.8V or 26V V-mount battery respectively.
①
When switching AC power supply to V-mount battery supply, please turn off the power
and unplug the power cord rst, and insert in the V-mount battery to turn on the power.
②
Only the left battery slot supports unilateral power supply. So if you only have one
battery, please insert it into the left battery slot to power the device on.
③
When the device is powered by two batteries, but one of which is in low power status,
the device still can not work normally even if the other one is fully charged, so it is
recommended to check in advance if both batteries have sufcient power.
Unilateral power
supply on the left
Press the battery
locking pusher on the
left can pull out the
battery
Max. Brightness Values of F200R and F200SR of in Different
Status
V-mount Battery
One 14.8V
Two 14.8V
One 26V
Two 26V
14.8V+26V
Linear
70%
100%
100%
100%
100%
S-curve
58.8%
100%
100%
100%
100%
Exponential
87.2%
100%
100%
100%
100%
Logarithmic
39.2%
100%
100%
100%
100%

55
HSI Mode
Short press the MODE button to enter
mode selection, rotate and press the select
dial to select HSI mode, in which you can
adjust the DIM/HUE/SAT. Rotate the select
dial clockwise to increase the parameters,
while rotate anticlockwise to decrease the
parameters.
DIM range: 0
%~
100
% (in 0.1% increment)
HUE range: 0°
~
360°
SAT range: 0%
~
100%
RGBW Mode
Short press the MODE button to enter
mode selection, rotate and press the select
dial to select RGBW mode, in which you
can adjust the DIM/red/green/blue/white.
Rotate the select dial clockwise to increase
the parameters, while rotate anticlockwise
to decrease the parameters.
DIM range: 0
%~
100
%
Red range: 0
%~
100
%
Green range: 0
%~
100
%
Blue range: 0
%~
100
%
White range: 0
%~
100
%
Note: All va in 0.1% increment.
GEL Mode
Short press the MODE button to enter
mode selection, rotate and press the select
dial to select GEL mode, in which you can
adjust the DIM/gel type/gel group type/
color/CCT/HUT/SAT. Rotate the select
dial clockwise to increase the parameters,
while rotate anticlockwise to decrease the
parameters.
HUE
SAT
R-GEL
COR.

56
DIM range: 0
%~
100
% (in 0.1% increment)
Gel type: R-GEL/L-GEL
Gel Group Type
(R-GEL)
COR./CAL./SPC./CINE.
Gel Group Type
(L-GEL)
COR./COLOR./600/COS./700
CCT range: 3200K or 5600K
HUE range: -10°
~
10°
SAT range: -20
%~
20
%
DIM range: 0
%~
100
% (in 0.1% increment)
X coordinate: 0.0000
~
0.8500
Y coordinate: 0.0000
~
0.8500
XY Mode
Short press the MODE button to enter
mode selection, rotate and press the select
dial to select XY mode, in which you can
adjust the DIM/X coordinate/Y coordinate/
color temperature/color space. Rotate
the select dial clockwise to increase the
parameters, while rotate anticlockwise to
decrease the parameters.

57
FX Mode
Short press the MODE button to enter
mode selection, rotate and press the select
dial to select FX mode, in which you can
choose among the following 14 effects
and adjust their respective parameters.
Rotate the select dial clockwise to increase
the parameters, while rotate anticlockwise
to decrease the parameters.
1.Flash
This light effect simulates the flash of a
camera flash or a traditional flash bulb,
often used to create a lively and dynamic
atmosphere.
DIM: 0
%
-100
%
(in 0.1% increment)
Switch: Turn on/off the effect
Trigger: Auto/Manual
Color: CCT/HSI
CCT/HUE: 1800K-10000K/0-360°
Speed: 1-100
Mode: Camera Flash/Flash Bulb
2. Lightning
This effect simulates the natural thunder
and lightning and is often used to create a
tense, terrifying or mysterious atmosphere.
DIM: 0
%
-100
%
(in 0.1% increment)
Switch: Turn on/off the effect
Ratio: 30
%
-90
%
Speed: Random/1-100
3. Cloudy
This effect simulates the effect of cloud
occlusion and is often used to create a
gloomy, oppressive or sad atmosphere.
DIM: 0
%
-100
%
(in 0.1% increment)
Switch: Turn on/off the effect
Trigger: Auto/Manual
CCT: 1800K-10000K
Times: Random/1-10
Frequency: Random /2-20
Flash

58
DIM: 0
%
-100
%
(in 0.1% increment)
Switch: Turn on/off the effect
Color: CCT/HSI
Speed: 1-100
4. Broken Bulb
This effect simulates the effect of a
broken bulb and is often used to create a
dim atmosphere.
5.TV
This effect simulates the effect of light
from a television or screen and is often
used to create a cold, mechanical or digital
atmosphere.
DIM: 0
%
-10 0
%
(in 0.1% increment)
Switch: Turn on/off the effect
Speed: 1-100
6. Candle
This effect simulates the effect of light
from a candle and is often used to create a
soft, warm, shimmering atmosphere.
DIM: 0
%
-100
%
(in 0.1% increment)
Switch: Turn on/off the effect
Color: CCT/HSI
CCT/HUE: 1800K-10000K/0-360°
Speed: 1-100
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
Speed: 1-100
7. Fire
This effect simulates the effect of light
from flame and is often used to create a
bright, warm, shimmering atmosphere.
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
Embers: 1-100
Speed: 1-100
8. Firework
This effect simulates the effect of light
from reworks and is often used to create
a gorgeous, colorful, romantic atmosphere.

59
This effect simulates the effect of light
from explosion and is often used to create
a bright, erce, shimmering atmosphere.
This effect simulates the effect of light
from welding and is often used to create a
hot, mechanical atmosphere.
9. Explosion
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
Trigger: Auto/Manual
Color: CCT/HSI
CCT/HUE: 1800K-10000K/0-360°
Embers: 1-100
Speed: 1-100
10. Welding
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
Color: CCT/HSI
CCT/HUE: 1800K-10000K/0-360°
Speed: 1-100
This effect simulates the effect of light
from cop car and is often used to create a
tension, chasing atmosphere.
11. Cop Car
DIM: 0
%
-100
%
(in 0.1% increment)
Switch: Turn on/off the effect
Color: Red+Blue, Red, Blue, Blue+White,
Blue+Yellow, Yellow, Red+White+Blue,
Red+Yellow+Blue
Mode: 1-5
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
Color: CCT/HSI
CCT/HUE: 1800K-10000K/0-360°
12. SOS
This effect simulates the flashing effect of
an SOS signal and is often used to create
a dangerous, distress or emergency
atmosphere.

60
13. RGB Cycle
This effect simulates the effect cycle and
change of colorful lights and is often used
to create a fantasy, sci- atmosphere.
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
SAT: 0%-100%
Speed: 1-100
DIM: 0%-100% (in 0.1% increment)
Switch: Turn on/off the effect
SAT: 0%-100%
Speed: 1-100
14. Party
This effect simulates the effect of colorful
lights, flashes and laser, and is often used
to create a carnival, fun, high energetic
atmosphere.
Note: Please rotate the select dial to adjust the parameters, then press and rotate it to the next parameter.
Select manual, the effect can be triggered once by pressing the select dial once. After a certain effect is set,
press MODE button can return to the 14 effects interface.

61
MENU Settings
Press the MENU button to enter menu
interface, rotate and press the select dial to
enter the following setting options, press
the MENU button can return to the MENU
interface.
Short press the select dial to enter DMX
interface, press and rotate the select dial to
adjust the following settings.
1. DMX
1
M

62
Level 1 Option
Address
DMX Mode
RDM State
DMX Lost
Termination
Ext-Channels
Level 2 Option
001-512
01: CCT 8 Bit
02: HSI 8 Bit
03: RGB 8 Bit
04: RGBW 8 Bit
05: RGBWW 8 Bit
06: CCT+HSI 8 Bit
07: CCT+RGBW 8 Bit
08: FX 8 Bit
09: GEL 8 Bit
10: CCT 16 Bit
11: HSI 16 Bit
12: RGB 16 Bit
13: RGBW 16 Bit
14: XY 16 Bit
15: FX 16 Bit
16: GEL 16 Bit
On
O
Hold Last Command
Black Out
Black Out After 2 min
On
O
On
O
Description
Initial address
CCT mode in 8bit
HSI mode in 8bit
RGB mode in 8bit
RGBW mode in 8bit
RGBWW mode in 8bit
CCT+HSI mode in 8bit
CCT+RGBW mode in 8bit
FX mode in 8bit
GEL mode in 8bit
CCT mode in 16bit
HSI mode in 16bit
RGB mode in 16bit
RGBW mode in 16bit
X-Y mode in 16bit
FX mode in 16bit
GEL mode in 16bit
Turn on RDM, the controller can set the xture
address and DMX mode
Turn off RDM
After the DMX control signal is lost, continue
to use the last received DMX control signal
until power down or a valid DMX control
signal is received again.
The light is off immediately.
After the DMX control signal is lost, continue
to use the last received DMX control signal
for 2 minutes then black out.
Note: If a valid DMX control signal is received
within 2 minutes, then use the new DMX
control signal.
Turn on DMX terminal
Turn off DMX terminal
Turn on extend DMX channels
Turn off extend DMX channels
Note: Please refer to the DMX mode specication to control the device by DMX/RDM. The electronic version
can be downloaded from the ofcial website https://www.godox.com.

63
2. CRMX
3. Bluetooth
Short press the select dial to enter CRMX
interface, press and rotate the select dial to
turn on/off, or reset.
Short press the select dial to enter
Bluetooth interface, press and rotate the
select dial to Bluetooth to turn it on or off.
If you need to reset the Bluetooth, rotate
the select dial to reset and press it. The
MAC code is on the right corner for quick
check.
“GODOX Light” app Downloading
Scan the QR code to download the "Godox
Light" smartphone app (can be used in
Android and iOS).
Scan the QR code to download “Godox
KNOWLED” app (Currently available for
tablet download and use only).
Note:
1. The app can be used directly on the rstly
installed device (smartphone or tablet). When
change to other mobile device (smartphone or
tablet), the light shall be reset before the normal
connection of the app.
2. The app should be version 3.0 or above.
“GODOX KNOWLED” app Downloading

64
4. Dimming Curves
Short press the select dial to enter
dimming curves interface, press and rotate
the select dial to select among linear,
S-curve, exponential and logarithmic.
5. Smoothing
Short press the select dial to enter
smoothing setting interface. Rotate and
short press the select dial to choose
among default, smooth and off.
Smoothing
Default
Smooth
Off
Note
The brightness data is basically smoothed to achieve smooth
dimming and shorten the response time.
The brightness data is smoothed to achieve ultra-smooth
dimming with a slow response time.
No smoothing of brightness data, fastest response time.

66
10. Version
Short press the select dial to enter version
interface to check the rmware version
and upgrade instruction.
9. Language
Short press the select dial to enter
language interface, press and rotate the
select dial to choose between simplied
Chinese and English.
Firmware Upgrade
1. Download the new rmware to the U disk from ofcial website (https://www.godox.com/
rmware-continuous-light).
2. Turn off the device. Insert the U disk with new rmware into the USB-A port.
3. Turn on the device, and it will automatically enter the upgrading interface.
4. It will return to main interface after completion.
Notes:
1. New rmware must be downloaded from the ofcial website, and keep only one BIN le in the root directory
of the USB disk.
2. The USB-A port can only support output voltage and current of 5V/1.5A. Do not connect to over-rated USB
device.

68
Note: The locking function only works on the controller panel, other operations are still available.
Short press the LOCK button, the panel
is locked when < > is displayed on the
panel, press it again to unlock.
Lock Setting
Short press the PRESET button to enter
preset effects interface. Rotate and press
the select dial to choose and enter preset
effects 1-20.
1. Short press the MODE button to enter
the mode interface and set the desired
parameters.
2. Short press the PRESET button to enter
the preset interface, if you want to save
this effect as preset 1, choose preset 1 and
press the select dial to save.
3. You can apply, delete, save or cancel the
preset groups by rotating and pressing the
select dial.
Preset Setting

69
Illuminance Data of F100R
Unit
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
CCT
1800K
2800K
3200K
4300K
5600K
6500K
8500K
10000K
R
(
Red
)
G
(
Green
)
B
(
Blue
)
Condition
Bare Light
1m
(
Normal
)
899
84
2920
272
3310
307
3470
322
3840
357
3510
326
3390
315
3520
327
1m
(
Highspeed
)
1070
99
3570
331
3520
327
4340
403
4740
440
4080
379
3720
346
3740
348
432
40
829
77
191
18
2m
(
Normal
)
227
21
774
72
879
82
921
86
1020
95
933
87
902
84
937
87
2m
(
Highspeed
)
286
27
961
89
946
88
1170
108
1270
118
110 0
102
1000
93
1010
94
118
11
223
21
52
5
3m
(
Normal
)
100
9
346
32
392
36
410
38
454
42
416
39
403
37
419
39
3m
(
Highspeed
)
131
12
440
41
435
40
536
50
585
54
504
47
460
43
463
43
54
5
102
10
24
2

70
Illuminance Data of F200R
Unit
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
CCT
1800K
2800K
3200K
4300K
5600K
6500K
8500K
10000K
R
(
Red
)
G
(
Green
)
B
(
Blue
)
Condition
Bare Light
1m
(
Normal
)
2100
195
6000
557
6900
641
7500
697
8070
750
7330
681
7000
650
7250
673
1m
(
Highspeed
)
2140
199
6080
559
6980
643
8470
786
8900
827
7380
685
7030
653
7270
675
2m
(
Normal
)
579
54
1690
157
1940
180
2110
196
2280
212
2070
192
1980
184
2050
190
2m
(
Highspeed
)
611
57
1710
158
1970
181
2410
224
2530
235
2110
196
2010
187
2080
193
3m
(
Normal
)
265
25
778
72
895
83
972
90
1050
98
952
89
911
85
945
88
3m
(
Highspeed
)
284
26
791
74
896
83
1120
104
1180
109
980
91
934
87
966
90
813
76
1960
182
430
40
241
22
570
53
122
11
114
11
265
25
56
5

71
118
11
263
24
73
7
Illuminance Data of F200SR
Unit
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
lux
fc
CCT
1800K
2800K
3200K
4300K
5600K
6500K
8500K
10000K
R
(
Red
)
G
(
Green
)
B
(
Blue
)
Condition
Bare Light
1m
(
Normal
)
1990
185
5470
508
6300
585
6830
635
7350
683
6620
615
6380
592
6610
614
1m
(
Highspeed
)
2010
187
5540
512
6410
586
7560
703
7900
734
6680
617
6410
596
6640
616
2m
(
Normal
)
587
55
1640
153
1890
176
2050
191
2210
205
1990
185
1920
178
1990
185
2m
(
Highspeed
)
597
56
1690
156
1920
178
2290
213
2390
222
2050
187
1960
180
2040
187
3m
(
Normal
)
268
25
762
71
875
81
952
89
1020
95
922
86
889
83
921
86
3m
(
Highspeed
)
282
26
768
71
868
81
1080
101
1130
105
945
88
905
84
936
87
860
80
1910
177
513
48
259
24
572
53
156
15

72
Technical Data
Model
Power Supply
Input Power
CCT
GM Adjust
Brightness Range
Dimming Curves
CRI
TLCI
Protection Grade
of Light Body/
Controller
Controlling
Methods
Bluetooth
Controlling
Distance
USB-A Port
Working
Environment
Temperature
Dimension≈
Netweight≈
F100R
130W
Bare Light Body
:
13.54 "*25.04"
Controller
:
6.06"*5.04"*9.13"
Bare Light Body
:0 . 6
kg
Controller
:2 . 8
kg
F200R
250W
Bare Light Body
:
25.08"*25.08"
Controller
:
6.06"*5.04"*9.13"
Bare Light Body
:1
kg
Controller
:
2.8kg
F200SR
250W
Bare Light Body
:
13.54"*48.03"
Controller
:
6.06"*5.04"*9.13"
Bare Light Body
:1 . 0 5
kg
Controller
:2 . 8
kg
Specications and data may subject to changes without notice.
1800K-10000K
-100
%
~100
%
0%-100%
linear, S-curve, exponential, logarithmic
Average≥96
Average≥98
IP54
DMX 512 Control, support RDM protocol/LumenRadio CRMX/ Bluetooth app Control
30m
Firmware Upgrade/5V 1.5A Power Supply
-20
℃~
45
℃
100V-240V~50/60Hz

产品保修
尊敬的用户,本保修卡是申请保修服务的重要凭证,请您配合销售商填写并妥善保管,谢谢!
产品信息
用户信息
销售商信息
备注
型号
姓名
通信地址
名称
联系电话
通信地址
销售日期
产品条码
联系电话
注:此表应由销售商盖章确认。
本文件适用于相关《产品保修信息》( 见后面说明 ) 所列产品,其他非属此范围的产品或部件 ( 如促销品、
赠品及其他出厂后附加的部件等 ) 不在此保修承诺内。
产品信息
产品及部件的相应保修期按相关的《产品保修信息》执行。保修期自产品首次购买日起算,购买日以
购买产品时保修卡登记日期为准。
保修期
您可直接与产品销售商或授权服务机构联系,也可拨打神牛产品售后服务电话,与我们联系,由我们
的服务人员为您安排服务。申请保修时,您应提供有效的保修卡作为保修凭证,方可获得保修。如您
不能提供有效的保修卡,则在我们确认产品或部件属于保修范围的情况下,也可以为您提供保修,但
这不作为我们的义务。
如何获得保修服务

如产品存在下列情况,本文件项下的保证和服务将不适用 : ①产品或部件超过相应保修期;②错误
或不适当使用、维护或保管导致的故障或损坏,如:不当搬运;非按产品合理预期用途使用;不当
插拨外接设备;跌落或外力挤压;接触或暴露于不适当温度、溶剂、酸碱、水浸或潮湿环境;③由
非神牛授权机构或人员安装、修理、更改、添加或拆卸造成的故障或损坏;④产品或部件原有识别
信息被修改变更或除去;⑤无有效保修卡;⑥使用非合法授权、非标准或非公开发行的软件造成的
故障或损坏;⑦因不可抗力或意外事件造成的故障或损坏;⑧其他非因产品本身质量问题导致的故
障或损坏。遇上述情况,您应向相关责任方寻求解决,神牛对此不承担任何责任。因非在保修期或
保修范围内的部件、附件或软件导致产品不能正常使用的,不是保修范围内的故障。产品使用过程
中正常的脱色,磨损和消耗,不是保修范围内的故障。
产品类别
部件
其他
选件名称
电路板
电池
充电器等带电性能的部件。
如外壳、 保护罩、锁紧装置、包
装等。
保修期(月)
12
3
12
无
神牛产品售后服务电话 0755-29609320-8062
不适用保修情況
产品保修和服务支持信息
产品的保修期和服务类型按以下《产品保修信息》执行:
保修服务类型
客户送修
客户送修
客户送修
无保修

Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance
service, please ll in the following form in coordination with the seller and safe-keep it. Thank you!
Note: This form shall be sealed by the seller.
If maintenance service is needed, you can directly contact the product distributor or authorized
service institutions. You can also contact the Godox after-sale service call and we will offer you
service. When applying for maintenance service, you should provide valid warranty card. If you
cannot provide valid warranty card, we may offer you maintenance service once conrmed that the
product or accessory is involved in the maintenance scope, but that shall not be considered as our
obligation.
How to Get the Maintenance Service
Applicable ProductsThe document applies to the products listed on the Product Maintenance
lnformation (see below for further information). Other products or accessories (e.g. promotional
items,giveaways and additional accessories attached,etc.) are not included in this warranty scope.
Applicable Products
The warranty period of products and accessories isimplemented according to the relevant Product
Maintenance Information. The warranty period is calculated from the day(purchase date) when the
product is bought for the rst time,And the purchase date is considered as the date registered onthe
warranty card when buying the product.
Warranty Period
Product
Information
Customer
Information
Seller
Information
Note
Model
Name
Address
Name
Contact Number
Address
Date of Sale
Product Code Number
Contact Number

The guarantee and service offered by this document are not applicable in the following cases:
①
The product or accessory has expired its warranty period;
②
Breakage or damage caused by
inappropriate usage, maintenance or preservation, such as improper packing, improper usage,
improper plugging in/out external equipment, falling off or squeezing by external force, contacting
or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc;
③
Breakage or damage caused by non-authorized institution or staff in the process of installation,
maintenance, alternation, addition and detachment;
④
The original identifying information of
product or accessory is modied, alternated, or removed;
⑤
No valid warranty card;
⑥
Breakage
or damage caused by using illegally authorized, nonstandard or non-public released software;
⑦
Breakage or damage caused by force majeure or accident;
⑧
Breakage or damage that could not
be attributed to the product itself. Once met these situations above, you should seek solutions
from the related responsible parties and Godox assumes no responsibility. The damage caused
by parts, accessories and software that beyond the warranty period or scope is not included in our
maintenance scope. The normal discoloration, abrasion and consumption are not the breakage
within the maintenance scope.
Godox After-sale Service Call +86-755-29609320(8062)
Inapplicable Cases
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product
Maintenance Information:
Product
Type
Parts
Other
Items
Lamp body, lamp cover, locking device,
package, etc.
Electrical parts e.g.battery charger, etc.
Battery
Circuit board
Name
Maintenance
Period(month)
3
12
3
No
Customer sends the
product to
designated site
Customer sends the
product to
designated site
Customer sends the
product to
designated site
Without warranty
Warranty
Service Type
Produkt Specifikationer
Mærke: | Godox |
Kategori: | lampe |
Model: | Knowled F100R |
Har du brug for hjælp?
Hvis du har brug for hjælp til Godox Knowled F100R stil et spørgsmål nedenfor, og andre brugere vil svare dig
lampe Godox Manualer
10 Marts 2025
4 December 2024
4 December 2024
3 Oktober 2024
28 September 2024
22 September 2024
17 September 2024
7 September 2024
5 September 2024
2 September 2024
lampe Manualer
- Adviti
- Denver
- Auray
- Heitronic
- Güde
- Claypaky
- ArmyTek
- Metabo
- Craftmade
- X4-Tech
- Smart
- Maginon
- DLG
- Emos
- Flex
Nyeste lampe Manualer
4 April 2025
4 April 2025
4 April 2025
4 April 2025
4 April 2025
4 April 2025
3 April 2025
3 April 2025
2 April 2025
2 April 2025
