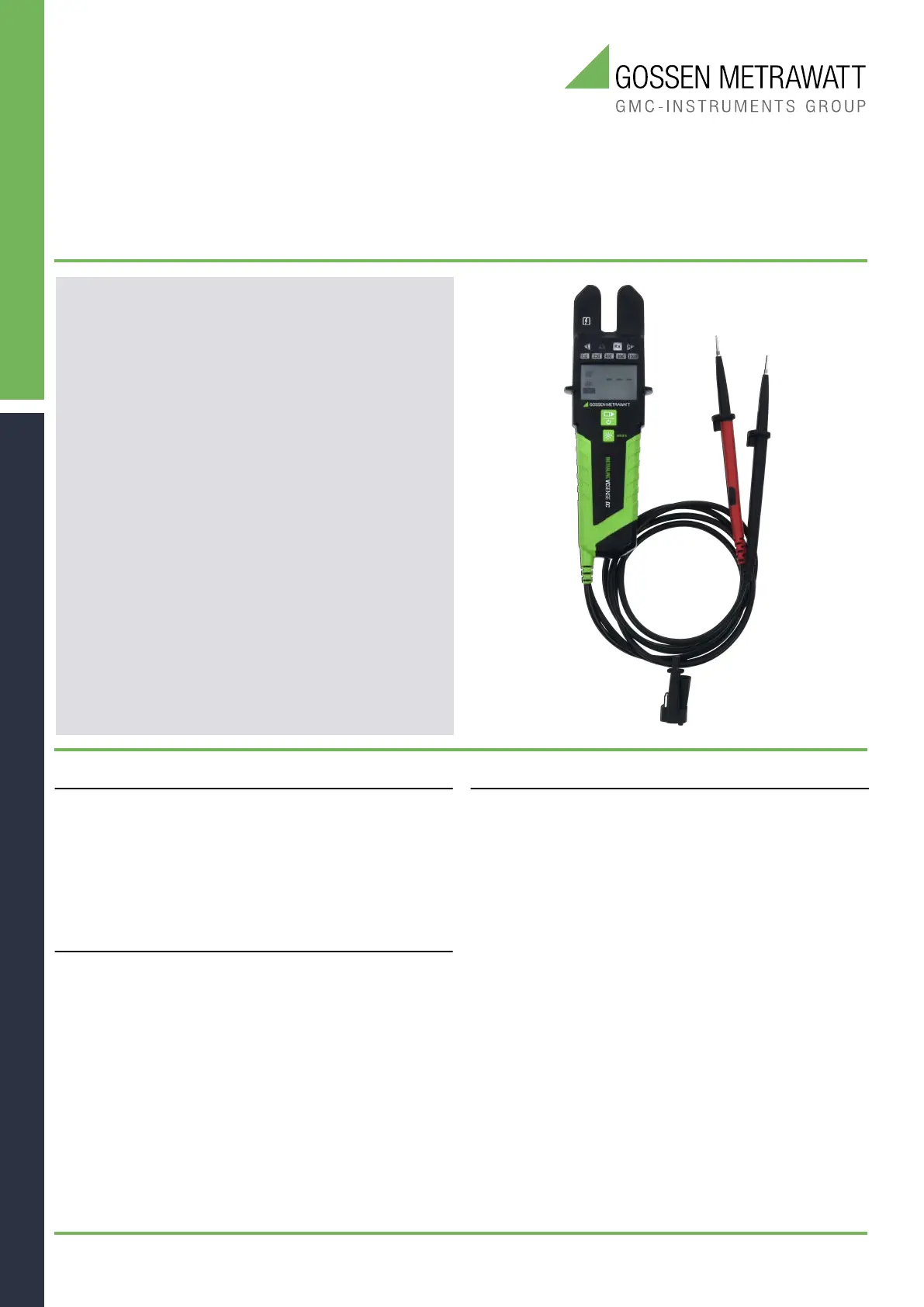

DATA SHEET
3-447-300-03
1/5.25
METRALINE VC SENSE DC
M611U
CURRENT-VOLTAGE TESTER
APPLICATION
The METRALINE VC SENSE DC is a universally applicable
tester for voltage, current, phase sequence, continuity, sin-
gle-pole phase testing, and for various additional tests.
The instruments are produced in accordance with the latest
safety regulations and guarantee safe and reliable working.
SCOPE OF DELIVERY
Standard Scope of Delivery:
INCLUDED FEATURES
METRALINE VC SENSE DC is characterized by the following
features:
 Designed per DIN EN 61243-3
 Measuring category CAT IV 600 V, CAT III 1000 V,
CAT II 1000 V
 DC and AC voltage test with polarity display
1 V
AC
… 1000 V
AC
and/or 1 V
DC
… 1500 V
DC
 Current measurement 0.1 A
AC/DC
… 200 A
AC/DC
 Single-pole phase testing
 2-pole phase sequence measurement to earth
 Continuity test (also diode)
 Resistance measurement 0 Ω … 100 kΩ
 Frequency measurement from 0 Hz… 800 Hz
 Broken Cable Detection
 Vibration and sound
 Automatic on/off
 Measuring point illumination by means of white LED
1 METRALINE VC SENSE M611U
2 4 mm test probe adapter
2 Safety caps CAT III / 1000 V, GS 38
2 Batteries (1.5 V, AAA, IEC LR03)
1 Operating instructions
 Handy, slim design that fits perfectly into any everyday
working environment
 DC and AC voltage test with polarity display and simple
result indication via LEDs in the fork and on the display
 Contactless current measurement AC and DC
 Resistance measurement
 Frequency measurement
 Single-pole phase testing
 Continuity
 Rotary field
 Contactless cable break detection via sensor
 Display (4-digit, 7-segment display) with illumination
 Test probes can be fixed at the fork with a probe dis-
tance of 19 mm
(suitable for socket testing)
 Bright illumination of measuring points in the fork
 Vibration and sound generator for safe feedback in any
environment
2 | 2 METRALINE VC SENSE DC
Gossen Metrawatt GmbH
Südwestpark 15
90449 Nürnberg
Germany
+49 911 8602-0
+49 911 8602-669
info@gossenmetrawatt.com
www.gossenmetrawatt.com
© Gossen Metrawatt GmbH
Prepared in Germany • Subject to change, errors excepted •
PDF version available on the Internet
All trademarks, registered trademarks, logos, product names and company
names are the property of their respective owners.
TECHNICAL DATA
Display
4-digit, 7-segment display, with illumination;
Voltage (AC/DC), low voltage, polarity, current, continuity, low continuity,
frequency, Data Hold, Zero, overflow indicator, battery charge level
indicator
LEDs
Voltage (120 V, 230 V, 400 V, 690 V, 1000 V), warning of
dangerous voltage, single-pole phase test, continuity, phase sequence
Voltage testing
1 V
AC
... 1000 V
AC
TRMS (15 Hz ... 400 Hz),
1 V
DC
… 1500 V
DC
with polarity indicator
Current measurement
0.1 A
AC/DC
... 200 A
AC/DC
, 40 Hz ... 400 Hz
Single-pole phase testing
100 V
AC
… 1000 V
AC
, 50/60 Hz
Phase sequence test 170 V … 1000 V phase-to-phase, AC 40 Hz … 70 Hz
Continuity test 0 Ω ... 500 kΩ +50 %, continuous acoustic signal when resistance < 20 Ω
Diode test Continuity testing
Resistance measurement
0 Ω … 100 kΩ
Resolution: 1 Ω for < 2 kΩ; 1 kΩ for > 2 kΩ
Frequency measurement 0 Hz … 800 Hz
Broken Cable Detection
with sensor, drop in signal strength indicates cable break for special
examination, indication via display and sounds
Measuring operation 30 s on (operating time), 240 s off (recovery time)
Current consumption from measured object
< 3.5 mA at 1000 V
AC
, <6 mA (at 1500V
DC
)
Battery 2 × 1.5 V AAA, IEC LR03
Measuring category CAT IV 600 V, CAT III 1000 V, CAT II 1000 V
Flashlight White LED
Self-test Yes
Automatic on/off On: Voltage, continuity / off: 10 s
Measurement cables 19 mm probe distance, storage on the back
Opening of the current fork 14 mm
Tested per DIN EN 61243-3, DIN EN 61010-1
Protection IP64
Ambient Conditions
Temperature: –15 … 55° C operation; –20 … 70° C storage;
Humidity: max. 85 % relative humidity, no condensation
Elevation: up to 2000 m
