Operating Instructions

SECUTESTST BASE(10) / PRO and SECULIFE STBASE(25)

Test Instrument for Testing the Electrical Safety of Devices

per VDE 0701-0702, IEC 62353 und IEC 60974-4

3-447-067-03

1/10.20

2 Gossen Metrawatt GmbH

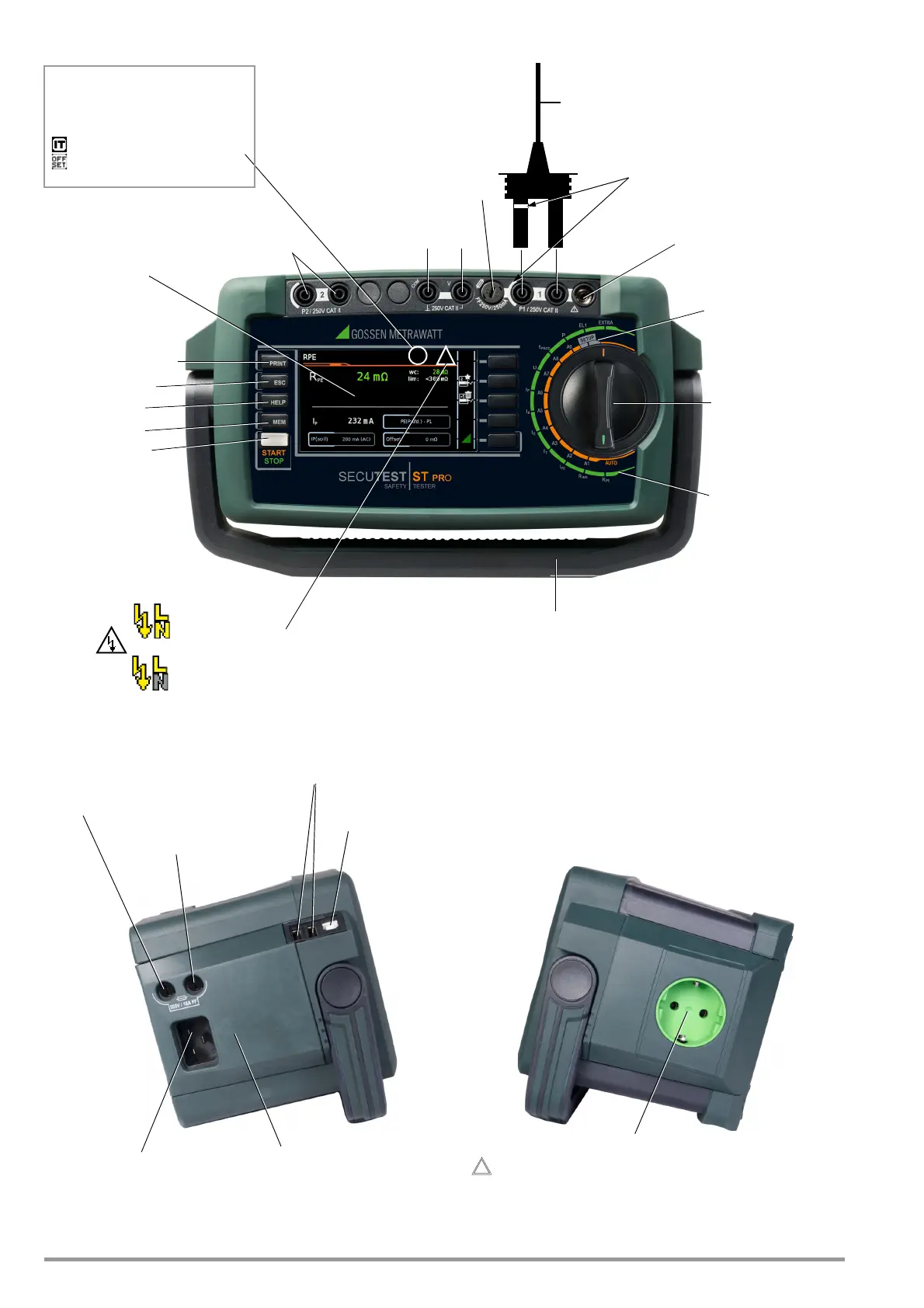

Controls & Terminals

These operating instructions describe an instrument with software version FW 3.1.0.

MEM: database

ESC:back

HELP: help images

START: start/stop

– single

measurement

– test sequence

Finger Contact

PRINT:print via USB

Fixed Function keys

Display of symbols for devices

connected to the USB master

interface

Display of special symbols:

– Measurement at IT system active

– OFFSET for RPE active

Softkeys

Connection (jack socket) for

supplying power to the SE-

CUTEST CLIP (Z745H)

Strain relief sleeve:

black: max. 16 A

green: max. 25 A

Mains to test socket

SFC: Normal condition

Mains to test socket

SFC: N interrupted

white/silver identified &

fused high current path

Fuse compartment

(Fuse link for probe

input P1)

Voltage measuring

inputs

Rotary switch level green

Single measurements

Test probe (P1)

Rotary selector switch

Rotary switch level orange

Test sequences A1 ... A9

(Test sequences acc. to

standard)

LCD panel

Carrying handle and tilt stand

Connections 2

test probe

(P2, for 2-pole measurement)

(SECUTEST ST PRO and/or device with feature H01 only)

see also operating instructions of the devices

USB slave

for PC connection

Test socket (country-specific) for connecting devices under test

Attention! Test socket may carry mains voltage, depending

on the measuring task

USB master

for the connection with keyboard, barcode/RFID scanner

, printer

and USB flash drive

(must be FAT32 formatted - not NTFS)

Fuse link 2 for the mains

connection

Fuse link 1 for the mains connection

Country-specific socket for mains

power via inlet plug

Additional fuse link

for 10 A

protective conductor test
