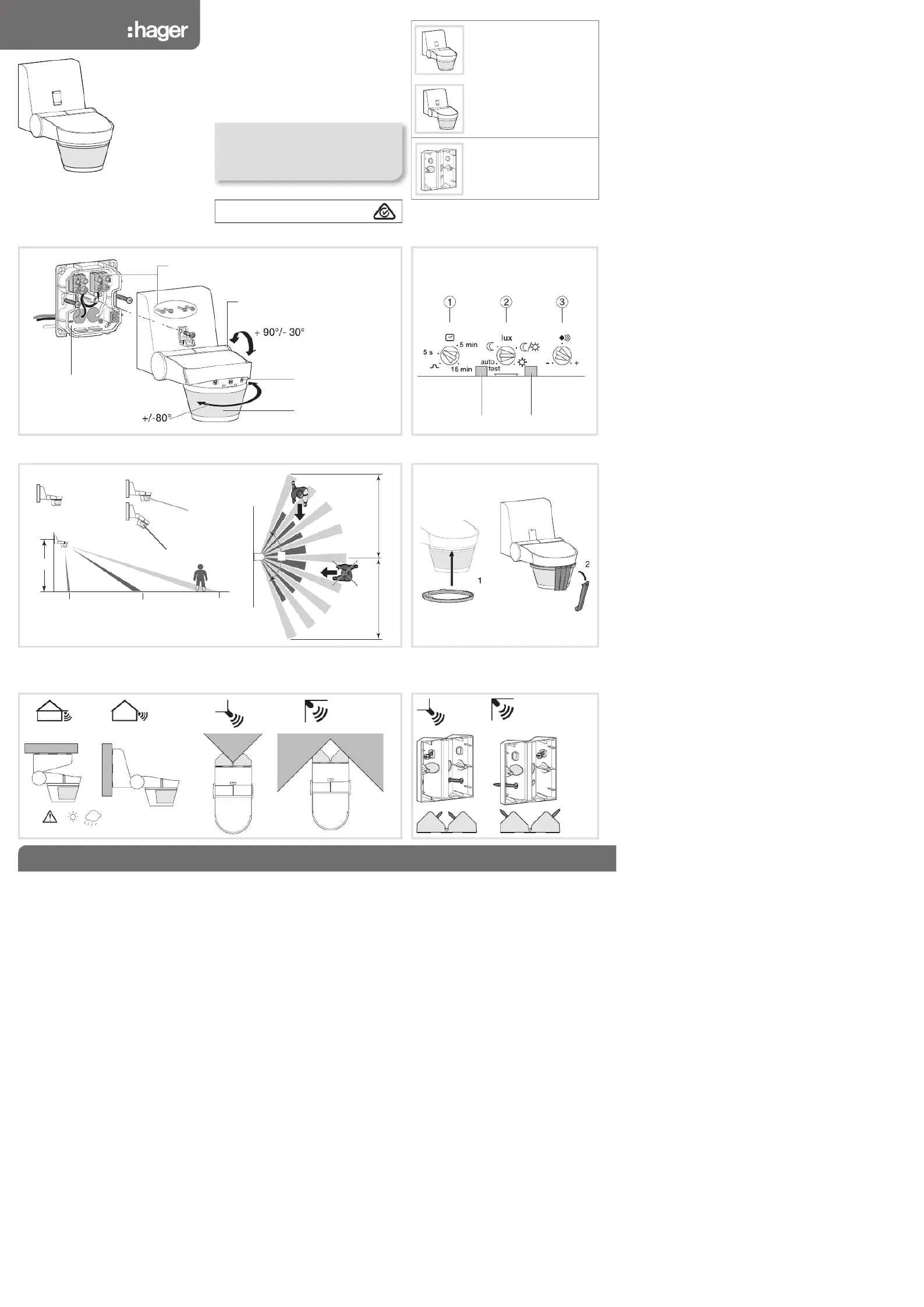

Description

Detection zone

Installation

Setting

Shutters

Plate for wall  xing

Swivelling detection head

Connection by PIN system

(4 plug-in pins)

Vertical adjustment

α = 360°

Fixed time

(length of time

of lighting)

Luminosity

Sensitivity

(modification

of the range)

Setting potentiometers

EE85. α = 140°

EE86. α = 200°

The optimal height of installation is 2.5 m.

The detection field must remain free.

8 m 16 m

2,5 m

0,5 m

16 m

4 m

LED A LED B

Accessories for corner  xing

For use in Australia and New Zealand

Caution!

This device is to be installed only by a professional

electrician  tter according to local applicable

installation standards.

Do not plug in or unplug this product when it is live.

DETECTOR 140°

EE850 White

EE851 Charcoal

DETECTOR 220°

EE860 White

EE861 Charcoal

ACCESSORY FOR

CORNER FIXING

EE855 White

EE856 CharcoalE857

Alu

6E7578.C1

6E7578.C

EE85., EE86.

Motion detectors comfort 140°, 220°

Testing and validating

the detection zone

Put the potentiometer on Test mode and if 2

necessary, use the shutters to define the detection

zone.

The Test mode is available for 3 min. Every

movement detected switches on the light for 1s.

After 3 min without detection of movement, the

product returns to normal operation.

Limiting the detection zone

You can limit the detection zone by using the

shutters provided or by tilting the head.

“Normal” operation (on/off)

The lighting is activated whenever the level of

luminosity defined by the potentiometer is 2

judged to be insufficient and a movement is

detected.

After detection, the light stays on for the length

of time predefined by the potentiometer 1.

The fixed timing is reset after each detection.

Please note: when the potentiometer is on “auto

test”, the settings are predefined.

Control by timer

An impulse is generated every 10 s whenever the

level of luminosity is judged to be insufcient and

a movement is detected when the potentiometer

1 is on V.

This pulse mode is not suitable for connections to

power devices (except at low power loads).

Using the remote control (option, ref.

EE806)

The detector receives instructions from the remote

control when the Lux potentiometer is on the “auto

test” position.

If the potentiometer is put on another value, the

local setting resumes.

The LED B of the detector lights up to confirm the

signal with the remote control.

It flashes quickly for 2 s when an instruction is

received and 5 s for a reset.

When an instruction is not authorised, the LED

lights up for 1 s.

The available settings are:

- fixed time

- level of luminosity

- sensitivity

- on / off

- holidays (simulation of presence)

- activation of the detection A.

Operating precautions

In order to obtain optimal detection conditions, it is recommended that the following advice:

- the detection is sensitive to solar radiation and bad weather. Detection performance is optimal up to

35 °C and above 40 °C.

- It is preferable to maintain à distance of 1 m. between a light source and the detector.

When mounting on a box, make sure that you do not distort the wall plate through excessive tightening

of the screws.

Montage

Surface-mounting or ceiling-mounted :

- x the wall plate using the screws provided

- connect the wall plate terminal block (see cabling plans in annex)

- fully insert the detector on the wall plate

- tighten the screws to ensure the product is sealed.

For corner xing, the wall plate is to be xed between the accessory and the detector.

Cable entry (breakable partitions) are possible:

- by the back (box mounting) or by the bottom.

Product presentation

and operating principles

This detector allows automatic control of a

light source for a dened length of time when a

movement is detected in the surveillance zone.

The LED A indicates a movement. It is inhibited by

default except in Test mode.

Settings and Test

The detectors have 2 modes of operation:

Fixed time and Control by timer.

Power supply

The detector switches the light on for 40 s.

After 40 s, it activates the Normal mode.

Ateha raceways

ref. ATA 12200

or ATA 63000

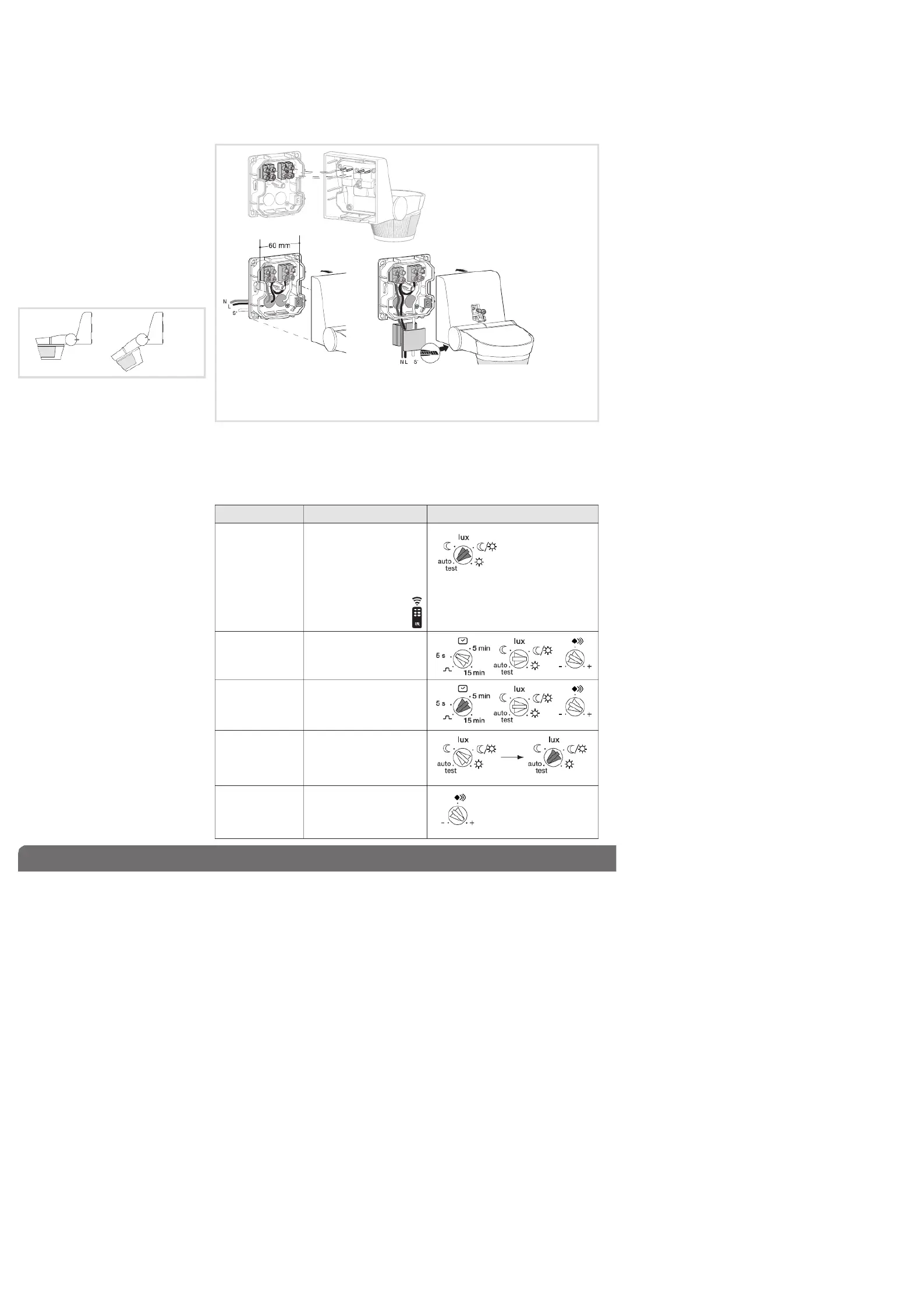

Wiring and connections (provide installation with xed wiring)

Action Settings Potentiometer

Use Auto settings

(factory) or set by

the remote control

to switch the light

automatically for a

given time.

Auto Settings

Put the Lux potentiometer on

“auto test”.

The settings are predefined:

Lux = o

(operating at night only)

time = 3 min,

sensitivity = max.

Remote control settings

(Manual Settings inhibited).

Automatically switch

on the light for a

defined time.

Installer settings

Control a timer, a bell

etc.

Impuls V

Auto settings are usable with

time = 1s. (cannot be changed)

Test and validate the

detection zone.

Test mode

Move the potentiometer 2 to

“auto test”. On this position, the

remote control can be used.

Adjust the sensitivity. Allows setting the range

to avoid disturbance.

6E7578.C2
