z Daily/weekly time switch 16 A

r Interruptor temporizador diario/semanal

16 A

a Horloge journalière/hebdomadaire

16A

Programador de horário diário/semanal

16 A

e Tages-/ Wochen-Zeitschaltuhr 16 A

A   / 

307628 00

6LE009081A_EHN110_111_171_Schaltuhren 3-modulig_Faltblatt_de_10-22.indd 1

6LE009081A_EHN110_111_171_Schaltuhren 3-modulig_Faltblatt_de_10-22.indd 16LE009081A_EHN110_111_171_Schaltuhren 3-modulig_Faltblatt_de_10-22.indd 1 18.10.2022 16:04:22

18.10.2022 16:04:22

18.10.2022 16:04:2218.10.2022 16:04:22

Hager LTD-Hortonwood 50- TELFORD-TF1 7FT-UK - Hager Controls S.A.S, 33 rue Saint-Nicolas, B.P. 10140, 67703 Saverne cedex, France

Information

When the voltage is applied, the

quartz workings only start after a

few minutes (EHN171).

The full power reserve is only

achieved after 5 days (EHN111,

EHN171).

Settings

•

Setting the current time: Turn the min-

ute hand (6) right or left (Figure05).

•

Setting the current weekday (only-

EHN171): Turn the switching disk (2) in

the clockwise direction until the correct

number displays the x-th day of the

week (Figure 06).

•

Deﬁne the switching times by press-

ing the switching segments (3) to the

left(ON) or to the right (OFF)

(Figure07).

Display of the switching state

(Figure 08)

The knob (1) turns automatically,

displaying the state of the con-

nected circuit (1: ON/ 0: OFF).

•

Selecting the operating mode (Fig-

ure09):

= Auto/ 1 = Continuous ON/

0 = Continuous OFF

Technical data

Operating voltage 230 V~, +10 %/-15 % ..............

240 V~, +/- 6%

Frequency:

− EHN111, EHN171 50 - 60 Hz .............................

− EHN110 50 Hz ...................................................

Cycle / shortest switching time:

− EHN110, EHN111 24 hours / 15 minutes ...........

− EHN171 7 days / 2 hours ...................................

Own consumption:

− EHN111, EHN171 max.0.5 W ...........................

− EHN110 max.0.9 W ..........................................

Switching capacity 16 A, 250 V~, AC1 ..................

4 A, 250 V~, cos = 0.6ϕ

Switching capacity min. 24 V~, 100 mA ................

LED lamps:

− ≤ 2 W 20 W ........................................................

− > 2 W 180 W ......................................................

Incandescent/halogen lamps 1100 W ...................

Fluorescent lamps:

− Compensated 400 VA (max. 42 μF) ...................

− Uncompensated 1100 VA .................................

Compact ﬂuorescent lamps 90 W .........................

Power reserve:

− EHN111, EHN171 120 h (230 V) .........................

Running accuracy:

− EHN111, EHN171 ±1 s/day at +20 °C ...............

− EHN110 Network-synchronous .........................

Conductor cross-section 0,5 - 6 mm² ....................

Miniature circuit breaker 16 A ................................

Contact Change-over contact ................................

Opening width < 3 mm (μ) .....................................

Protection class II ...................................................

Degree of protection IP 20 .....................................

zSafety instructions

Electrical equipment may only be installed

and assembled by a qualiﬁed electrician in

accordance with the relevant installation

standards, regulations, directives and

safety and accident prevention directives

of the country.

Failure to comply with these installation

instructions may result in damage to the

device, ﬁre or other hazards.

Functional description

− Analogue time switch

− 1 channel

− Daily programme (EHN11x)

− Weekly programme (EHN171)

Correct use

− For lighting, ventilators, fountains, adver-

tising, etc. in closed, dry rooms

− Mounting on DIN rail TH 35 - 7,5 (accord-

ing to DIN EN 60715)

− Switching of any exterior conductor

is permitted, switching of SELV is not

permitted

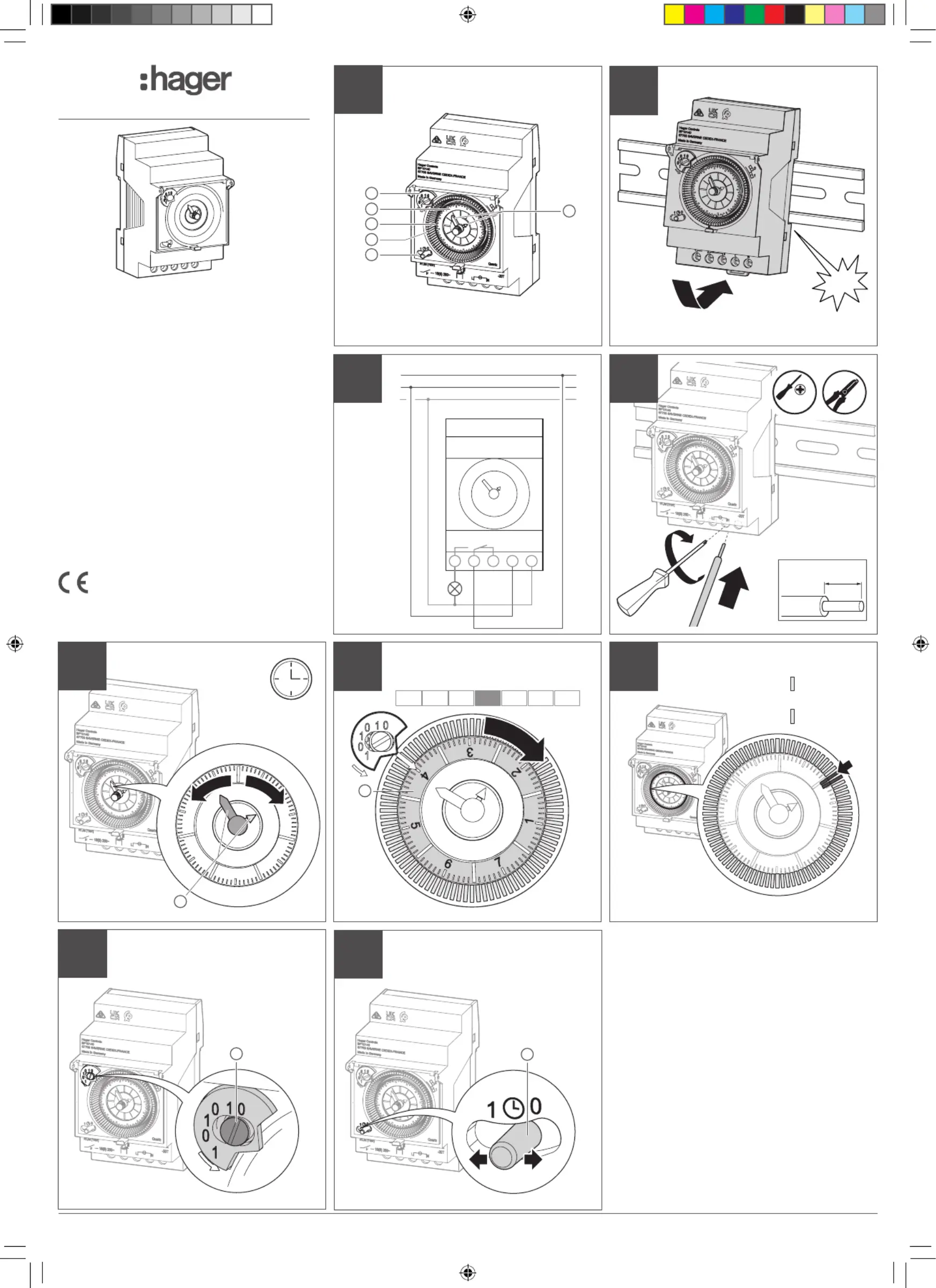

Design and layout of the

device (Figure 01)

Switching status display

0 = OFF / 1 = ON

Switching disk to display the switching

times

Switching segments, each 15’, 2 hrs (only

EHN171)

Clock face for the current time

Switch for operating mode:

= Auto/ 1 = Continuous ON/

0 = Continuous OFF

Hands (hour and minute)

Installation and electrical

connection

Warning!

Electrical shock when live parts

are touched!

An electric shock can lead to

death!

•

Isolate all power before work-

ing on the device and cover

any live parts in the area!

•

Snap the device onto the DIN rail (Fig-

ure 02).

•

Connect according to wiring diagram

(Figure 03).

•

Switch the miniature circuit breaker on

again.

Operating temperature:

− EHN111, EHN171 –10 °C - +55 °C ....................

− EHN110 -20 °C - +55 °C ....................................

Storage temperature -20 °C - +70 °C .....................

Rated surge voltage .......................................4 kV

Operating altitude < 2000 m ..................................

Contamination level 2 .............................................

Mode of action:

− EHN111, EHN171 1 BSTU .................................

− EHN110 1 BRTU ................................................

Correct disposal of this product

(Waste Electrical & Electronic

Equipment)

(Applicable in the European Union and other

European countries with separate collection

systems).

The identiﬁcation shown on the product or its

documentation indicates that it should not be dis-

posed of with other household waste at the end

of its working life. To prevent possible harm to the

environment or human health, please separate this

device from other types of waste. This helps you to

promote sustainable reuse of material resources.

Private consumers are asked to contact the dealer

from whom they purchased the product, or their

municipal administration, to obtain information on

how to dispose the product in an environmental-

ly-friendly manner. Commercial consumers are

asked to contact their suppliers and to check the

general terms and conditions of business of the

purchasing agreement. This product should not be

mixed with other commercial waste for disposal.

rIndicaciones de

seguridad

La instalación y el montaje de dispositivos

eléctricos deben ser efectuados exclu-

sivamente por personal electricista de

acuerdo con las normas de instalación,

directivas, instrucciones, disposiciones y

normas de prevención de accidentes per-

tinentes del país.

Si no se tienen en cuenta las indicaciones

de instalación, podría dañarse el equipo,

producirse un incendio o surgir otros peli-

gros.

Descripción del

funcionamiento

− Interruptor temporizador analógico

− 1 canal

− Programa diario (EHN11x)

− Programa semanal (EHN171)

Uso conforme a lo previsto

− Para iluminación, ventilación, fuentes, pu-

blicidad, etc. en espacios secos cerrados

− Montaje en carril DIN TH 35 - 7,5 (segun

la norma DIN EN 60715)

− Está permitida la conmutación de cual-

quier conductor exterior, no está permiti-

da la conmutación de SELV

Estructura del dispositivo

(ﬁgura 01)

Visualización del estado de conmutación

0 = DESCONECTADO / 1 = CONECTADO
