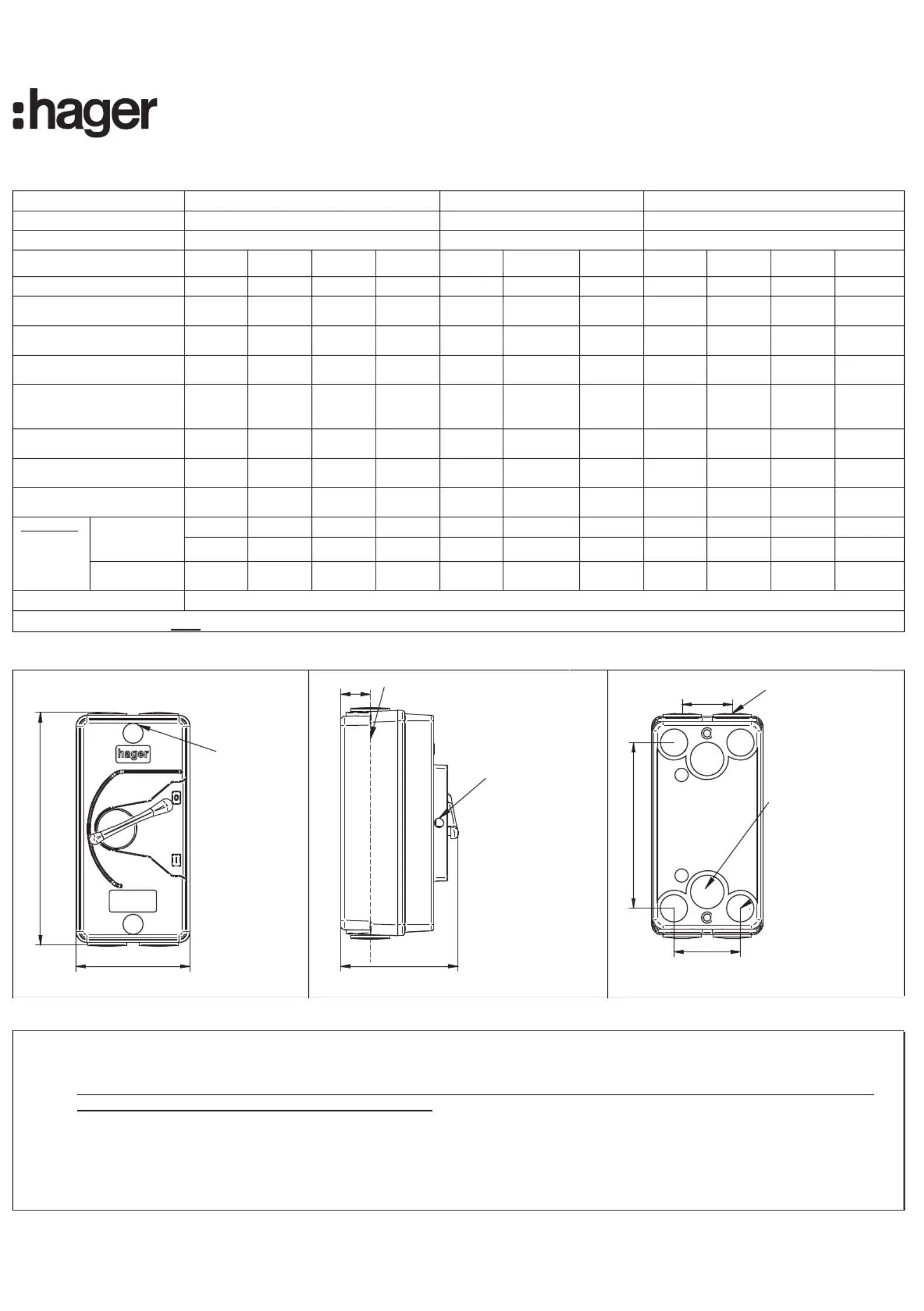

Side 1/1

Switch-disconnectors / Isolators

2 pole, 3 pole & 3 pole with switched Neutral

User instructions

Ratings to IEC60947-3, BS EN 60947-3 and AS/NZS 3947-3 / IP66

Type

2 pole 3 pole 3 pole + switched Neutral

Rated operational voltage

250V a.c. 50/60HZ 440V a.c. 50/60Hz 440V a.c. 50/60Hz

Utilization category

AC23 A AC23 A AC23 A

Model number

JG220IN

JG232IN

JG240IN

JG263IN

JG320IN

JG332IN

JG340IN

JG420IN

JG432IN

JG440IN

JG463IN

Rated Operational current

20A 32A 40A 63A 20A 32A 40A 20A 32A 40A 63A

Rated insulation voltage

(a.c.)

250V

440V

Rated impulse withstand

voltage

2500V

Rated short-time withstand

current for 1 sec

240A 384A 480A 756A 240A 384A 480A 240A 384A 480A 756A

Rated short-circuit making

and breaking capacities for

50 ms

240A 384A 480A 756A 240A 384A 480A 240A 384A 480A 756A

Live terminal screws torque

value

2NM .5NM2

2.5NM

2NM 2.5NM 2.5NM

2NM 2.5NM

2.5NM

Neutral terminal screws

torque value

2NM 2NM 2NM 2.5NM

2NM 2NM 2NM 2NM 2.5NM

2.5NM

Earth terminal screws

torque value

2NM 2NM 2NM 2NM 2NM 2NM 2NM 2NM 2NM 2NM 2NM

2.5

Min. size

(sq.mm)

& number

Conductor

Rigid-

stranded

Max. size

(sq.mm)

Rated duty

Uninterrupted duty

Note: Use padlock with Ø

6.00 mm shank when required to lock the unit in the ‘OFF’ position.

1. Disconnect the incoming supply to the unit prior to maintenance/installation of the switch-disconnector.

2. Necessary precautions must be observed to maintain the IP66 rating requirement of the unit.

Hole caps are provided for the unit mounting screws and the cover enclosure mounting screws.

Conduit entry hole caps, reducer gland and conduit mounted on unit during the installation should be taped with thread tape seal

or sealed with silicone sealant to maintain the IP66 rating.

3. Total current and ratings of unit must not be exceeded.

4. Terminal screws must be tightened as per table above.

5. Ensure that the switch actuator is in the ‘OFF’ position and the switch lever of cover enclosure is positioned in the ‘OFF’ / ‘O’

position when mounting the cover enclosure.

6. The 7mm hole on the rib adjacent to the switch lever is to provide locking facility of the switch lever in the ‘OFF’ position with

padlo

ck with shank diameter of 6 mm.

enclosure

mounting

hole caps

25 conduit

entry knock-outs

25 conduit

entry hole caps

Isolator

mounting

holes

axis of conduit entry caps

7 locking

hole for switch

lever in 'OFF'

position

20mm

CUT-OUT

25mm

CUT-OUT

20mm

CUT-OUT

20mm

CUT-OUT

25mm

CUT-OUT

20mm

CUT-OUT

12,25

170

OFF

Dimensions (mm)

Installation instructions
