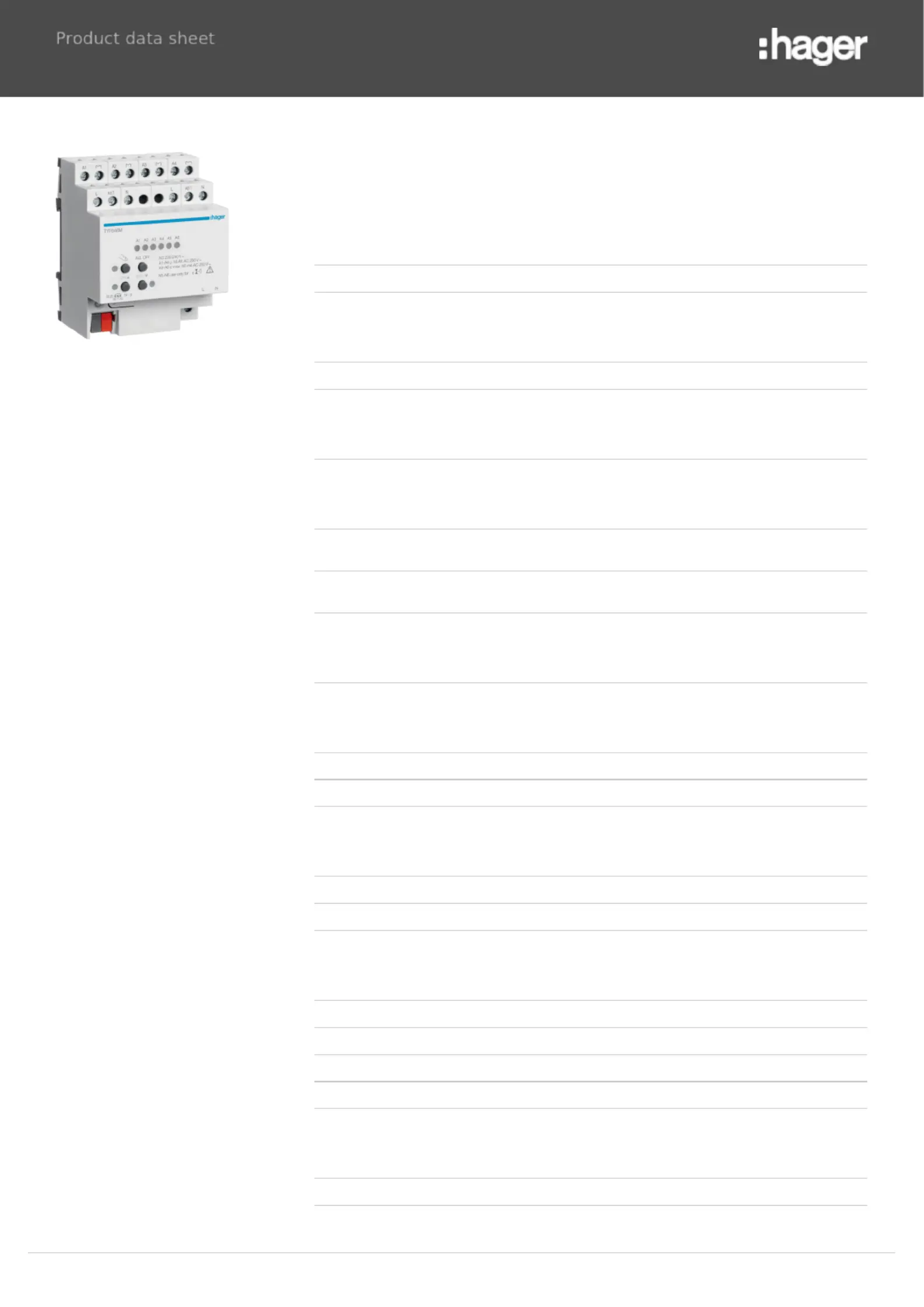

TYF646M

Room actuator 4/2gang 16 A NO contact, manual, status

Technical properties

Architecture

Bus system KNX

Fixing mode REG

Functions

Bus module detachable No

Multi-phase mode suitable to switch different external conductors

Configuration

Number of modules 4

Controls and indicators

Operation

manual operation also possible without bus, e.g. on

building site

Manual selection switches / push-buttons

4 manual operation buttons for channel/device for

on/off (up/down) and bus function On/Off

Button / push-button with programming button and red programming LED

Connectivity

Number of binary inputs 2

Voltage

Max. switching capacity at 230 V AC

Auxiliary voltage 230 V AC

Operating voltage over bus 21…32 V DC

Electric current

Making current max. 800 A /200 µs

Output current max. 16 A

Switching current for electronic outputs max. 50 mA

Dimensions

Depth 70 mm

Assembling height as from DIN rail 63 mm

Width of rail mounted device (RMD) 4 modules

Height 90 mm

Width 72 mm

Power

Fluorescent lamps duo circuit 2300 W /140 µF

Conventional transformers 1200 VA

Subject to technical modifications

Electronic transformers 1500 W

Materials

Colour independent of design lines light grey

RAL colour RAL 7035 - Light grey

Lighting control

- uncompensated 1000 W

Fluorescent bulbs control

Fluorescent lamps parallel compensated 1160 W /140 µF

Incandescent bulbs control

230 V incandescent lamps 3000 W

230 V halogen lamps 2500 W

Connection

- Osram EB QT-FH 4 x 14 W 10 Part

- Osram EB QT-FQ 2 x 54 W 11 Part

- Osram EB QTP 2 x 58 W 11 Part

Conductor cross-section (flexible) 0.5…4 mm²

Bus coupling unit with integral bus coupling unit

Type of connection with screw terminals

Bus connection bus connection via connecting terminal

Settings

Supported configuration modes system

Scope of delivery

Bus connection included Yes

Equipment

Modular expandability No

Control

for individual single room temperature control, for

continuous (PI) or switched (2-point) control

Safety

Protection index IP IP20

Halogen free No

Use conditions

Operating temperature -5…45 °C

Storage/transport temperature -20…70 °C

Identification

Main design line KNX

Subject to technical modifications
