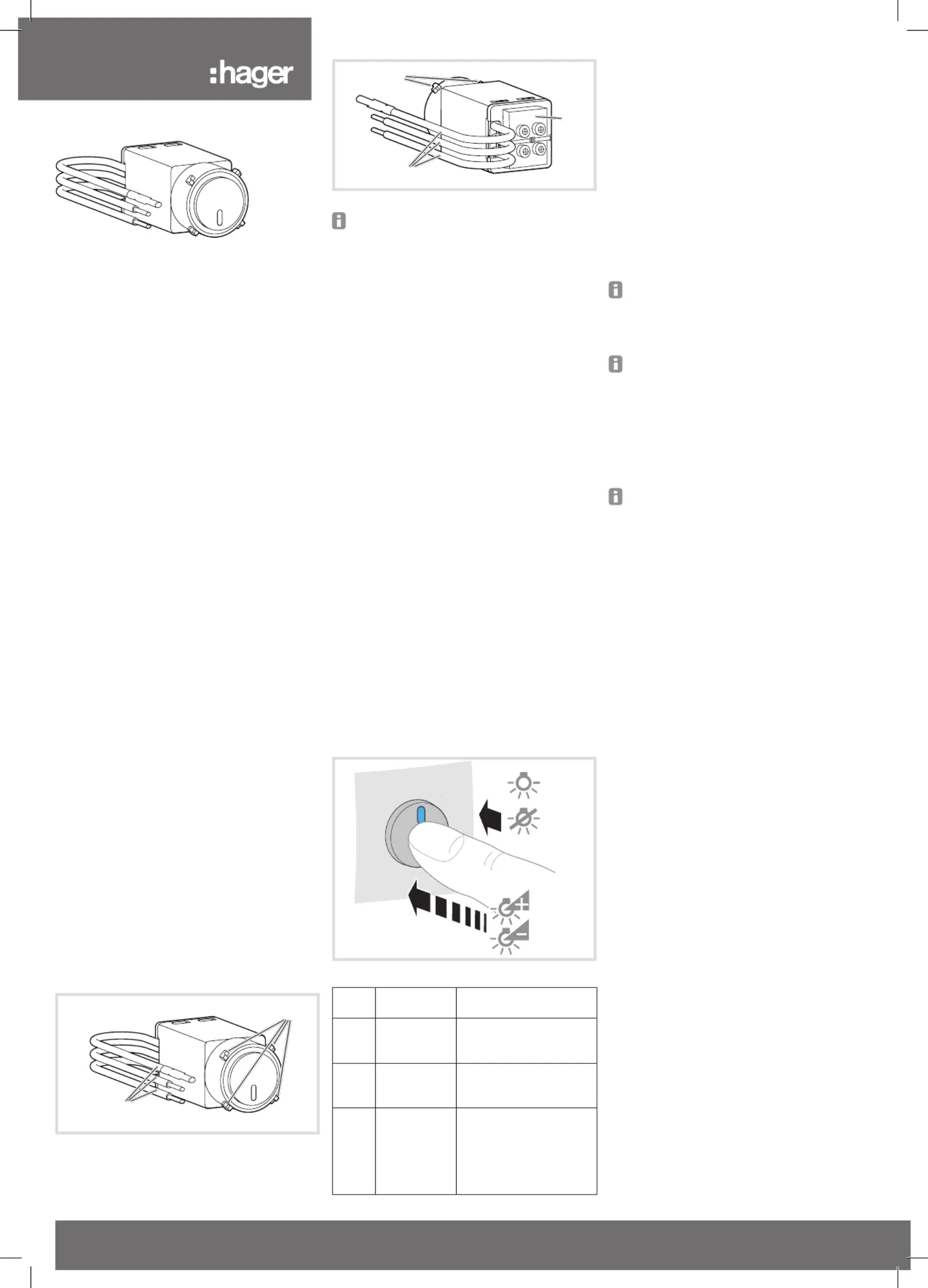

Side 1/2
6LE007714B
01
WBMDUPB
Push-button dimmer
Hager Electro Pty. Ltd., Unit 17/2-8 South Street, RYDALMERE NSW 2116, AUSTRALIA
(2)
(3)
(4)
Fig. 2: Rear view
its original shipped position or on the rear of the
module by means of the enclosed cable tie.
(1) Button with status LED
(2) Retaining lugs for Rotoloc
®
fastening
(3) Connection cables
(4) Terminal block
Function
Correct use
- Switching and dimming of incandescent lamps,
HV halogen lamps and dimmable 230 V LED
lamps; electronic transformers with low voltage
halogen lamps.
- Unsuitable for fans and motors
- Suitable for indoor use only, but no drip and no
spray water.
- Suitable for Hager Rotoloc switch plates only
Product characteristics
- Phase cut-o󰀨 dimmer with LED
- Wide, innitely variable dimming range down to
the lowest brightness for many lamps
- Programmable minimum brightness
- Additional congurable functions
- Automatic storage of the switch-o󰀨 brightness
level as switch-on brightness level
- Electronic short circuit, overload and thermal
protection
- Multi-way dimming available only with use of
the WBMSLL slave mechanisms
- Non volatile device settings
Control
Fig. 3: Push-button dimmer operation
Load
status
Action Result
OFF Short press of
push-button
Switch with saved ON
switch-on brightness
level.
> 0% Short press of
push-button
Switch and save OFF
brightness as switch-on
brightness level.
> 0% Long press of
button
With every long push-but-
ton operation within 12
sec: Dimming with alter-
nating direction, otherwise
device will dim up, until
max. level is reached.
Table 1: Push-button dimmer and slave unit operation
Adjusting the minimum brightness
The minimum brightness level can be adjusted with
the push-button dimmer to prevent poor switch-
on behaviour or ickering of the load in the lower
dimming range.
Switch o󰀨 load.
Press and hold button for approx 10 seconds.
The lamp and the status LED will ash once
after 3 seconds and then both ash a second
time after 10 seconds.
Release push-button.
The device is now in minimum brightness set-
ting mode. The status LED is ashing fast and
the load is switched on at minimum brightness.
Depending on the lamp, the minimum bright-
ness level of the lights installed may be too
low and the lights may appear o󰀨, gradually
increase the brightness level by repeatedly
pressing the button.
If no actions are performed within 10 seconds,
the dimmer exits programing operation.
Briey press the button repeatedly.
The brightness increases gradually.
Once desired min lighting level is reached, wait
10 seconds for device to store the setting.
The load will be switched o󰀨, the dimmer re-
turns to normal operation.
If your minimum setting is set too high, wait
for the device to exit programming mode and
repeat the above programming procedure
Congurable additional functions
The additional functions can be congured by
pressing the push-button dimmer for the required
number of times.
Kick-start
A short voltage burst when lamp is initially turned
on to support lamp start-up.
Reduced maximum brightness
A non-adjustble voltage reduction for suppressing
ickering at maximum brightness.
Status LED
In factory state the status LED lights up only, if the
lamp is switched on. As described thereunder it
may be set to be permanently on.
Recovering the previous load state when power
is restored after a power cut
The status of the load prior to power loss will be
restored at power-on.
Conguring additional function
From the o󰀨 position, press & hold the button
for approx 10 seconds or more.
The status LED and the lamp will ash once
after 3 seconds and then both ash a second
time after 10 seconds.
Release push-button.
The device is now in minimum brightness set-
ting mode. The status LED is ashing fast and
the load is switched on at minimum brightness.
Press and hold the button for 3 seconds until
the lamp ashes once again and the status LED
gets o󰀨.
Release push-button.
The status LED starts blinking fast again.
Select the additional program function required
by pressing the button slowly, waiting for the
load to ash after each press (selected from
Table 2) before pressing again.
After approx. 10 s without operation, the change
of additional function is stored and the device
switches to standard operation.
Safety instructions
Electrical equipment must only be installed and
assembled by a qualied electrician in accord-
ance with the relevant installation standards,
guidelines, regulations, directives, safety and
accident prevention regulations of the country.
Failure to comply with these instructions may
result in damage to the device, re or other
hazards.
Hazard due to electric shock. The device is not
suitable for safe disconnection of the mains
supply. Even when the device is switched o󰀨,
the load is not isolated from the mains supply.
Do not connect non-dimmable lamps, their
transformers or operating devices. Observe
manufacturer's data.
These instructions are an integral component
of the product and must be retained by the end
user.
Design and layout of the device
(2)
(1)
(3)
Fig. 1: Front view

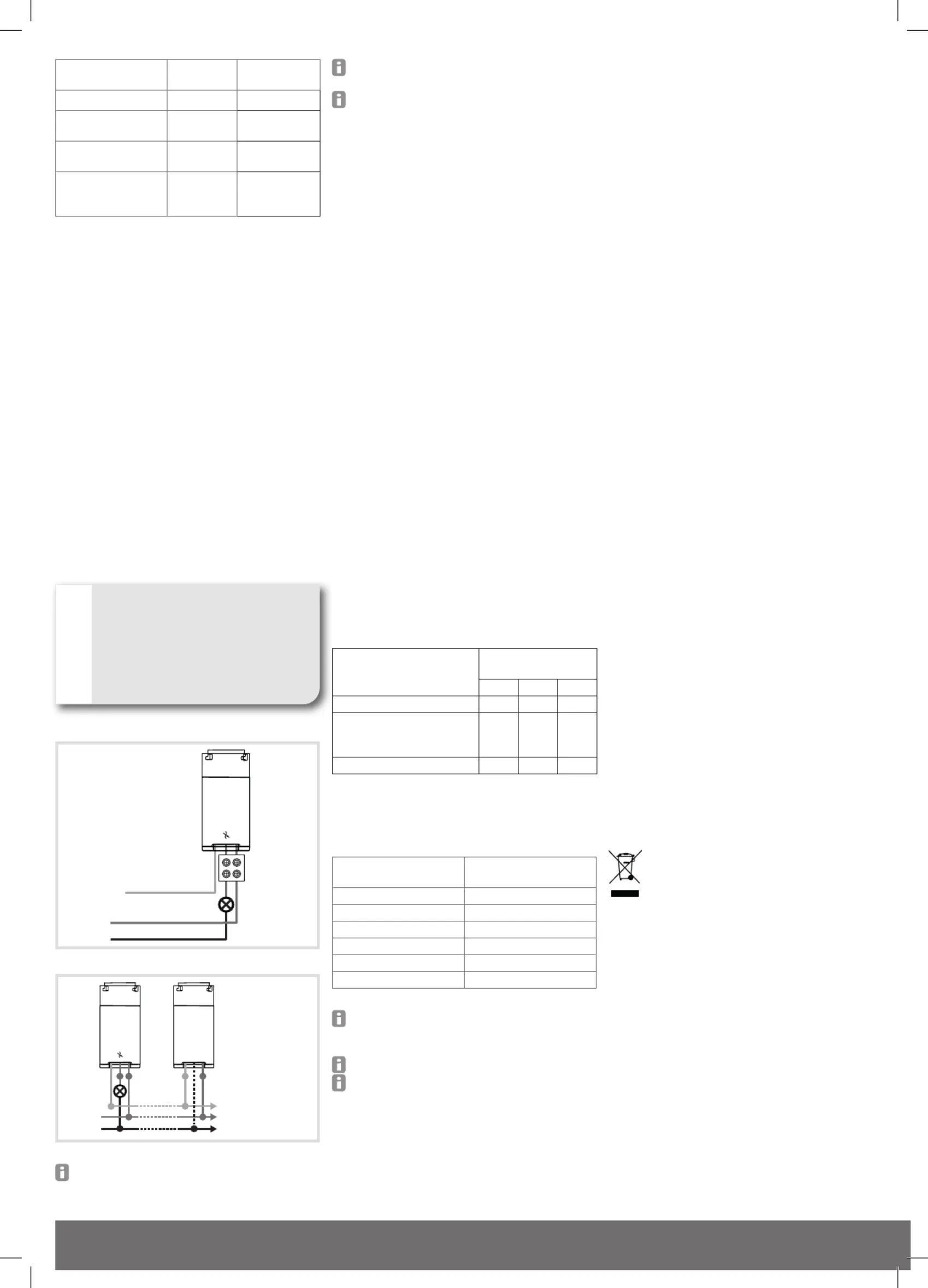

02 T +61 1300 850 253 F +61 1300 424 372 customerservice@hagerelectro.com.au hager.com - 12.2021
Con gurable
additional functions
Factory
settings
Number of
button pushes
Kick-start OFF
1 x
Reduced maximum
brightness
OFF
2 x
Status LED lights
up only when ON
ON
3 x
Recovery of the
load state when the
power is restored
OFF
4 x
Table 2: Con gurable additional functions
Reset to factory setting
Press the button for approx. 10 sec. or more.
The lamp and the status LED will  ash once
after 3 seconds and then both  ash a second
time after 10 seconds.
Release push-button.
The device is in  ne adjustment mode for the
minimum brightness level and the status LED
starts  ashing fast and the load is set to the
minimum brightness level.
Press button again for approx. 10 s or more
The lamp and the status LED will  ash once
after 3 seconds and then both  ash a second
time after 10 seconds.
Release push-button
The status LED goes out and the reset has
been completed, the dimmer is in standard op-
eration with the factory settings being e󰀨 ective.
Information for electricians
Installation and electrical connection
DANGER!
Electrical shock when live parts are
touched.
An electric shock can lead to death.
Isolate all power before working on
the device and cover any live parts in
the area!
ç
Connection diagram
A
N
Active / L
Load /
Remote
WBMDUPB
Remote cable.
Not required for
1 way switched
dimming.
Fig. 4: 1 way connection
A
N
Active / L
Load /
Remote
Active / L
Neutral
Remote
to additional
Slaves
WBMSLL
WBMDUPB
WBMSLL
Fig. 5: 2 way connection
Load side of device is not considered isolated in
OFF position.
Install a circuit breaker of max. 10 A as device
protection.
For 2 way or multiple way switching. Refer to
WBMSLL instructions.
Appendix
Technical data
Operating voltage 230 V~ +/-10%
Frequency 50 Hz
Miniature circuit breakers max. 10 A
Degree of protection IP2X
Standby power consumption
-Status LED o󰀨
- Status LED on
< 0.07 W
< 0.3 W
230 V incandescent lamps,
halogen lamps and cold-light
re ector lamps
7 … 300 W
Dimmable, electronic
transformers with low voltage
halogen lamps
20 … 350 W
Dimmable 230 V LED lamps 3 ... 250 W
Slave units cable length
Load and slave unit cable
- in one cable
- in separate cables
max. 20 m
max. 50 m
Terminal block cables max. 2 x 1.5 mm²
max. 1 x 2.5 mm²
Flying leads,  exible 100 mm x 1,5 mm²
Operating temperature -5 to 50 °C
Storage temperature -20 to 70 °C
Relative humidity (without
dewing)
0 … 65 %
Packaged with 3 cores,
exible
100 mm x
1.5 mm²
Operating conditions
Load type Maximum output
power (W)
25 °C 35 50 °C
Ohmic loads 300 265 210
Dimmable, electronic
transformers with low
voltage halogen lamps
350 310 250
230 V LED lamps 250 220 175
Table 3: Reduced performance, ambient temperature
When operating dimmers in combination with oth-
ers beneath a cover plate, the maximum connect-
ed load must be reduced depending on the number
of dimmers.
Number of dimmers per
combination
Connect load reduction
1 100%
2 75%
3 55%
4 40%
5 35%
6 30%
Table 4: Dimmer combination load reduction
Carry out loading of conventional, electronic
transformers according to manufacturer's
instructions.
Do not use non-dimmable 230 V LED lamps.
If 230 V LED lamps are used, the power supply
to the dimmer can cause the lamp to glow
slightly even when it is switched o󰀨 .
Troubleshooting
Dimmer switches o󰀨 of its own accord.
Check the load connected (excessive load).
Reduce the number of lamps or use lamps with
a lower power rating.
The electronic short-circuit protection has tripped.
Check electrical installation.
The load cannot be dimmed down suffi ciently.
The dimming angle is set too high.
Decrease the value in  ne-setting of the mini-
mum brightness.
The load switches o󰀨 while being dimmed
down.
The dimming angle is set too low.
Increase the value in  ne-setting of the mini-
mum brightness.
The load does not switch on.
The dimming angle and brightness value are set
too low.
Increase the value in  ne-setting of the mini-
mum brightness.
Load fl ickers while switched o󰀨 .
LED load too low.
Increase LED load at output.
The LED load  ickers due to the dimmer status
LED power
Switch o󰀨 dimmer status LED
The connected load cannot be dimmed or load
fl ickers while switched ON.
Lamps are not suitable for dimming.
Be sure always to use dimmable loads.
Unde ned fault during operation.
Slave unit cable length is too long or no separate
slave unit cable has been used.
Keep to slave unit cable length or, if necessary,
use separate slave unit cable.
Note:
LED loads should be tested with this dimmer
prior to installation. Some LED loads may not be
compatible due to the type of LED driver within the
LED light.
End of life treatment of electrical/
electronic equipment and batteries
in the European Union countries.
The crossed-out ‘wheeled bin symbol’ marked on
the equipment or its packaging, indicates that this
product is not to be disposed off with unsorted
municipal / household waste. Please check with
your local authority or retailer for recycling and
collection advice. This will enable you to contribute
to the disposal, treatment and recycling in an
environmentally sound way and help to prevent
potential negative effects on the environment and
human health.

Produkt Specifikationer

Mærke: Hager
Kategori: Vægudtag
Model: WBMDUPB

Har du brug for hjælp?

Hvis du har brug for hjælp til Hager WBMDUPB stil et spørgsmål nedenfor, og andre brugere vil svare dig


Vægudtag Hager Manualer

Hager

Hager GS20113020 Manual

10 August 2025
Hager

Hager GS20019016 Manual

9 August 2025
Hager

Hager JG232IN Manual

9 August 2025
Hager

Hager GS11003020 Manual

9 August 2025
Hager

Hager WKT422 Manual

9 August 2025
Hager

Hager WBWSV3LFH Manual

23 Juli 2025
Hager

Hager WBWSH2 Manual

22 Juli 2025
Hager

Hager WBBMI Manual

22 Juli 2025
Hager

Hager WBWSH3 Manual

21 Juli 2025
Hager

Hager JG263IN Manual

21 Juli 2025

Vægudtag Manualer

Nyeste Vægudtag Manualer

Ikea

Ikea TRETAKT 005.565.13 Manual

16 September 2025
H-Tronic

H-Tronic HT1EPP Manual

14 September 2025
Elektrobock

Elektrobock TS06-E Manual

14 September 2025
LEDmaxx

LEDmaxx USB2201 Manual

9 September 2025
LEDmaxx

LEDmaxx USB2203 Manual

9 September 2025
Rocketfish

Rocketfish RF-HTS7723 Manual

9 September 2025
Heitronic

Heitronic Golv x2 Manual

8 September 2025
SurgeX

SurgeX PF-420 Manual

8 September 2025
Heitronic

Heitronic MINIMO Manual

8 September 2025
Schwaiger

Schwaiger LAD260 Manual

6 September 2025
