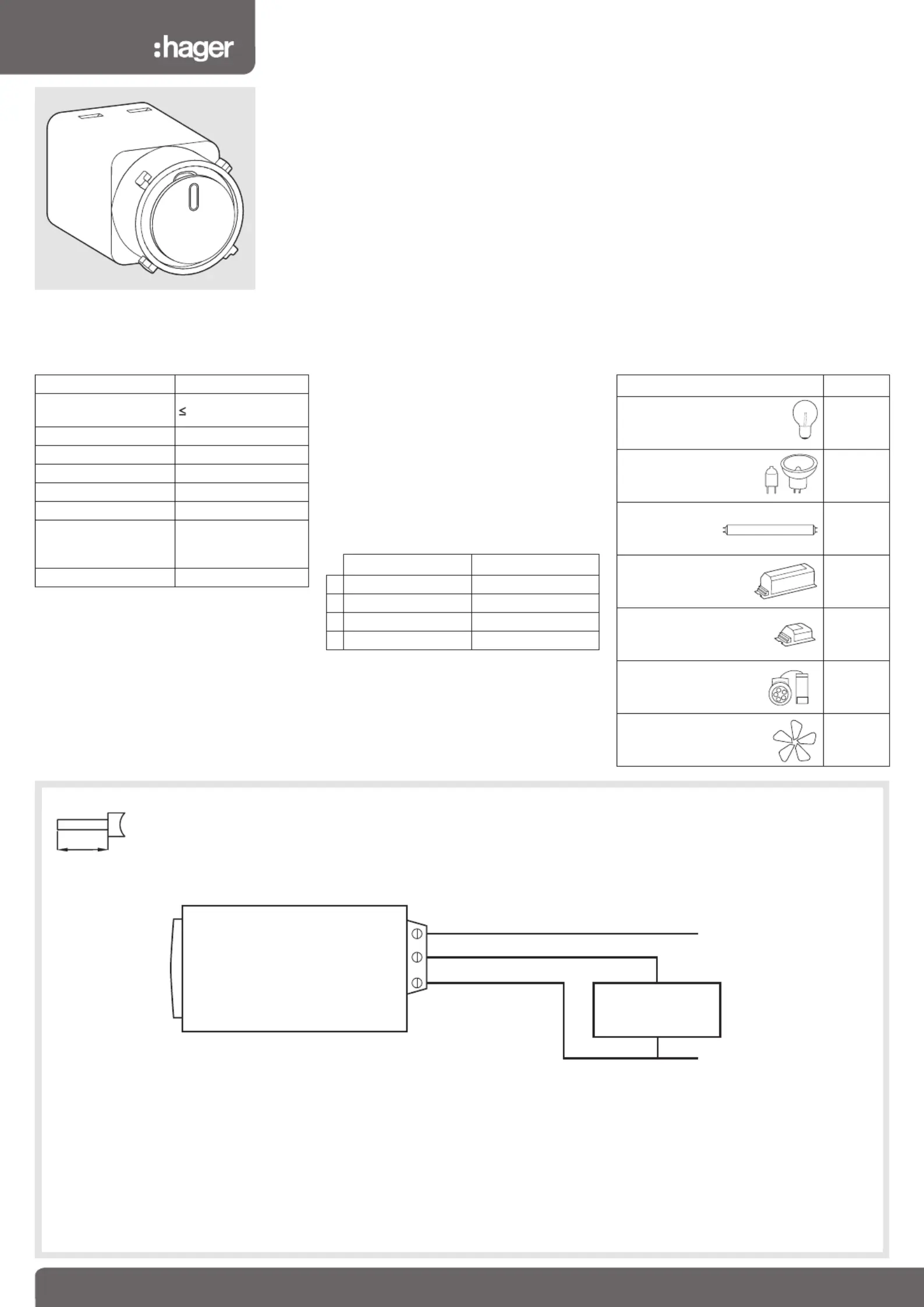

1 WIS0096
WIS0096
WBME5A
Warnings for safe use
• This product must be installed
by a licensed electrician.
• For indoor use only.
• Circuit must be protected by a fuse or MCB
• This product contains no serviceable
parts and no attempt should be
made to repair the product.
• Ensure electronic devices are
clear of any wall insulation.
• Switch unit must be fitted into
Rotoloc
®
compatible plate.
• Installing multiple units, in the same switch
• See installation instructions for derating table.
plate, may derate maximum load ratings.
Technical specifications
Input 230-240V a.c., 50Hz
Standby power
consumption
≤ 0.5
W
Storage temperature -20
o
C to +60
o
C
Operating temperature +5
o
C to +40
o
C
Humidity 95% max @ 20
o
C
IP rating 20
Test standards AS/NZS 60669.2.1
Terminal maximum
cable size
(copper stranded)
1 x 2.5mm
2 x 1.5mm
Micro gap construction µ
Loadings
(no min load rating)
Load type Maximum
Incandescent 1200W
Halogen 1200W
Fluorescent tube 500VA
Wire transformer 500VA
Electronic transformer 500VA
LED 500VA
Fan motor 500VA
LED Switch status
ON - Bright OFF
1
Orange Dim orange
2
Blue Dim Blue
3
Orange Off
4
Blue Off
Push button cap change
To change the push button cap for an alternate
colour cap, gently place a terminal screwdriver
under the fitted cap and lever off. Gently push
new cap into position.
NOTE: When replacing the cap on the
WBME5A, ensure the LED lens aligns
with the LED position on the cap.
For 2 + way switching, WBMSLL units must be used.
Do not connect two WBME5A units together.
See Data Sheet on WBMSLL for 2 + way switching.
Wiring diagram
Data Sheet
WBME5A
Universal push button
WBME5A operation
Press button to turn switch ON. LED will shine
bright. Press again to turn switch OFF. LED
will either dim or turn off, depending on LED
program setting.
WBME5A LED programming
From the OFF position -Hold push button for
10 seconds to change LED program to next
setting. Repeat for each setting change. A
short press will return to normal operation.
ACTIVE
LOAD
NEUTRAL
REMOTE
LOAD
A
N
WB 5AME
6.5mm
Cable strip length
NOTE: The average life expectancy of an LED
indicator lamp is 30,000 to 50,000 hours.
Setting the LED indicator to an always
illuminated setting will provide between 3.5 to
5.7 years function. Whereas setting to be off
when the load is off will provide 10 to 20
years function.
