6LE007715B

WBMSLL

Slave / Extension unit

Hager Electro Pty. Ltd., Unit 17/2-8 South Street, RYDALMERE NSW 2116, AUSTRALIA

Safety instructions

Electrical equipment may only be installed and

assembled by a qualied electrician in accor-

dance with the relevant installation standards,

guidelines, regulations, directives, safety and

accident prevention regulations of the country.

Failure to comply with these instructions may

result in damage to the device, re or other ha-

zards.

These instructions are an integral component of

the product and must be retained by the end

user.

Design and layout of the device

(2)

(1)

(3)

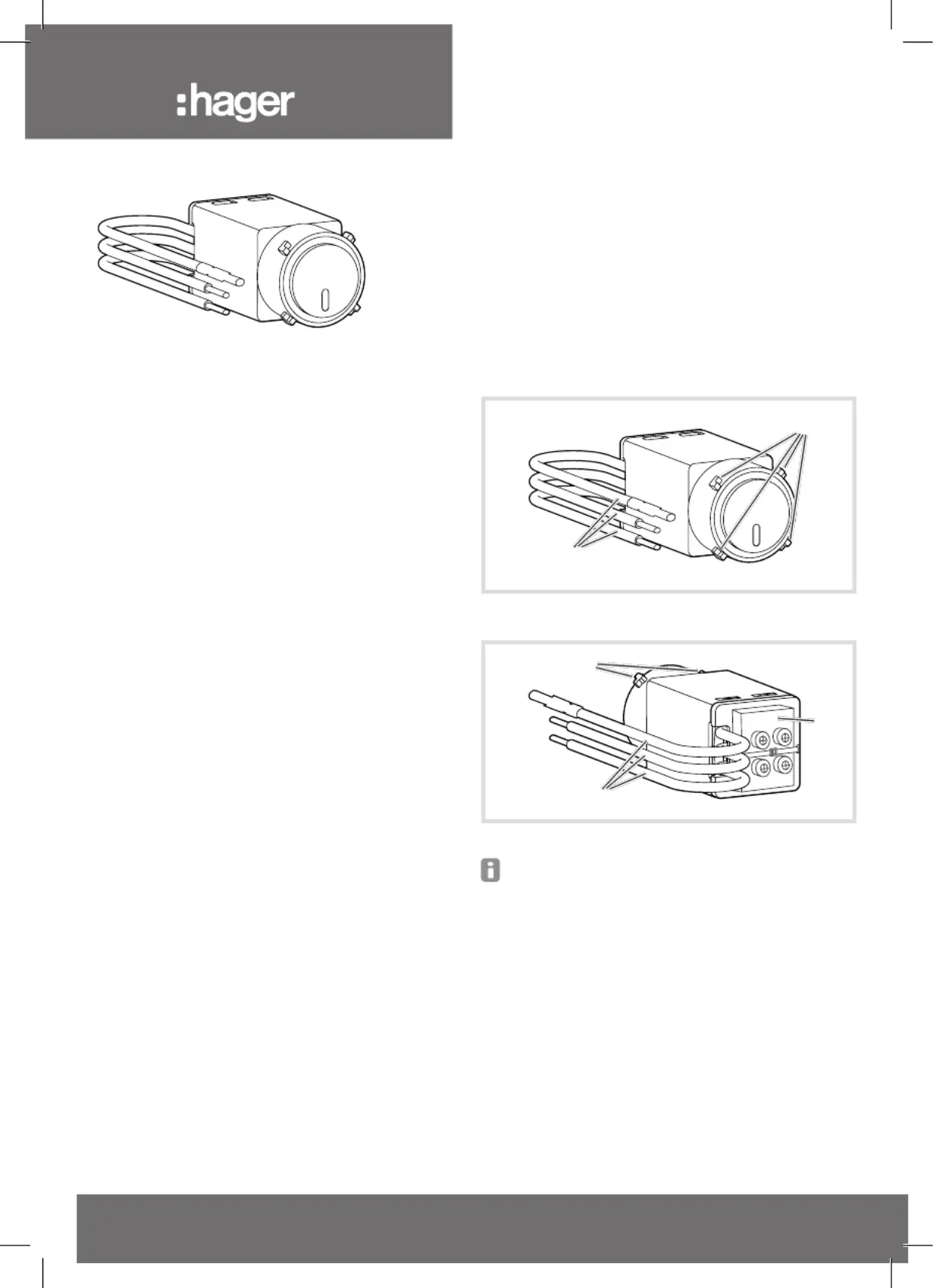

Figure 1: Front view

(2)

(3)

(4)

Figure 2: Rear view

The terminal block must be mounted in either

its original shipped position or on the rear of the

module by means of the enclosed cable tie.

(1) Button with status LED

(2) Retaining lugs for Rotoloc

fastening

(3) pre-assembled terminal leads

(4) Terminal block

Function

Correct use

- Extension unit to master devices WBMDUR,

WBMDUPB und WBME5A

- Suitable for indoor use only, but no drip and no

spray water.

02 T +61 1300 850 253 F +61 1300 424 372 customerservice@hagerelectro.com.au hager.com - 12.2021

- Suitable for Hager Rotoloc switch plates only

Product characteristics

- optional LED lighting by neutral conductor

connection

Operation

The operation is to be taken from the instructions

of the main device.

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an

electric shock.

An electric shock can be lethal.

Disconnect the connecting cables

before working on the device and cover

any live parts in the area!

Connection diagram

Remote

WBMSLL

Neutral connection

is only required for

LED indication

always on

Active / L

Neutral

Remote

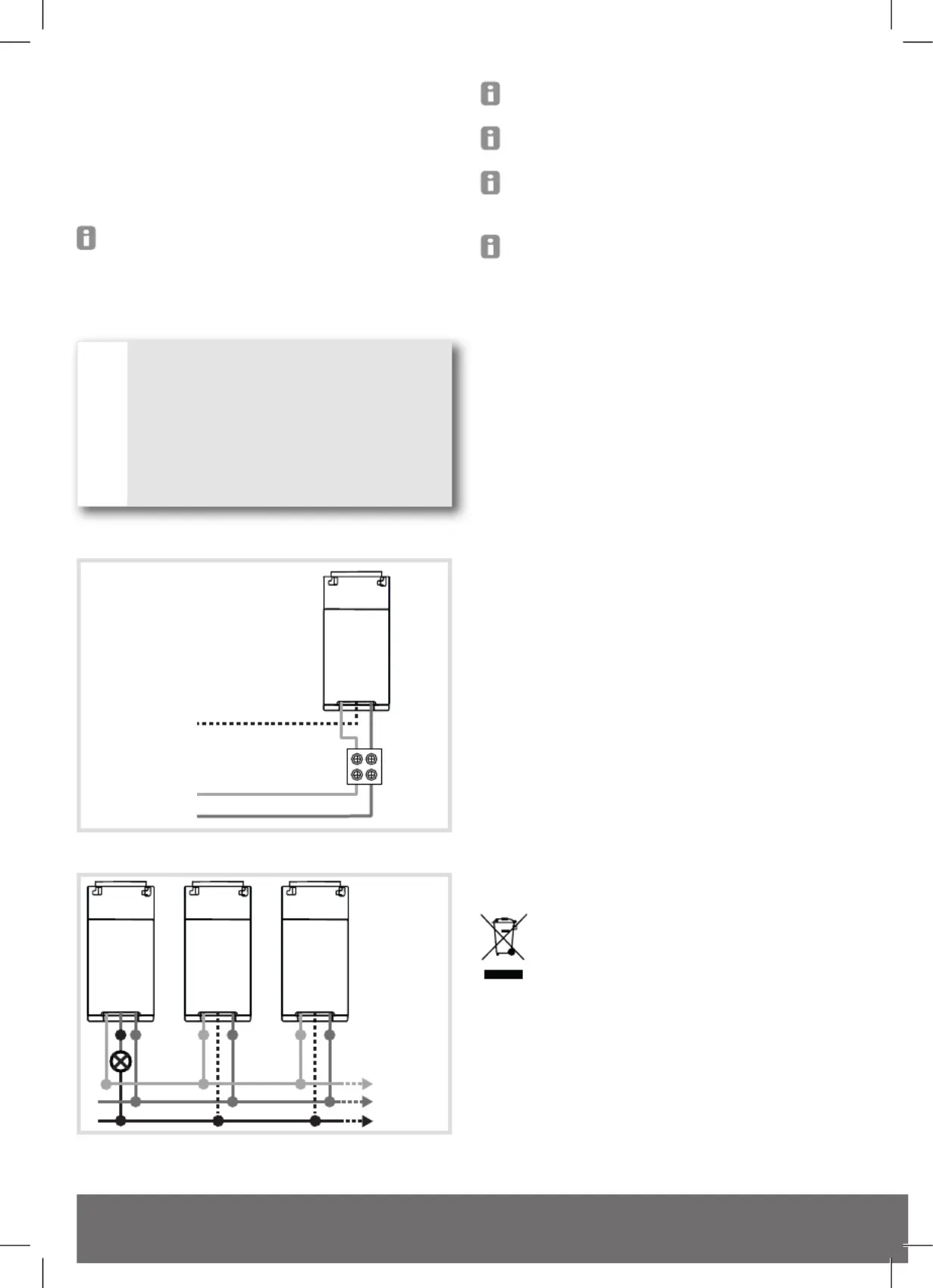

Figure 3: 1 way connection

to additional

Slaves

WBMSLL

WBMDxxx / WBME5A

Active / L

Load

Remote

Active / L

Neutral

Remote

Active / L

Neutral

Remote

Figure 4: Multi way connection

Neutral connection at the slave is only required

for LED indication always on.

Main device and extension unit must be installed

on the same phase.

Optional LED indication requires a neutral

connection oﬀ the same circuit as the master it is

connected to.

Install a miniature circuit breaker of max. 10 A as

device protection.

Technical data

Operating voltage 230 V~ +/-10%

Frequency 50 Hz

Momentary-contact current > 10 mA

Circuit breaker max. 10 A

Degree of protection IP2X

Power consumption

-Status LED Oﬀ

- Status LED On

< 0.07 W

< 0.3 W

Extension unit cable length

Load and extension unit cable

- in a common cable

- in separated cables

max. 20 m

max. 50 m

Terminal block cables max. 2 x 1.5 mm²

max. 1 x 2.5 mm²

Flying leads, ﬂ exible 100 mm x 1,5 mm²

Operating temperature -5 … 50 °C

Storage temperature -20 … 70 °C

Relative humidity (without

condensation)

0 … 65 %

Troubleshooting

Unde ned interferences during operation

Extension unit cable length too long or or a separa-

ted extension unit cable has not been used.

Adhere to extension unit cable length or use

separate extension unit cable if necessary

End of life treatment of electrical/

electronic equipment and batteries

in the European Union countries.

The crossed-out ‘wheeled bin symbol’ marked on

the equipment or its packaging, indicates that this

product is not to be disposed off with unsorted

municipal / household waste. Please check with

your local authority or retailer for recycling and

collection advice. This will enable you to contribute

to the disposal, treatment and recycling in an

environmentally sound way and help to prevent

potential negative effects on the environment and

human health.
