Side 1/4
www.hager.com
Safety instructions
Electrical equipment must only be installed and assembled by a qualied
electrician in accordance with the relevant installation standards, regulations,
directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to
the device, re or other hazards.
Function
Mechanical press switches for electrical installations in buildings.
Bell switch comes with imprinted bell symbol for door bell applications.
Correct use
- For the ush-mounted installation in standard wall boxes
(recommended wall box depth ≥ 35 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage: 250 V~
Frequency: 50/60 Hz
Rated current: max. 10 A
Conductor cross-section of screw terminals: max. 3 x 1.5 mm²
Distance of xing holes: 60.3 mm
Switch compliance: BS EN 60669-1, IEC 60669-1
10A press switch 1g / 2g / 3g / 4g
10A bell switch
Hager Muse / Hager Inspire
Installation manual
2
Information for electricians
Installation and electrical connection
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and
cover all live parts in the area!
ç

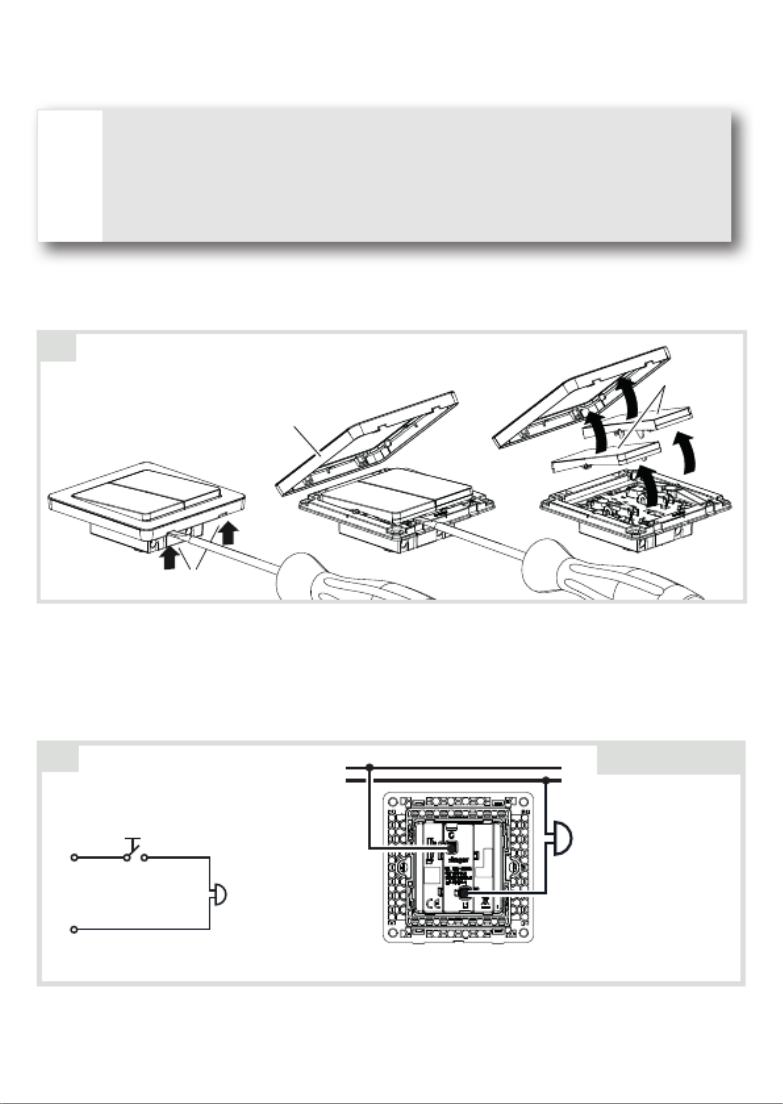

Preparing the device for installation
(for example “10A 2gang press switch”)
Rockers
Frame
Notches
1
Carefully loosen the frame on the notches with a at-blade screwdriver. Lift up and
remove the frame (1).
Remove the rockers also with a at-blade screwdriver.
Connecting the device
N
L
L
N
CL1
General circuit diagram Bell switch
2A Bell switch
Bell switch
Bell
Bell
