INS_TER-F01[PD] 08/12/19 PAGE 1

INSTALLATION AND OPERATION MANUAL TER-F01 SERIES

TER-F01 Series

10/100 MBPS ETHERNET REPEATER WITH 60 W PASS-

THROUGH POE

The is an repeater to 60 watts of TER-F01 series Ethernet supporting up Pass-through

PoE, providing simple cost-effective extend signals a and way to Ethernet beyond

the standard 328 meter) TER-F01 used Ethernet foot (100 limit. The can be to

double distance (200 multiple units combined the to 656 feet meters) or can be in

series unit providing additional feet meters). with each an 328 (100 The TER-F01 is

powered pass-through a midspan injector, requiring by PoE from PoE switch or no

local power consumption ensures power power. Low that maximum is made

available remote to the PD device.

The through the to the next or as a standard configuration passes PoE device, PD

model, acts as the final PoE in the chain and does not the which unit pass through PoE.

This manual serves the following

Model Names:

TER-F01

TER-F01PD

INS_TER-F01[PD] 08/12/19 PAGE 2

INSTALLATION AND OPERATION MANUAL TER-F01 SERIES

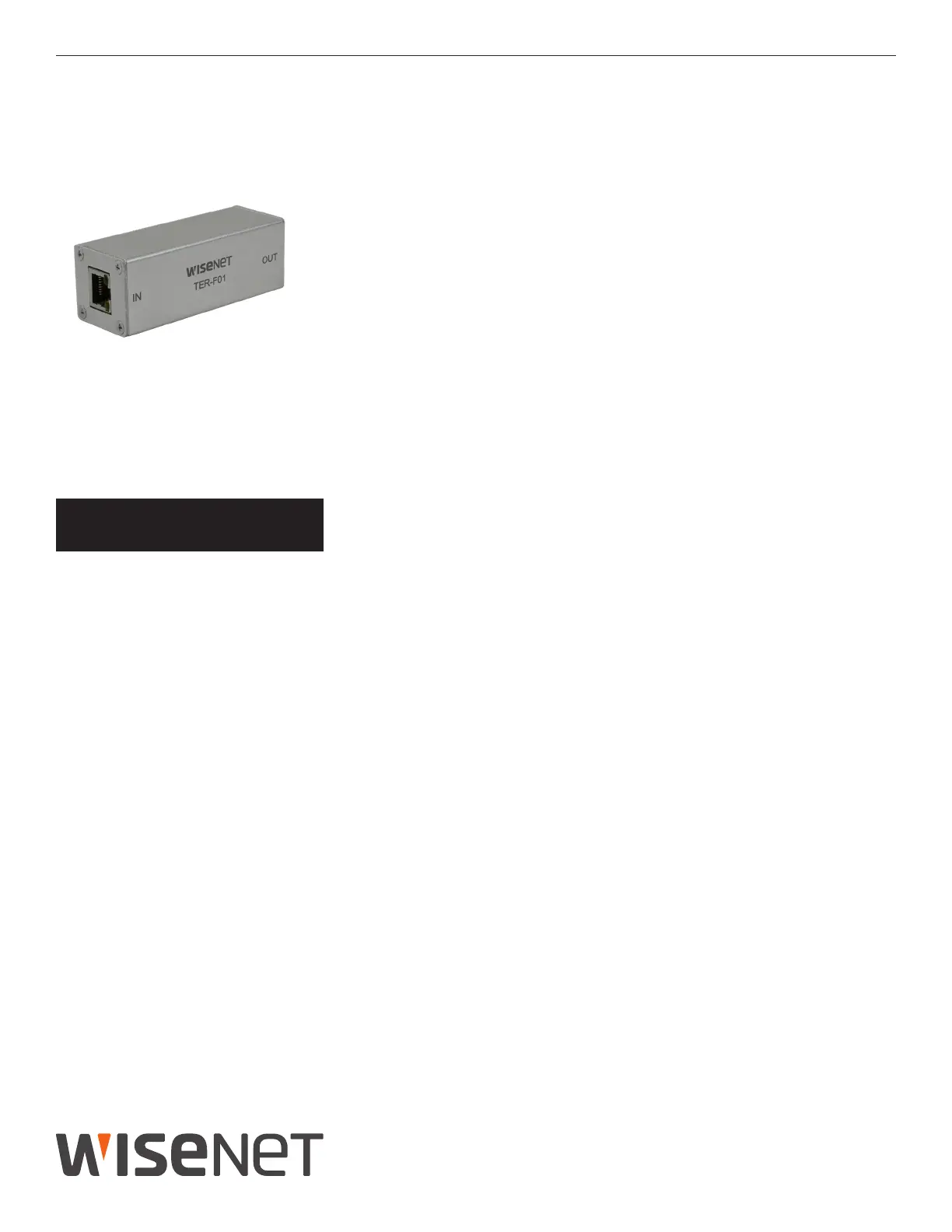

FIGURE 1 – TER-F01[PD] EXTENDER

ETHERNET ETHERNET

Power: Supplied by PSE

Power Consumption: <1 W

FIGURE 3 – INDICATING LEDS

COPPER

GREEN Solid – No Activity

Blinking – Activity

YELLOW Highest Data Rate

(100Mb)

INSTALLATION CONSIDERATIONS

The TER-F01[PD] is supplied as a 3.3 × 1.25 × 1.25 in (8.4 × 3.2 × 3.2 cm) tube

module.

Units should be installed in dry locations protected from extremes of temperature

and humidity.

WARNING: Unit is to be used with a Listed Class 2 power supply.

IMPORTANT SAFEGUARDS:

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may

be greater than room ambient. Therefore, consideration should be given to

installing the equipment in an environment compatible with the maximum

ambient temperature (Tma) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such

that the amount of air flow required for safe operation of the equipment is not

compromised.

FIGURE 4 - DIMENSIONS

Dimensions are for a tube module

3.2 cm

[1.25 in]

3.2 cm

[1.25 in]

8.4 cm

[3.3 in]

Note: Ports are universal, and either can be used as in or out.
